Product Features
Heavy-Duty Frame & Construction
Built on a 12" I-beam main frame (19 lbs/ft) with 3" channel crossmembers on 16" spacing, this trailer is designed to handle extreme loads while maintaining long-term rigidity and reliability.
Heavy-Duty Axles & Suspension
Choose from high-capacity Dexter axles: 10k dual oil bath as standard, with upgrades to 12k or even 16k axles available. Further enhance performance with premium options like Hutch suspension or hydraulic disc brakes.
Versatile Deck & Ramps

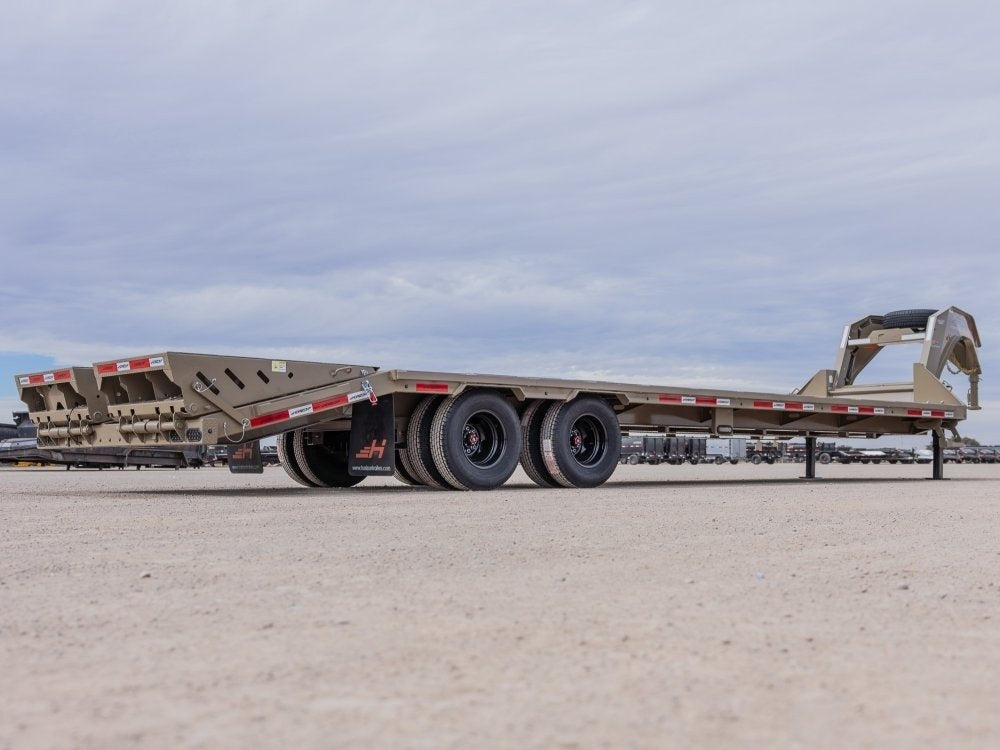

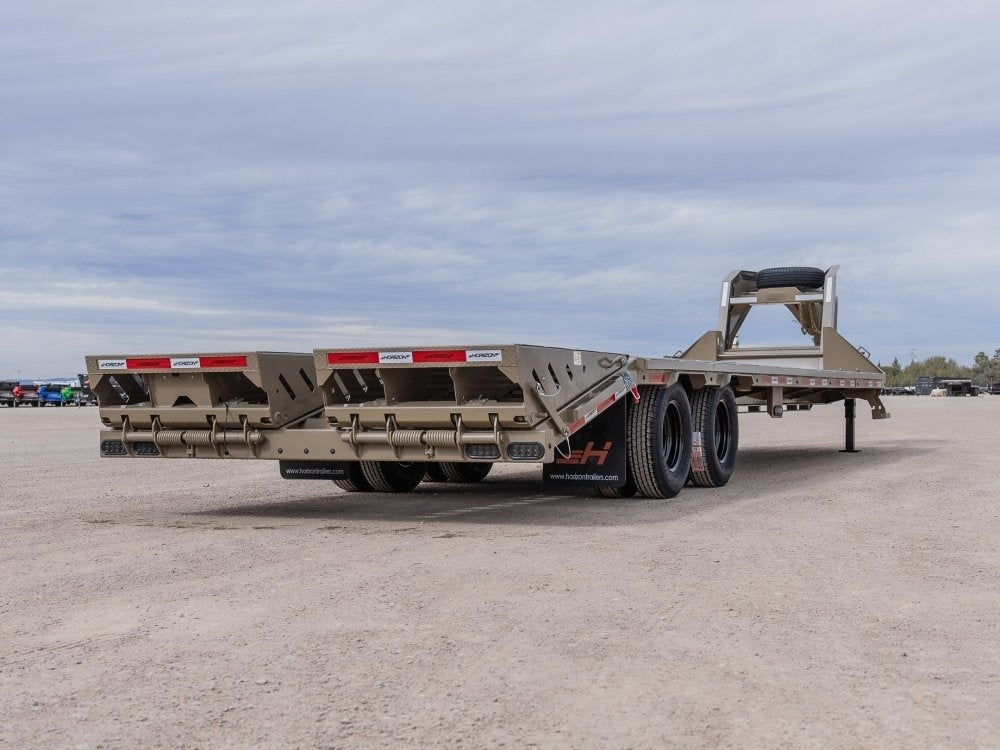

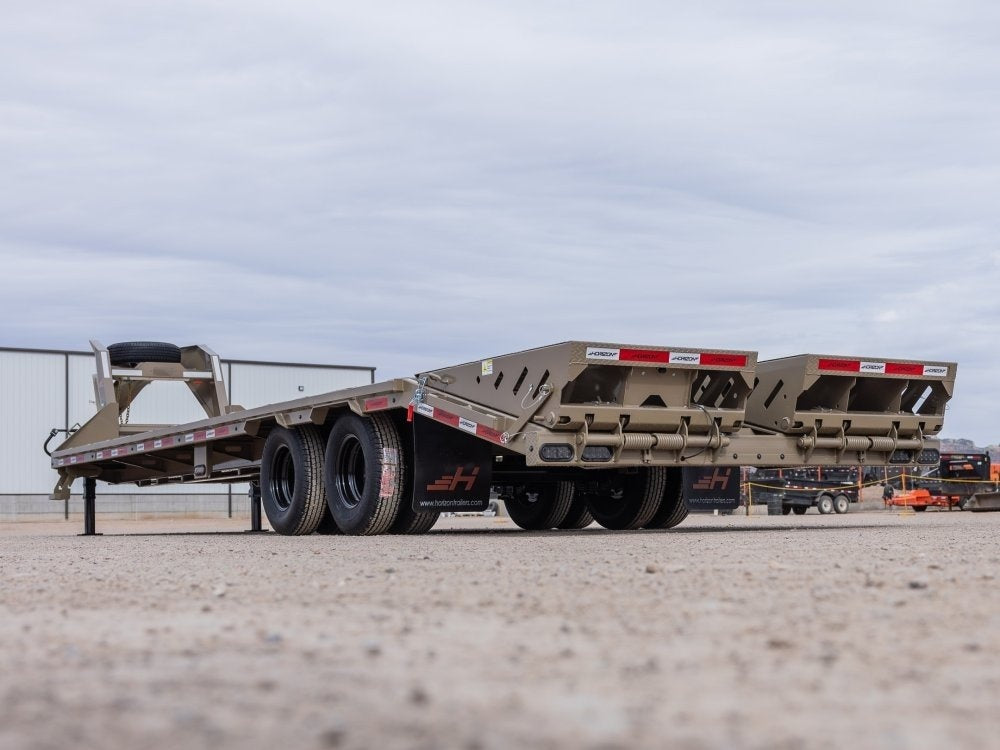

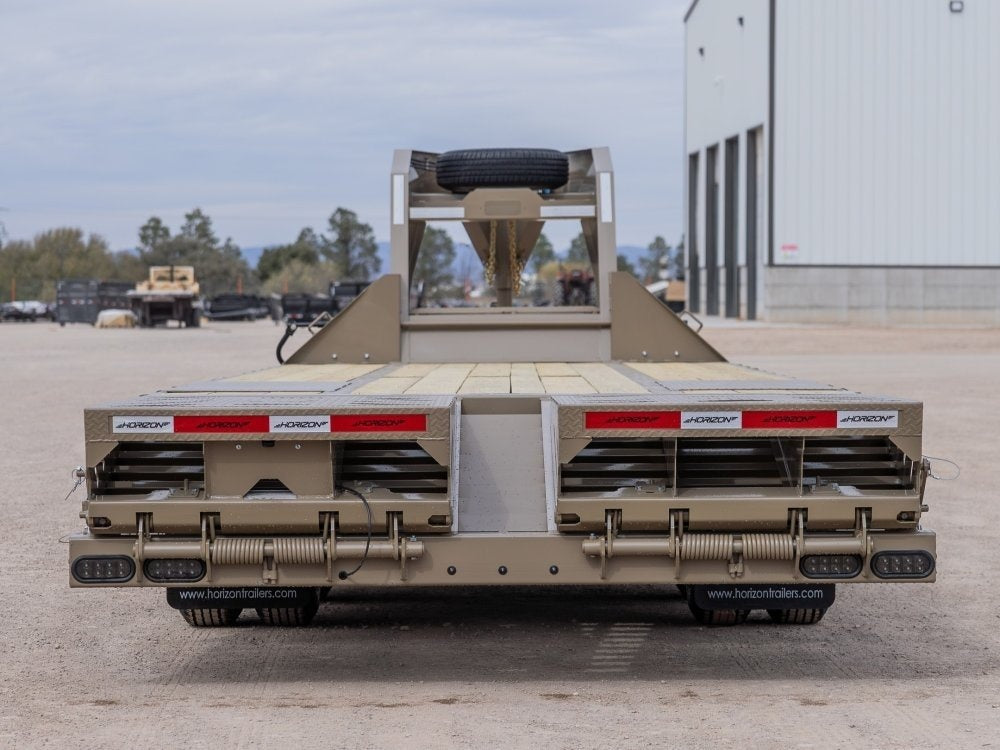

Wood deck with standard 8' slide-in ramps provides easy equipment loading. Optional 5' dovetail with 2 Mega Ramps delivers added convenience and capacity for heavier machinery.
Durable Powder-Coated Finish
Steel grit blasting and powder coating, with optional zinc primer undercoat, protect the trailer from corrosion, wear, and environmental damage. Multiple color options allow fleet or personal customization.
Hauling Made Easy

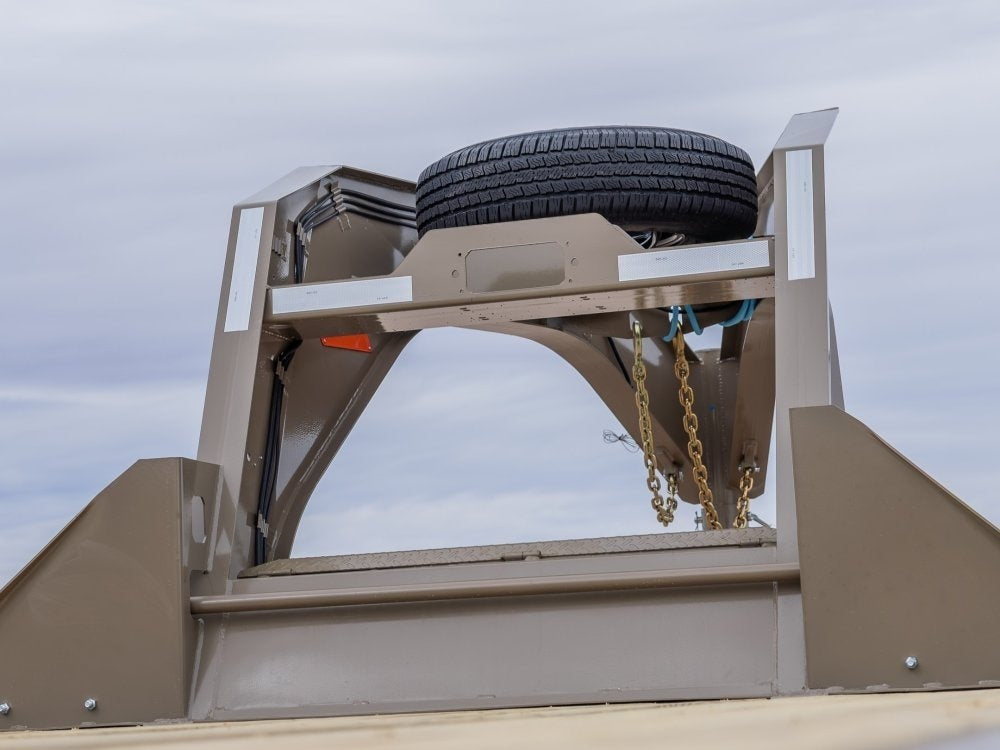

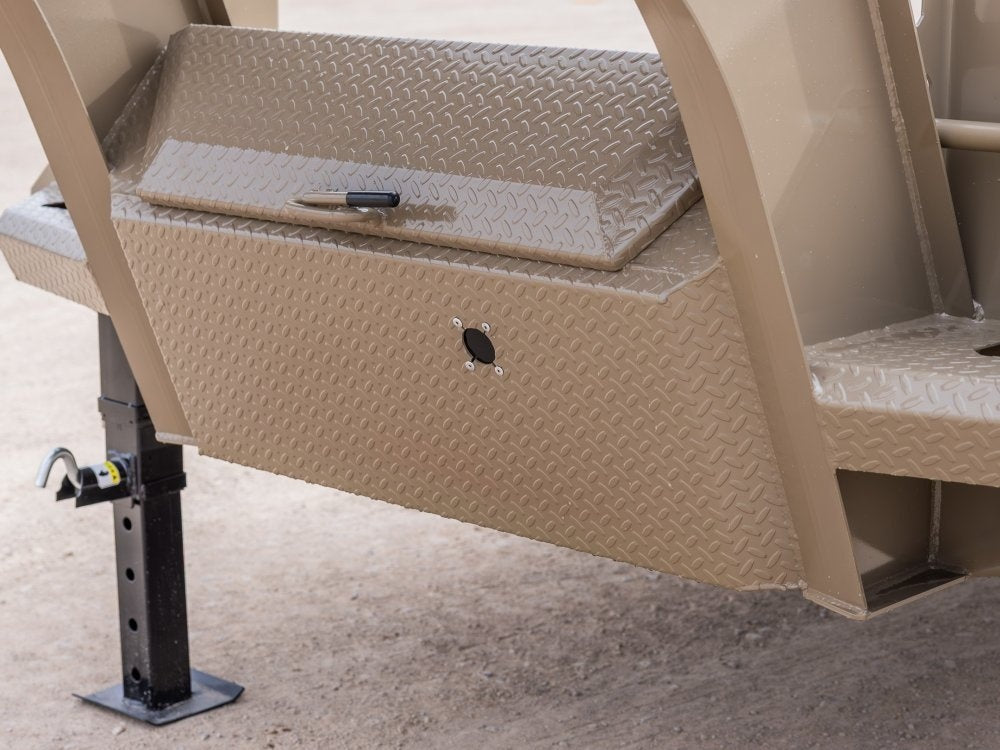

Tailor your trailer with an abundance of practical options. Equip it with the front-mounted lockable Locker Style Toolbox, a side-mount toolbox, a spare tire, solar panel, cargo lights, full-length slide rails, and ratchet straps to create your ideal heavy-haul configuration.
Premium Engineering

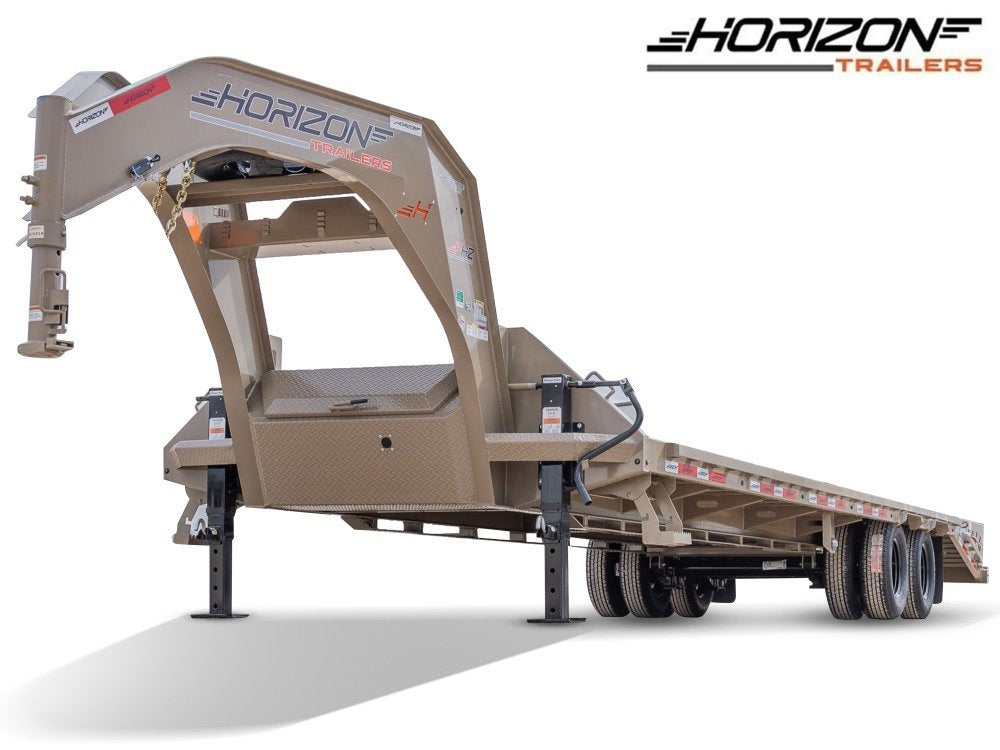

Horizon goes above and beyond with engineering focused on strength and versatility. The design includes a full deck-over-neck configuration, creating a continuous, unobstructed load surface from the front of the neck to the rear bumper.
Product Details
DIMENSIONS
- LENGTH:
- 20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40', 42', 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
RUNNING GEAR
- TIRES:
- ST235/80R16
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,080 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLES:
- 2 - 10k Electric Brake Dual Oil Bath Axles
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
WEIGHT RATINGS
- GAWR:
- 10k, 12k, 16k
- GVWR:
- 25k - 30k lbs

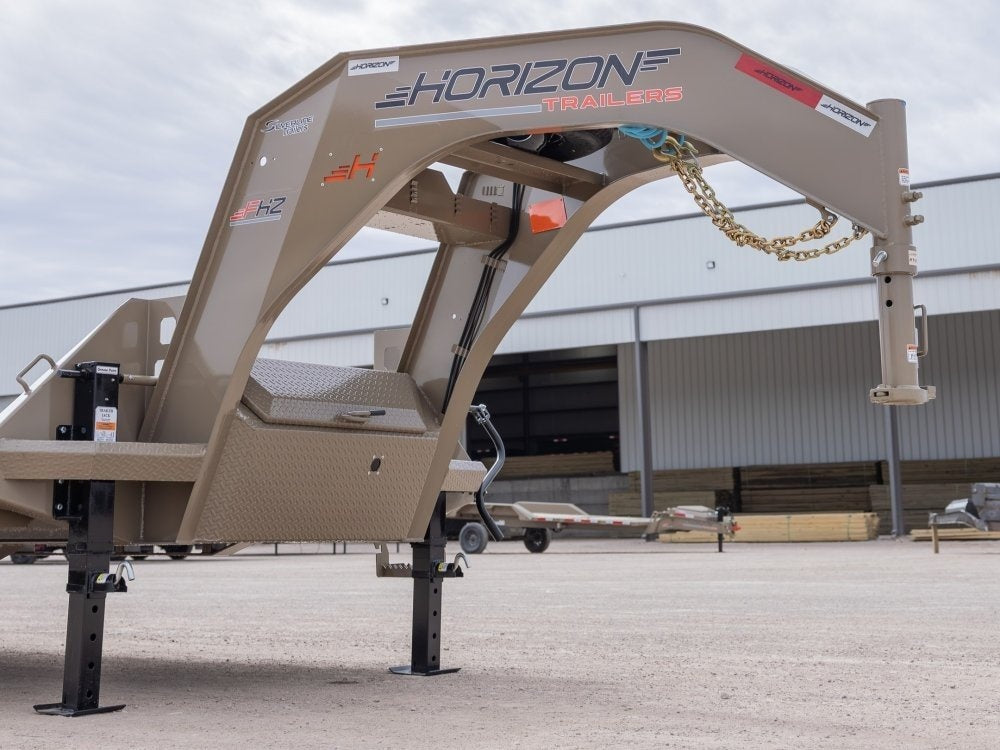

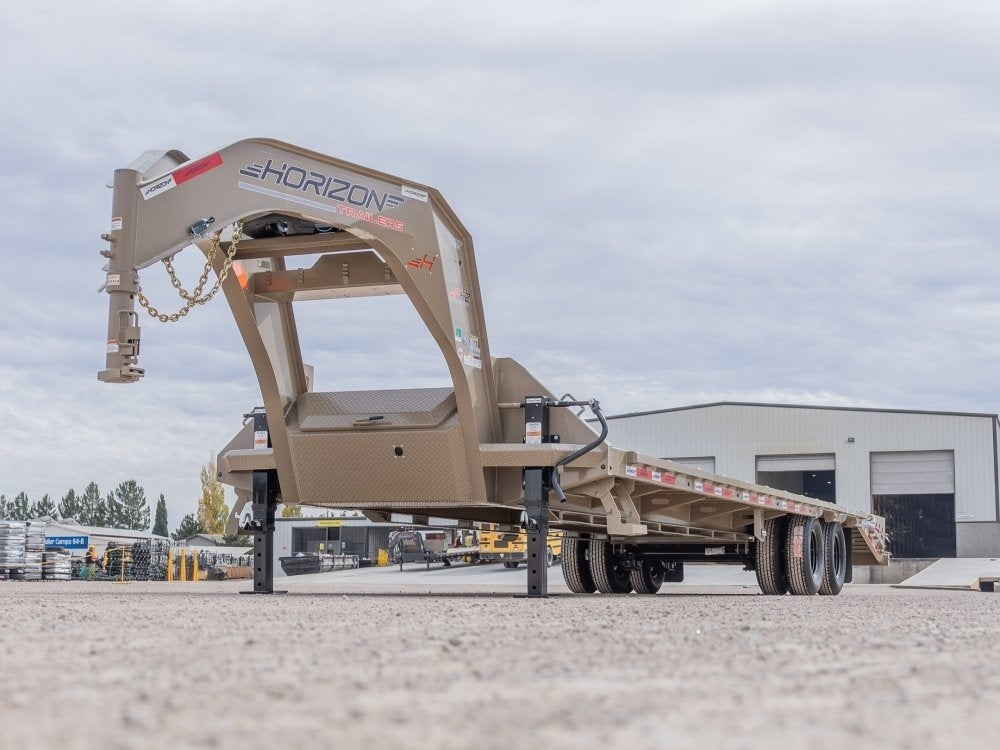

GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 98" Long
- HEIGHT:
- 70" (From Underneath Neck)
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)

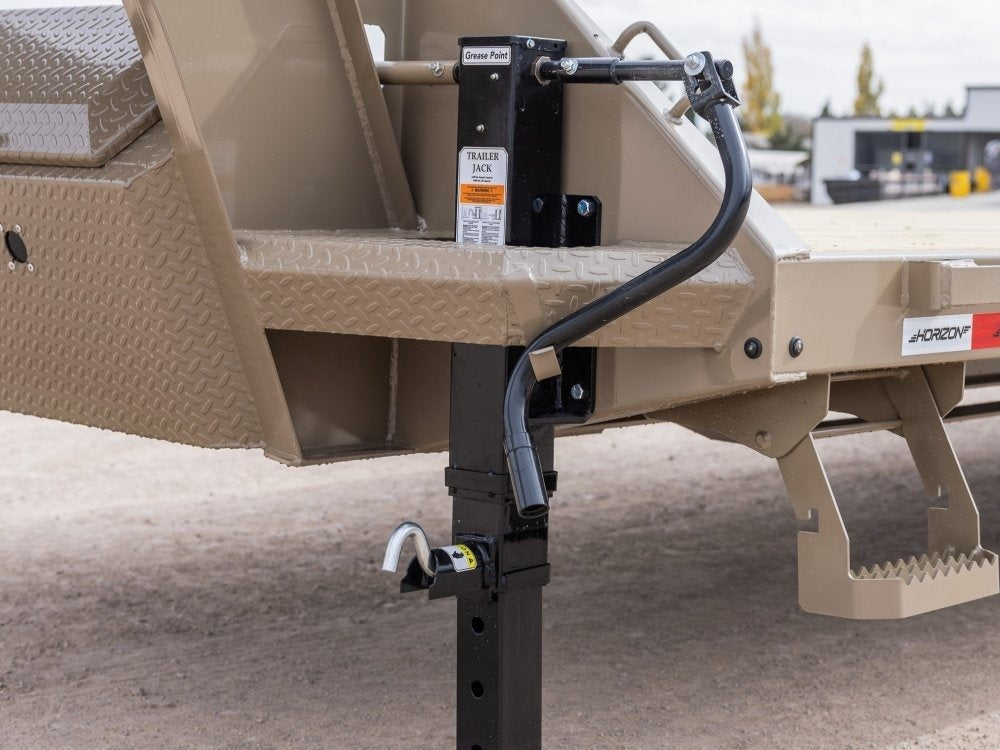

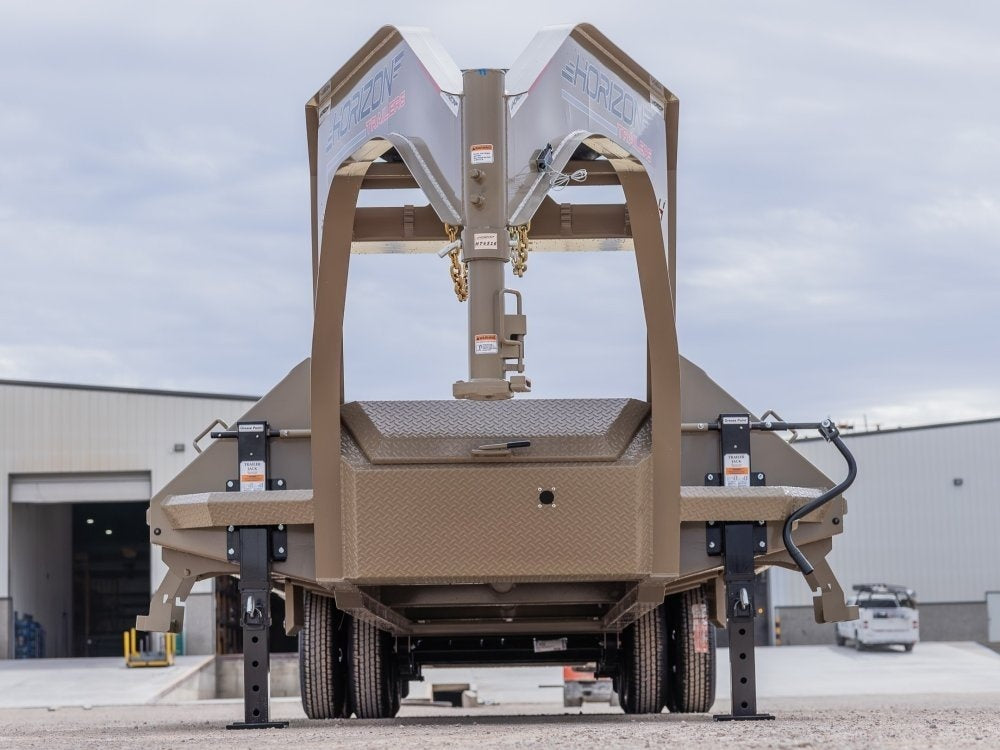

- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19 lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK TYPE:
- Wood
- RAMPS:
- 8' Slide In Ramps

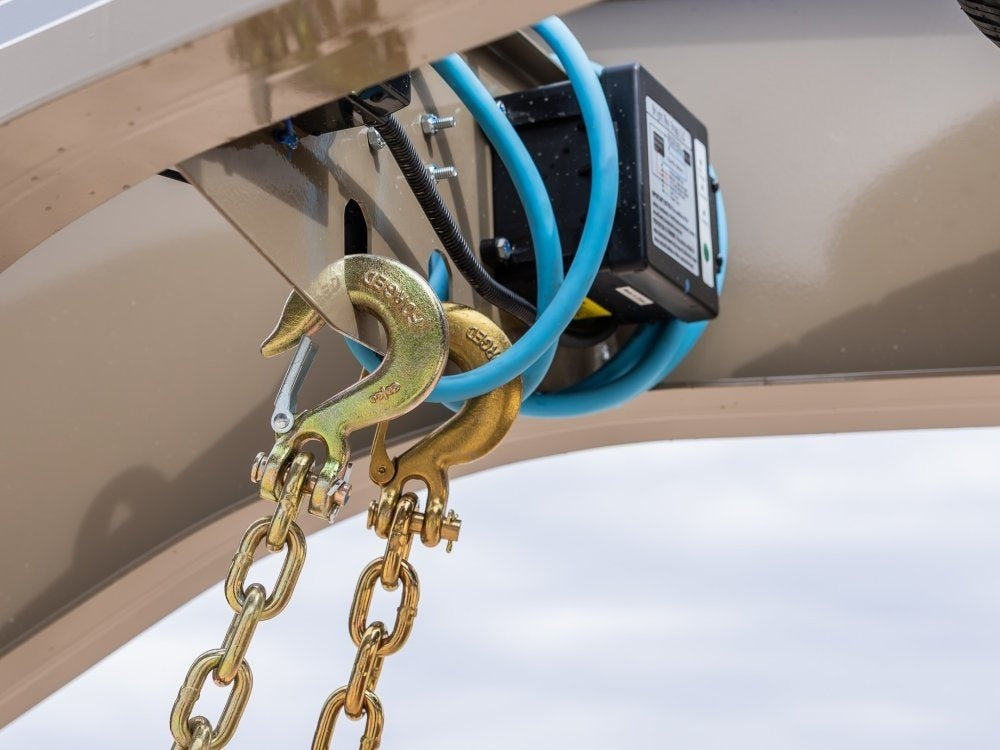

SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
