Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

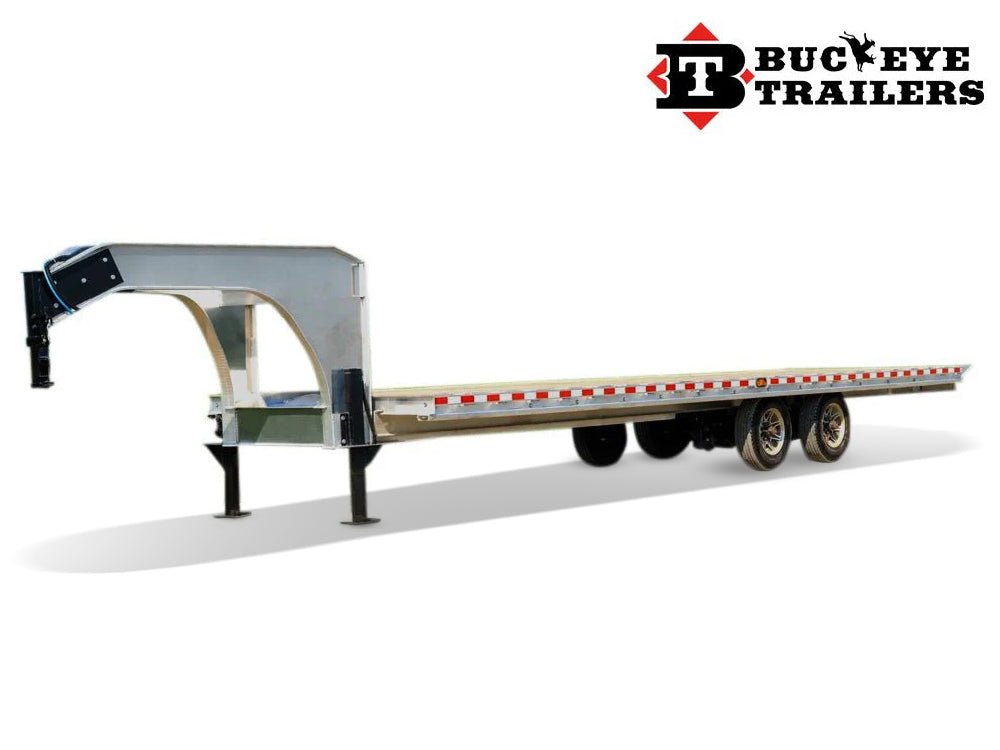

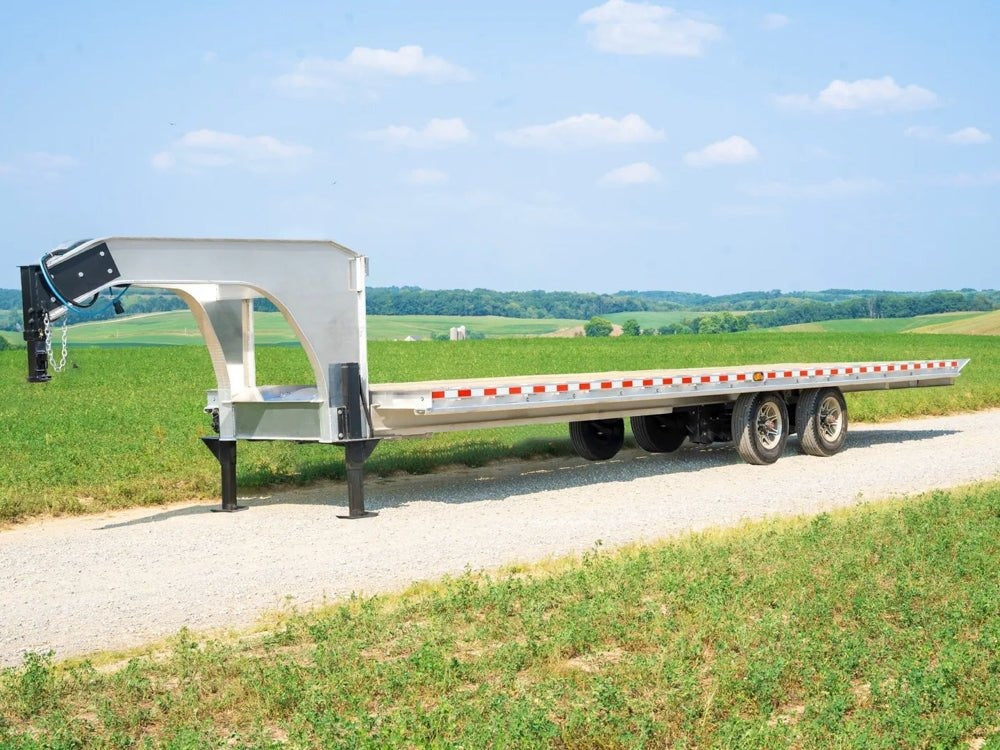

- Aluminum Gooseneck Flatbed Trailer
- GVWR:
- 14,000 to 24,000 lbs
- PAYLOAD:
- 7,800 to 17,800 lbs
- EMPTY WEIGHT:
- 5,700 lbs

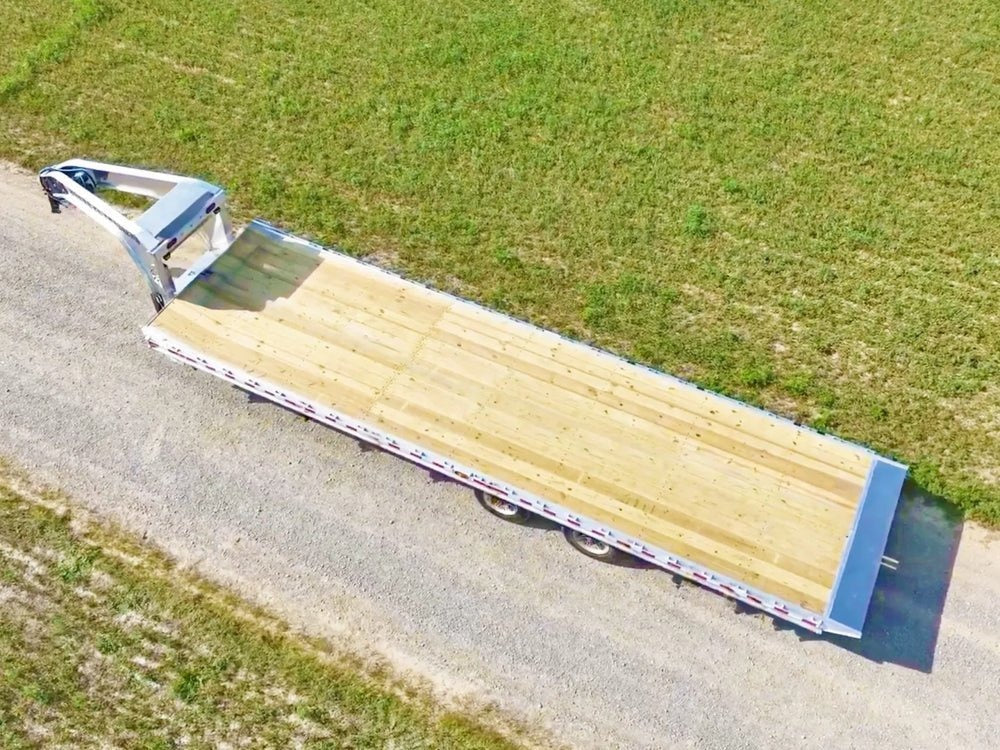

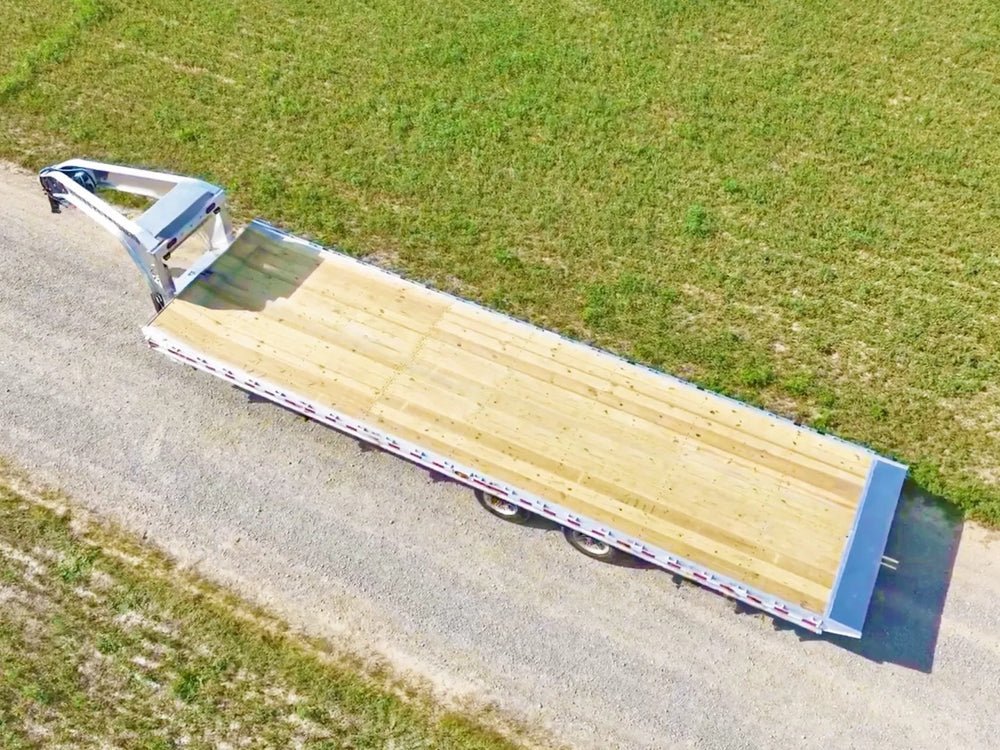

- DECK LENGTH:
- 30'
- DECK WIDTH:
- 102"
- DECK HEIGHT:
- 36"
DIMENSIONS & CAPACITY OPTIONS:
- GVWR:
- Decks over 30' come standard with 8K axles and 20,000 lbs GVWR
- DECK LENGTH:
- 20' to 40' options; decks over 30' come standard with 8K axles
FRAME & SUSPENSION
STRUCTURE:
- FRAME:
- Heavy-Duty Extruded Aluminum
- SUSPENSION:
- Heavy-Duty Slipper Spring w/ 48" Axle Spread
- FLOOR:
- Treated Yellow Pine
- AXLES:
- Dual 10k HD Dexter Oil Bath Axles with a 5-Year Warranty
FRAME & SUSPENSION OPTIONS:
- SUSPENSION:
- Hutch or Ridewell Air-Ride Suspensions
- FLOOR:
- Oak Flooring
- AXLES:
- 12,000 lbs Spring Axles to 16,000 lbs Spring Axles
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- 2"x5/16" Gooseneck Ball Coupler
JACKS:
- TYPE:
- 2 Dual Speed 12k Spring Loaded Drop Leg Jacks
ACCESSORIES:

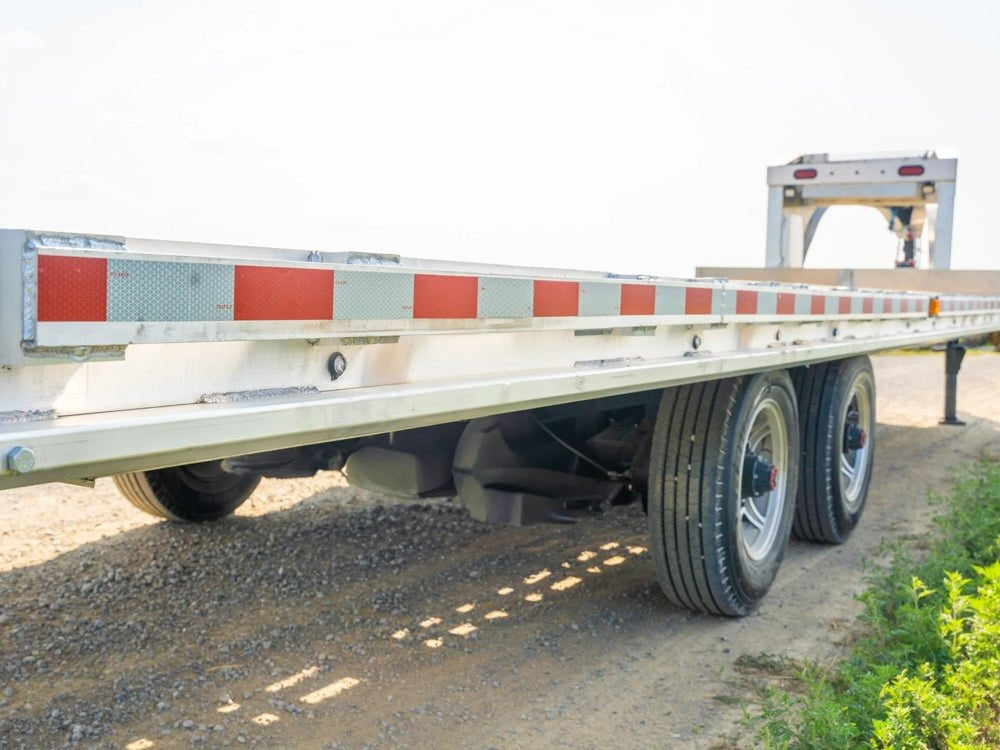

- STAKE POCKETS & RUBRAILS:
- 3"x3/8" Rub Rail, Stake Pockets, and Chain Spools Along Both Sides
- TIE DOWNS:
- Sliding Ratchet Rail Full Deck with 5 Ratchets and 30' Straps
- STORAGE:

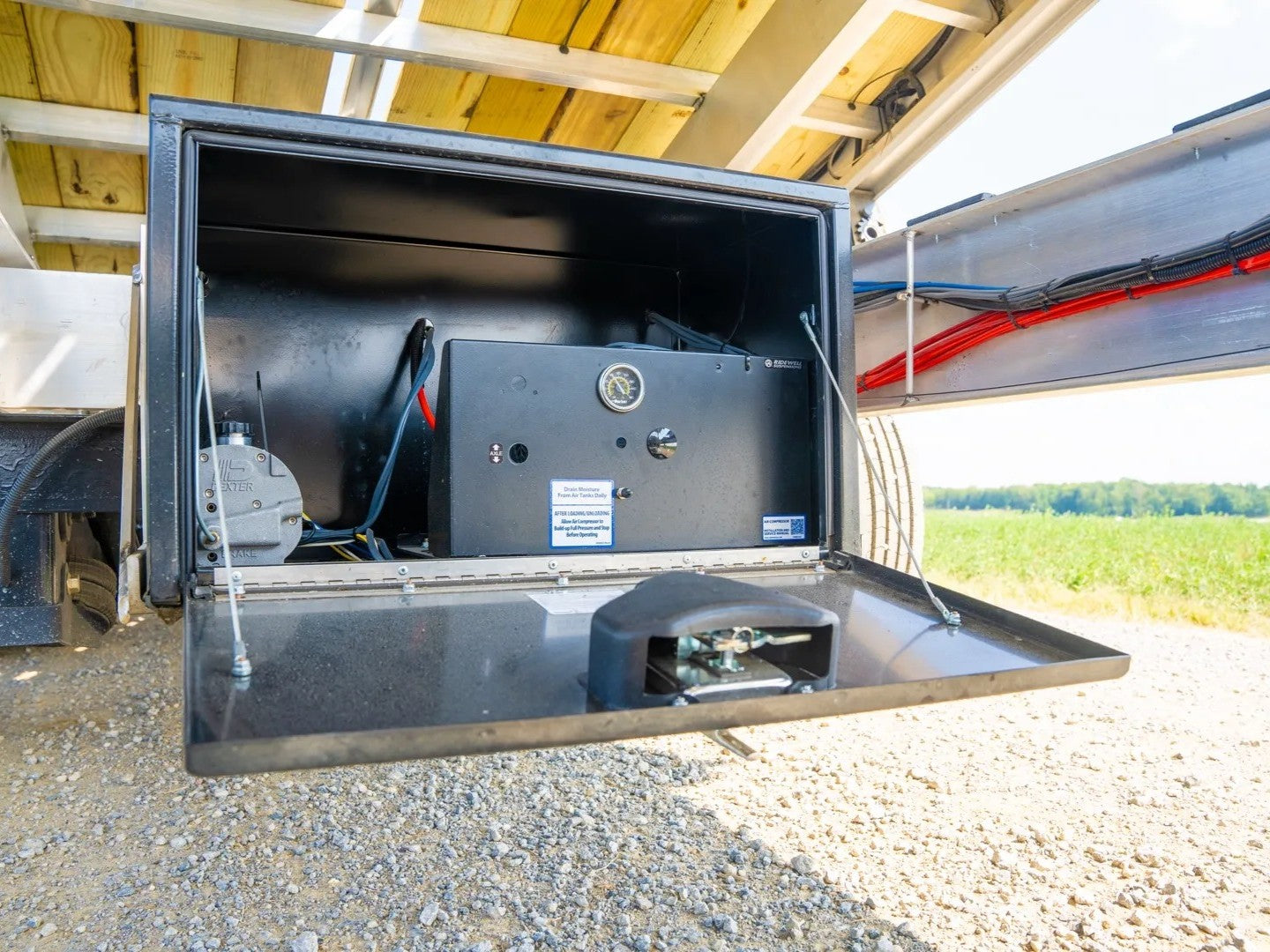

- 2 Steel Side Mount Toolboxes with Locks
- FINISH:
- USA Finished Aluminum
- WARRANTY:
- 1 Year Structural Frame
COUPLER & ACCESSORIES OPTIONS:
- COUPLER:
- 2"x5/16" Gooseneck Ball Coupler with Shocker Hitch
- JACKS:
- 2 Stillwell Hydraulic Jacks
WINCH UPGRADE
WINCH:
- UPGRADE:
- 12,000lb Winch Kit – Wireless Remote Included
RUNNING GEAR & SAFETY

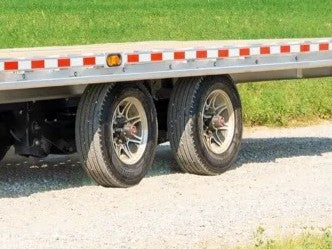

TIRES & WHEELS:
- TIRES:
- 235-80-R16 Load Range G Dual
- WHEELS:
- 235-80-R16 Load Range G Dual with Aluminum Outer Wheels
- BOLT PATTERN:
- 8 on 6.5"
- SPARE MOUNT:
- 235-80-R16 Load Range G Dual Steel Wheel
RUNNING GEAR:
- BRAKES:
- Electric Brakes
- RAMPS:
- 10' Aluminum Ramps Rated for 10,000 lbs
SAFETY:
- REFLECTIVE TAPE:
- DOT Approved Reflective Tape
- TRAILER PLUG:

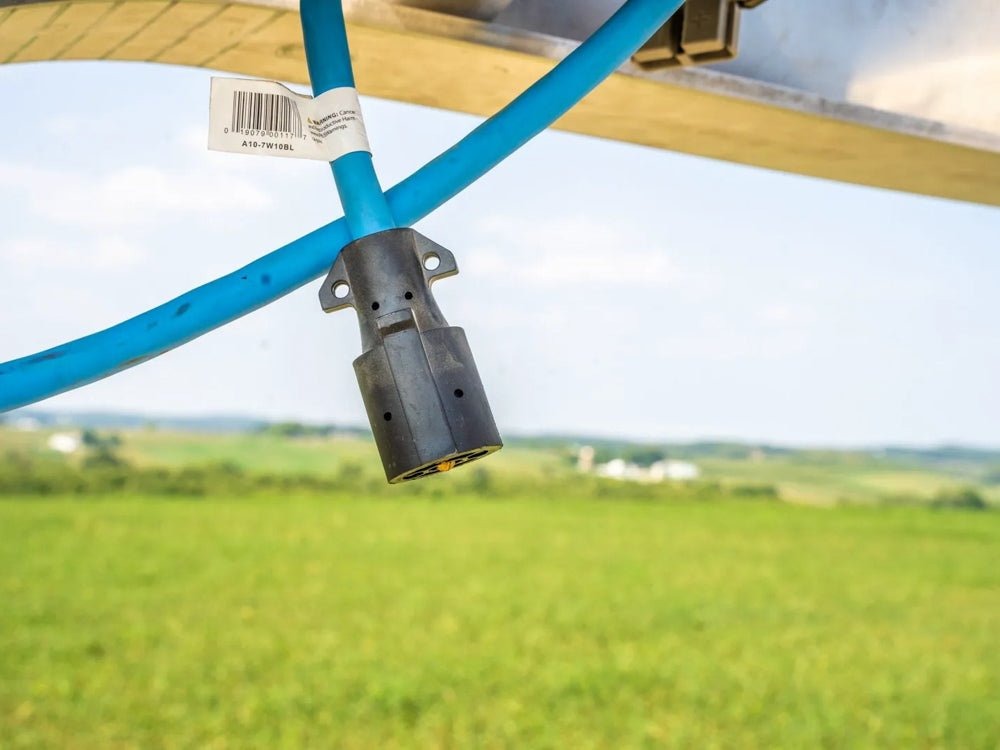

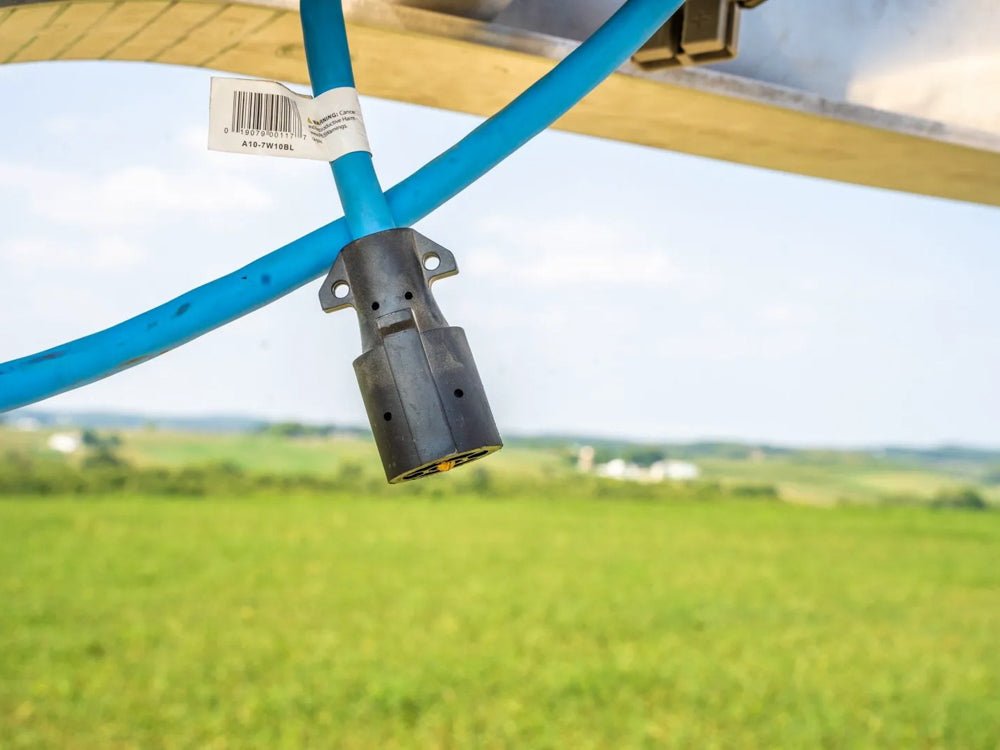

- 7-Way RV
- BREAK-AWAY KIT:
- Breakaway Kit & Battery Box
- SAFETY CHAINS:
- Heavy-Duty 3/8" Safety Chains
- LIGHTS:
- DOT Approved LED Lighting with 6 Extra Bullet Markers and Flood Lights on the Neck
RUNNING GEAR & SAFETY OPTIONS:
- TIRES:
- 235-75-R17.5 Dual Wheel
- SPARE MOUNT:
- 235-75-R17.5 Tire and Wheel
- BRAKES:
- Hydraulic Drum or Disc Brakes
- RAMPS:
- 12' or 14' Aluminum Ramps Rated for 10,000 lbs
- LIGHTS:
- Additional Flood Lights and Bullet Lights
- PACKAGE:
- Trailer Hauling Package (102" Wide Deck, Center Rail, 3 Ball Towers, 12,000lb Winch Kit)
