Product Features
WIDE-OPEN DECK, MAXIMUM LOAD

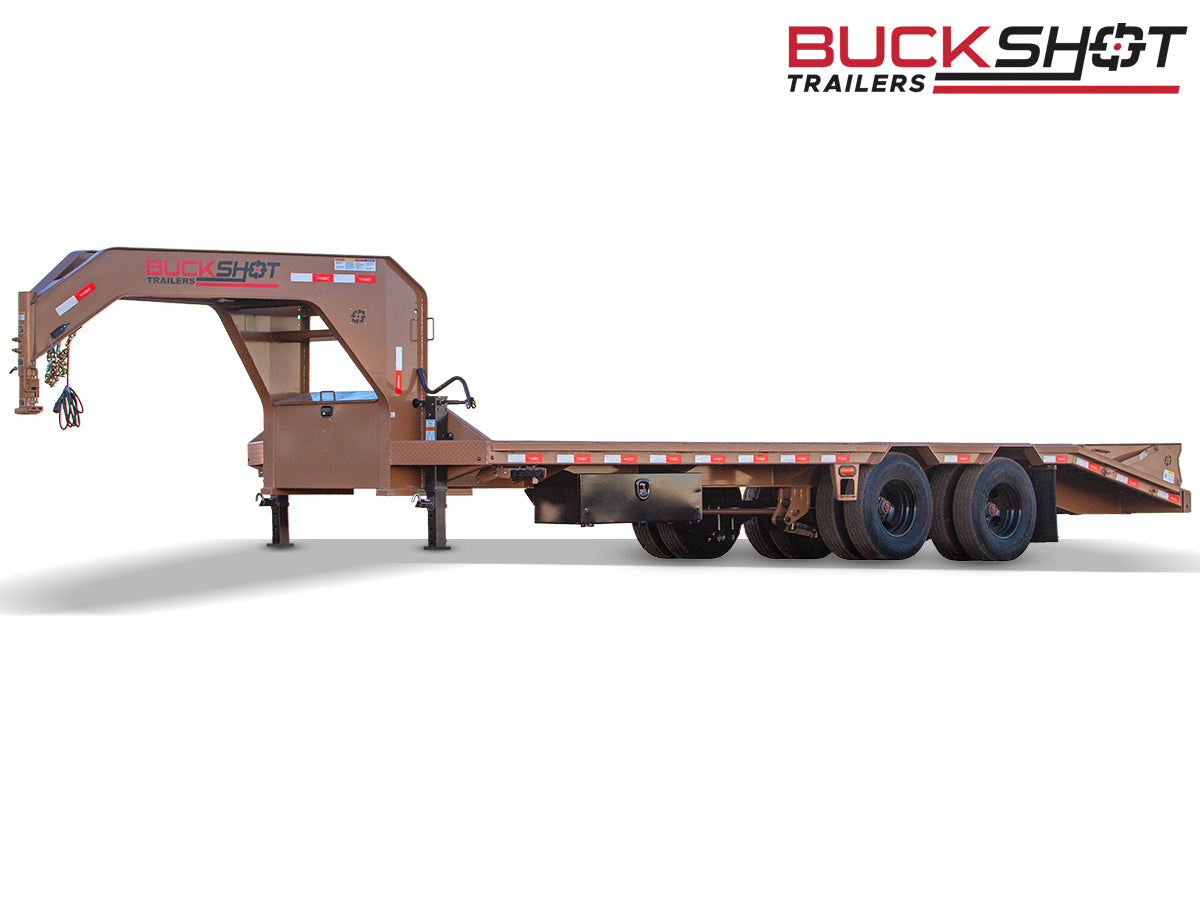

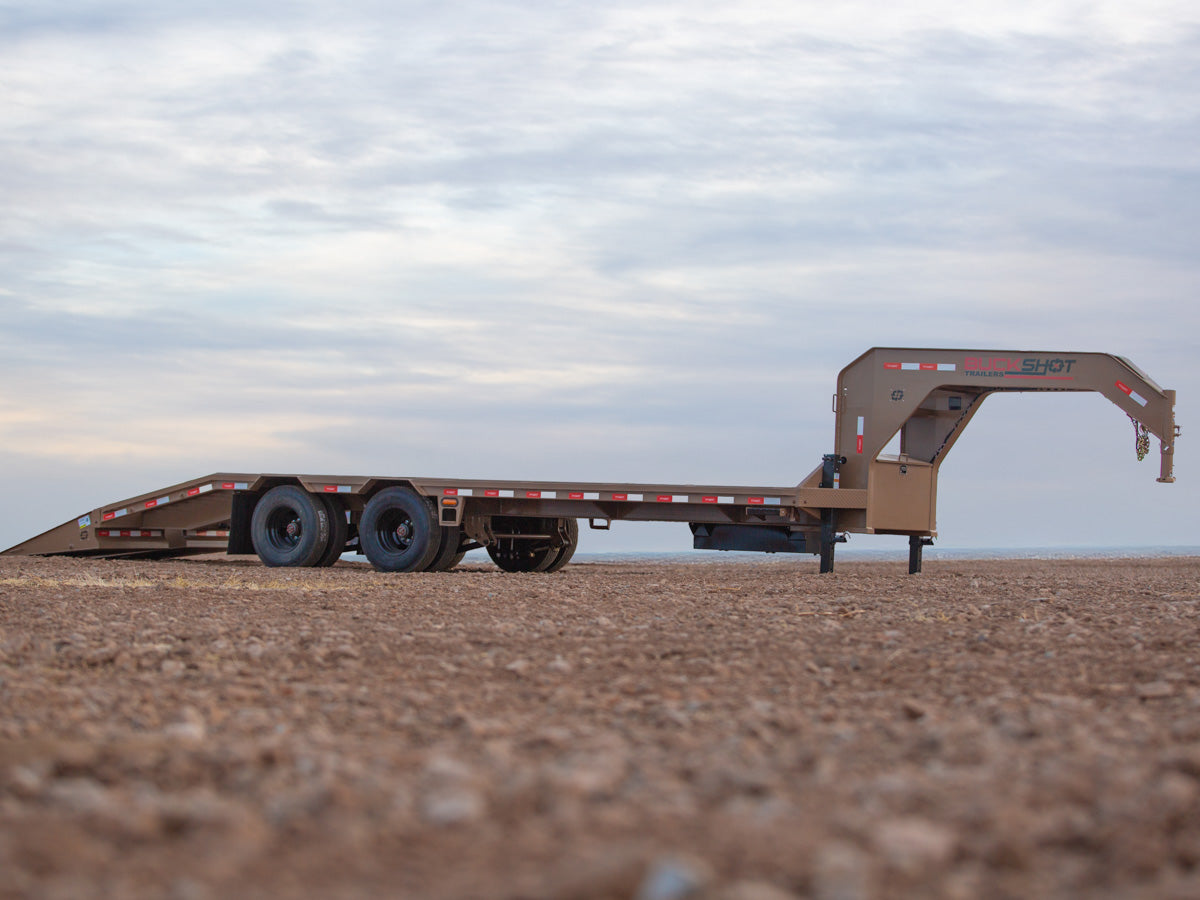

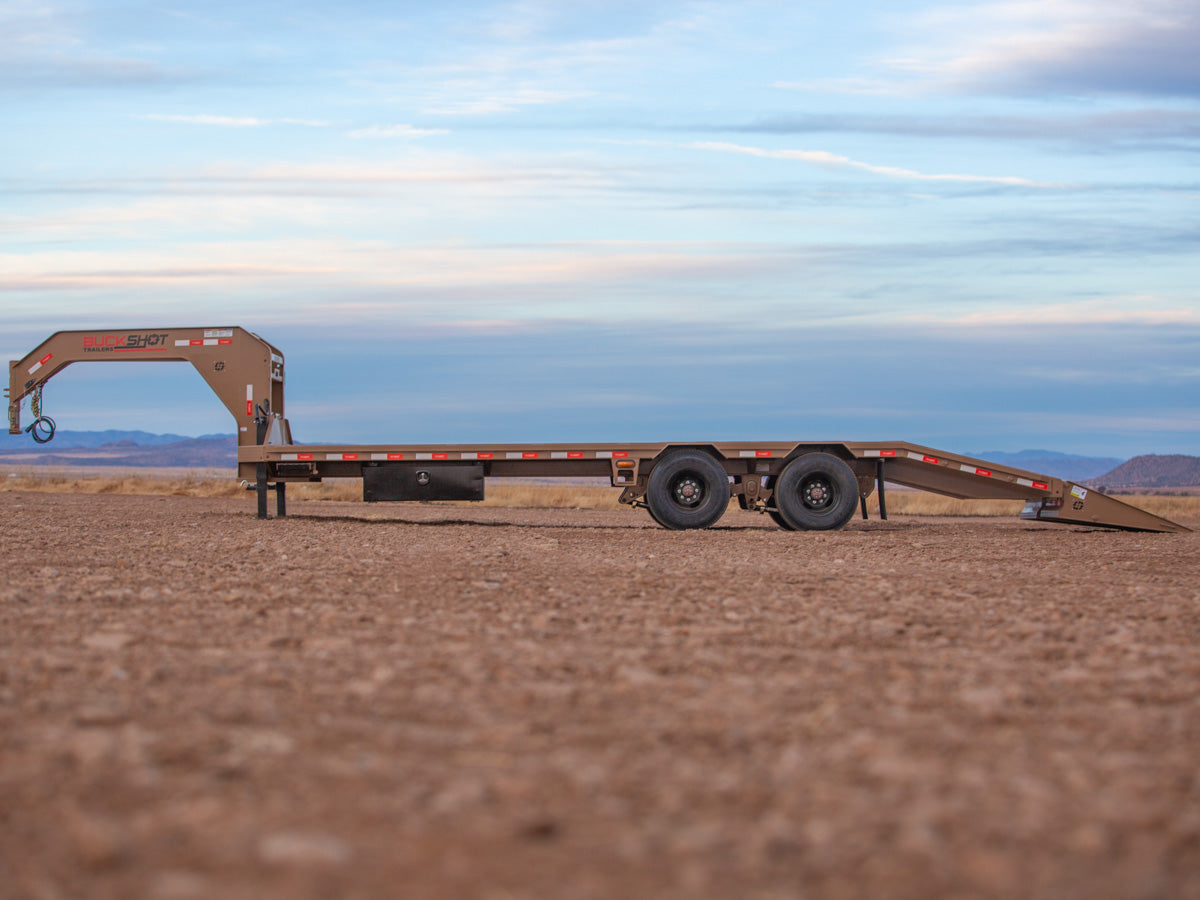

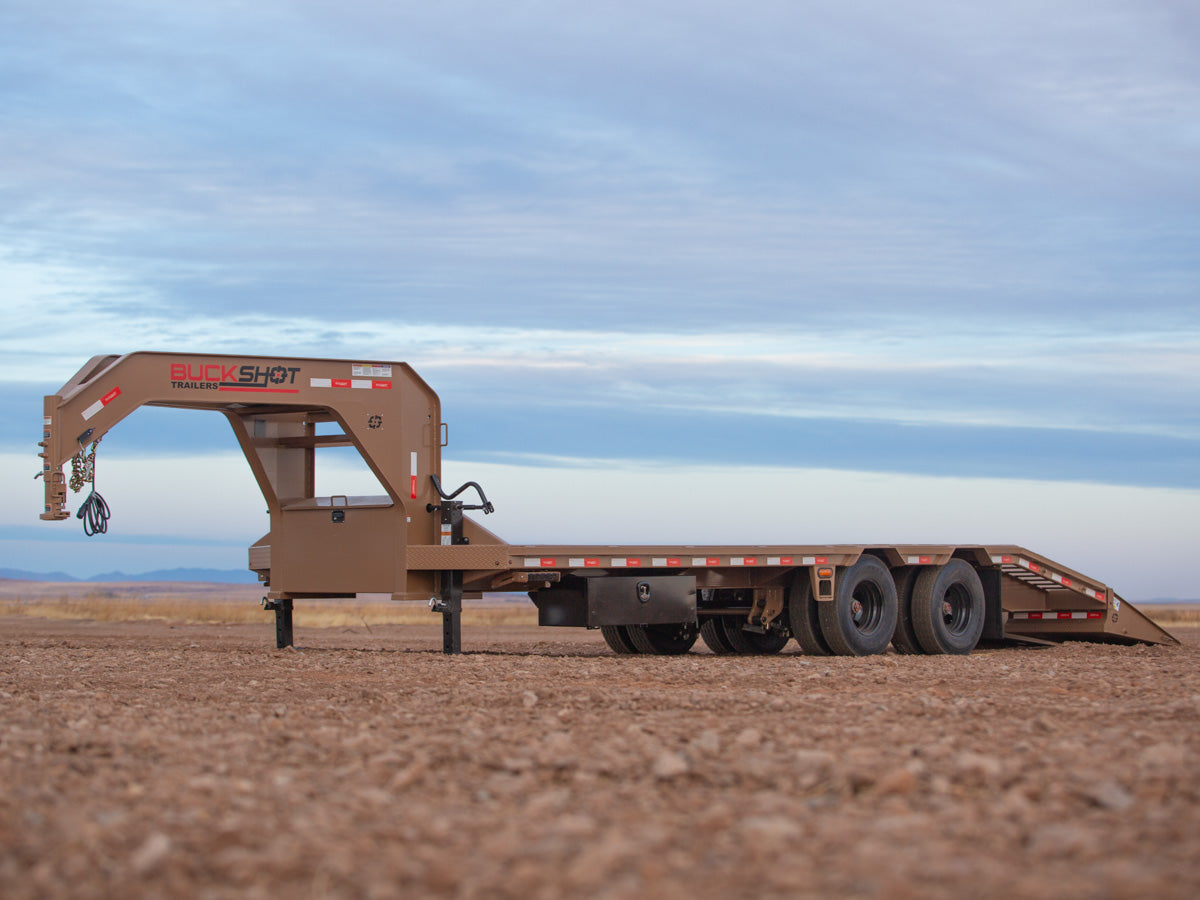

The BOLT is built for operators who need every inch of deck space — a full dual-wheel deckover design on a 12" x 14 lb I-Beam frame rated for 20k–24k lbs GVWR. With lengths from 25' to 40', it handles oversized equipment and wide loads that simply don't fit on a standard trailer.
ADJUSTABLE HEAVY-DUTY SUSPENSION
HDSS Adjustable Suspension gives the BOLT a tunable ride that can be dialed in for different load weights and road conditions. It's a suspension system designed for the realities of hauling heavy, oversized loads day after day across all terrain types.

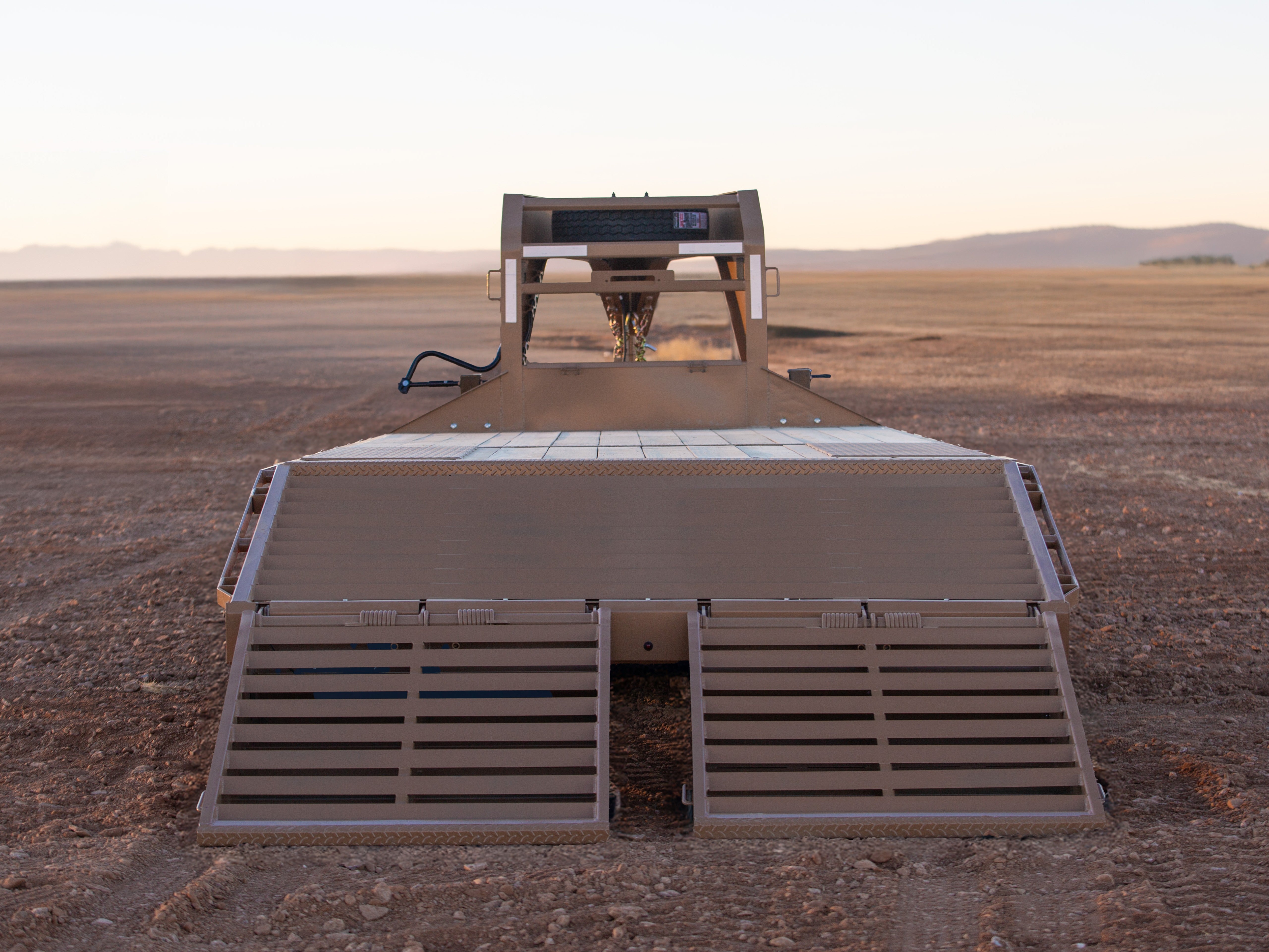

5' DOVETAIL WITH FLIP-OVER RAMPS

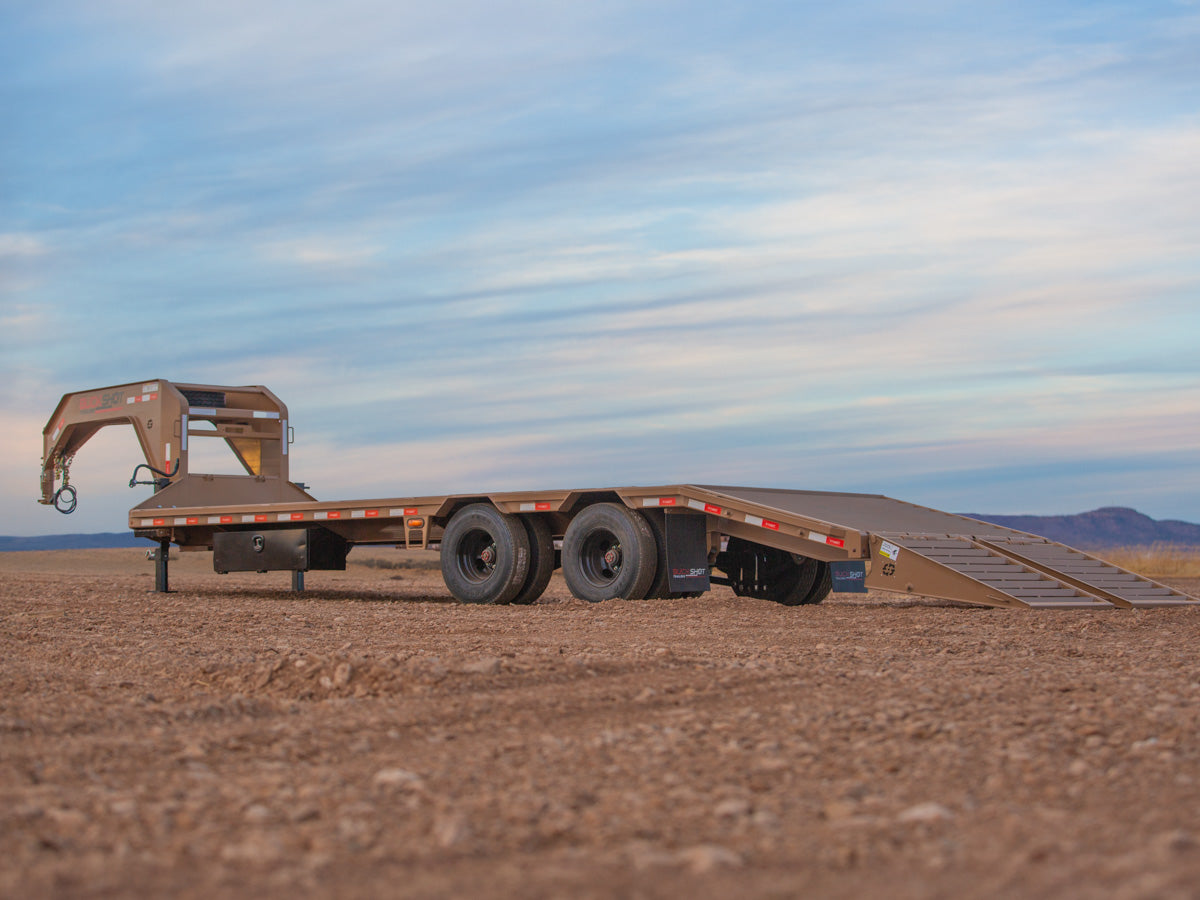

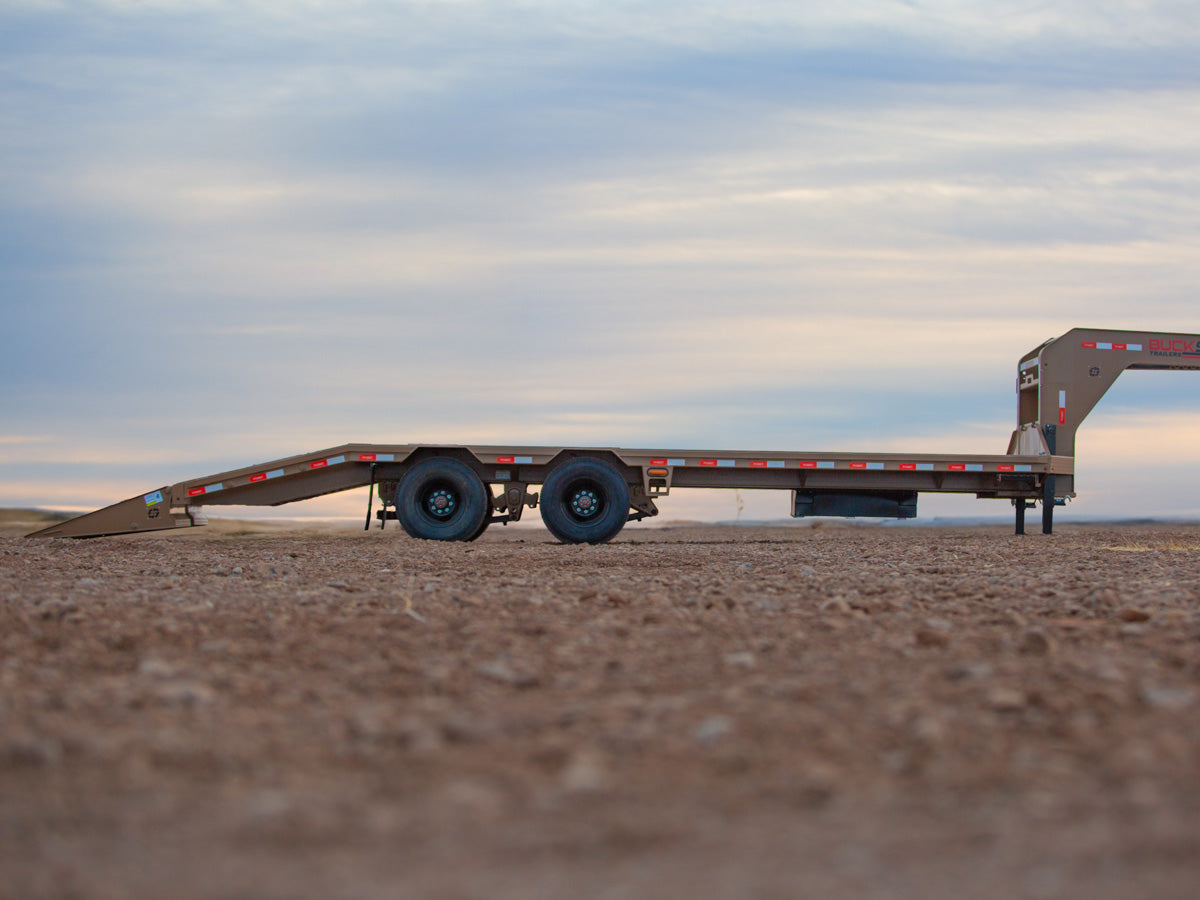

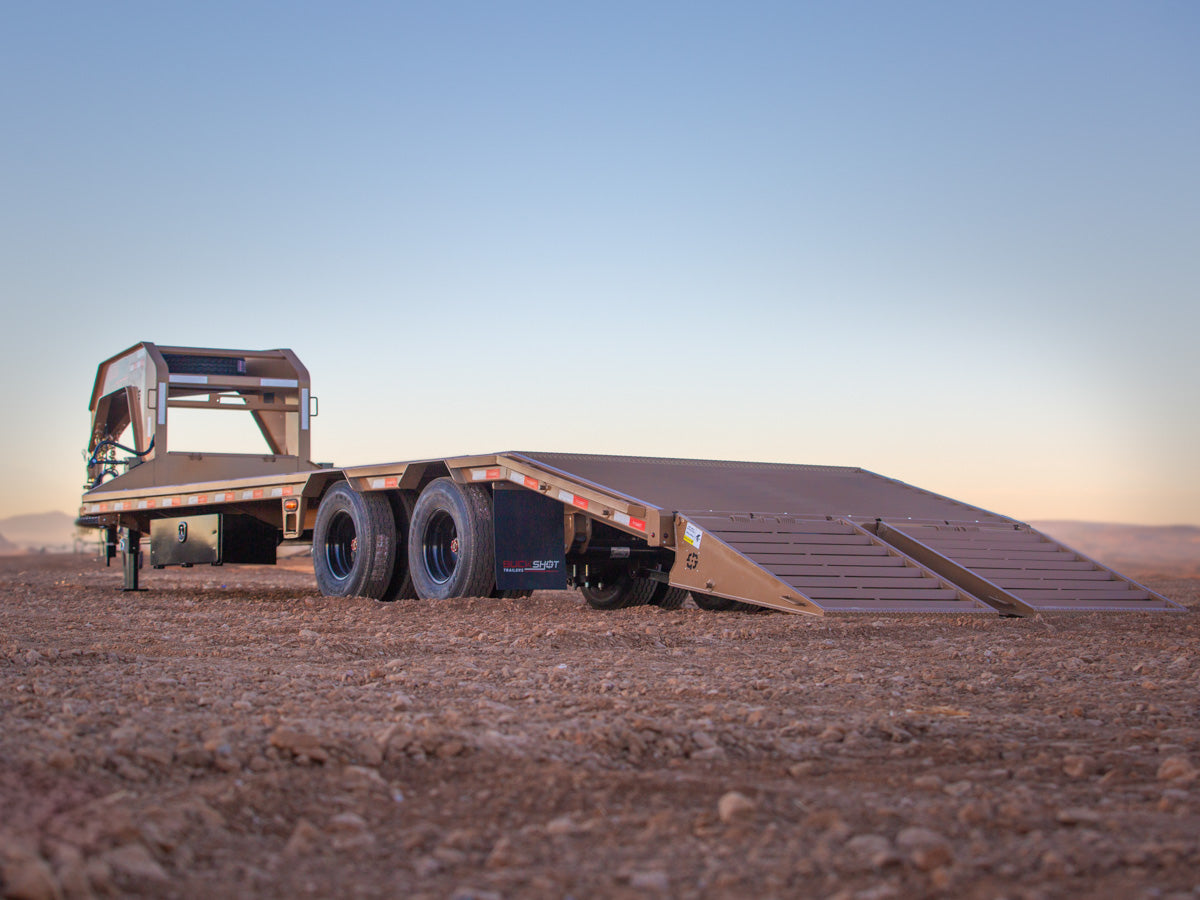

A 5' dovetail with 2 flip-over ramps (42" x 53" fold-up) provides a smooth, low-angle approach for loading wide or heavy equipment that can't handle a steep ramp. The flip-over design keeps your deck clean during transport and deploys quickly when you're ready to load.
3/16" ENGINEERED GOOSENECK

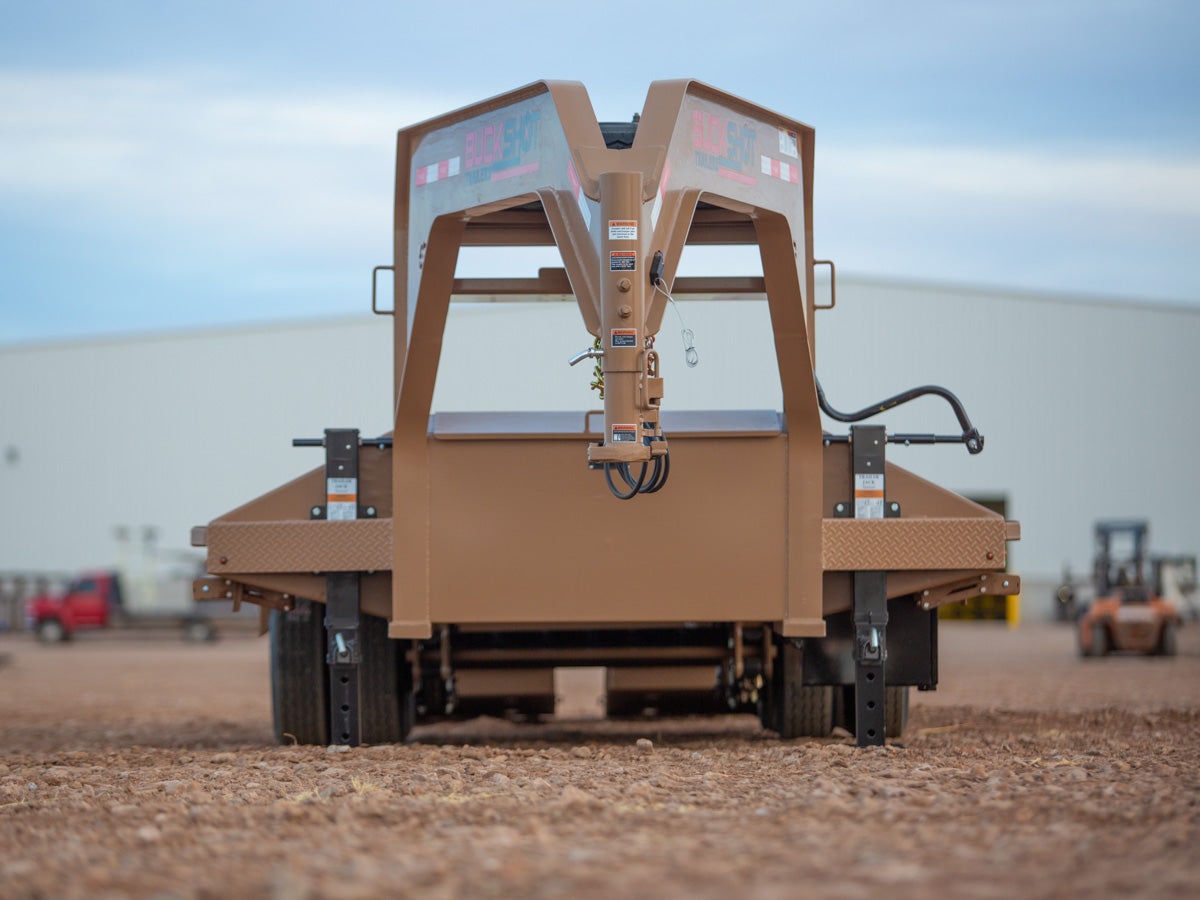

The BOLT's 3/16" sheet metal engineered gooseneck is built to flex and absorb the stresses of heavy deckover loads without fatiguing. Combined with an adjustable 2 5/16" coupler, it provides a precise, secure connection to your tow vehicle.

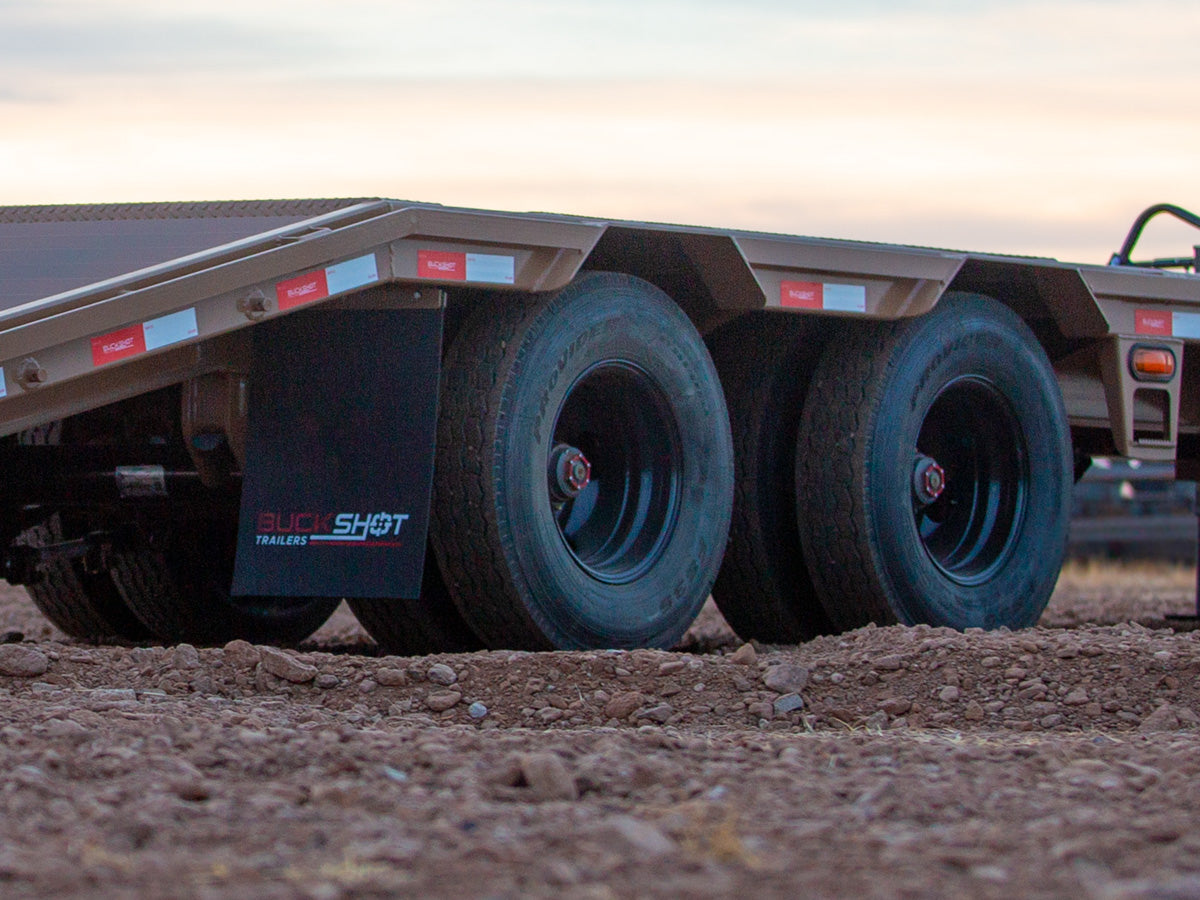

10-PLY TIRES ON 10K AXLES

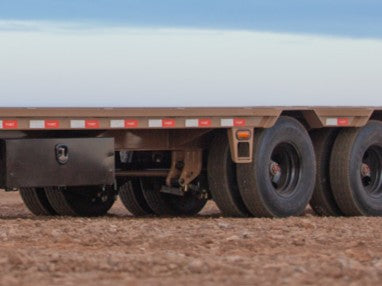

Riding on 2 - 10k EZ Lube Axles with HDSS suspension and ST235/80R16 10-ply radial tires, the BOLT delivers stable, controlled towing at full 24k GVWR. Upgrade to 2 - 12k axles for configurations where maximum payload capacity is the priority.
TwistGuard Protection

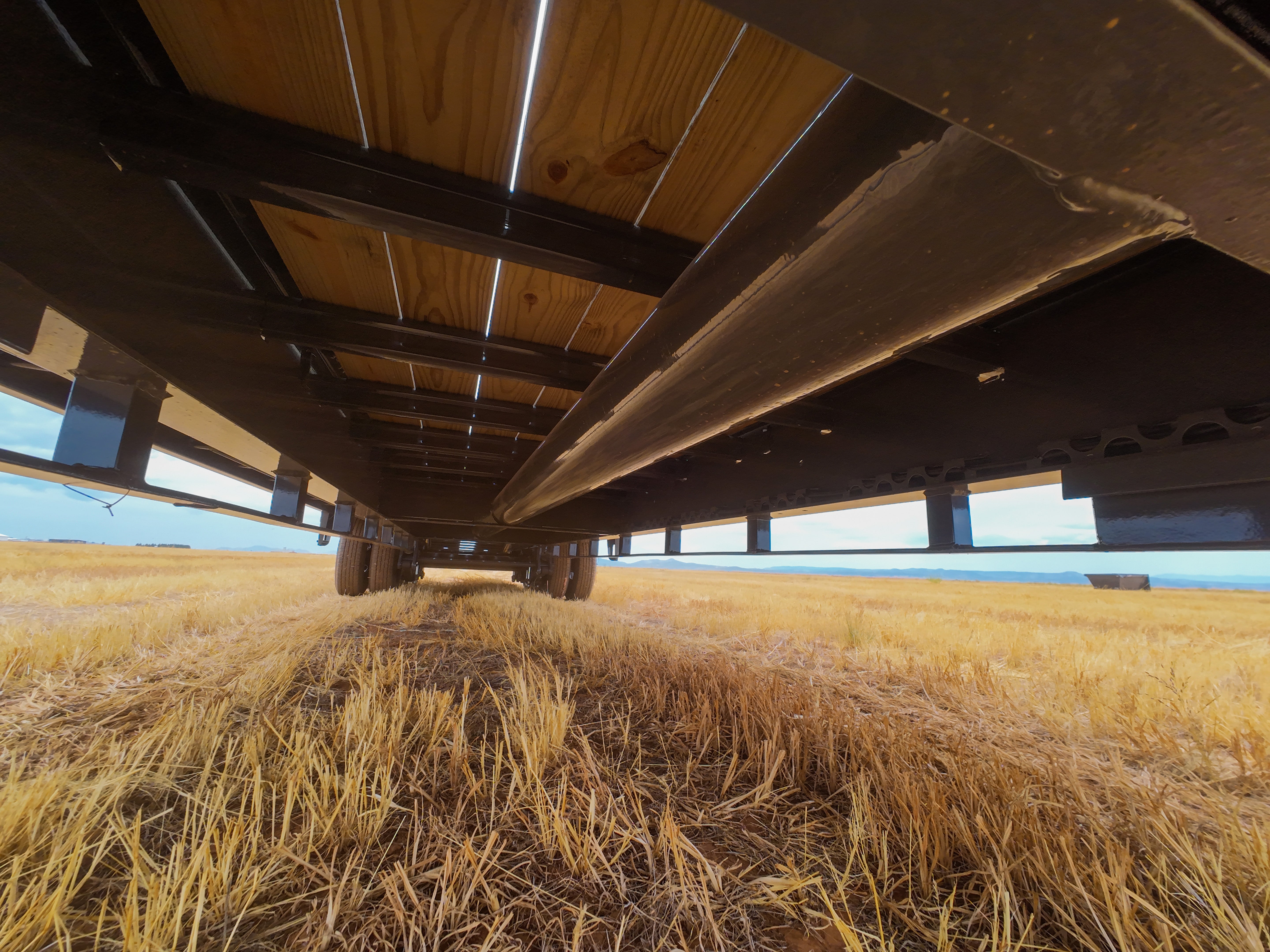

The TwistGuard™ comes standard on all BOLT models 30 feet and longer, adding critical reinforcement to the 12" x 14 lb I-beam frame. This design reduces frame twist by up to 60%, keeping your trailer rigid under heavy, uneven loads. It's engineered protection that pays off when you're hauling hard across rough ground.
Product Details
DIMENSIONS
- LENGTH:
- 25' - 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
- TRAILER TYPE:
- Dual Wheel Deckover
WEIGHT RATINGS
- GVWR:
- 20k - 24k lbs
- AXLE OPTIONS:
- 10k, 12k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial Tires
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,080 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k EZ Lube Axles
2 - 12k Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- A2BS+
- BRAKES:
- Electric Brakes
- SUSPENSION:
- HDSS Adjustable Suspension
- SPARE TIRE:
- Spare Tire Mount
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 3/16" Sheet Metal Engineered Gooseneck
- COUPLER:
- Adjustable 2 5/16" Coupler (30,000 lbs)
- JACKS:
- 2 - 12k Drop-Leg Jacks
- TOOLBOX:
- Lockable Toolbox
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" x 14 lb I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- DECK:
- Wood (2" Treated Pine Lumber)
- RAMPS:
- 5' Dovetail w/ 2 Flip-Over Ramps (42" x 53" Fold-Up)
- CARGO:
- Rub Rail, Stake Pockets, Pipe Spools / TwistGuard™ Standard on 30' and Up
- FRONT & CENTER STEPS:
- Included for Easy Access
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved Lifetime LED Lighting
- 7-WAY CONNECTOR:
- 7-Way Female Connector w/ Adapter
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit w/ Charger
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Sandblasted
- COLOR:
- Custom Color Options Available
BATTERY
- BATTERY:
- Interstate Deep Cycle Battery
OPTIONS
