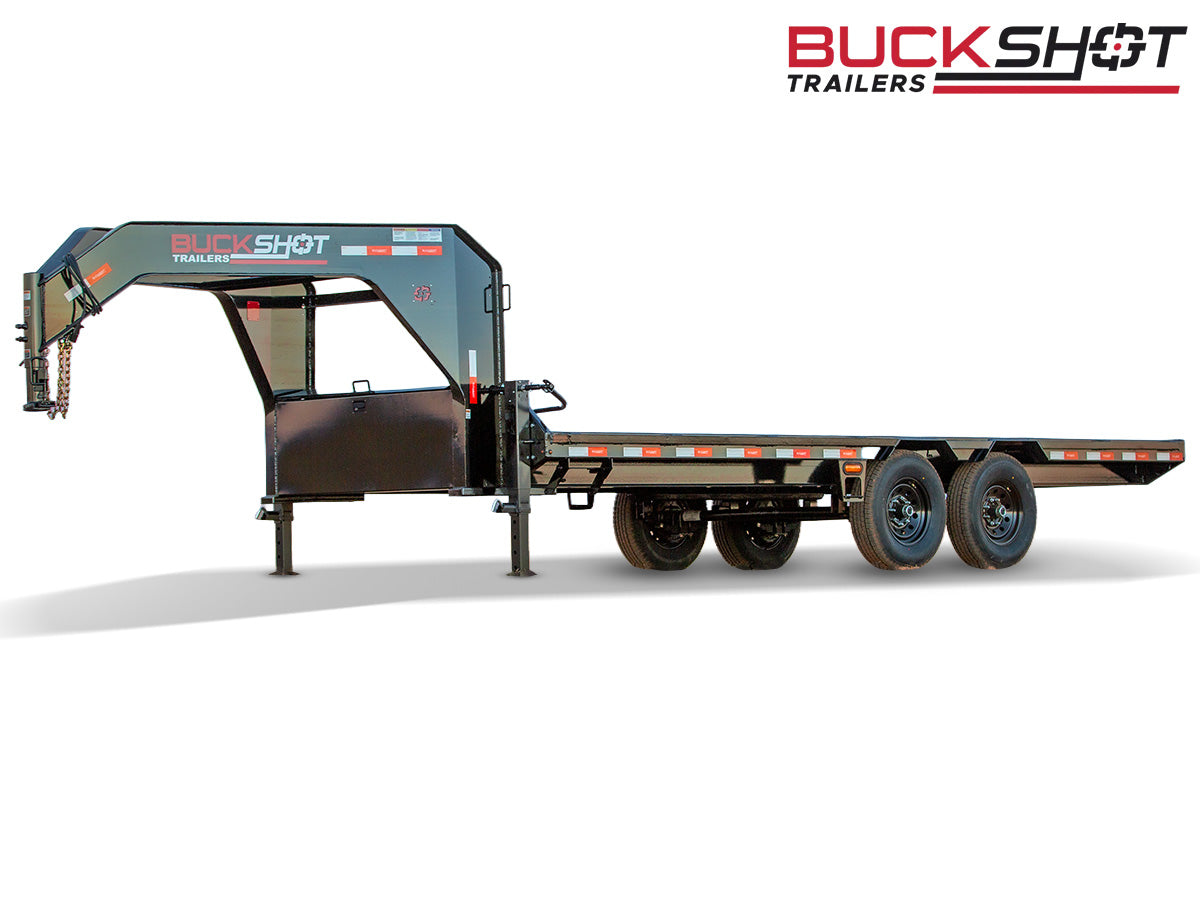

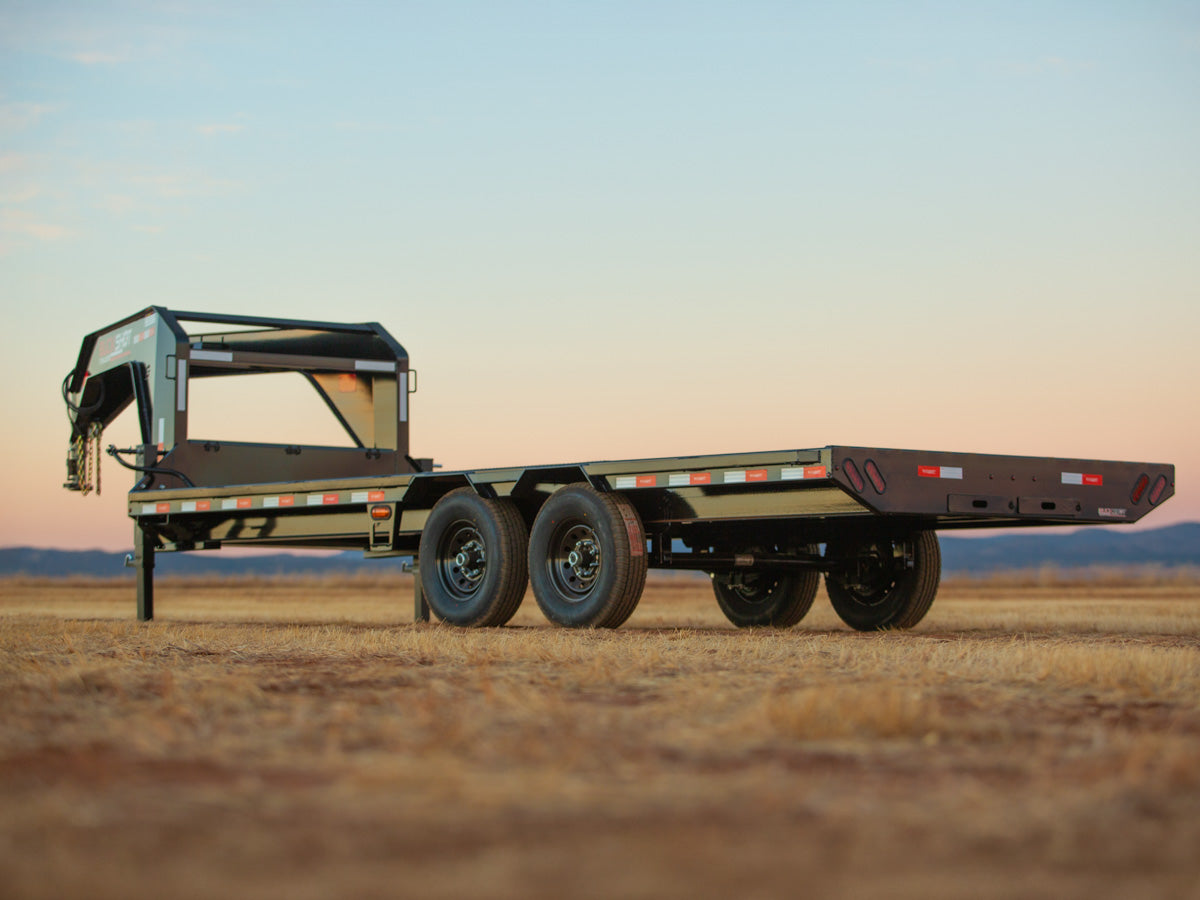

Product Features

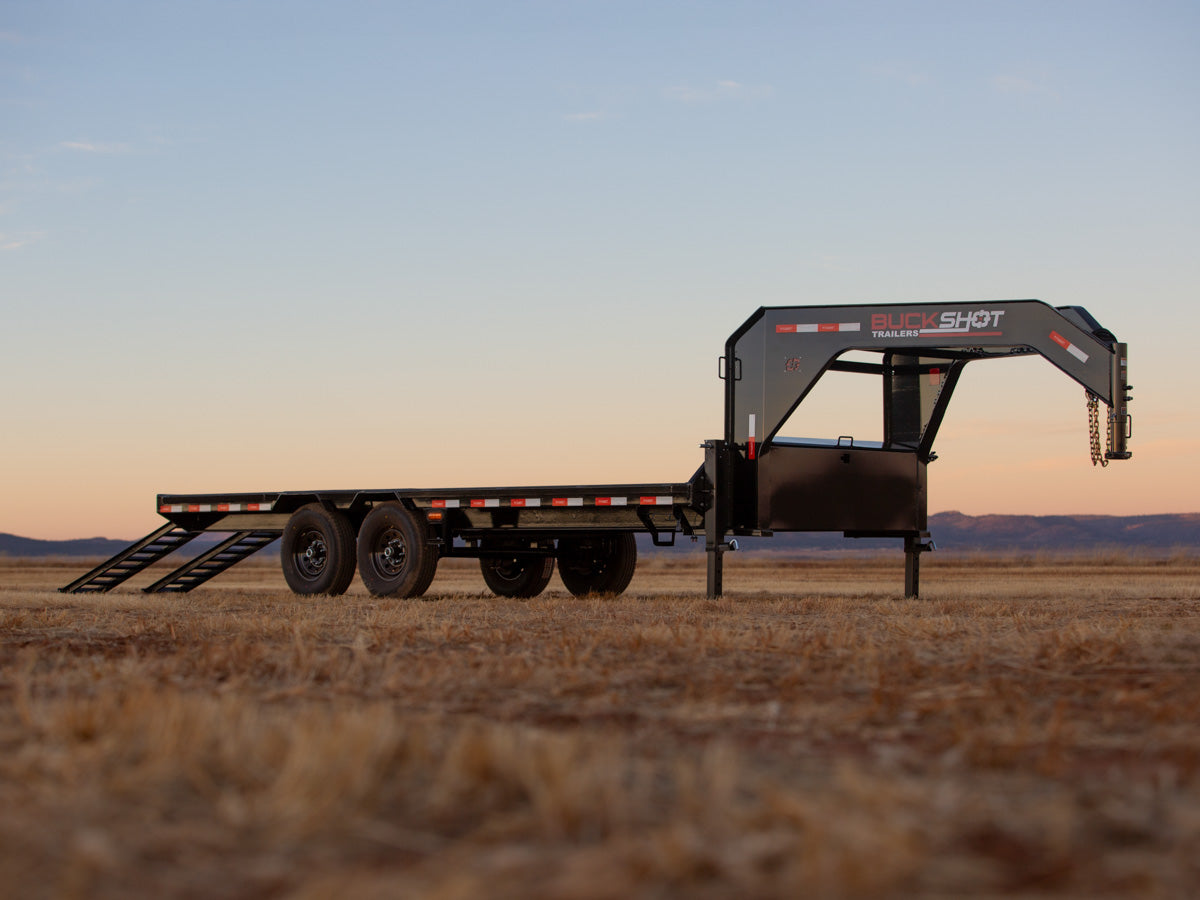

DECKOVER CAPABILITY, RIGHT-SIZED CAPACITY
The Single BOLT brings the wide-open deckover platform to a 14k–16k lbs GVWR class, ideal for operators who need the deck width without the heavy payload requirements of the full BOLT. Available in 20' to 40' lengths with 7k axle options for a range of load configurations.

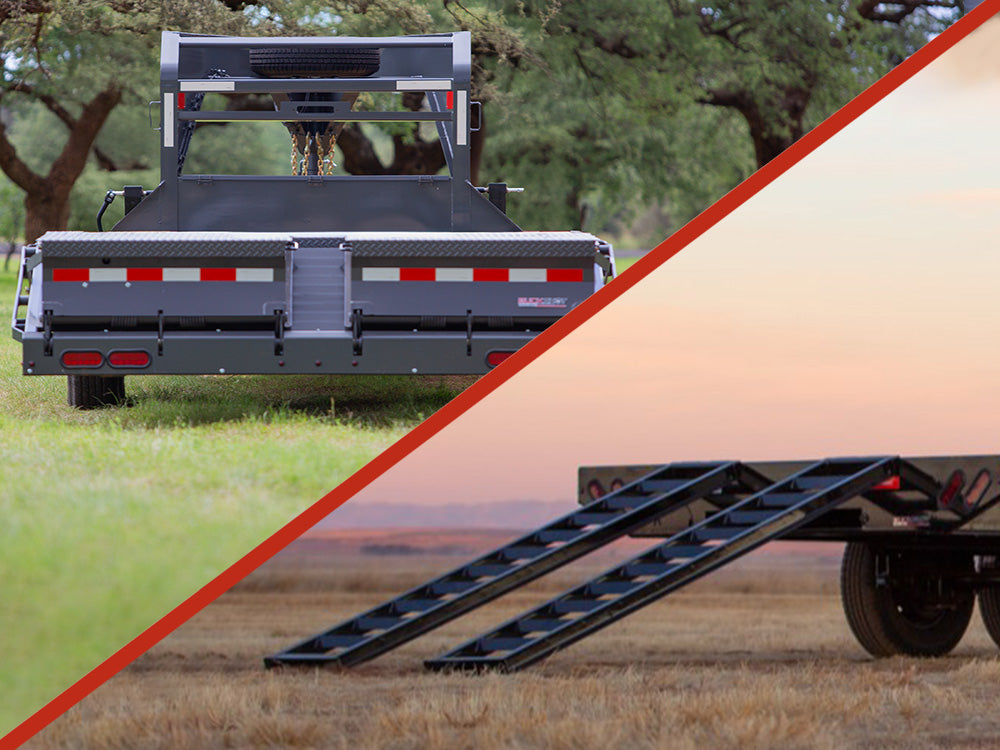

VERSATILE RAMP OPTIONS

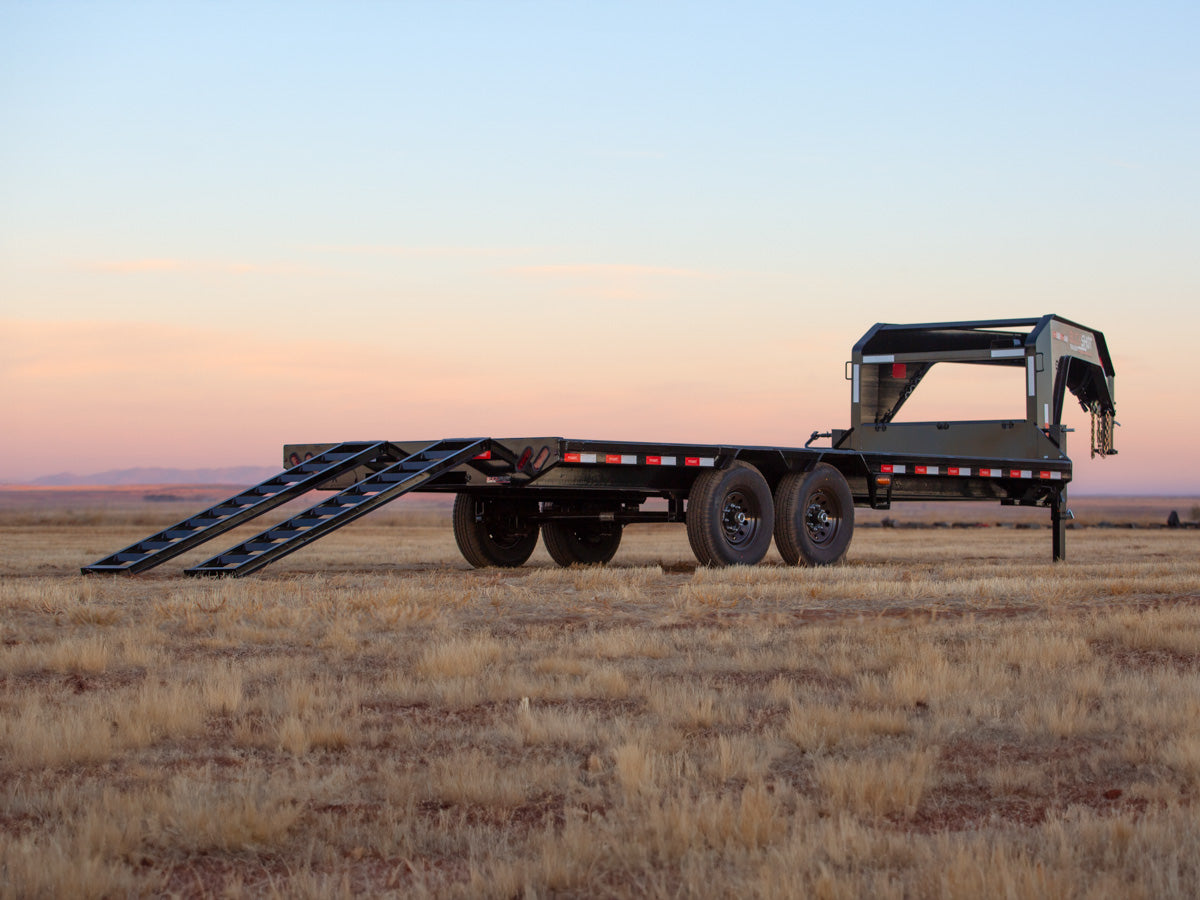

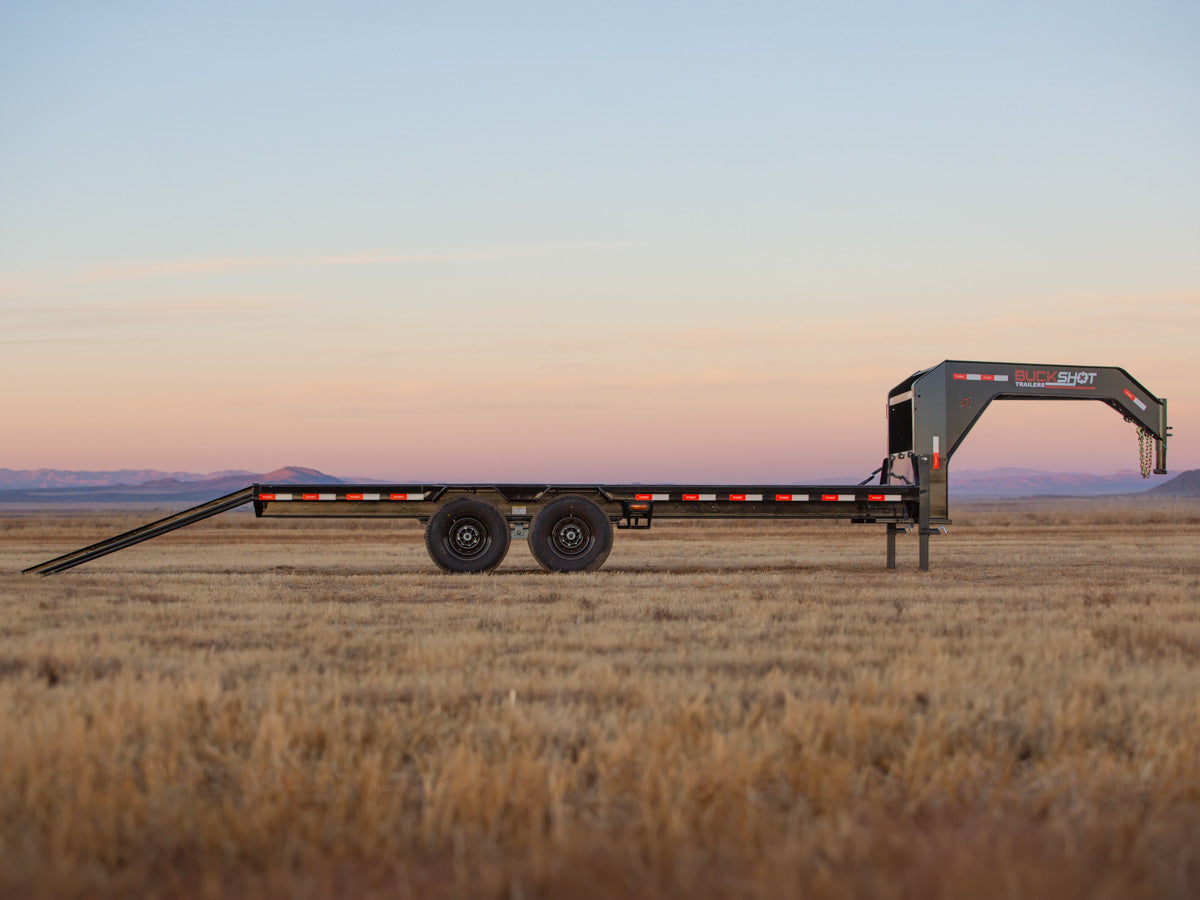

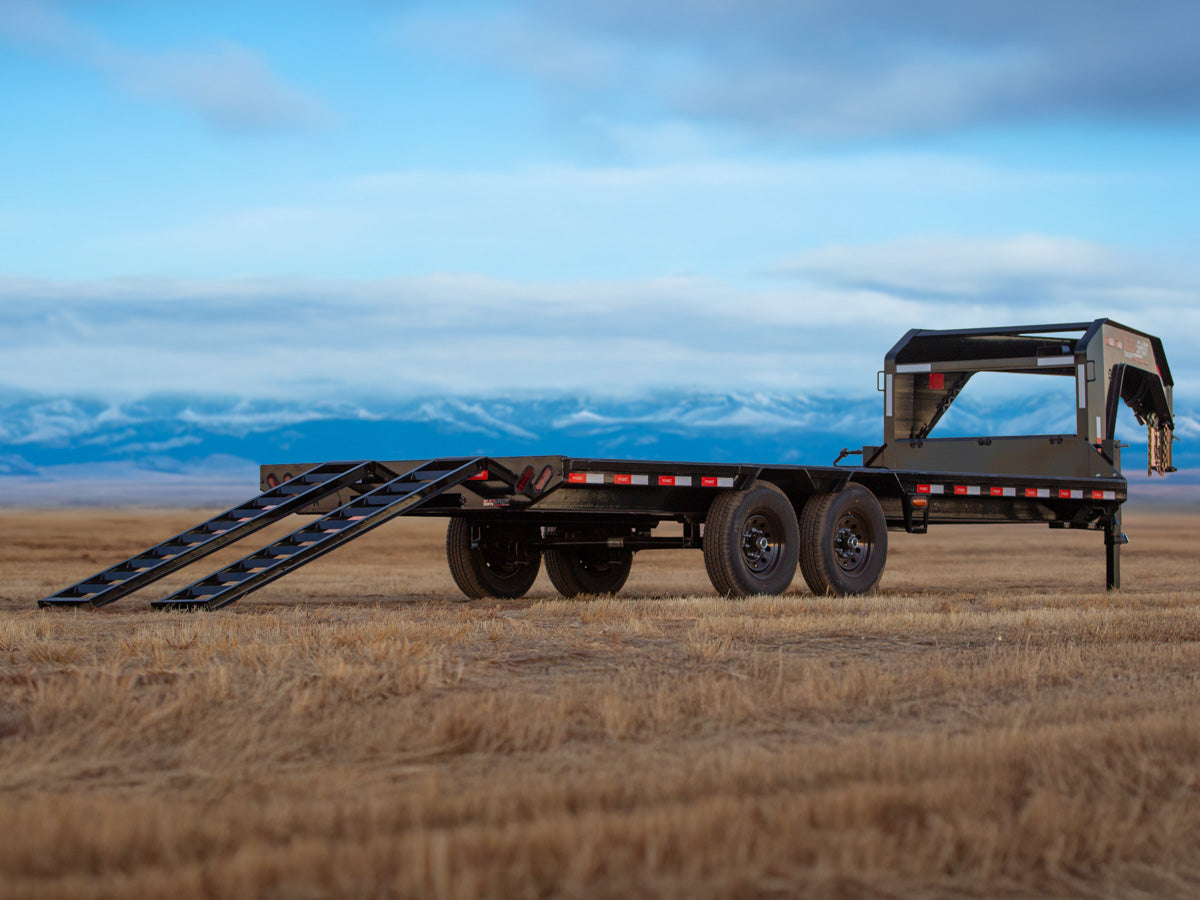

Choose between a 5' x 42" fold-up ramp configuration or a straight deck with 8' slide-in ramps, giving you the flexibility to configure the Single BOLT for different equipment types and loading scenarios. Pull-out ramps for the straight deck option are available for even more versatility.

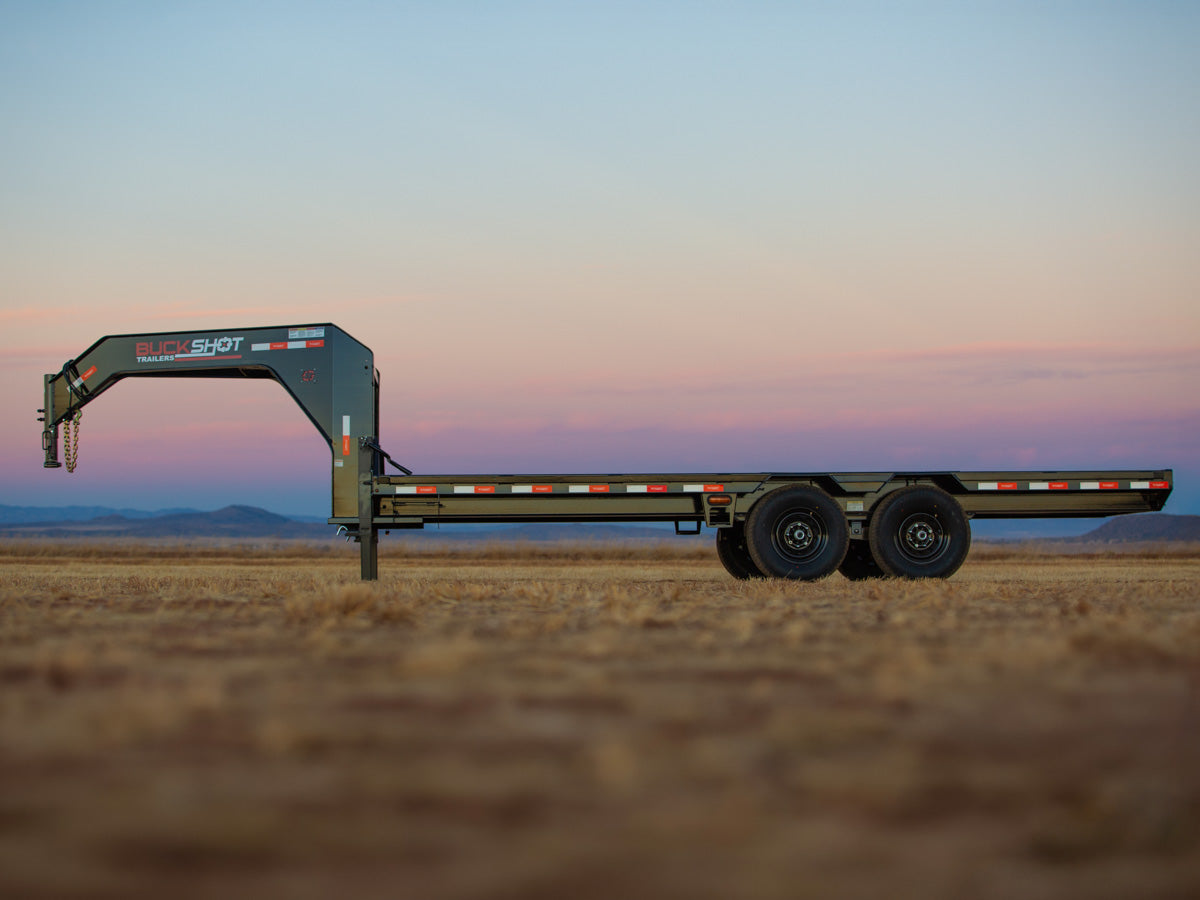

ENGINEERED BEAM GOOSENECK

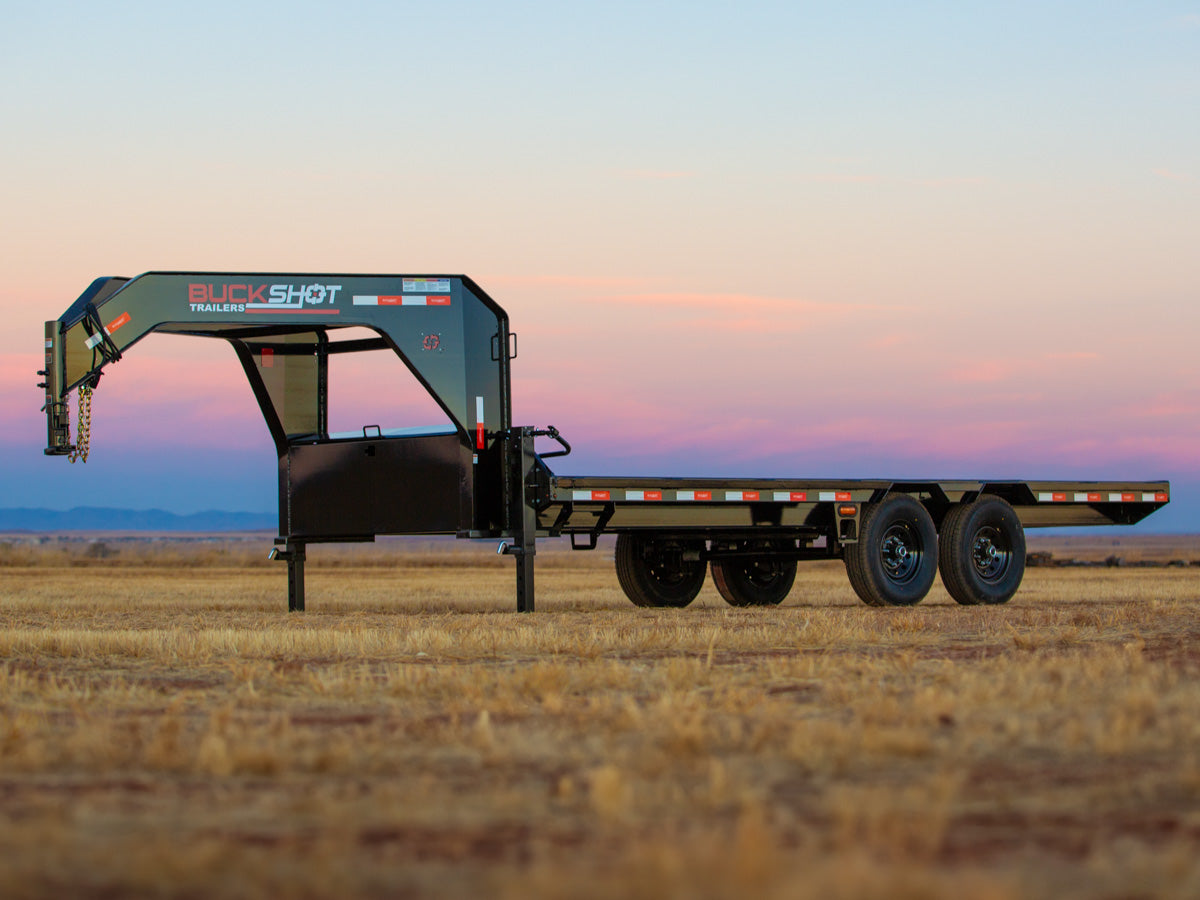

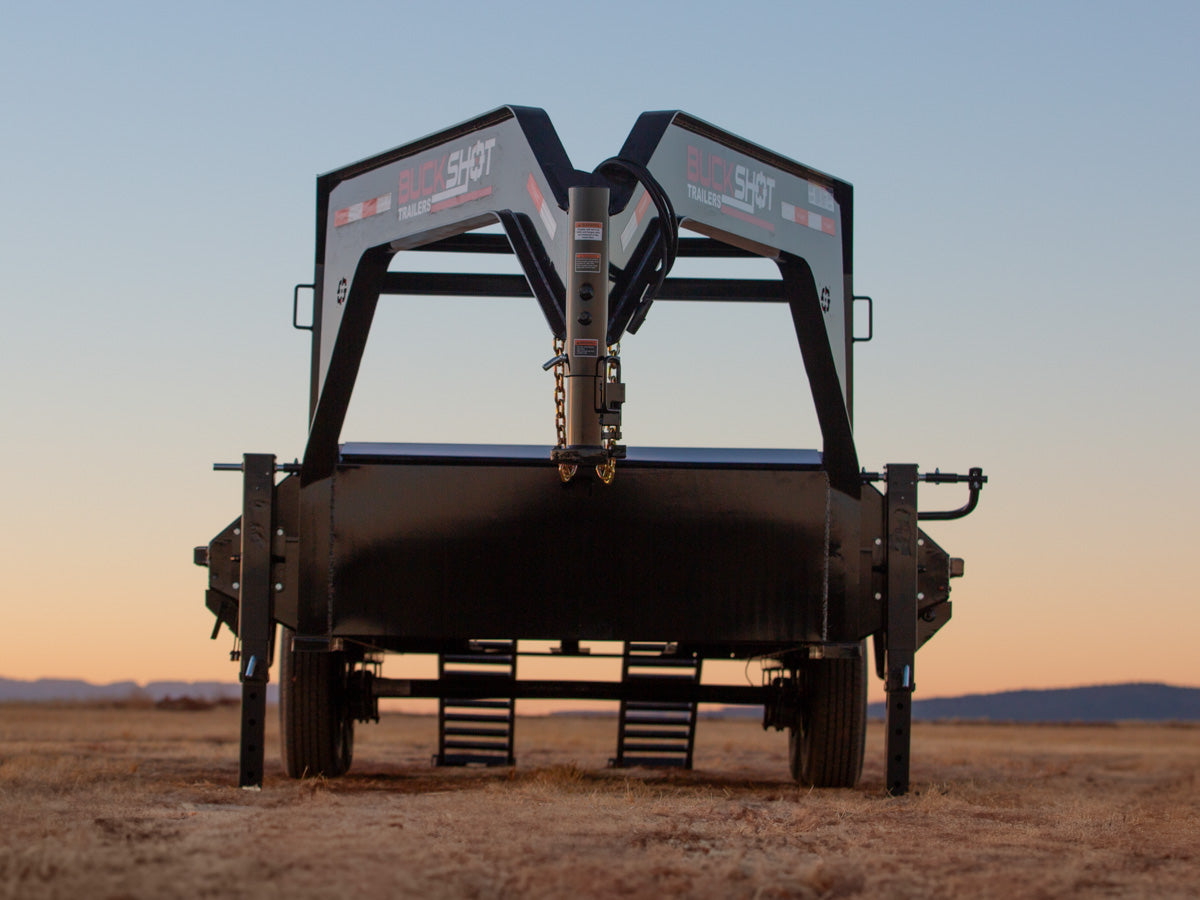

An engineered beam gooseneck provides a strong, reliable connection to your tow vehicle with the structural integrity needed for deckover loading. The gooseneck design also improves weight distribution for better stability and control compared to bumper pull alternatives.

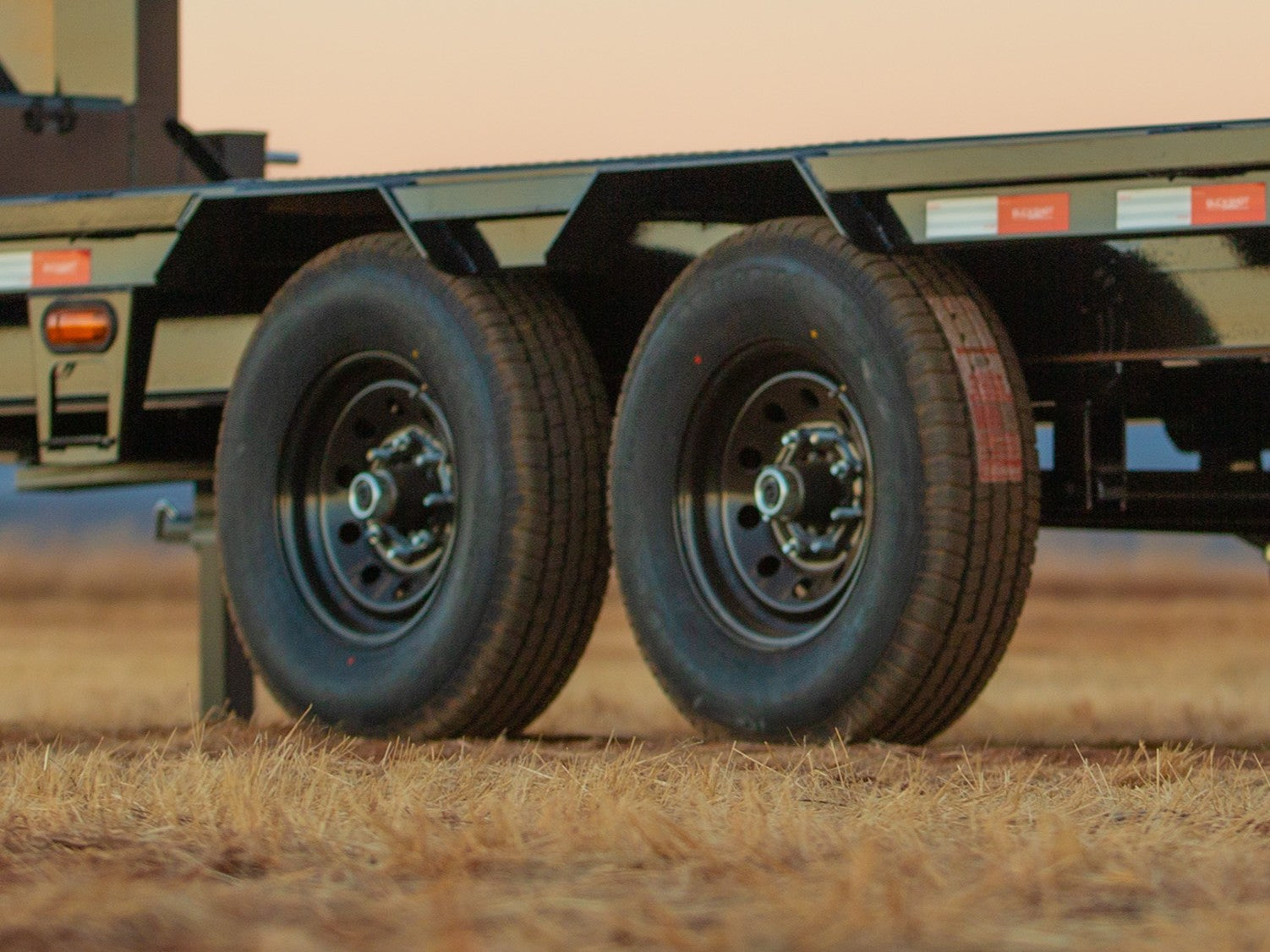

MULTI-LEAF SPRING SUSPENSION
Running on 2 - 7k EZ Lube Axles with multi-leaf spring suspension and electric brakes, the Single BOLT delivers a stable, road-worthy ride for the equipment and materials it's designed to haul. Upgrade to 2 - 8k Lippert Spring Axles with 17.5" black wheels for additional capacity.
SANDBLASTED & POWDERCOATED
Sandblasted for maximum prep and finished in professional powdercoat, the Single BOLT is built to handle the rigors of daily equipment hauling without premature wear. 3" channel crossmembers at 16" centers provide a solid foundation throughout the deck.

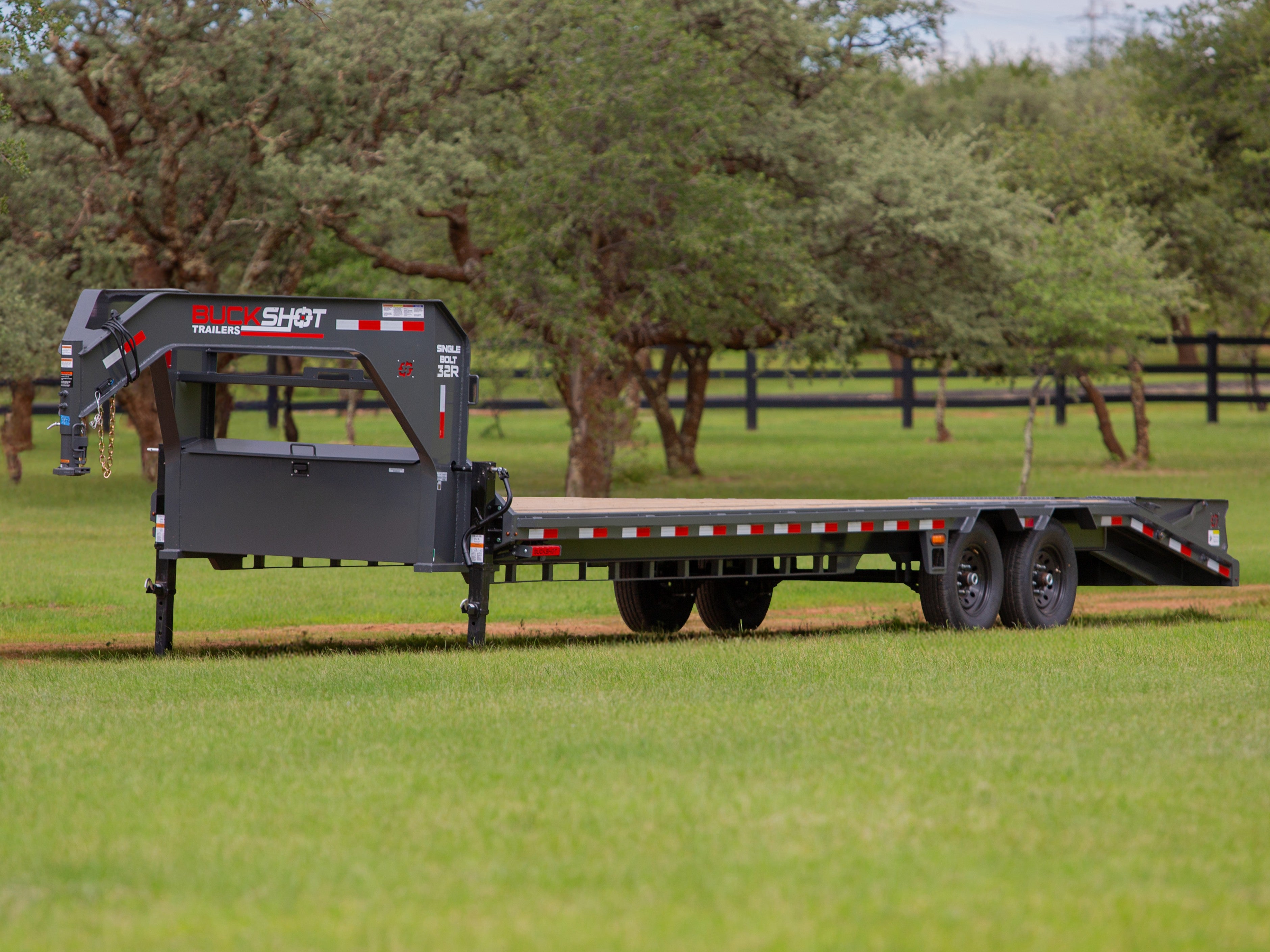

STAKE POCKETS & WORK-READY DETAILS
Standard stake pockets run the length of the Single BOLT's deck, giving you the ability to add boards, rails, or tie-down points exactly where the job demands. Combined with an 18k Warrior winch and flexible ramp configurations, it's a trailer that's ready to adapt to whatever you're loading without extra rigging or improvising on site.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
- TRAILER TYPE:
- Dual Wheel Deckover
WEIGHT RATINGS
- GVWR:
- 14k - 16k lbs
- AXLE OPTIONS:
- 7k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial Tires
- TIRE PLY:
- 10 Ply
- RIMS:
- 16"x6 Black Mod Steel Wheels
- AXLE TYPE:
- 2 - 7k EZ Lube Axles
2 - 8k Lippert Spring Axles w/ 17.5" Black Wheels 16 Ply (qty 4)
- AXLE COUNT:
- 2
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Multi-Leaf Spring Suspension
- SPARE TIRE:
- Spare Tire Mount
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Sandblasted
- FENDERS:
- Diamond Plate Drive-Over Fenders
- COLOR:
- Custom Color Options Available
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- Engineered Beam Gooseneck
- COUPLER:
- Adjustable 2 5/16" Coupler (25,000 lbs)
- JACKS:
- 2 - 10k Drop-Leg Jacks
- TOOLBOX:
- Lockable Toolbox
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" (14 lbs/ft) Wide Flange Beam
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- DECK:
- Wood (2x8 Treated Pine Lumber)
- RAMPS:
- 5' x 42" Fold-Up Ramps or Straight Deck w/ 8' Slide-In Ramps
- CARGO:
- Rub Rail, Stake Pockets, Pipe Spools / TwistGuard™ Standard on 30' and Up
- ACCESS STEPS:
- Front and Middle Steps for Easy Access
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Sealed Wiring Harness

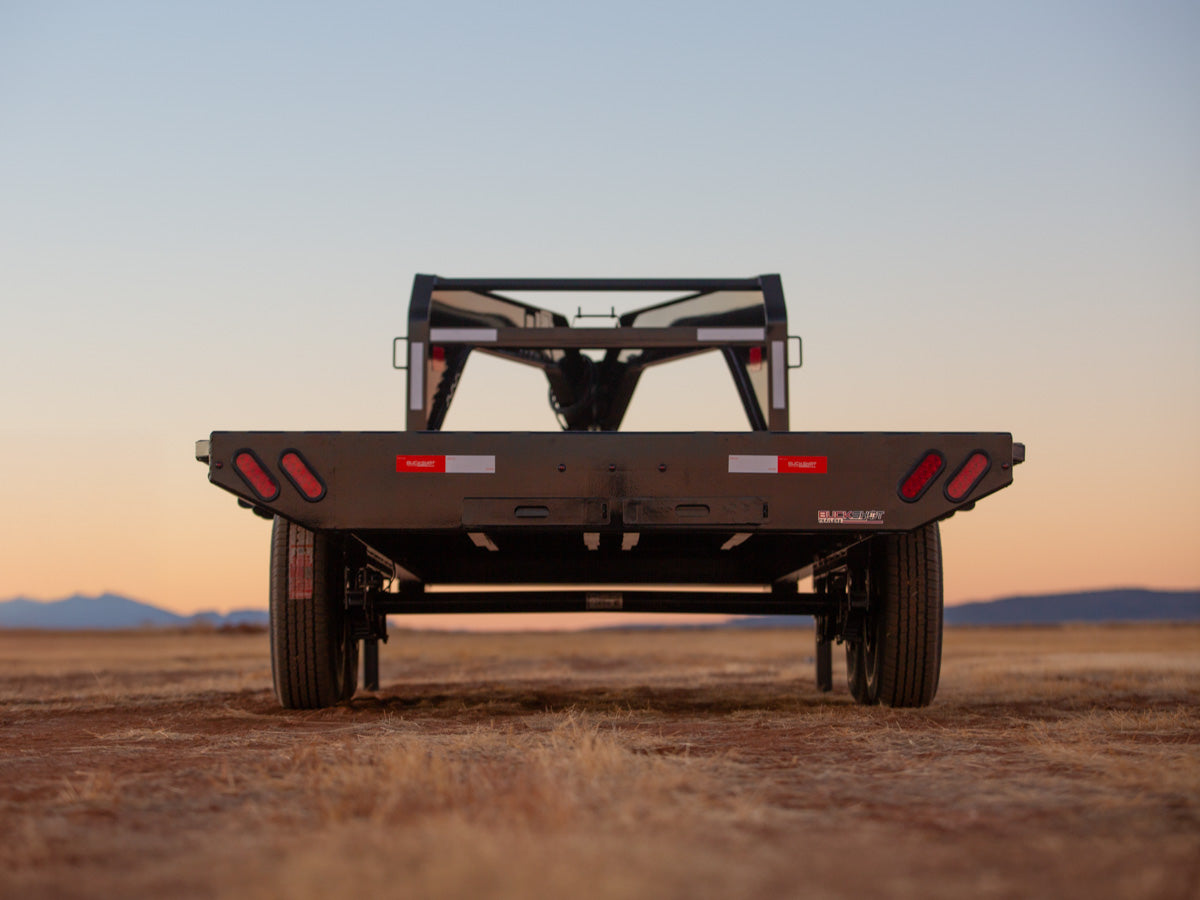

- REAR LIGHTS:
- DOT Approved Lifetime LED Lighting
- 7-WAY CONNECTOR:
- 7-Way Receiver Female Plug w/ Adapter
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
OPTIONS
