Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

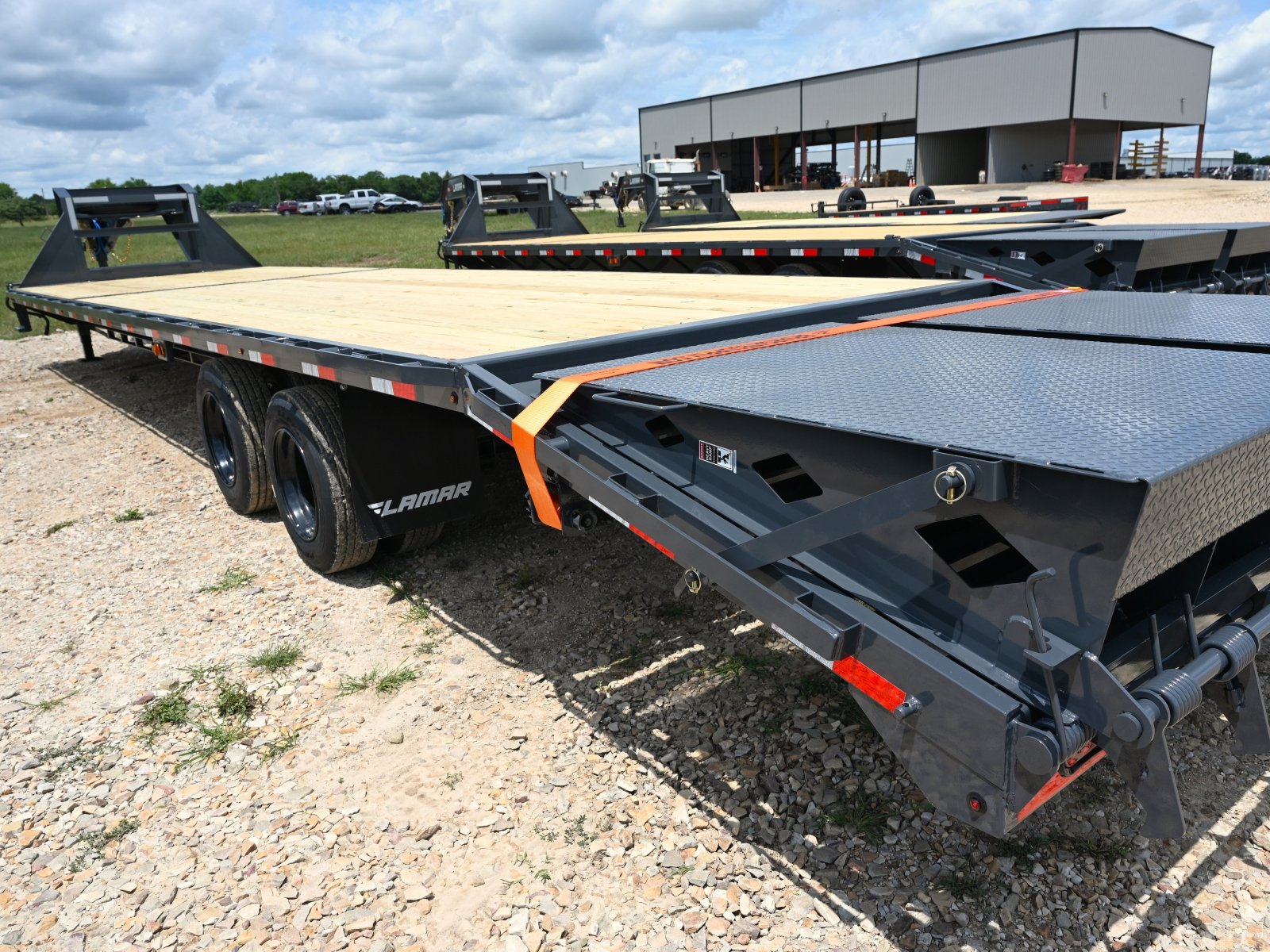

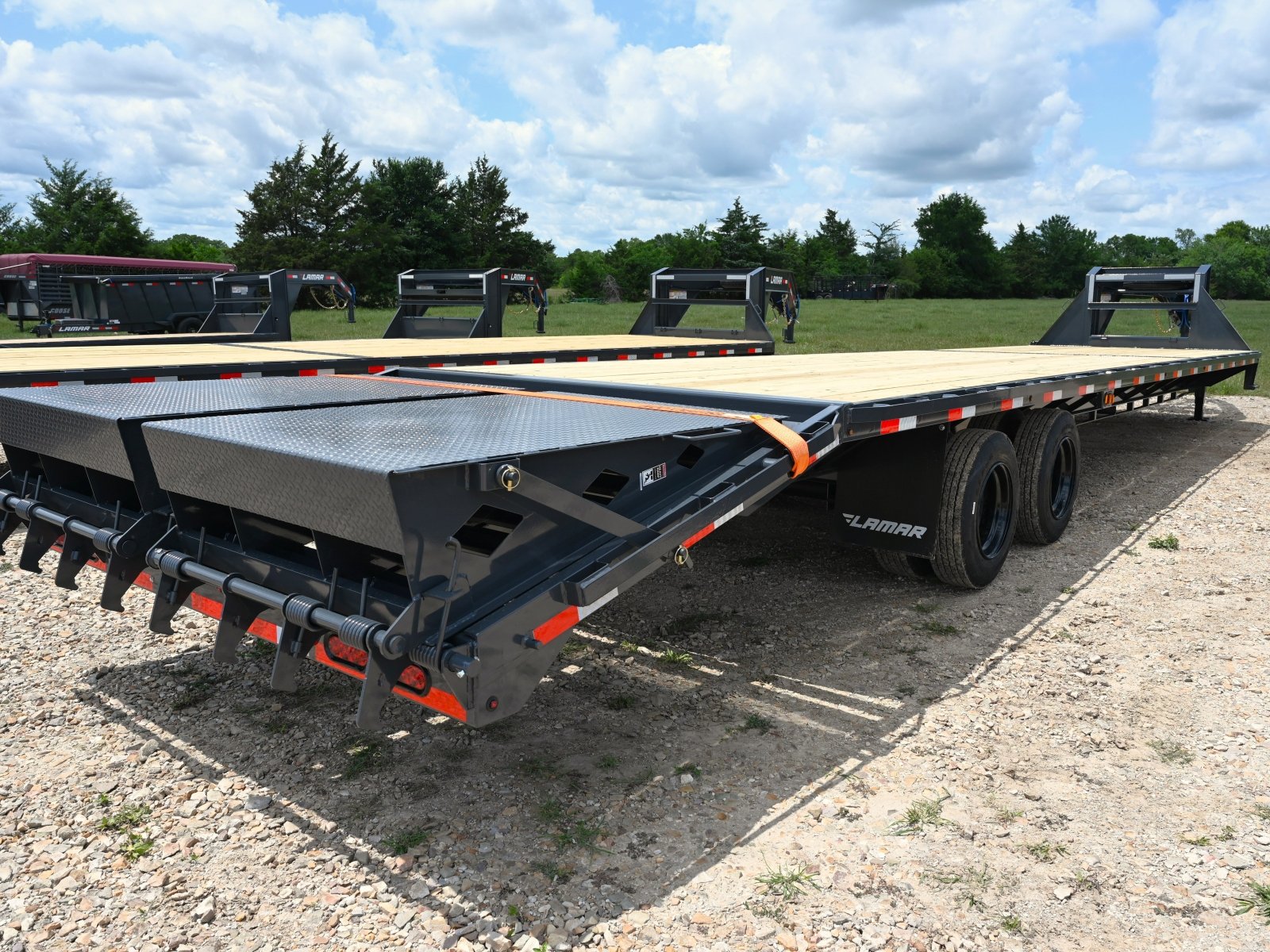

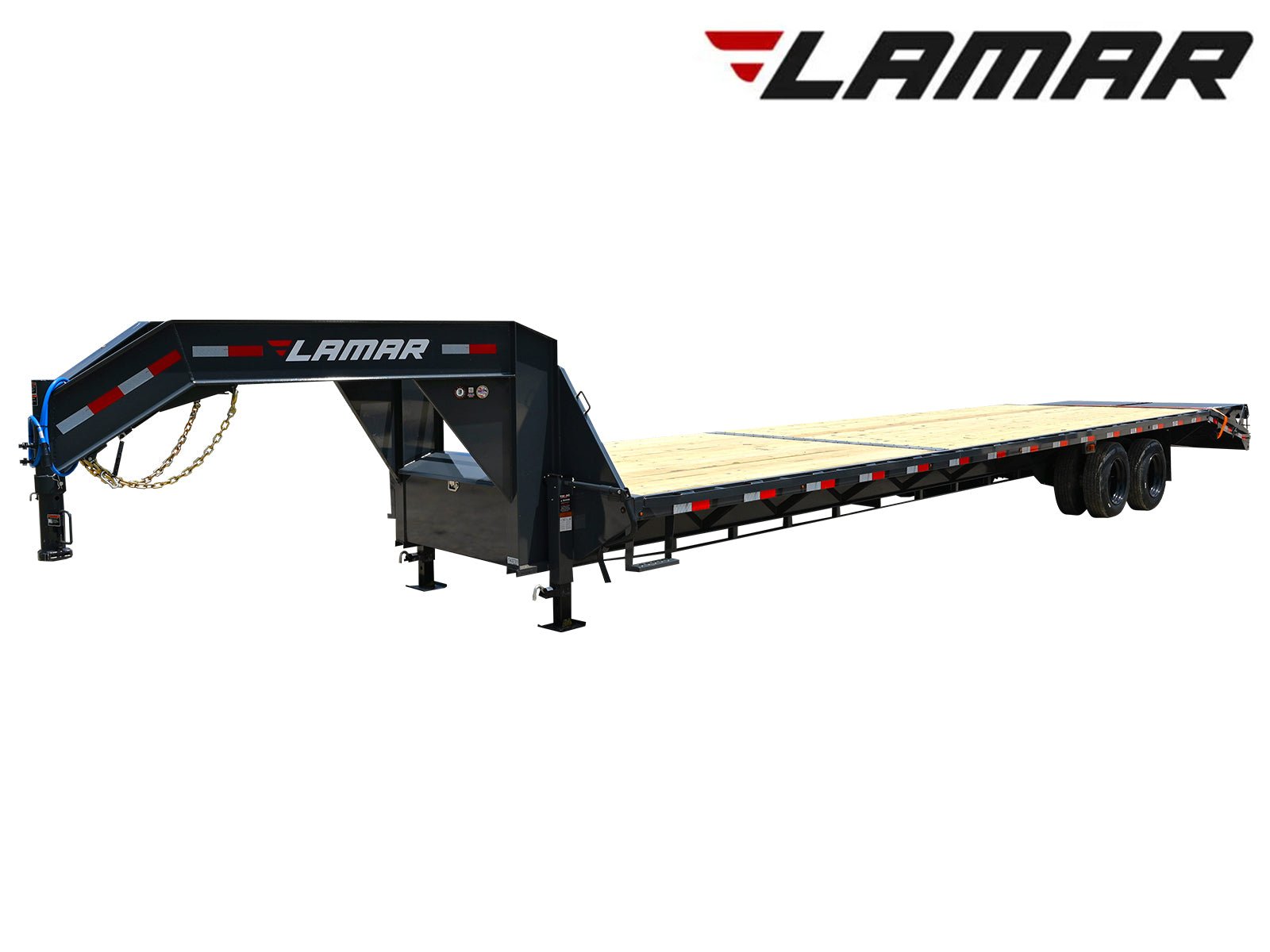

- Lamar FG Gooseneck Trailer
- TYPE:
- Gooseneck
- WIDTH:
- 102"
30K TANDEM AXLE SIZES & PAYLOAD:
- 32' LENGTH:
- Weight: 9,735 lbs, Payload: 20,265 lbs
- 36' LENGTH:
- Weight: 10,300 lbs, Payload: 19,700 lbs
- 40' LENGTH:
- Weight: 11,300 lbs, Payload: 18,700 lbs
30K TRIPLE AXLE SIZES & PAYLOAD:
- 25' LENGTH:
- Weight: 8,890 lbs, Payload: 21,110 lbs
- 32' LENGTH:
- Weight: 9,735 lbs, Payload: 20,265 lbs
- 36' LENGTH:
- Weight: 10,300 lbs, Payload: 19,700 lbs
- 40' LENGTH:
- Weight: 11,300 lbs, Payload: 18,700 lbs
WEIGHT RATINGS:
- GVWR:
- 30,000 lbs
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 12" x 22 lb I-Beam Frame
- CROSSMEMBERS:
- 16" Spaced Crossmembers
- FLOORING:
- Treated Yellow Pine Floor
- TORQUE TUBE:
- Standard on 36'+
- UNDER-FRAME BRIDGE:
- Standard on 30'+
LOADING:
- DECK TYPE:
- Straight Deck
- LOADING ANGLE:
- 22°
GOOSENECK & CARGO LOADING

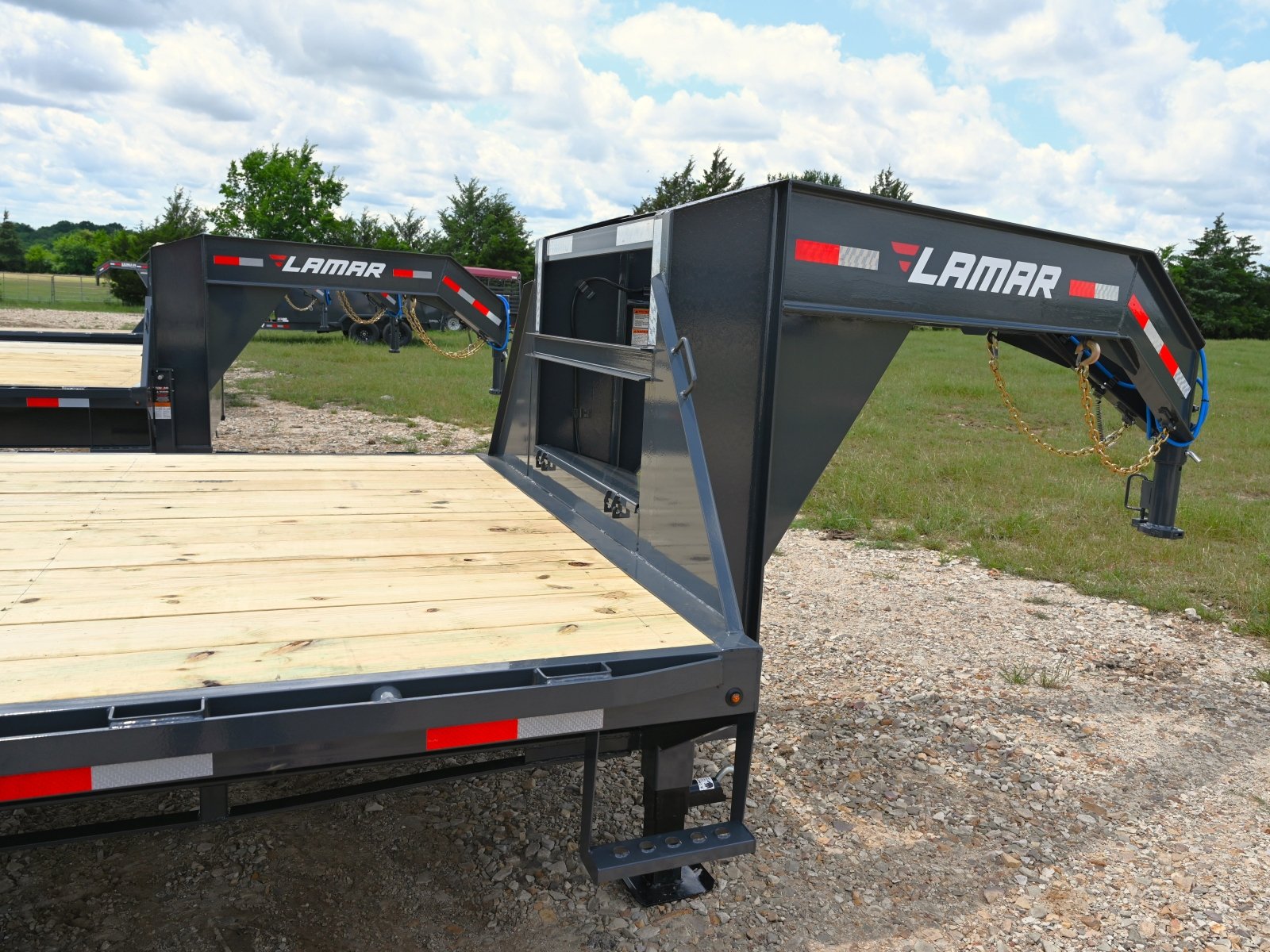

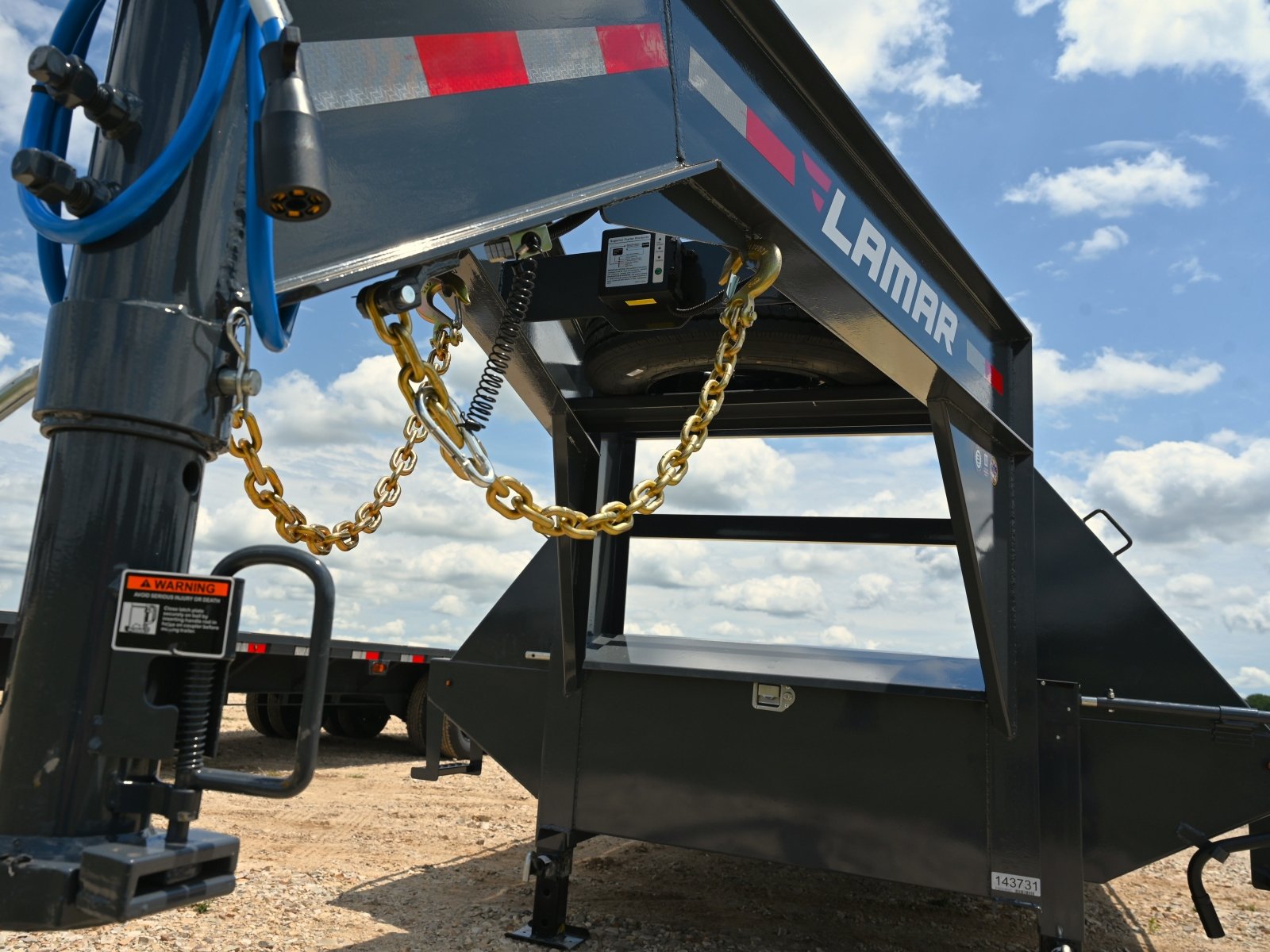

GOOSENECK:
- COUPLER:
- 2-5/16" 30K Gooseneck Coupler
- GROUND TO COUPLER HEIGHT:
- 25" - 33"
- JACKS:
- Dual 10K Drop-Leg Jacks
- FRONT TOOL BOX:
- Standard
CARGO LOADING:
- RUB RAIL:
- Standard
- STAKE POCKETS:
- Standard Stake Pockets
RUNNING GEAR

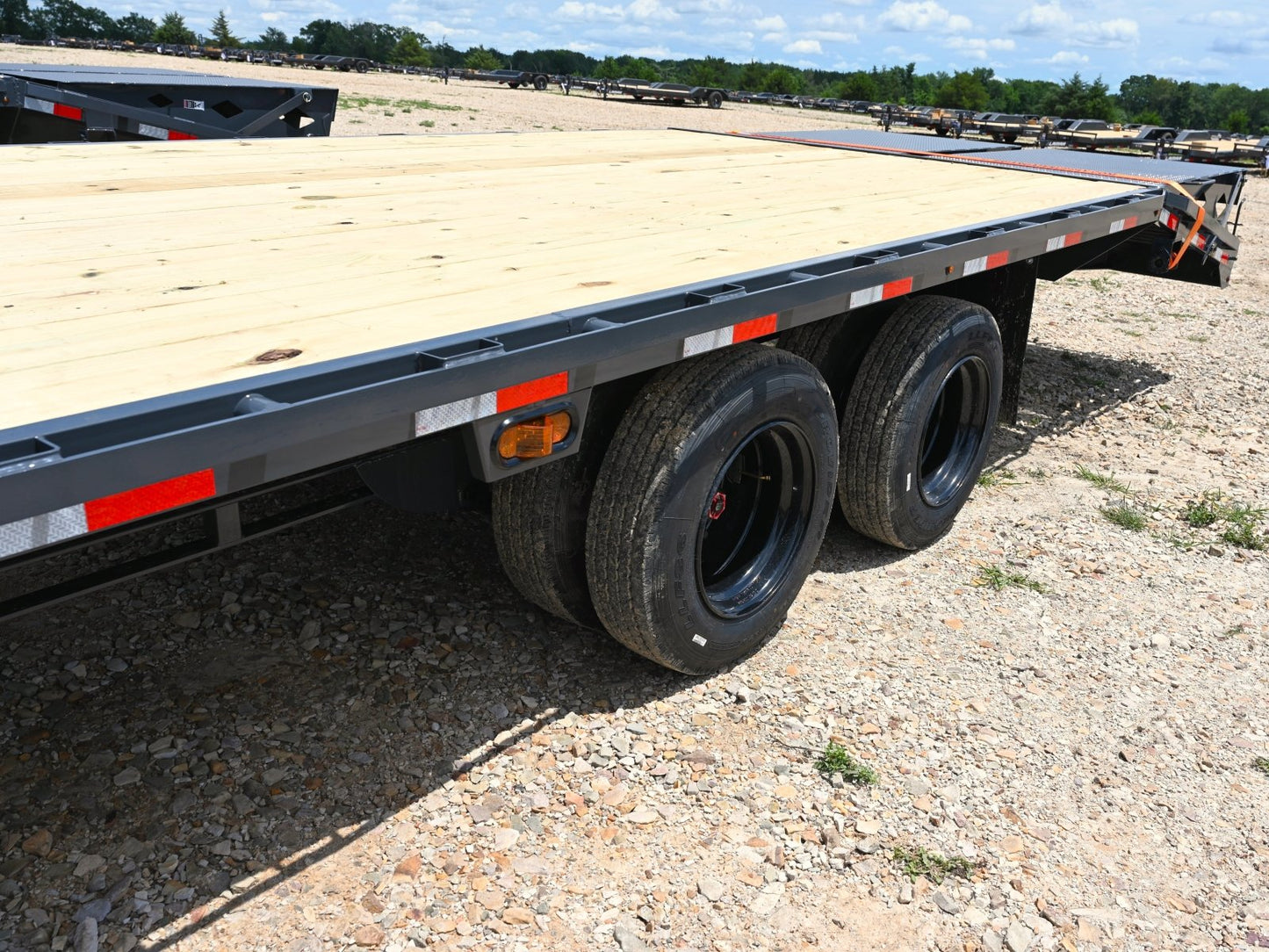

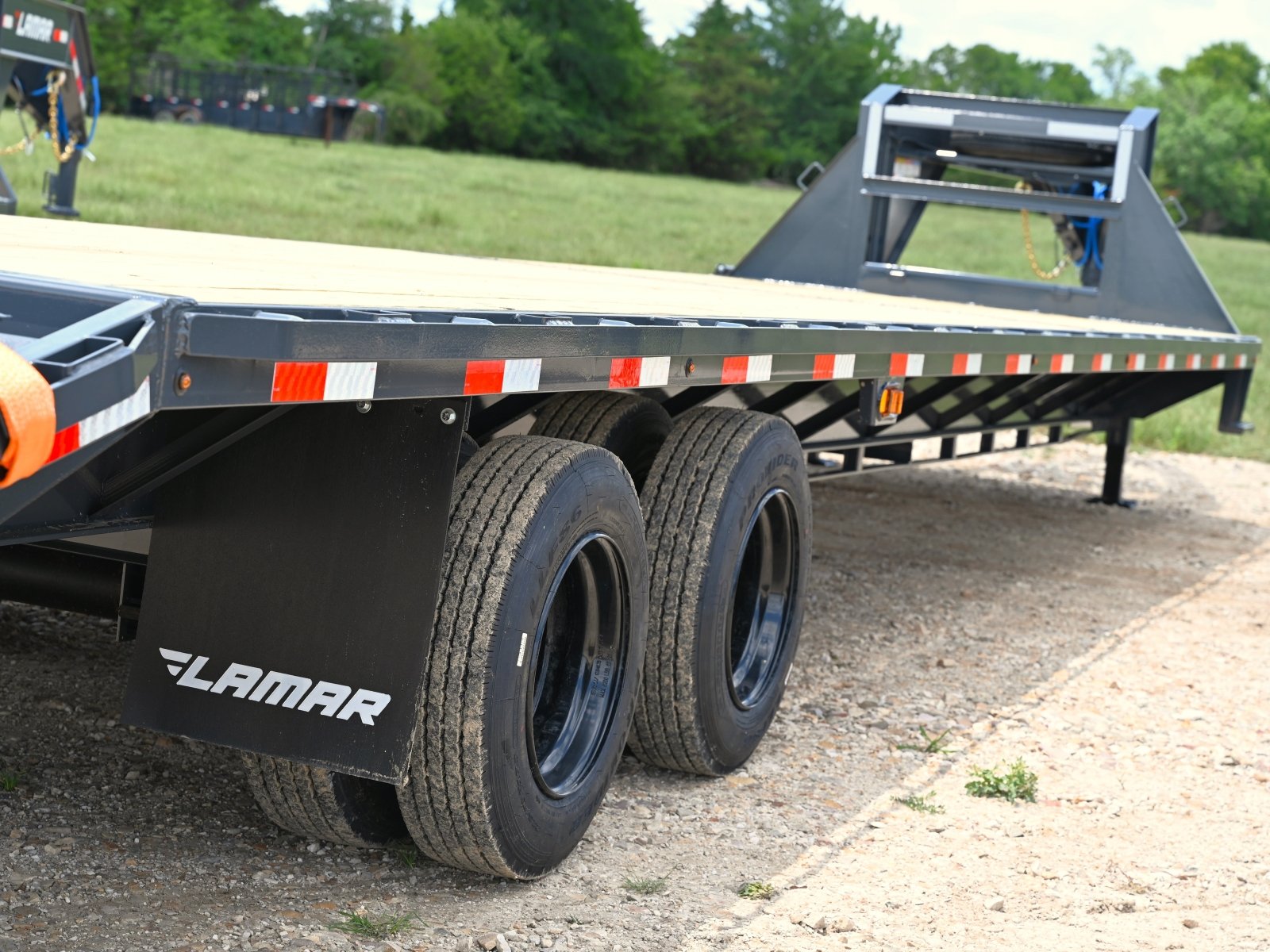

AXLES:
- TYPE:
- 10K Electric Brake Spring Axles
TIRES:
- TYPE:
- 215/75 R17.5 (H) 16 Ply Tire Black Dual Wheel

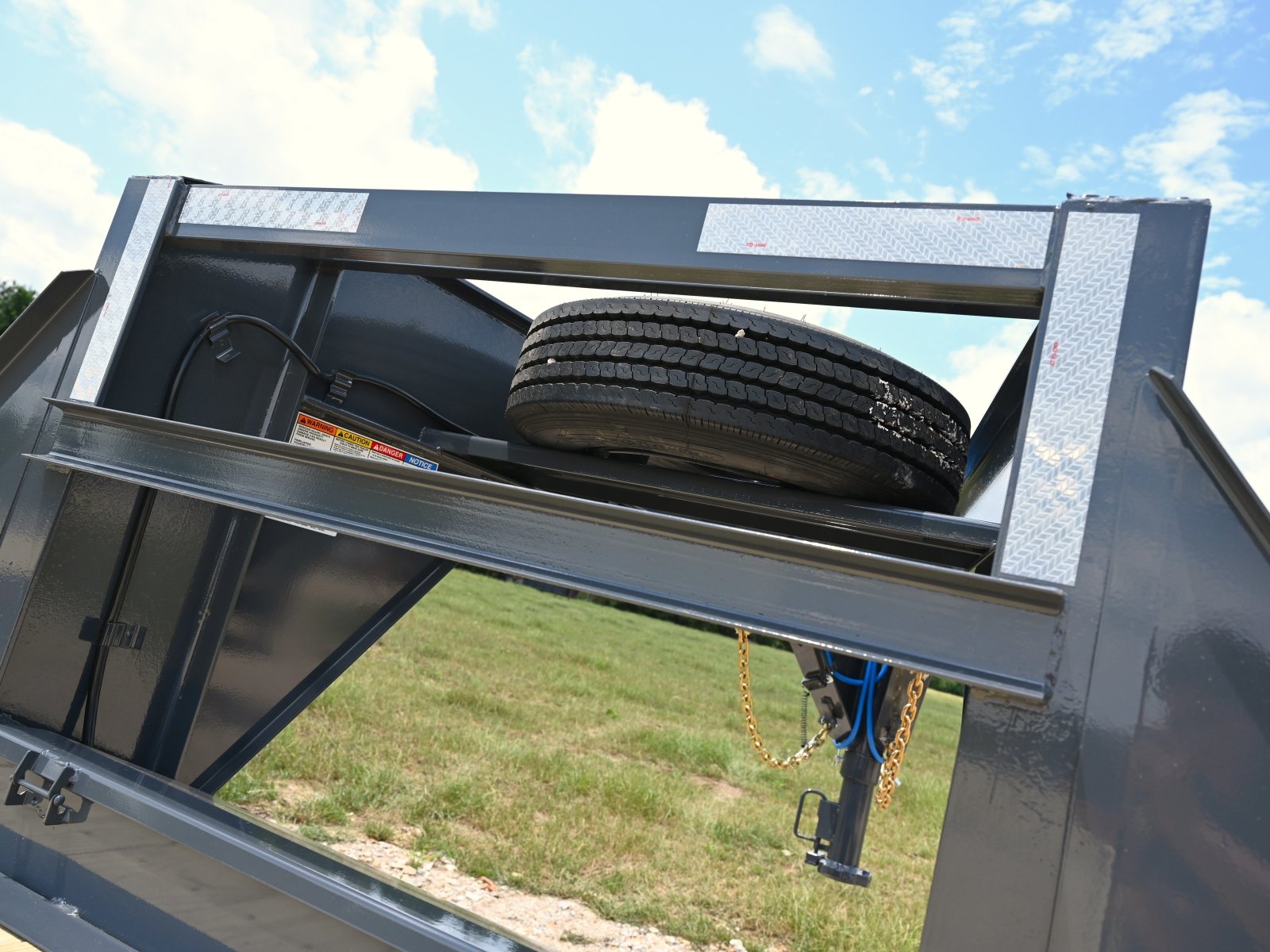

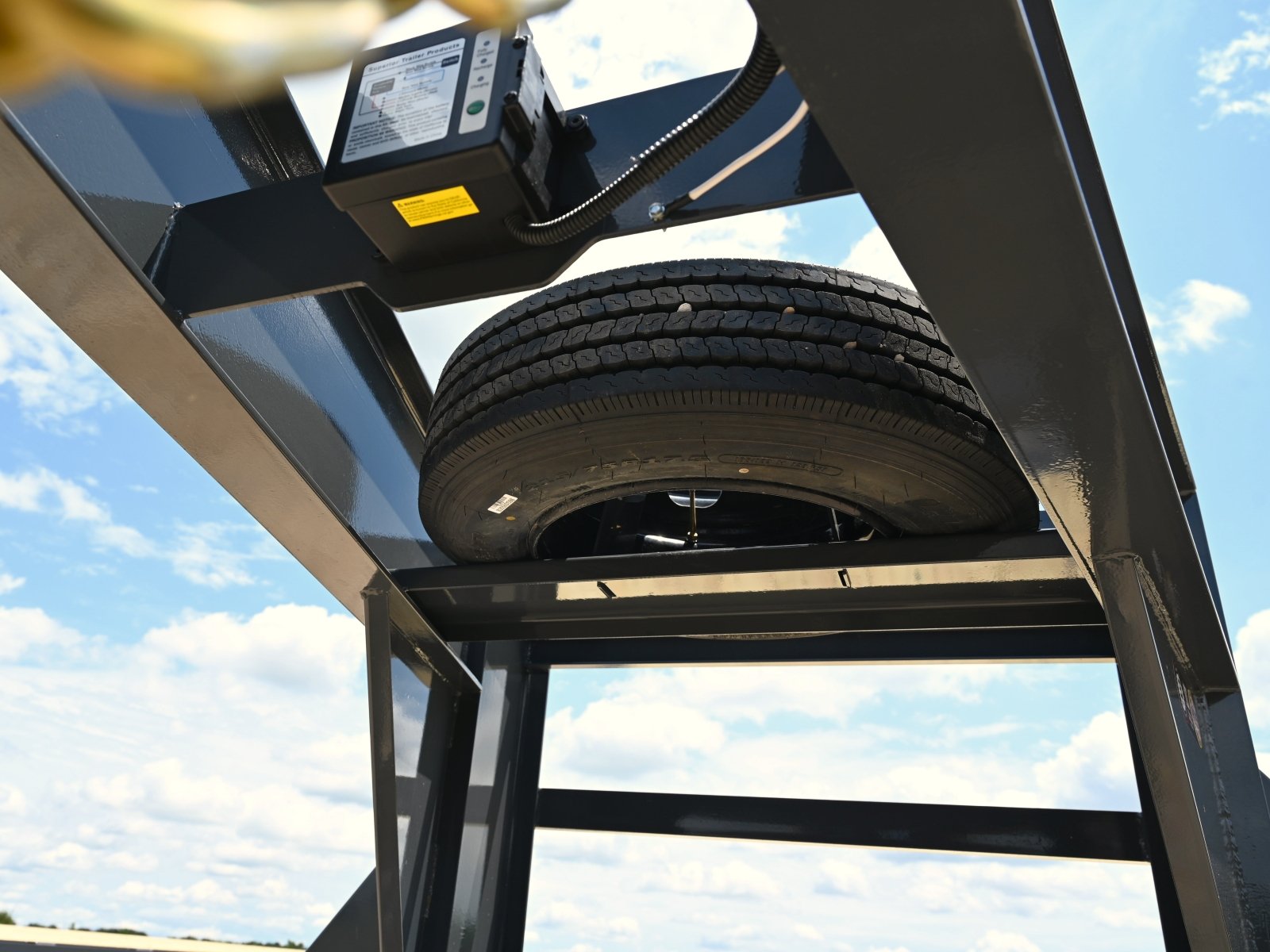

- SPARE MOUNT:
- Standard
ELECTRICAL & LIGHTING
ELECTRICAL:
- LIGHTING:
- LED Lights
- SIDE TURN FLASHERS:
- Pair of Side Turn Flashers (Standard on 30'+)
- WIRING HARNESS:
- Weather Resistant Harness (-65°F)
FINISH
FINISH:
- COLOR:
- Lamar Charcoal Gray Powder Coat
OPTIONS
LOADING OPTIONS:

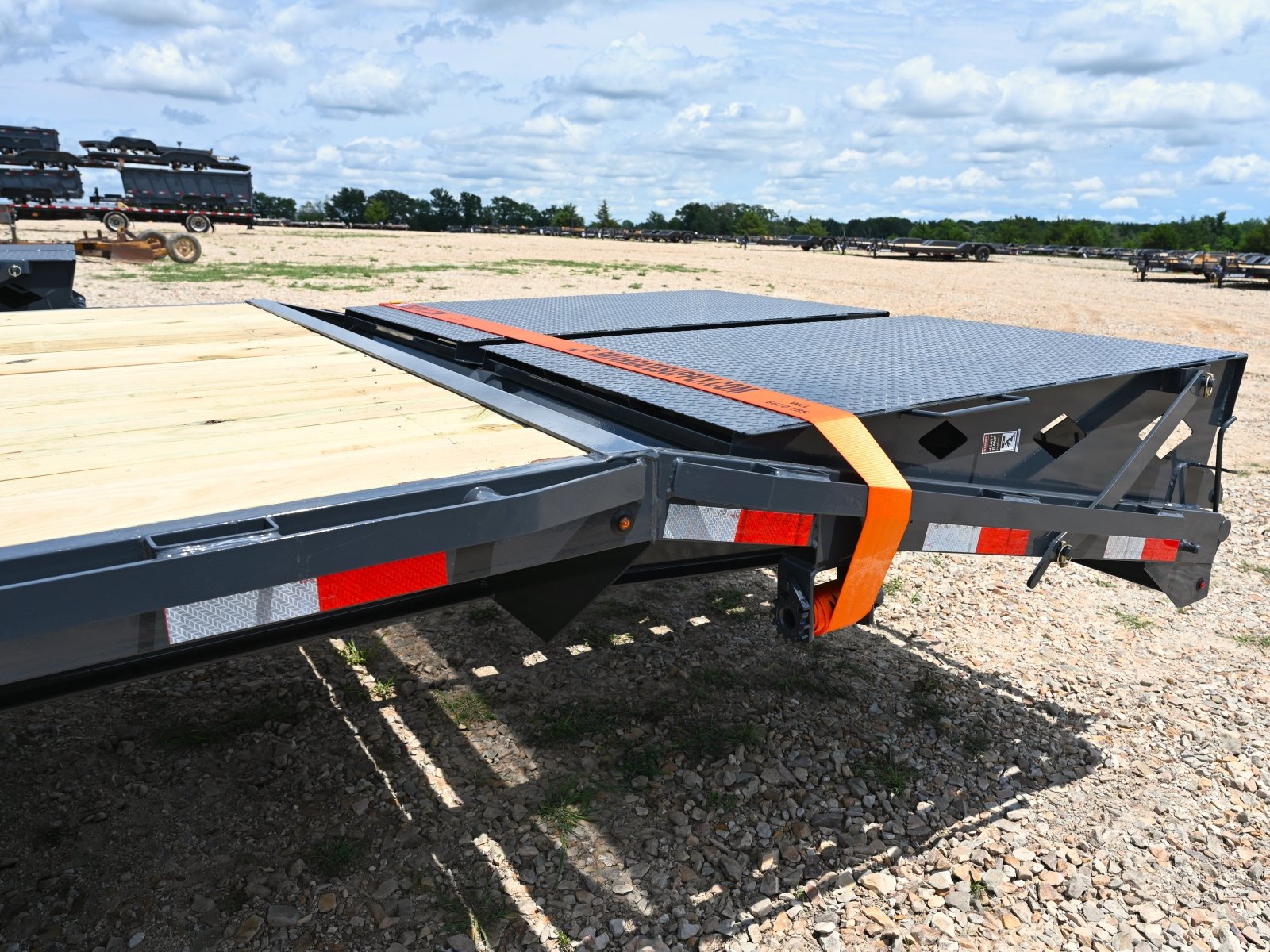

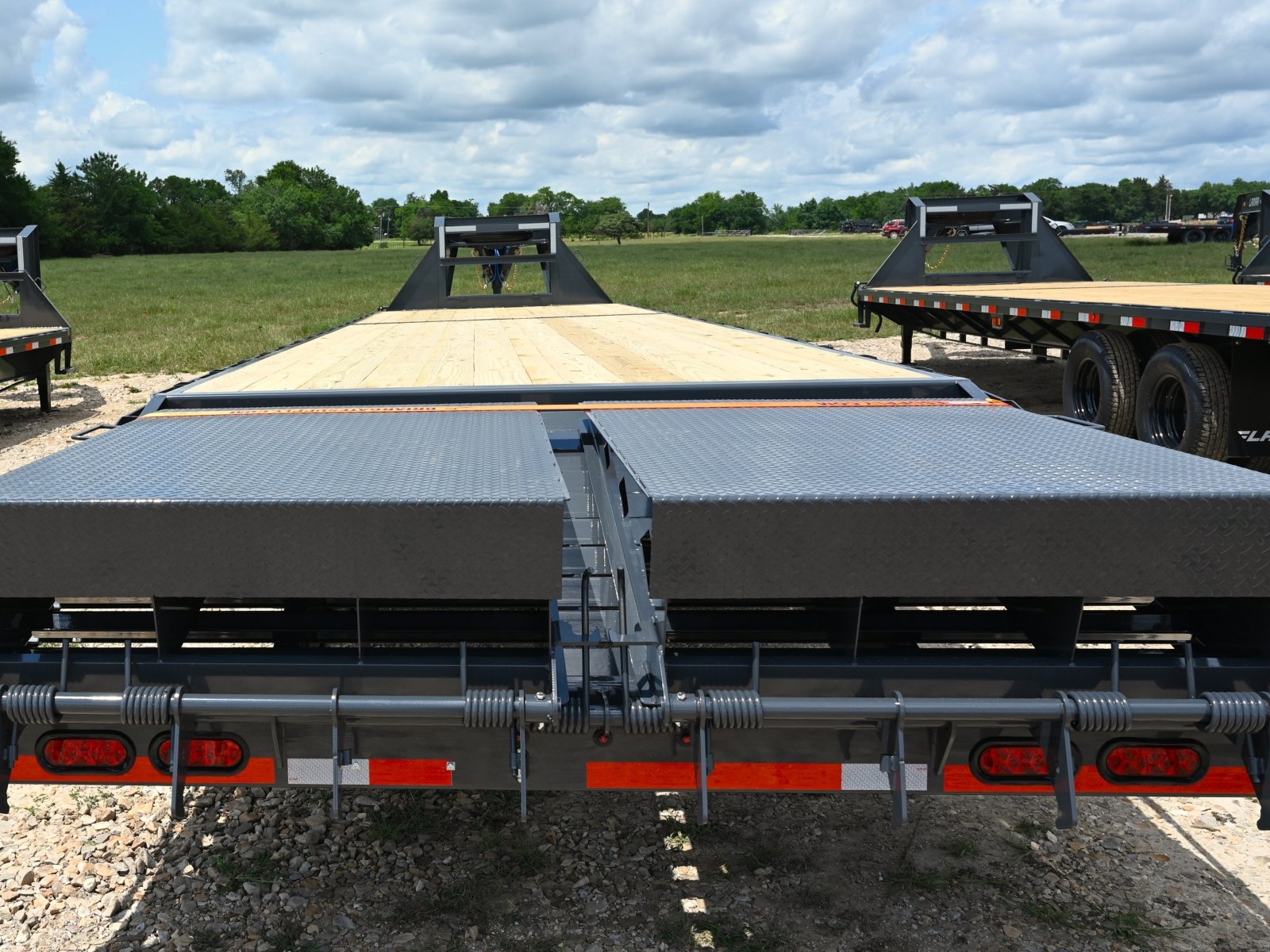

- RAMPS:
- Pair of Slide-In Ramps
- Pair of Mega Ramps
