Product Features
Lightweight Hauling Excellence

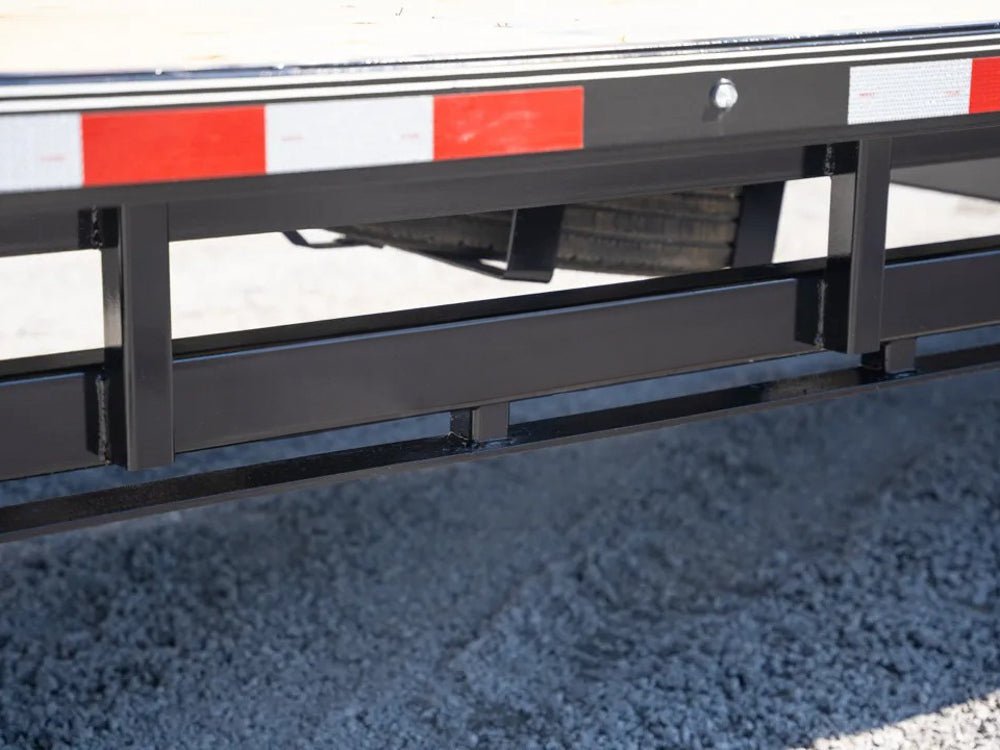

Weighing only 6,500 lbs with accessories, this trailer boasts a 12,000-17,500 lbs GVWR and 7,000-11,700 lbs payload. Its engineered truss frame ensures durability in a lightweight design. Perfect for ¾-ton and 1-ton pickups, it maximizes load capacity for hot shot trucking, delivering efficiency without compromising performance.
Spacious Gooseneck Deck

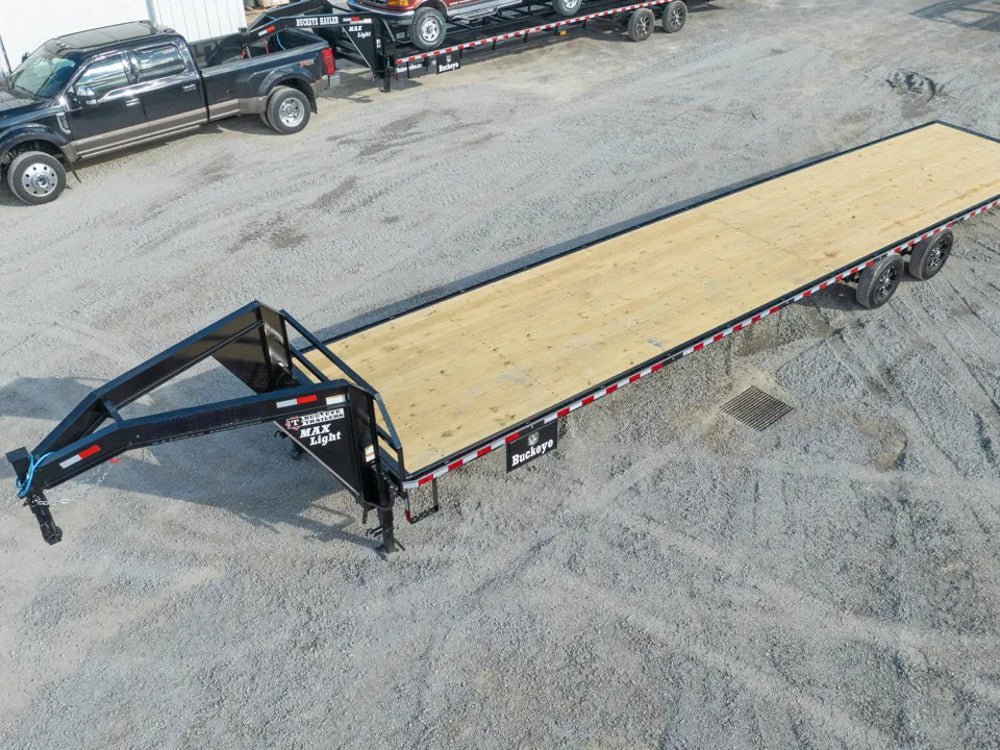

With a 40-foot deck, 96-inch width, and 37-inch height, this trailer offers versatile hauling space. The 2x6 Southern Yellow Pine floor, upgradeable to oak, supports heavy loads, while sliding ratchet rail D-rings secure cargo. Its low-profile gooseneck design enhances flexibility for hot shot operators on any job.
Rugged Running Gear

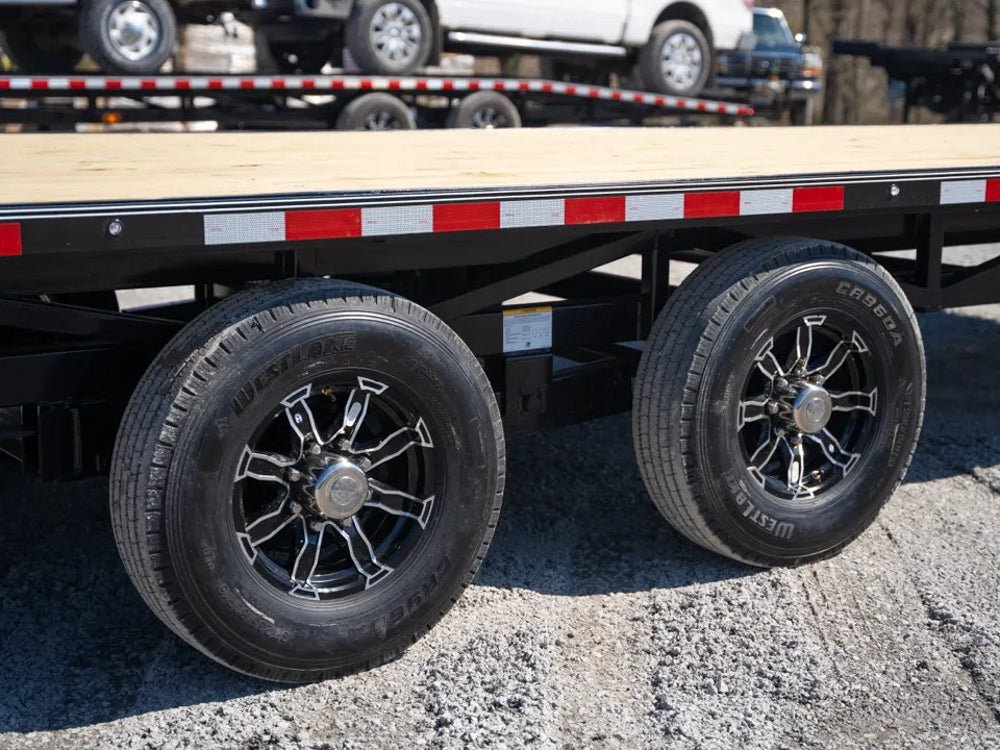

Featuring 235-80-R16 Load Range G tires on premium HD polished aluminum 16” wheels with an 8 on 6.5” bolt pattern, this trailer ensures reliable towing. Tandem 8k HD axles and electric brakes provide durability, with an optional hydraulic drum upgrade for enhanced stopping power on tough hauls.
Advanced Safety Features

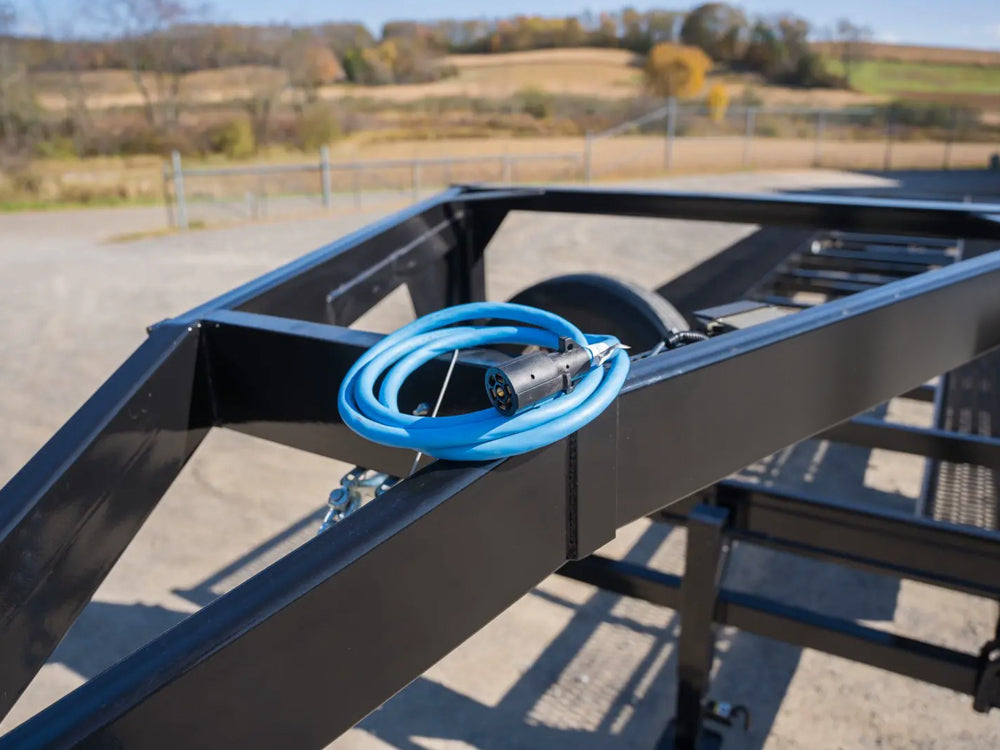

Equipped with DOT-approved reflective tape, a 7-way RV plug, and a breakaway kit with battery box, this trailer prioritizes safety. HD 3/8" safety chains and LED lighting with 8 extra bullet markers and neck flood lights ensure visibility, keeping hot shot haulers secure day or night.
Sturdy Coupler & Support

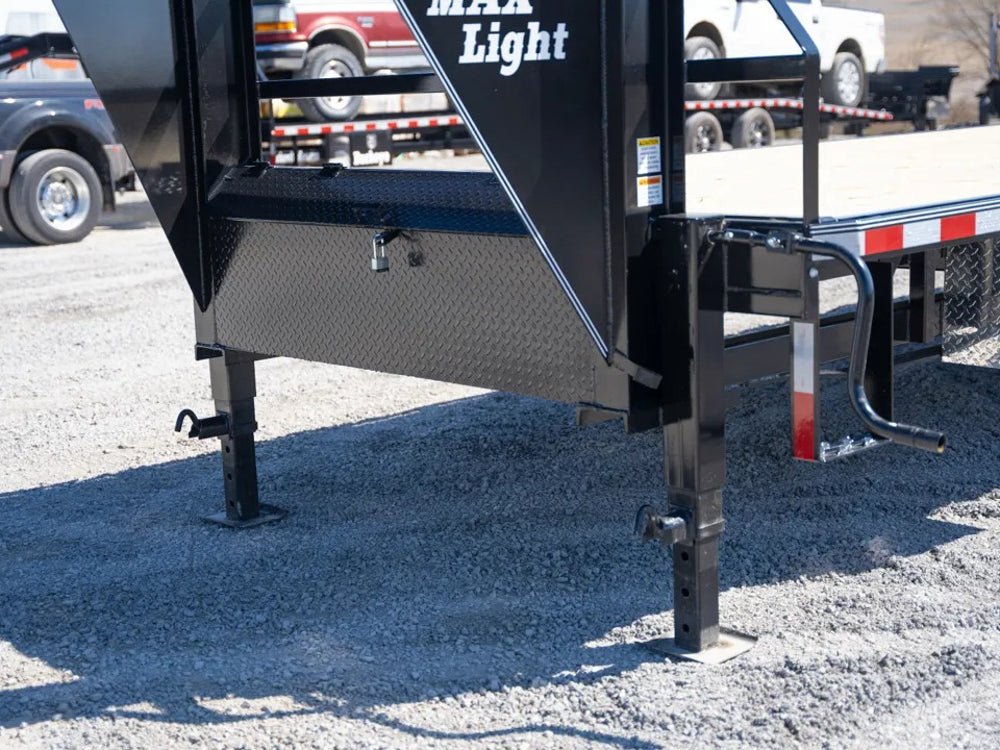

The 2-5/16" ball coupler, with an optional fifth wheel, offers towing versatility. Dual 12k spring-loaded drop leg jacks provide robust support, while 3"x3/8" rub rails with stake pockets every 18" and chain spools enhance tie-down options, making it ideal for demanding hot shot transport needs.
Product Details
DIMENSIONS & CAPACITY
- MODEL:
- Max Light 40' Gooseneck
- GVWR:
- 12,000 - 17,500 lbs
- PAYLOAD:
- 7,000 - 11,700 lbs
- EMPTY WEIGHT:
- 6,500 lbs
- DECK LENGTH:
- 40'
- DECK WIDTH:
- 96"
- DECK HEIGHT:
- 37"
FRAME & SUSPENSION
- FRAME:
- Engineered Truss
- SUSPENSION:
- Heavy-Duty Slipper Spring w/ 48" Axle Spread
- FLOOR:
- 2x6 Southern Yellow Pine
- AXLES:
- Tandem 8k HD Axle
FINISH & WARRANTY
- FINISH:
- Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane
- WARRANTY:
- 2 Year Structural Frame
COUPLER & ACCESSORIES
- COUPLER TYPE:
- 2-5/16" Ball
- JACKS:
- Dual 12k Spring Loaded Drop Leg Jack
- STAKE POCKETS & RUBRAILS:
- 3"x3/8" Rub Rail, Stake Pocket and Chain Spools Every 18"
- TIE DOWNS:
- D-Rings: Sliding Ratchet Rail and Straps
- STORAGE:
- 2 Side Mount Steel Toolboxes With Lock, Box for Transport Chains Between Uprights
RUNNING GEAR & SAFETY
- TIRES:
- 235-80-R16 Load Range G
- WHEELS:
- Premium HD Polished Aluminum 16"
- BOLT PATTERN:
- 8 on 6.5" Bolt Pattern
- BRAKES:
- Electric Brakes
- RAMPS:
- 10' Aluminum Ramps Rated for 10,000 lbs
- SPARE MOUNT:
- 235-80-R16 Load Range G
SAFETY SYSTEM
- REFLECTIVE TAPE:
- DOT Approved Reflective Tape
- TRAILER PLUG:
- 7-Way RV
- BREAK-AWAY KIT:
- Breakaway Kit & Battery Box
- SAFETY CHAINS:
- HD 3/8" Safety Chains
- LIGHTS:
- DOT Approved LED Lighting, 8 Extra Bullet Markers and Flood Lights on the Neck
WINCH UPGRADE
- WINCH:
- 12,000lb Winch Kit – Wireless Remote Included
OPTIONS
