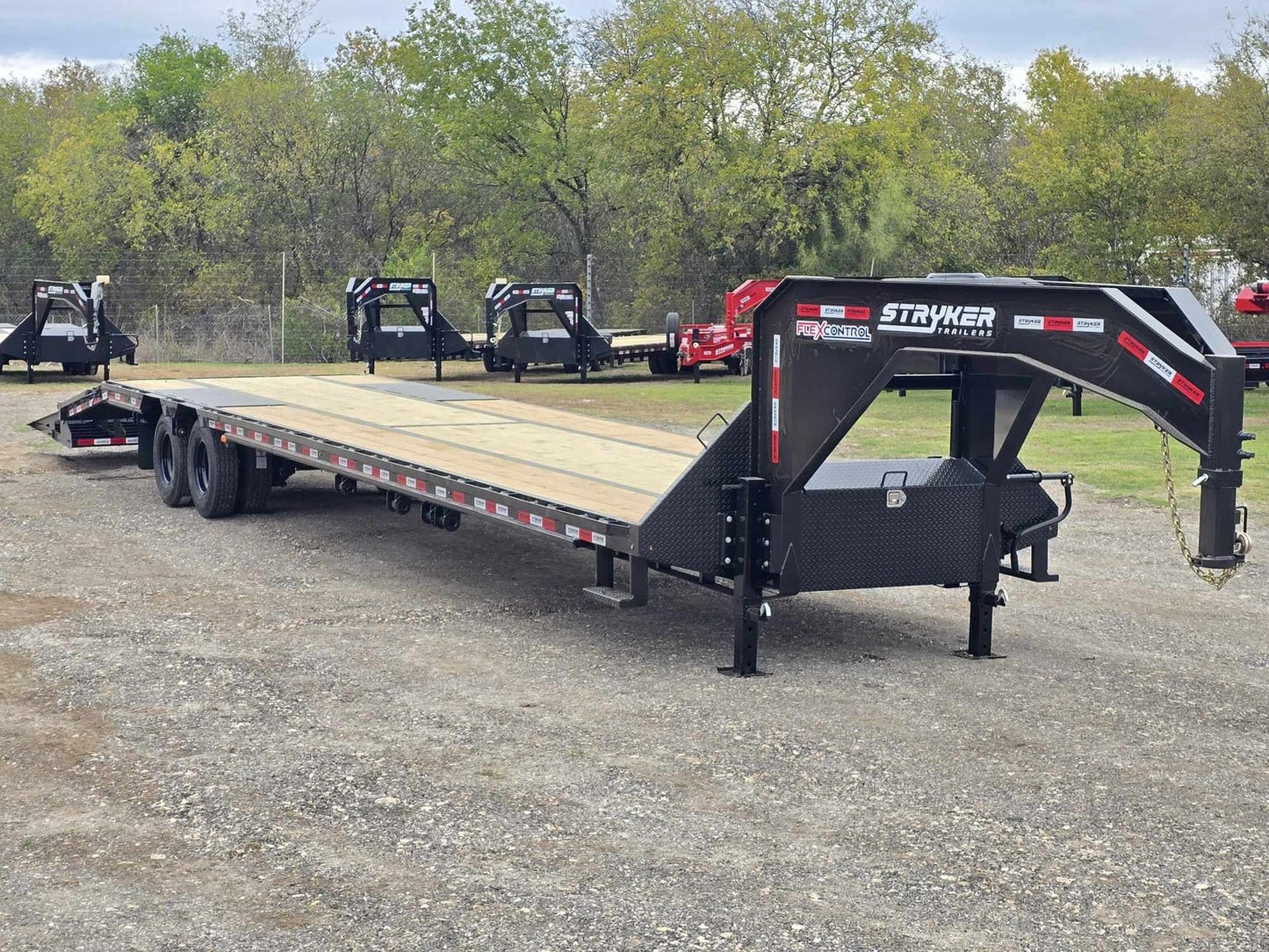

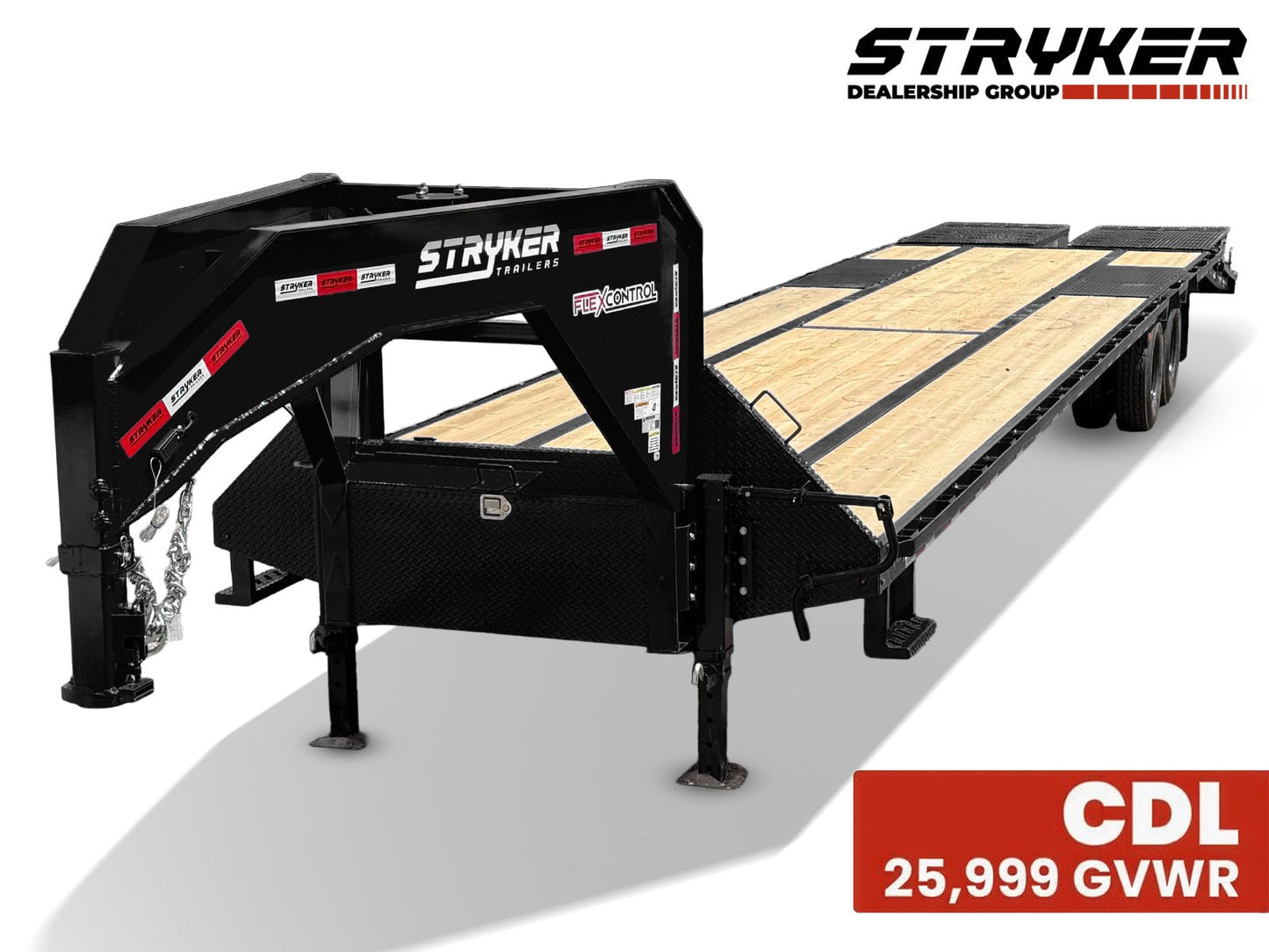

Stryker Pro Gooseneck Deckover Trailer

Stryker Pro Gooseneck Deckover Trailer

Stryker Pro Gooseneck Deckover Trailer

Stryker Pro Gooseneck Deckover Trailer

View full details

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery

Product Details

DIMENSIONS

LENGTH:
25' - 40'
WIDTH:
102"

WEIGHT RATINGS

GAWR:
10k, 12k
GVWR:
20,000 - 25,999 lbs

FINISH

PAINT TYPE:
Powdercoat
PREP:
Steel Grit Blasted
COLORS:
Black, Gray, White, Light Grey, Red, Blue, Lime Green, Green, Orange

WARRANTY

AXLE WARRANTY:
5 Year Dexter Axle Warranty

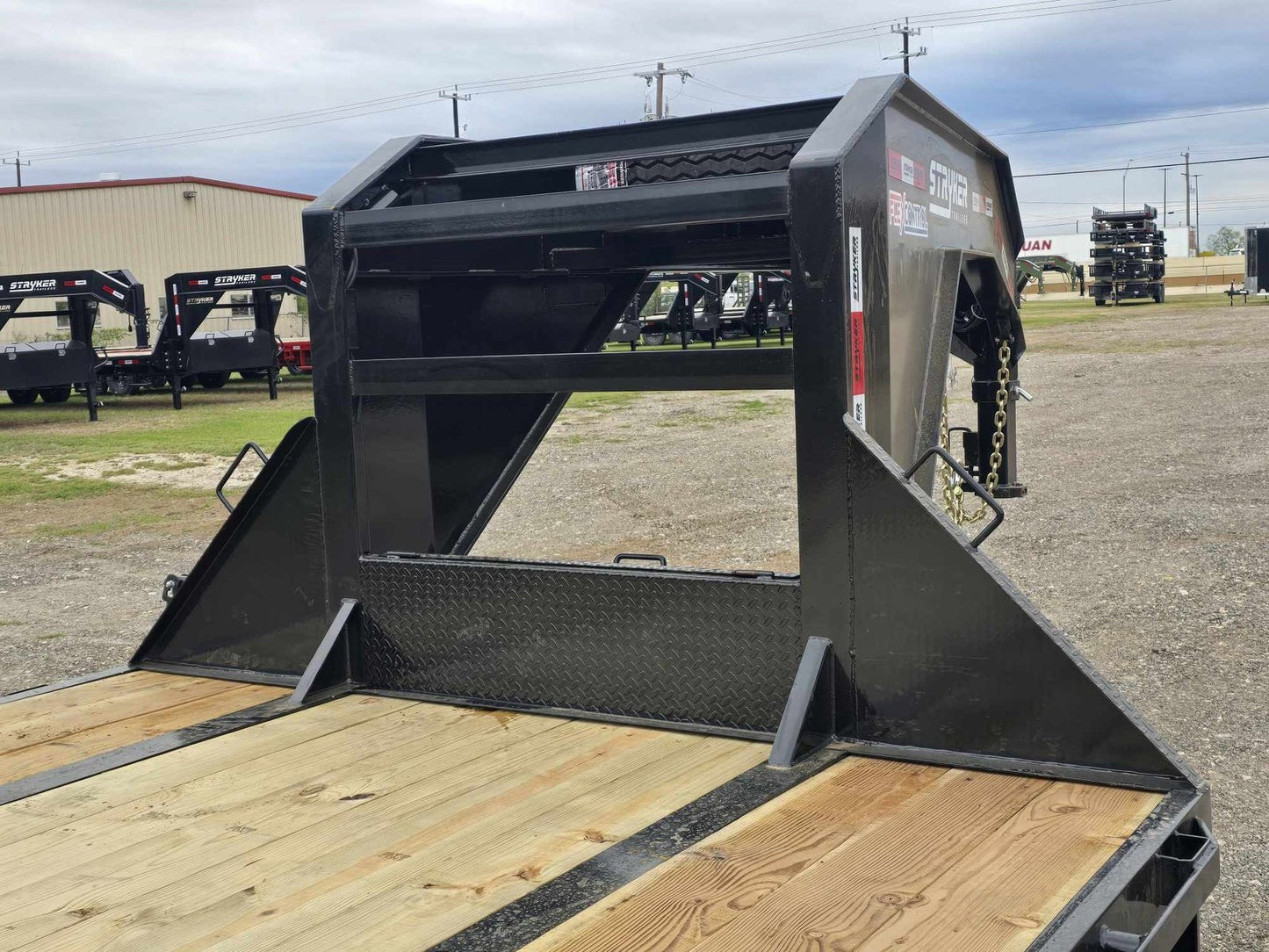

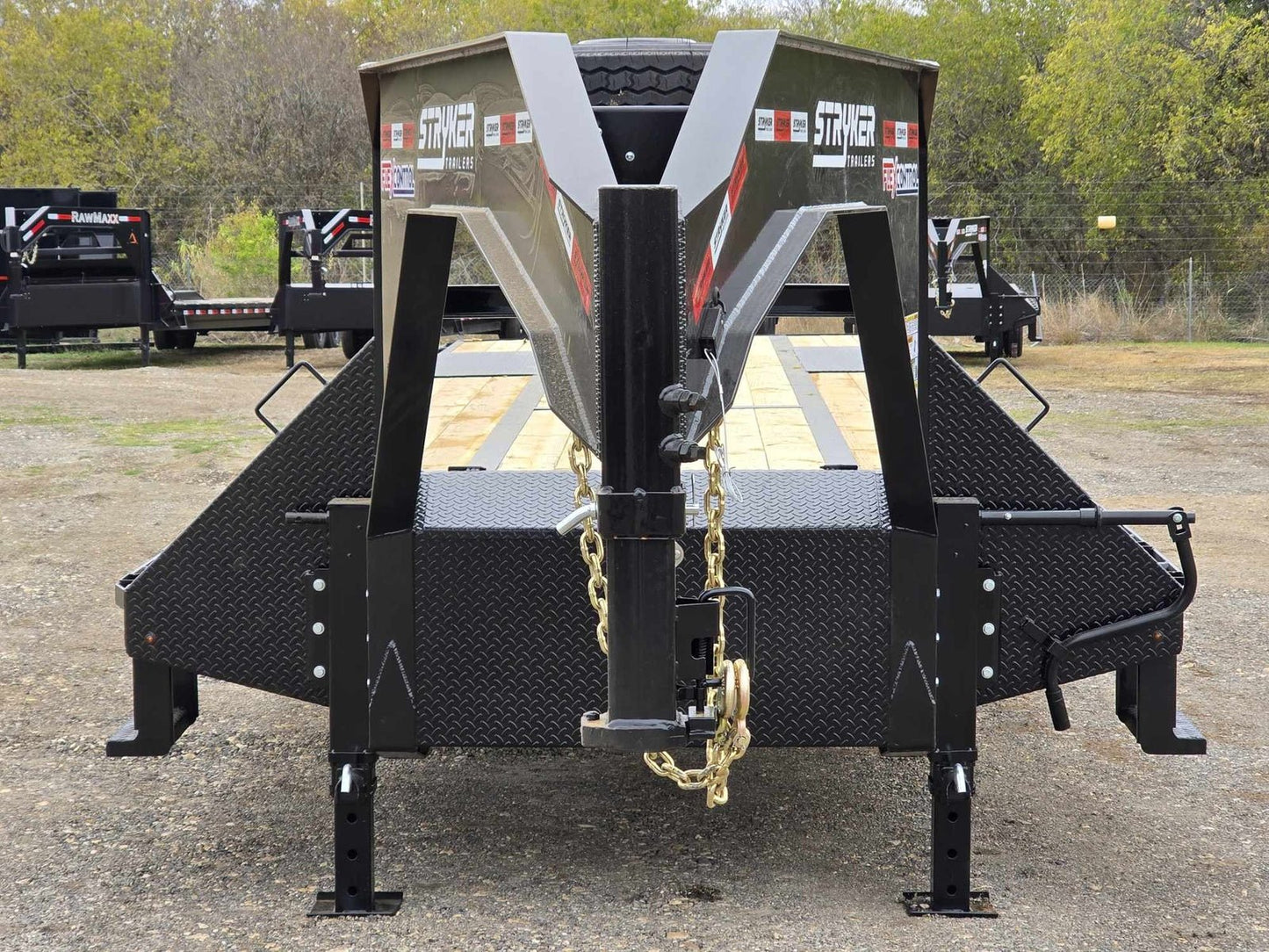

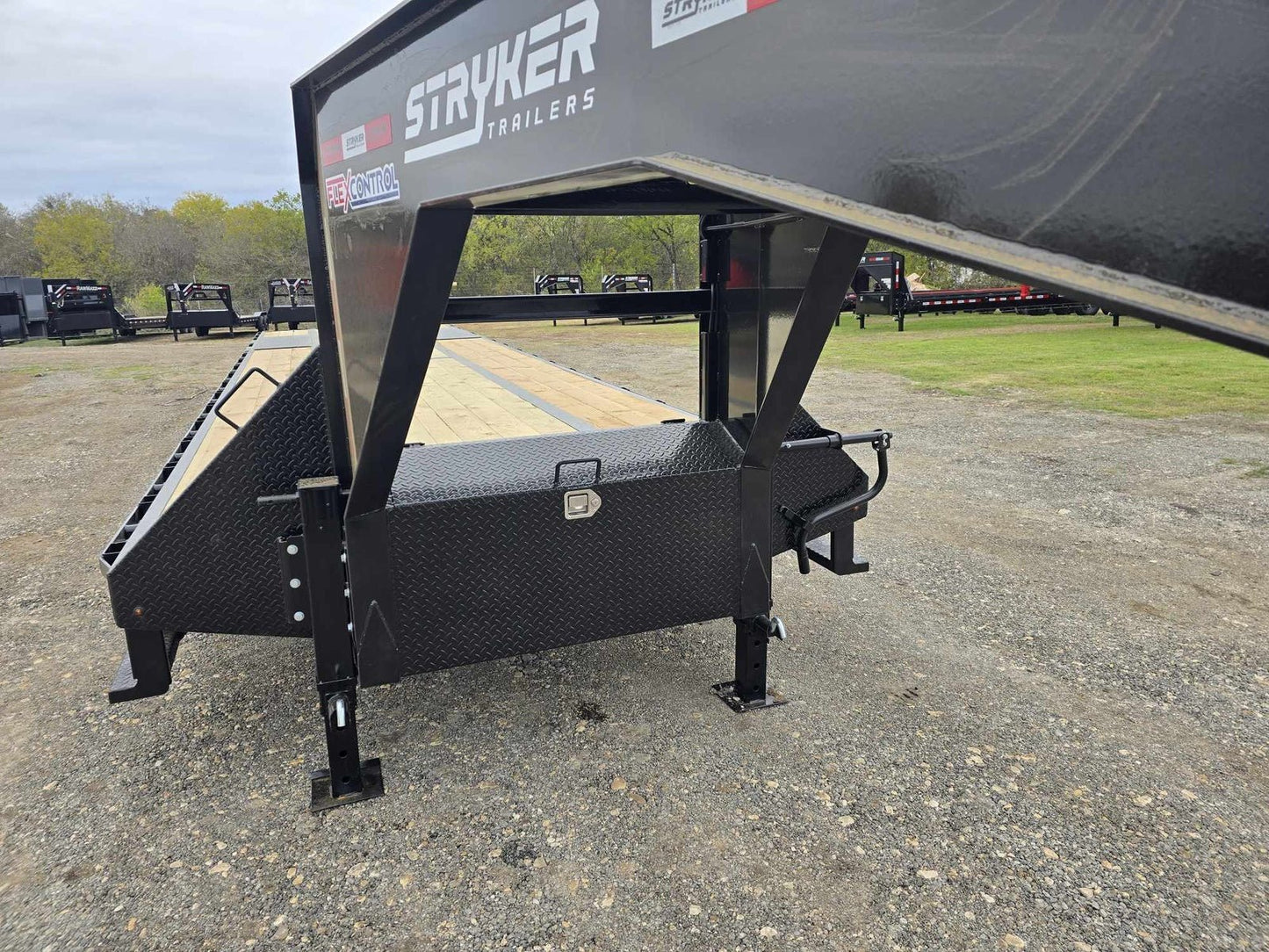

GOOSENECK

PULL TYPE:
Gooseneck
TONGUE:
Fabricated I-Beam
JACK:
1 Side Wind Drop Jack Legs (10,000 lbs)

STORAGE

TOOLBOX:
Lockable Toolbox

DECK & LOADING

DECK TYPE:
Wood

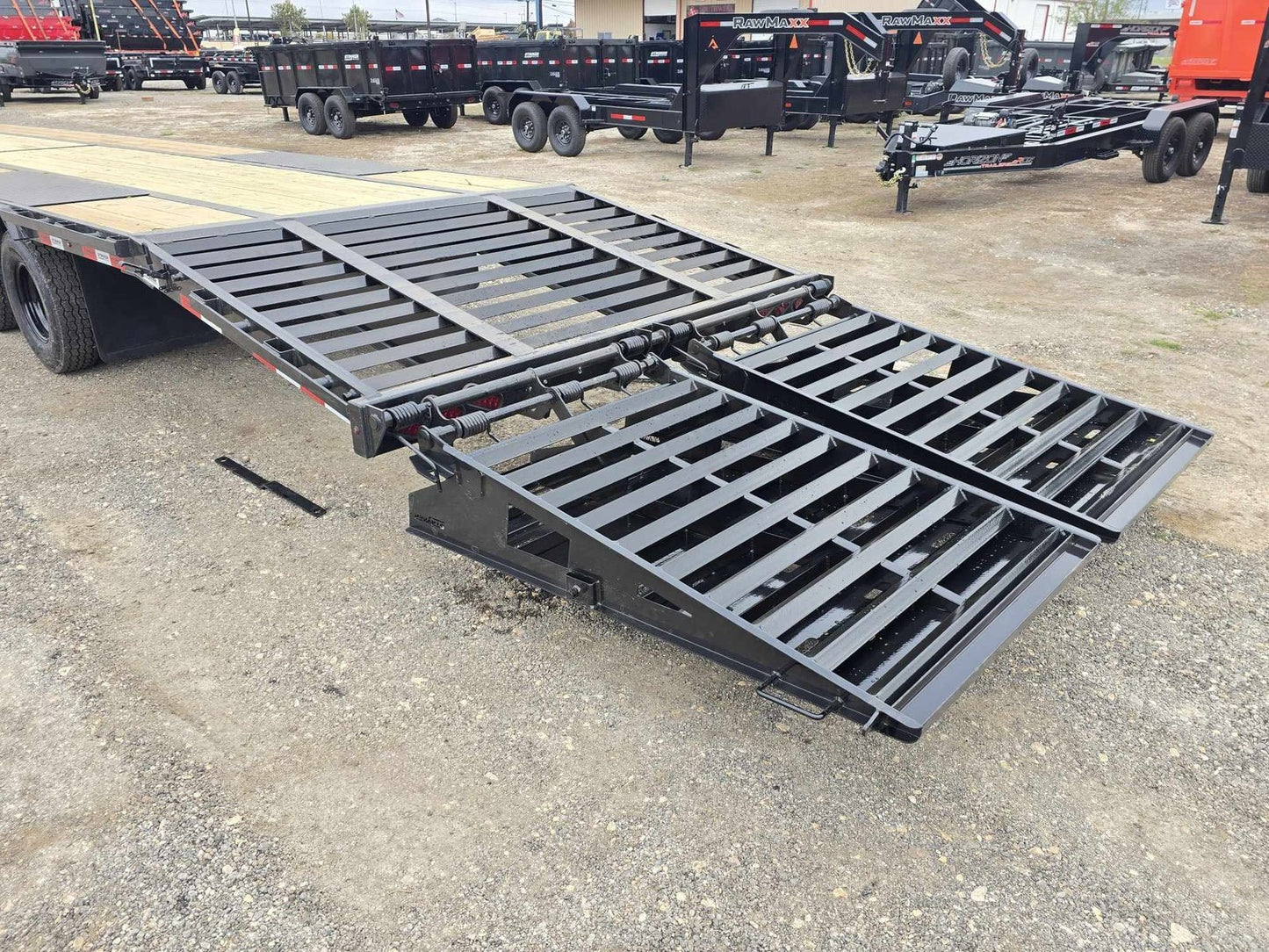

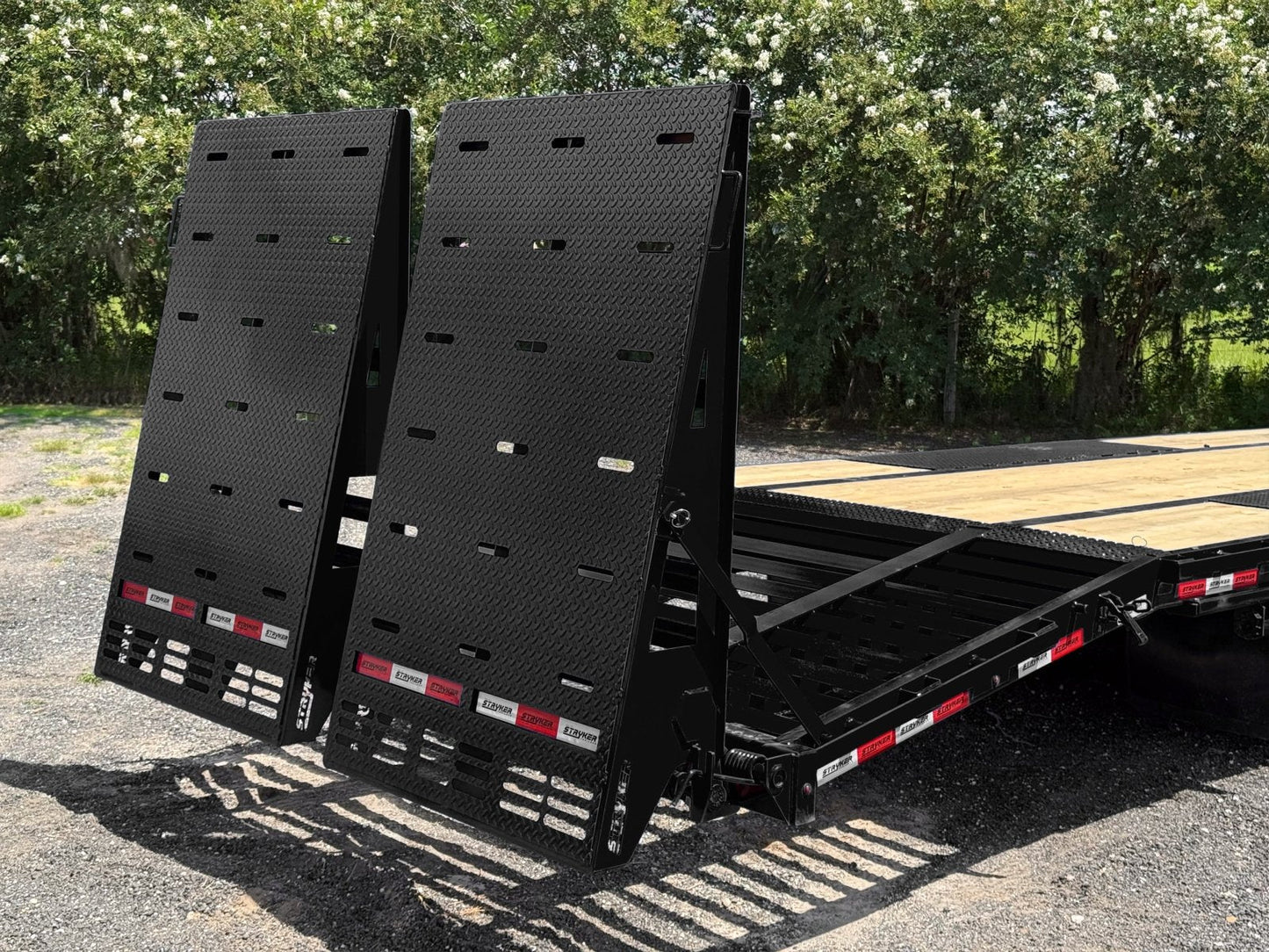

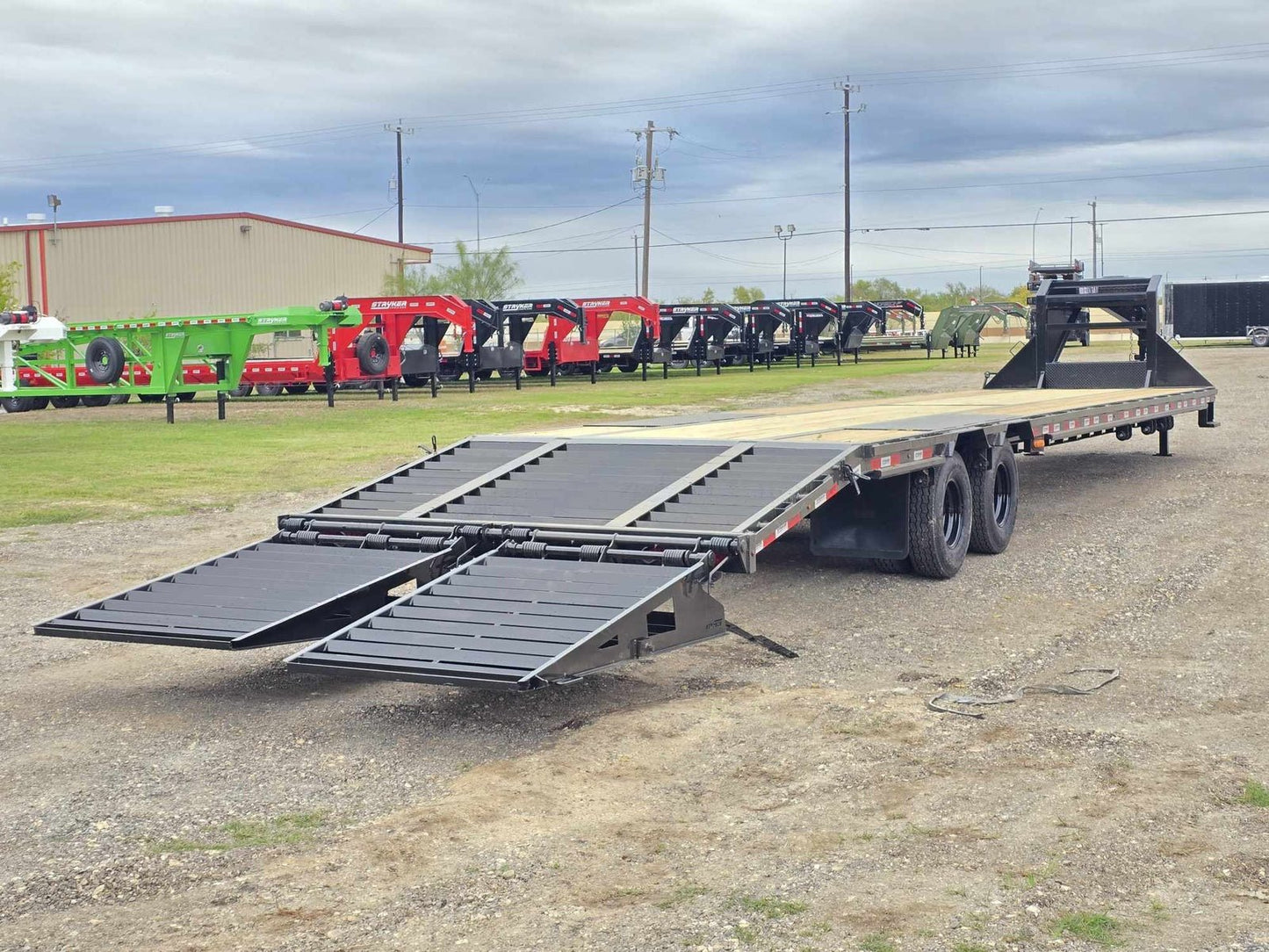

RAMPS:
Mega Ramps

ELECTRICAL & LIGHTING

REAR LIGHTS:
DOT Approved LED Lighting

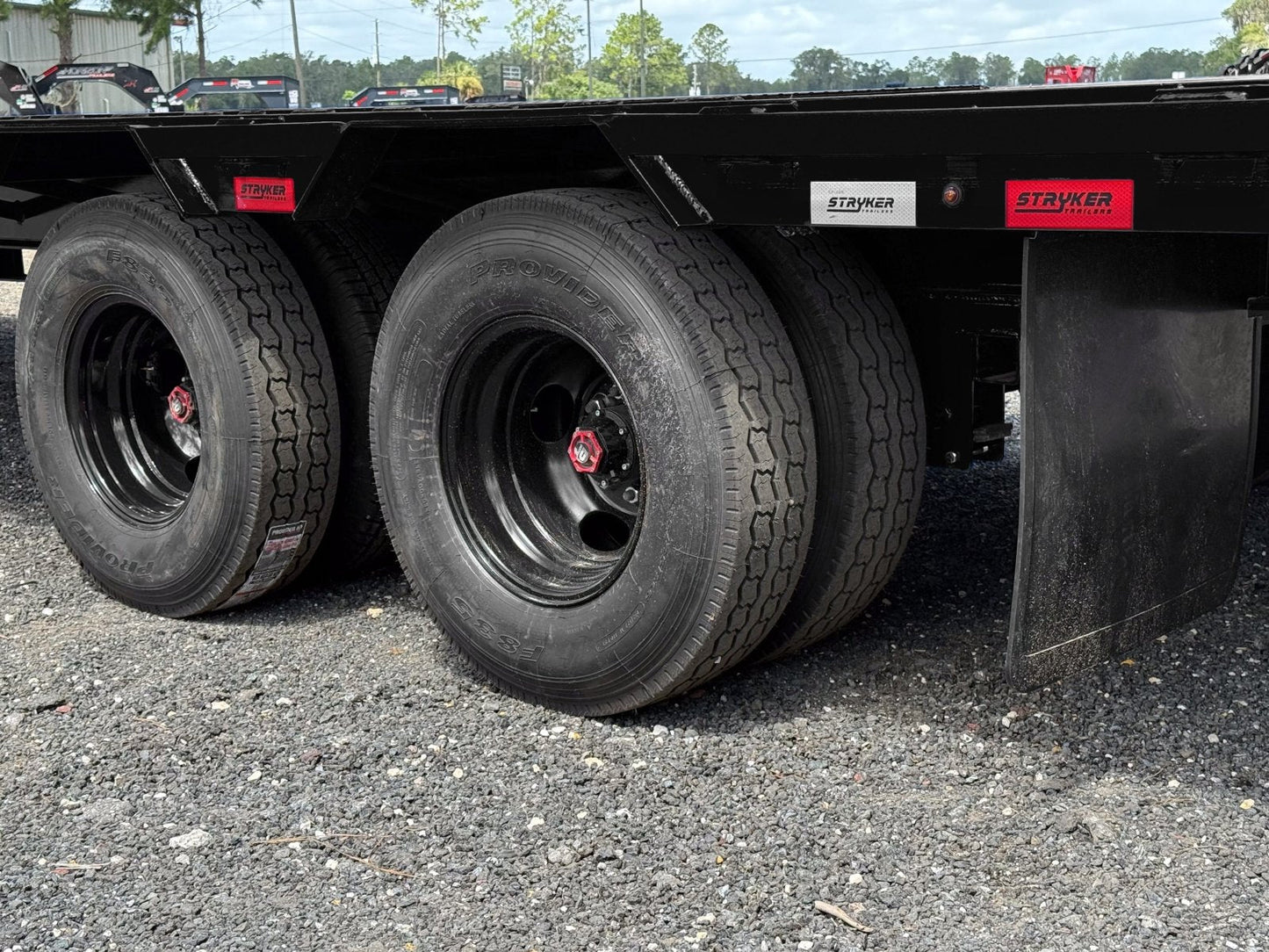

RUNNING GEAR

TIRES:
Radial Tires, ST235/80R16, 10 Ply
RIMS:
16" x 6" Black
AXLES:
2 - 10k Dexter Axles
BOLT PATTERN:
8 on 6.5"
SPARE TIRE:
ST235/80R16 - Included

FRAME & CONSTRUCTION

MAIN FRAME:
19 lb Pierced I-Beam
CROSSMEMBERS:
3" Channel, 16" Spacing
FEATURE:
Flex Control Torque Tube

OPTIONS

AXLE UPGRADE:
2 - 12k Dexter Axles
TOOLBOX MOUNT:
Side Mount Toolbox
WINCH SYSTEM:
Winch Mount / Winch
SECUREMENT:

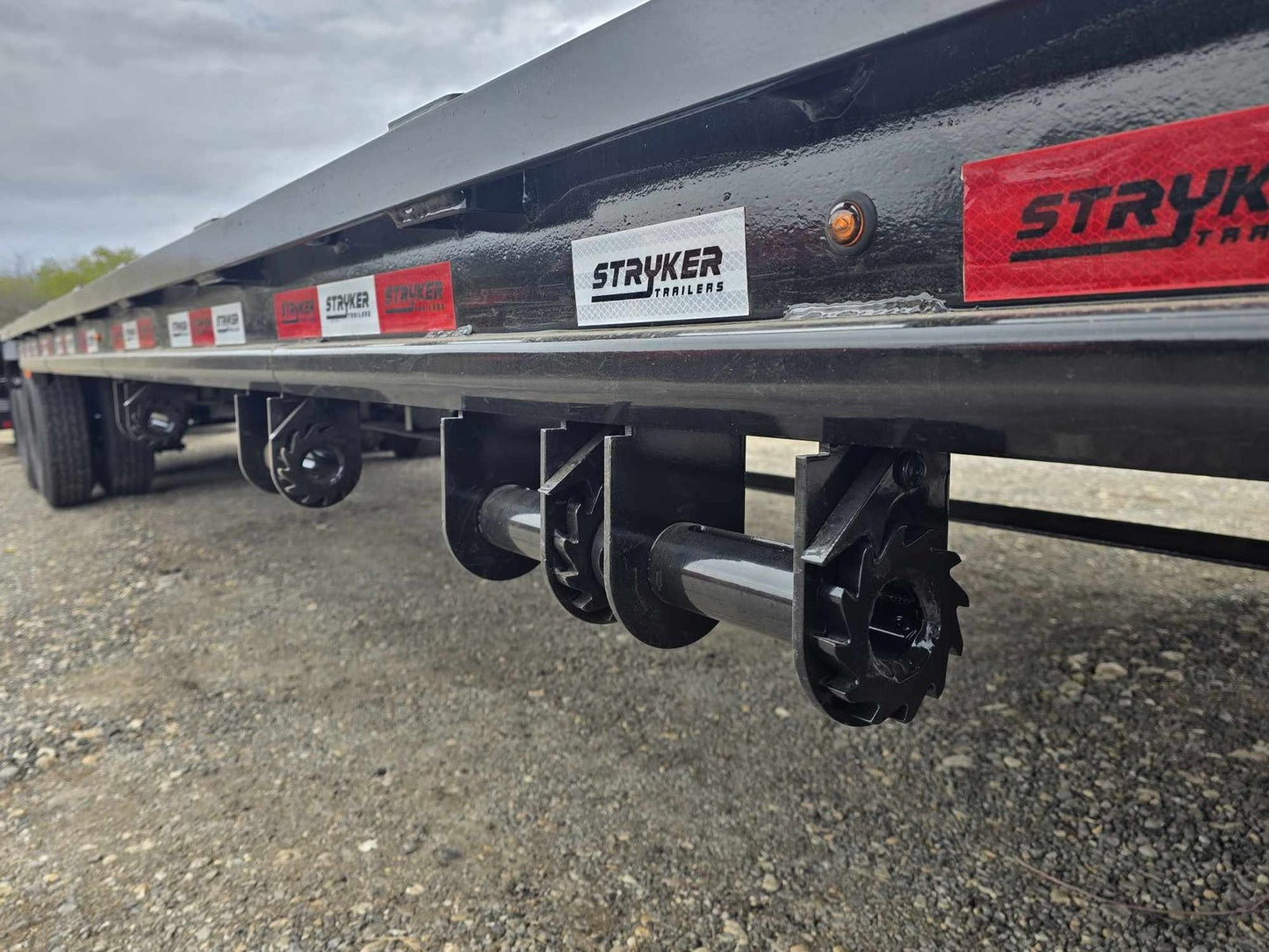

Slide Rails w/ Ratchets
RAMP OPTION:
Straight Deck w/ 10' Slide Out Ramps
