Product Features

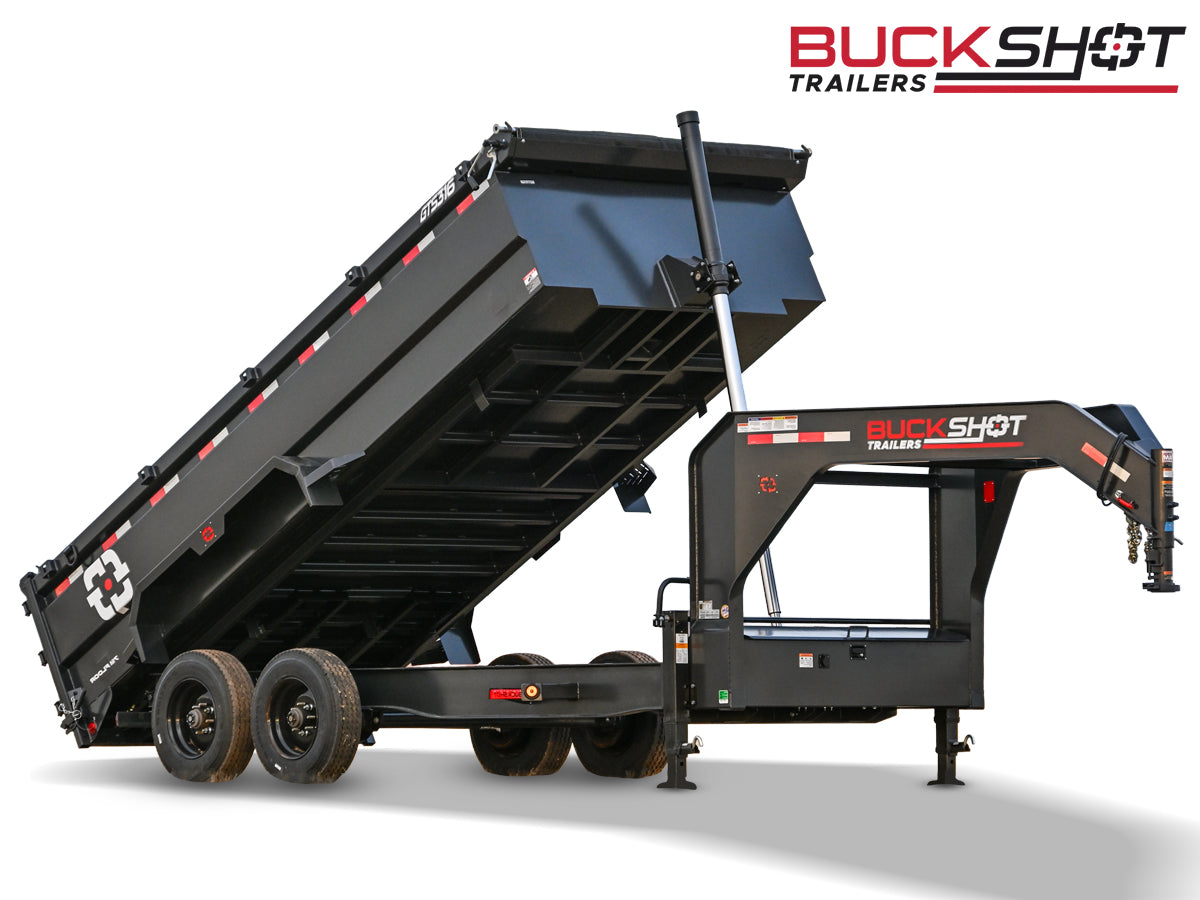

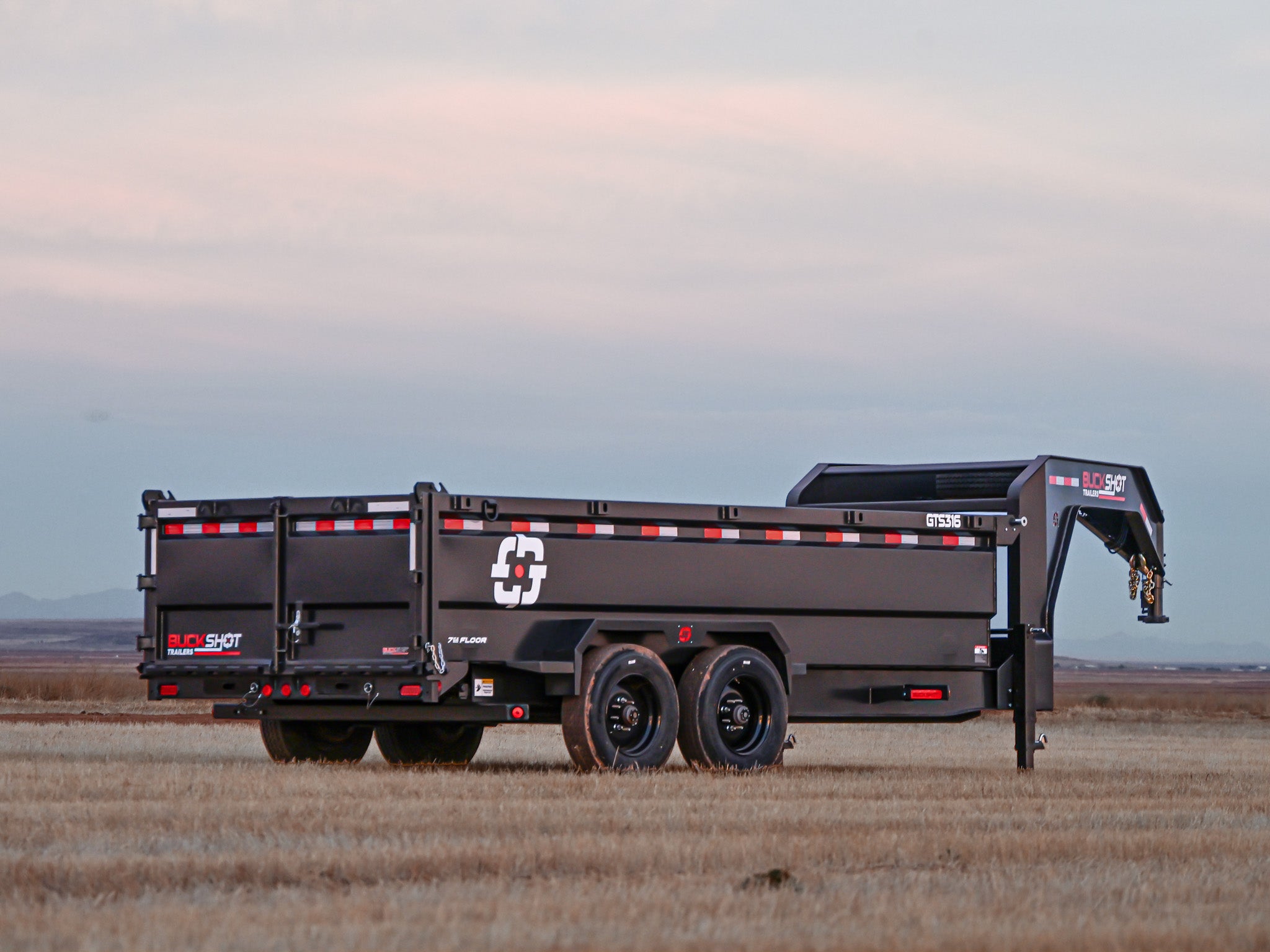

THE HEAVYWEIGHT CHAMPION

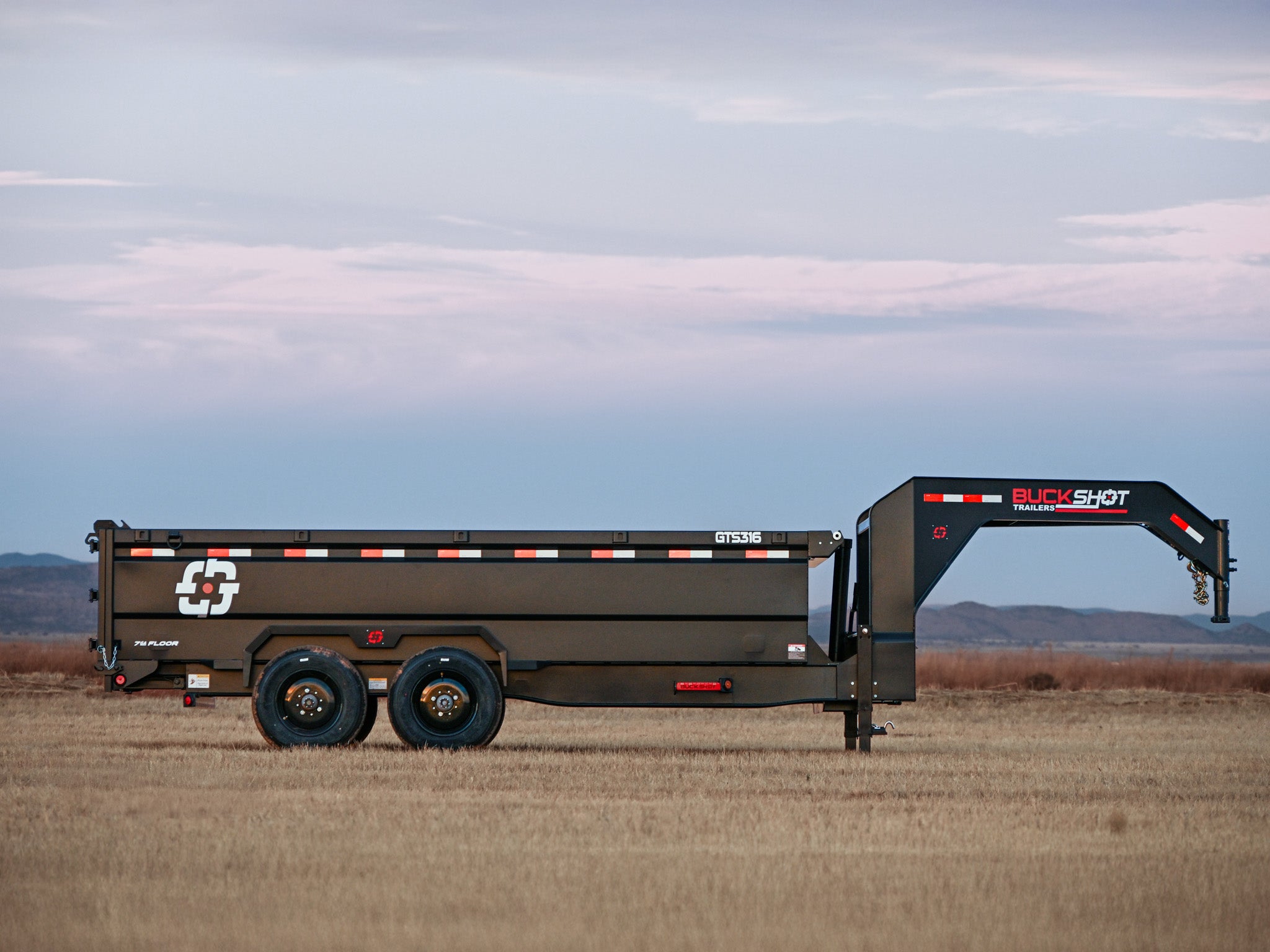

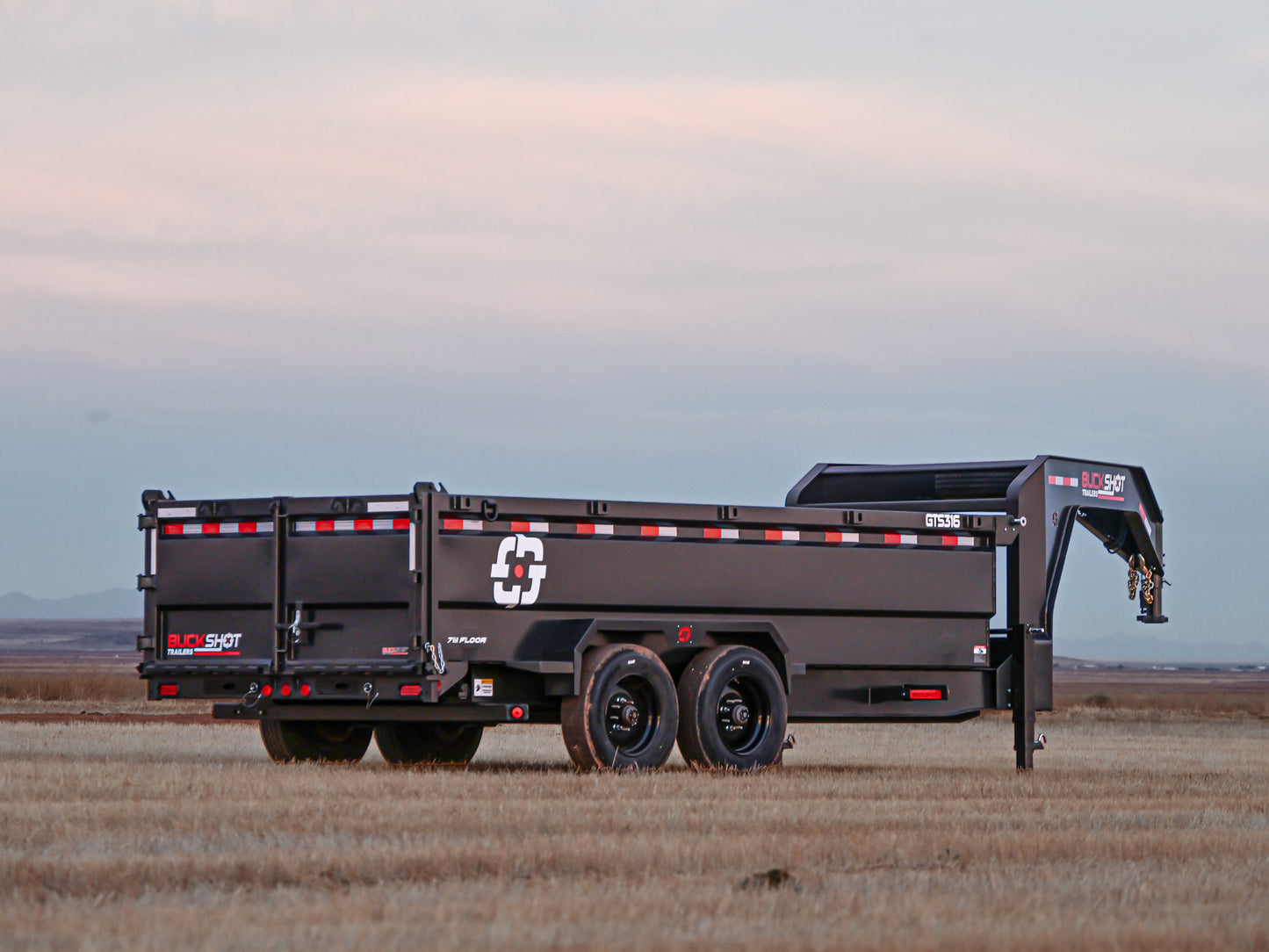

The GTS sits at the top of the Buckshot dump lineup — built on an 11½" Engineered Wide-Beam Frame with a 20k GVWR and 10k Super Single EZ Lube Torsion Axles that are in a class of their own. When the job demands maximum capacity and uncompromising structure, this is the trailer.

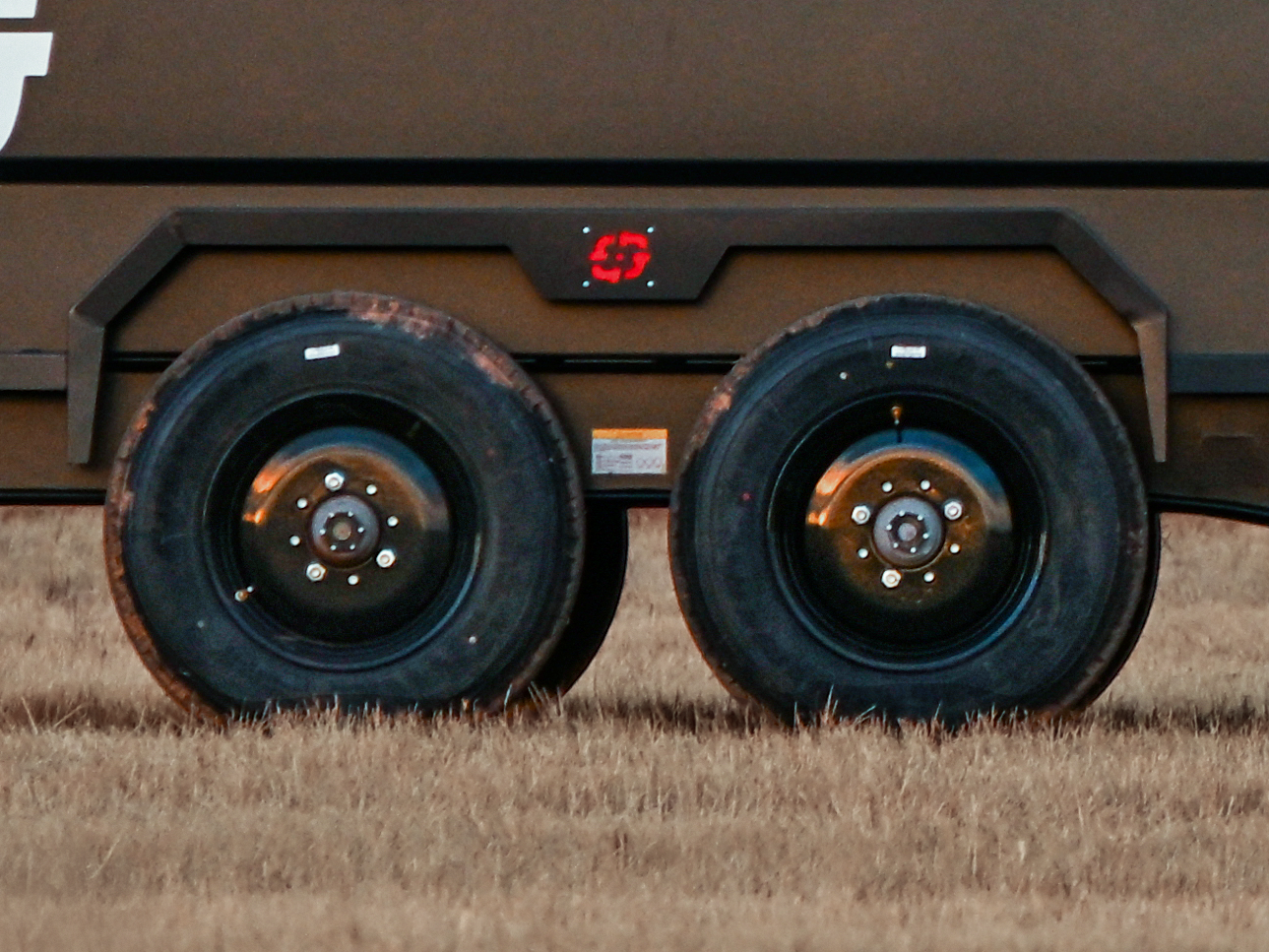

TORSION AXLE RIDE QUALITY

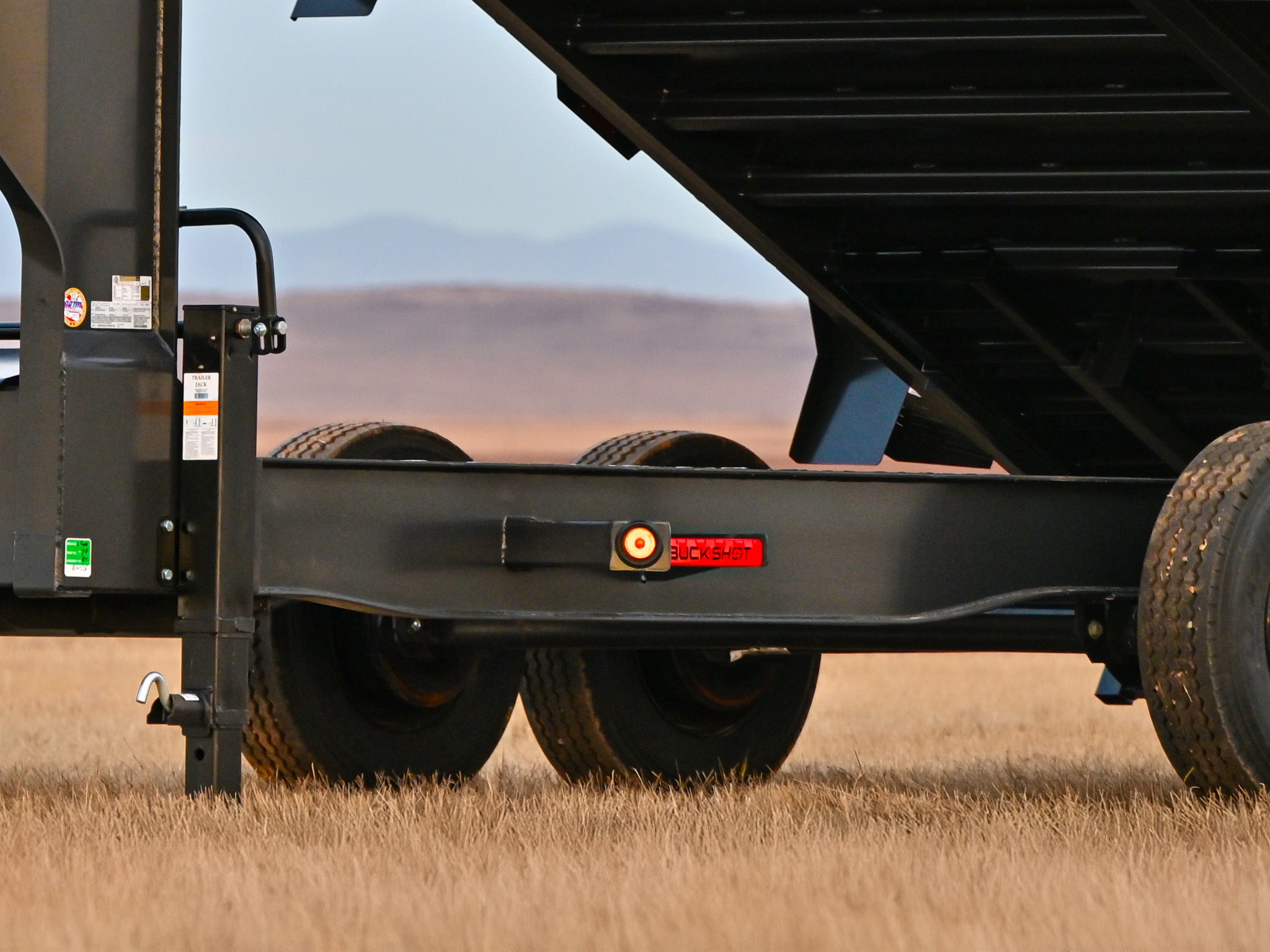

The GTS runs on 2 - 10k SS EZ Lube Torsion Axles — an independent suspension system that provides a smoother, more controlled ride under heavy loads compared to traditional leaf spring setups. Each wheel responds to road conditions independently, protecting your load and extending trailer life.
BUILT FOR THE LONG GAME
Steel blasted for maximum coating adhesion, finished in professional powdercoat, and backed by an 11½" engineered frame, the GTS is built to handle decades of hard work. From the 3/16" one-piece steel floor to the 18-ply ST235/80R16 radial tires, every component is spec'd for durability.

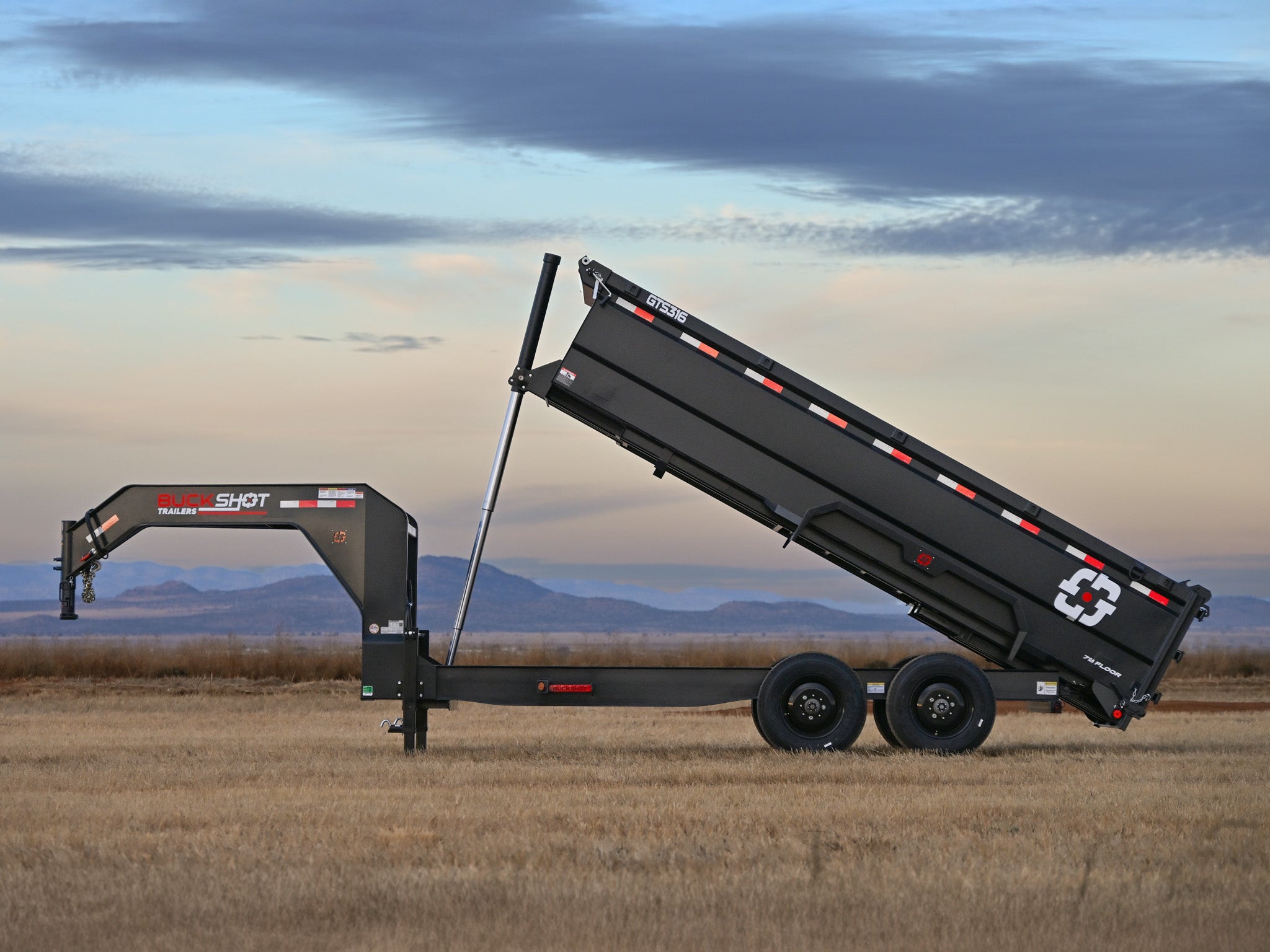

TELESCOPIC CYLINDER ON 20K GVWR

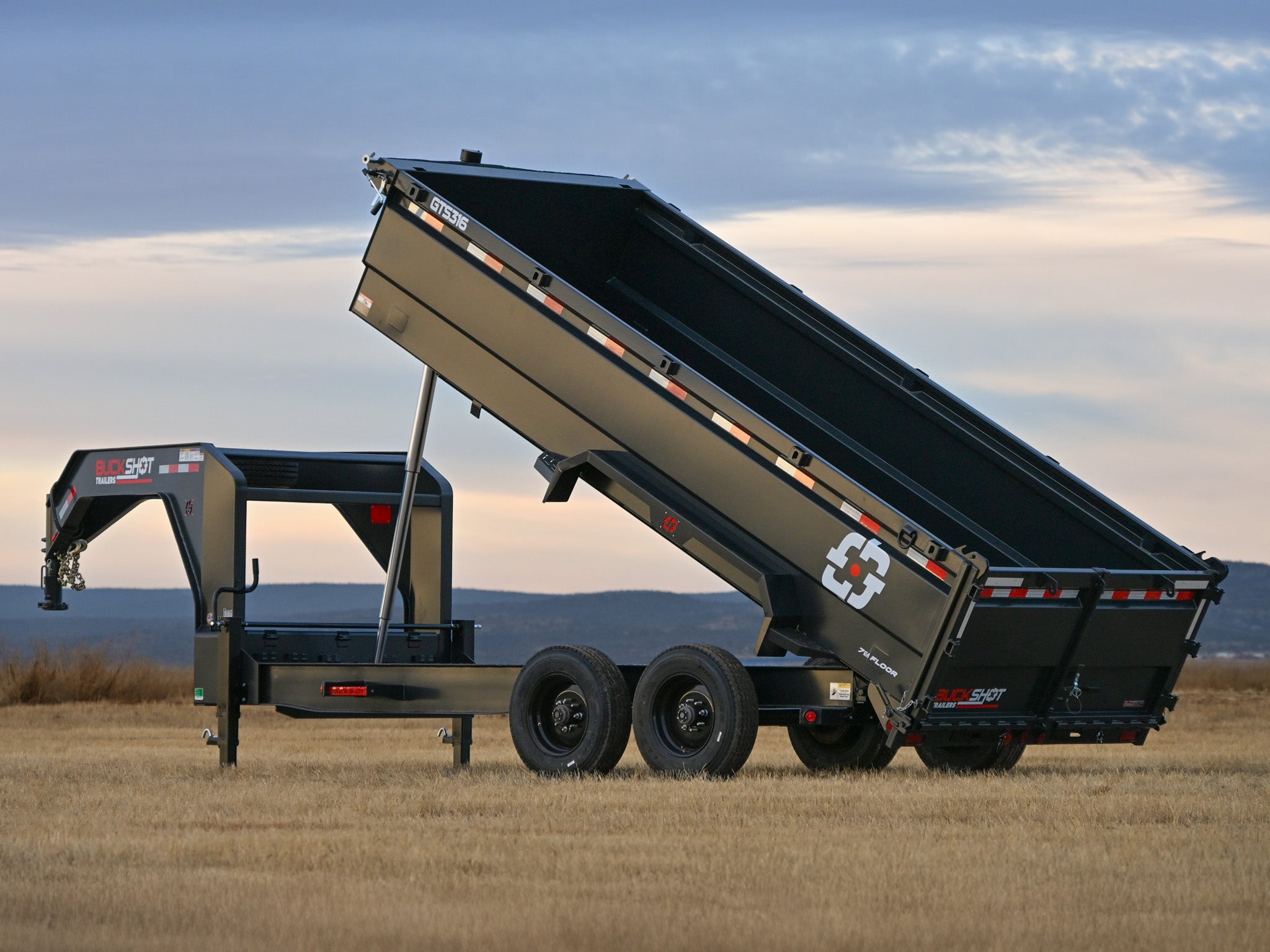

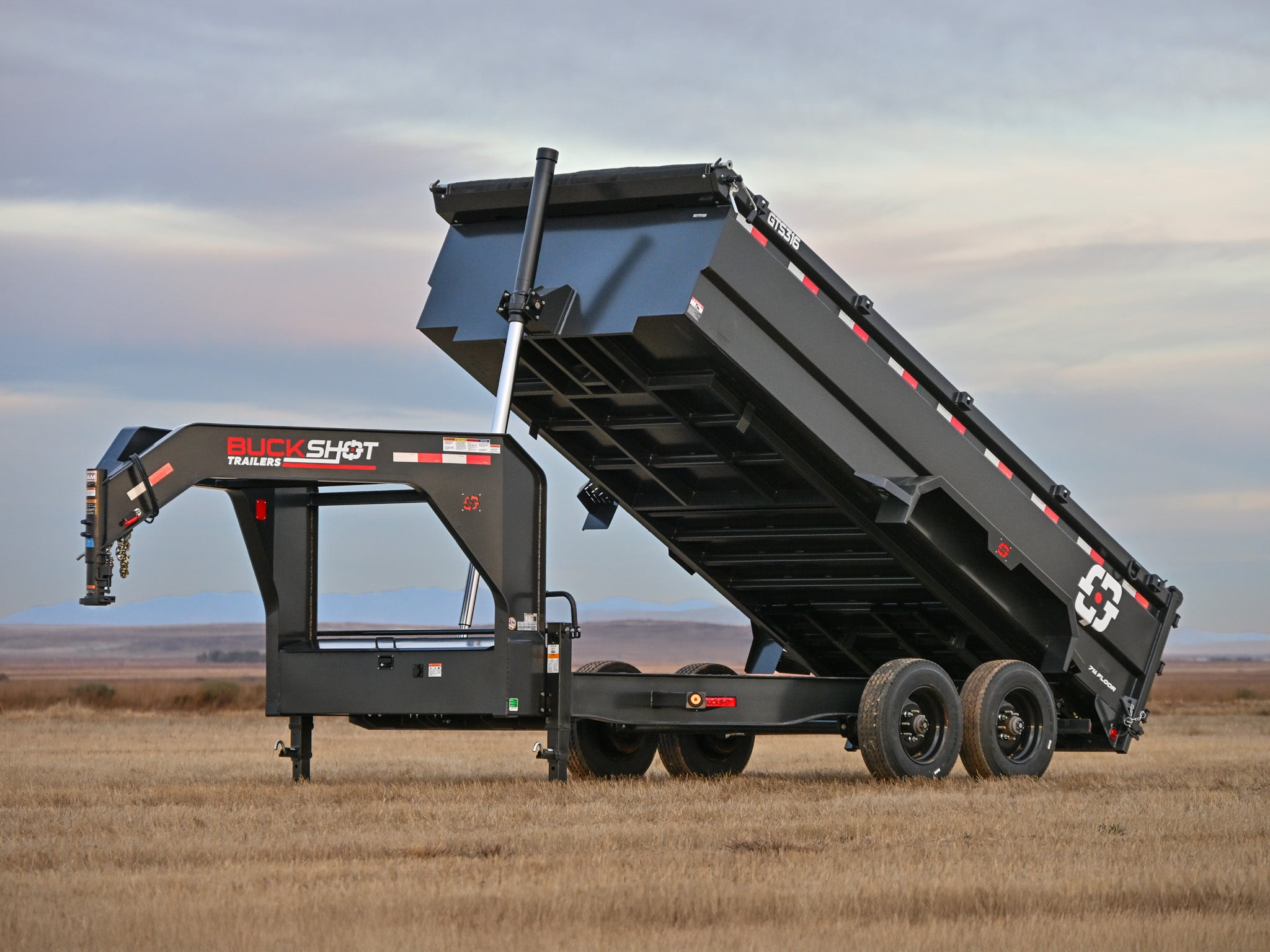

A KTI Hydraulic Pump paired with a Telescopic Cylinder delivers the raw lifting power needed to dump a 20,000 lb load completely and cleanly. With length options from 14' to 18' and 2'–4' side heights, the GTS gives you the capacity to haul more and dump faster.
HEAVY-DUTY STANDARD FEATURES

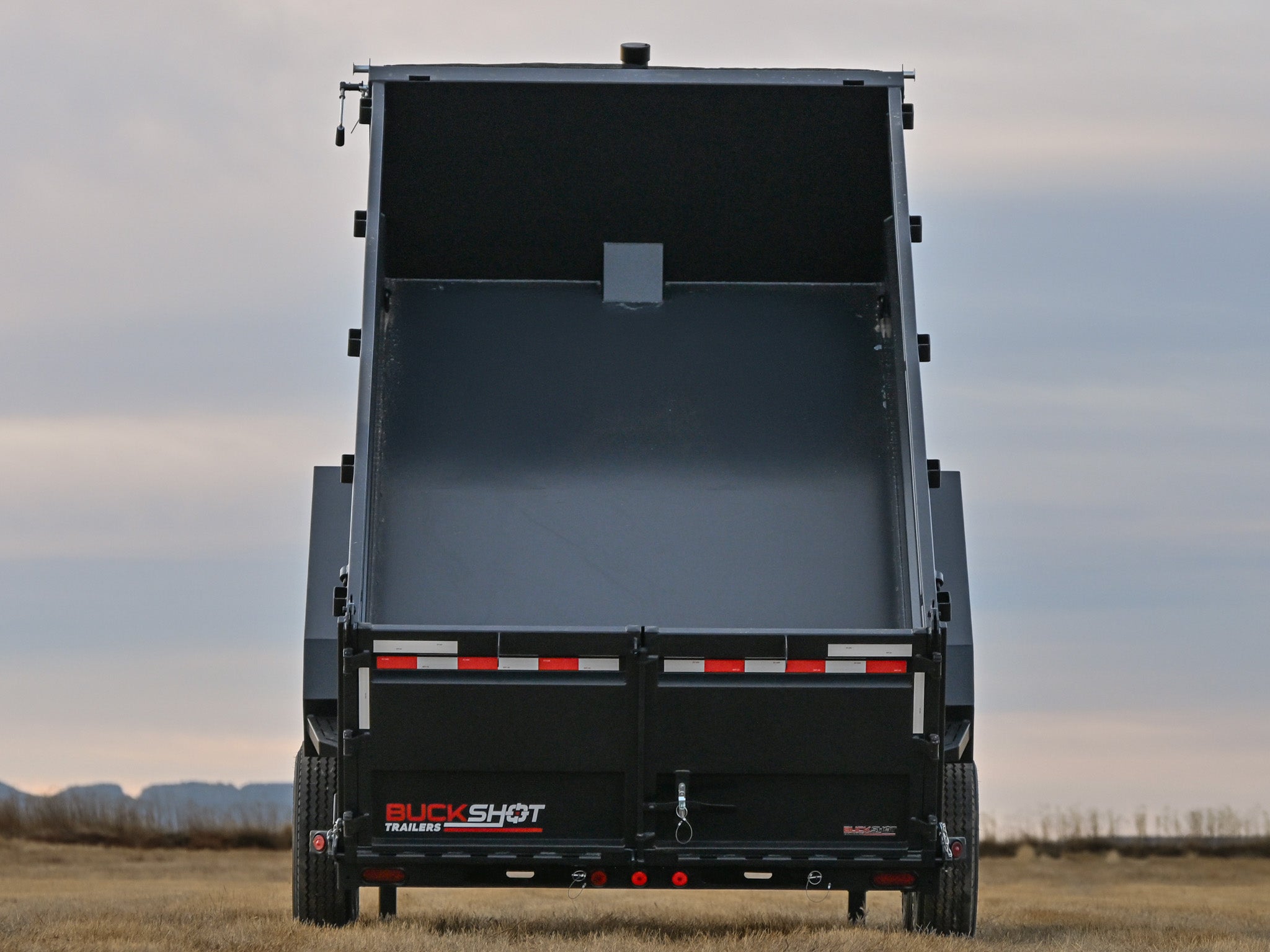

The GTS comes loaded with heavy-duty slide-in ramps, a 2-way spreader gate, standard stake pockets, dual 10k drop-leg jacks, a lockable toolbox, and a retractable tarp kit. Every feature is scaled to match the 20k capacity platform — nothing here is undersized for the job.
ROAD-READY & SITE-PROVEN
DOT-approved lifetime LED lighting, a sealed wiring harness, a breakaway safety system, and 2 safety chains keep the GTS fully compliant and safe at highway speeds. When you're running the biggest loads on the biggest jobs, the GTS gives you the confidence to do it right.
Product Details
DIMENSIONS
- LENGTH:
- 14' - 18'
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
- TRAILER TYPE:
- Dump Trailer
WEIGHT RATINGS
- GVWR:
- 20k
- AXLE OPTIONS:
- 10k SS
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial Tires
- TIRE PLY:
- 18 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k SS EZ Lube Torsion Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Torsion
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Blasted
- COLOR:
- Custom Color Options Available

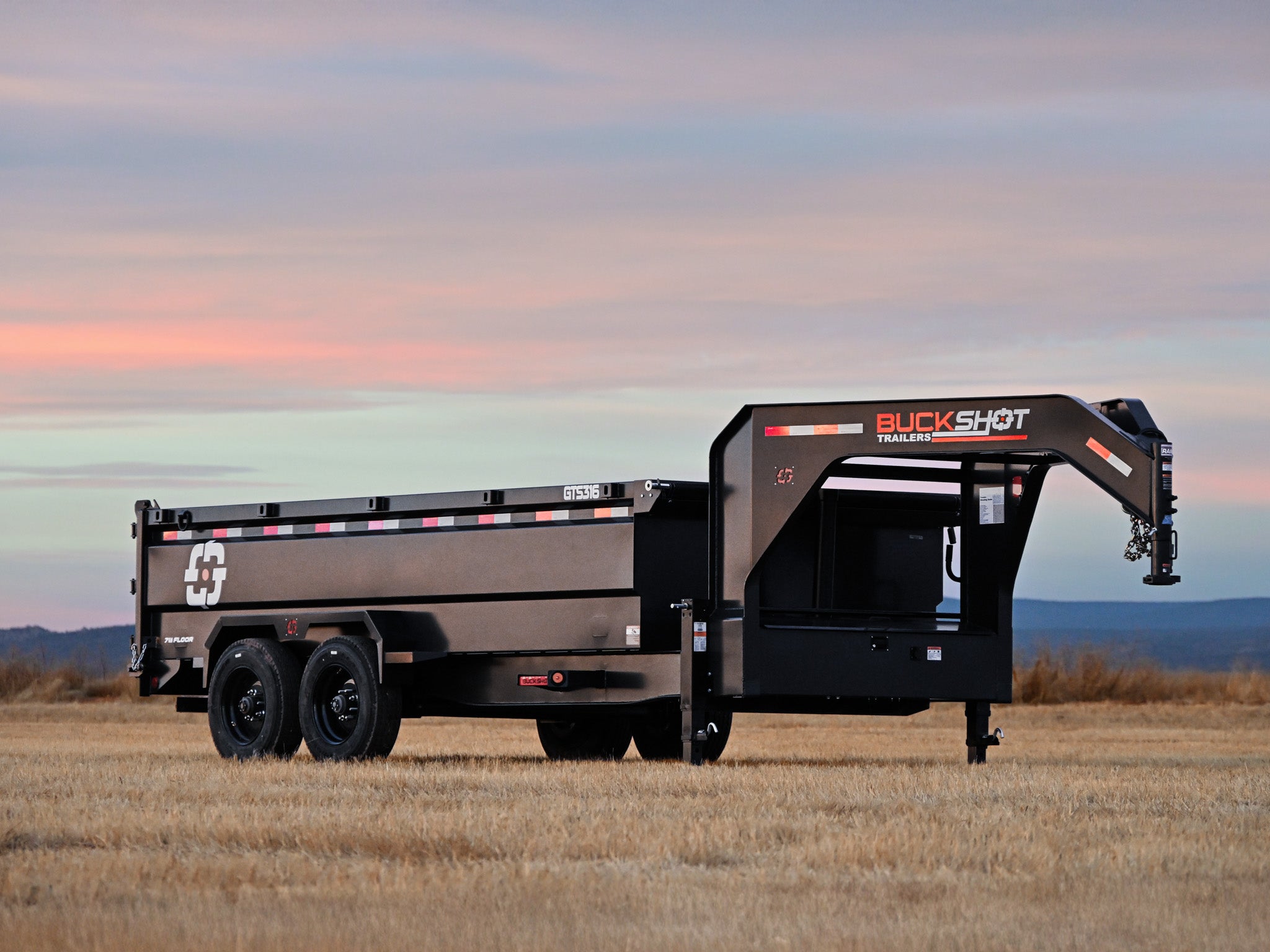

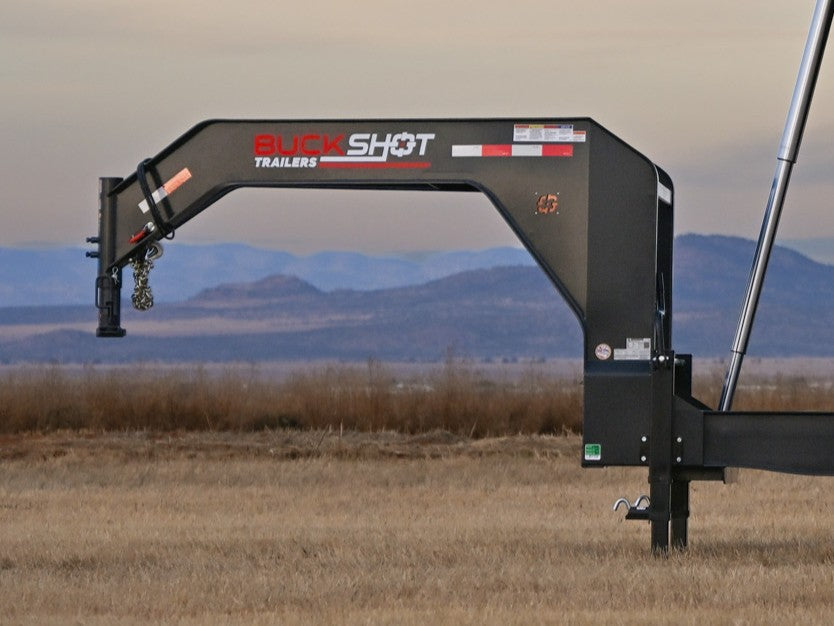

GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- Engineered Gooseneck
- COUPLER:
- Adjustable 2 5/16" Coupler
- JACKS:
- Dual 10k Drop-Leg Jacks
- TOOLBOX:
- Lockable Toolbox (Houses Battery & Pump)
- SAFETY CHAINS:
- 2 Safety Chains
FRAME & CONSTRUCTION
- MAIN FRAME:
- 11 1/2" Engineered Wide-Beam Frame
- CROSSMEMBERS:
- 3" Channel, 12" Centers
- FLOORING:
- 3/16" One-Piece Steel Floor
- SIDES:
- 10 Ga. Steel Sides — 2' - 4' Height

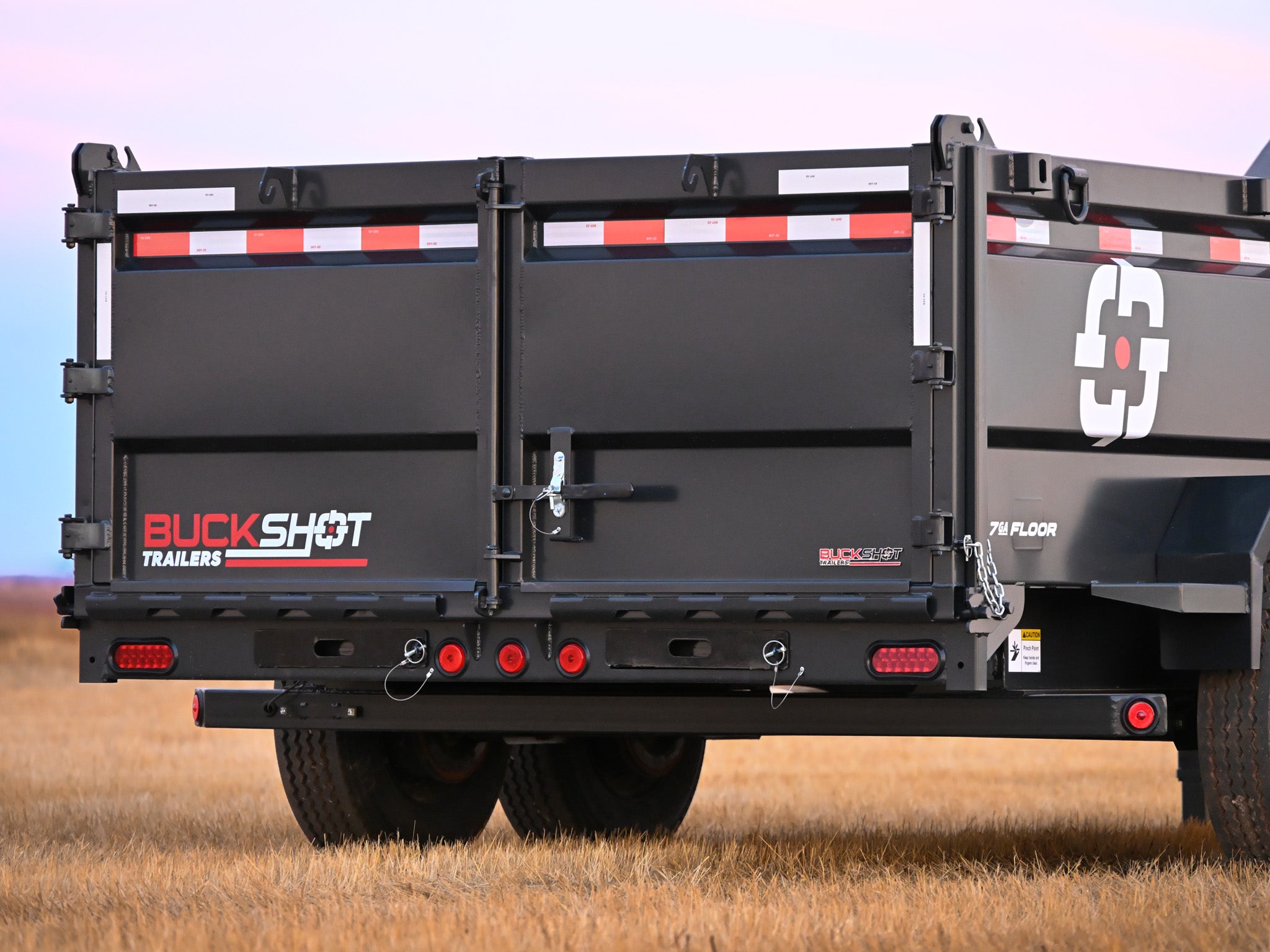

- GATE:
- 2 Way Spreader Gate
- FENDERS:
- Weld On Smooth Fenders
- RAMPS:
- Heavy Duty Slide In Ramps
- STAKE POCKETS:
- Standard Stake Pockets
- D-RINGS:
- 4 D-Rings
- TARP:
- Standard Retractable Tarp Kit
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- Telescopic Cylinder
- CONTROLLER:
- Wired Controller
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved Lifetime LED Lighting
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- 5 Amp Trickle Charger
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
OPTIONS
