Product Features

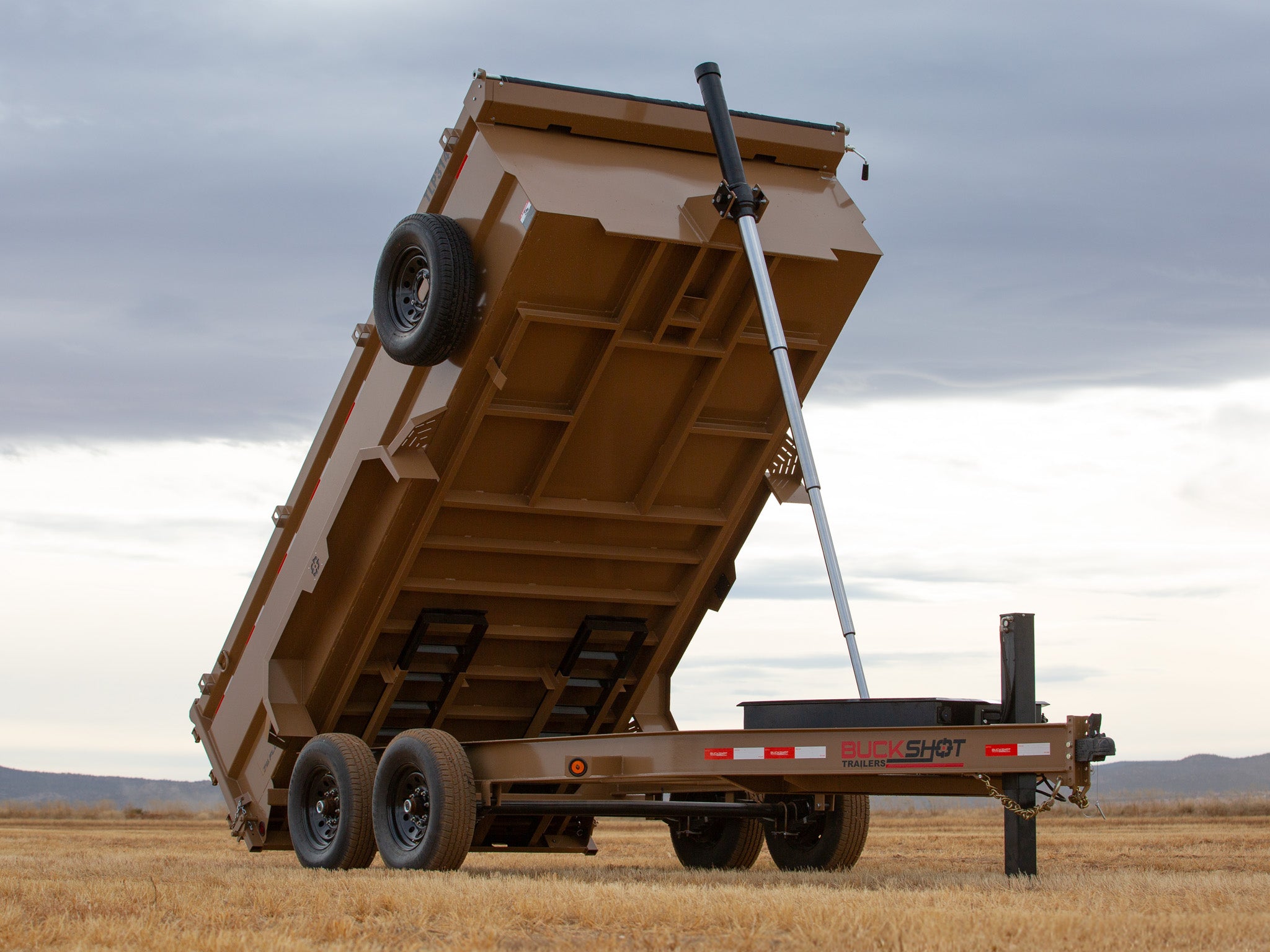

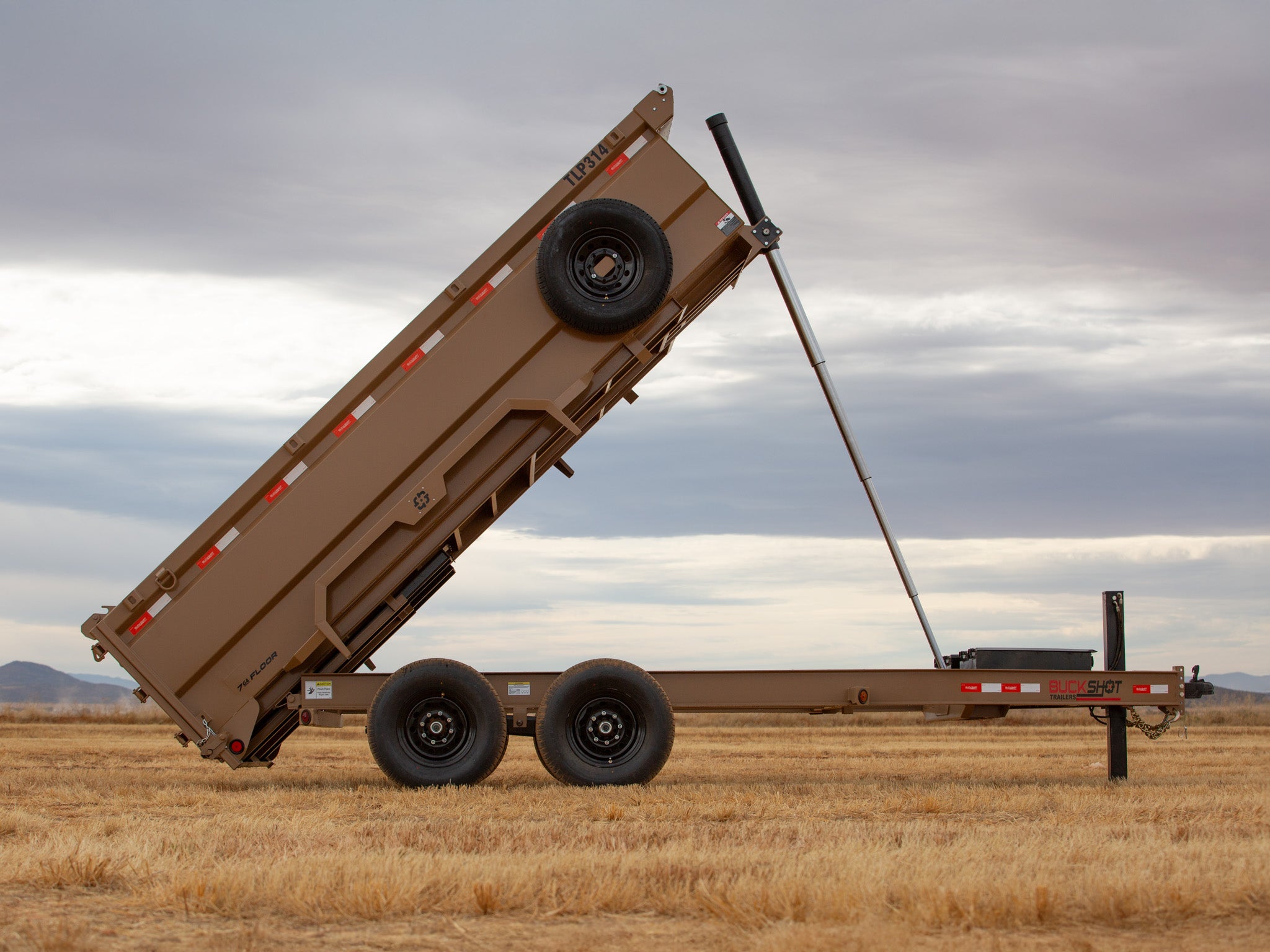

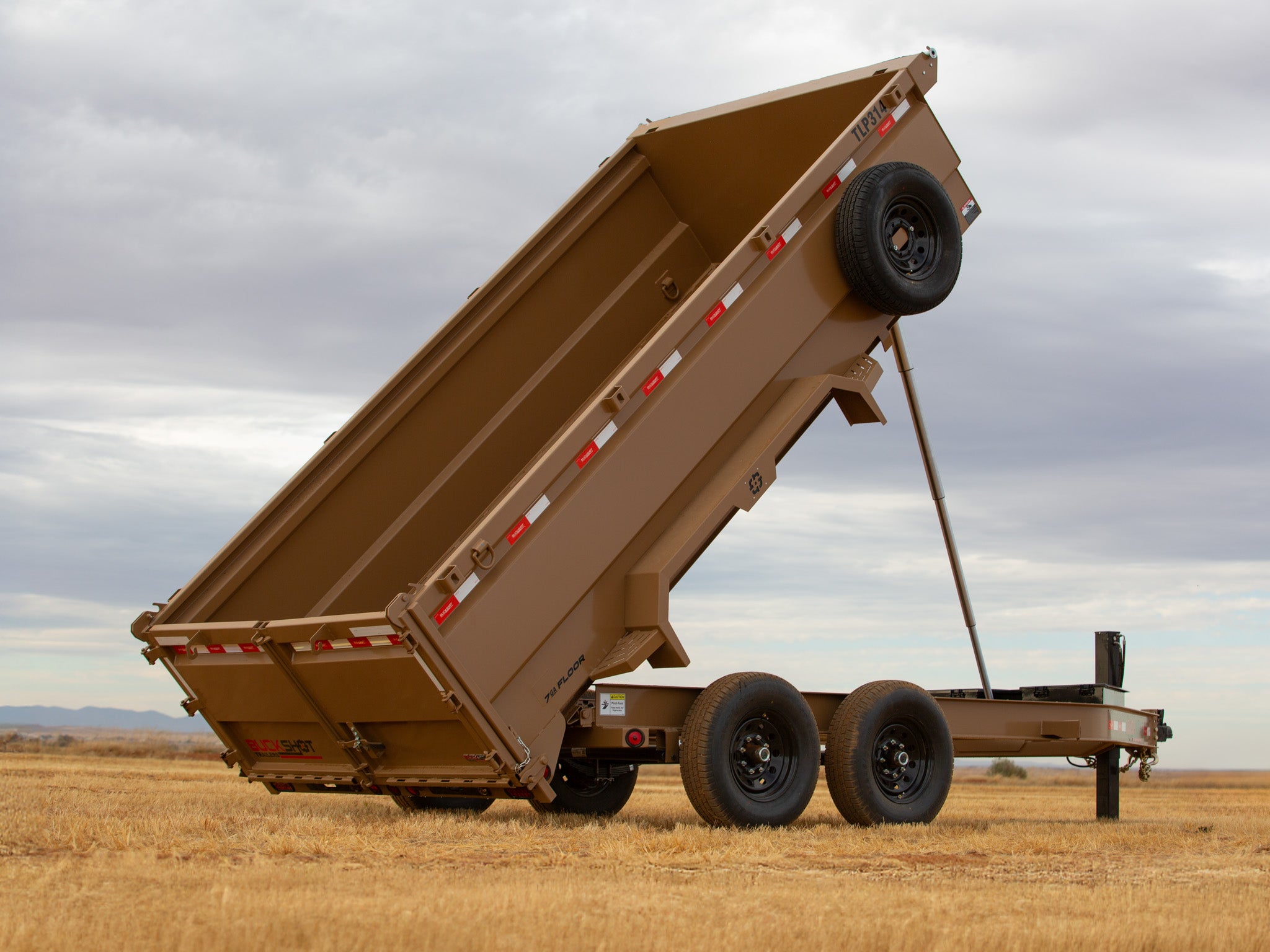

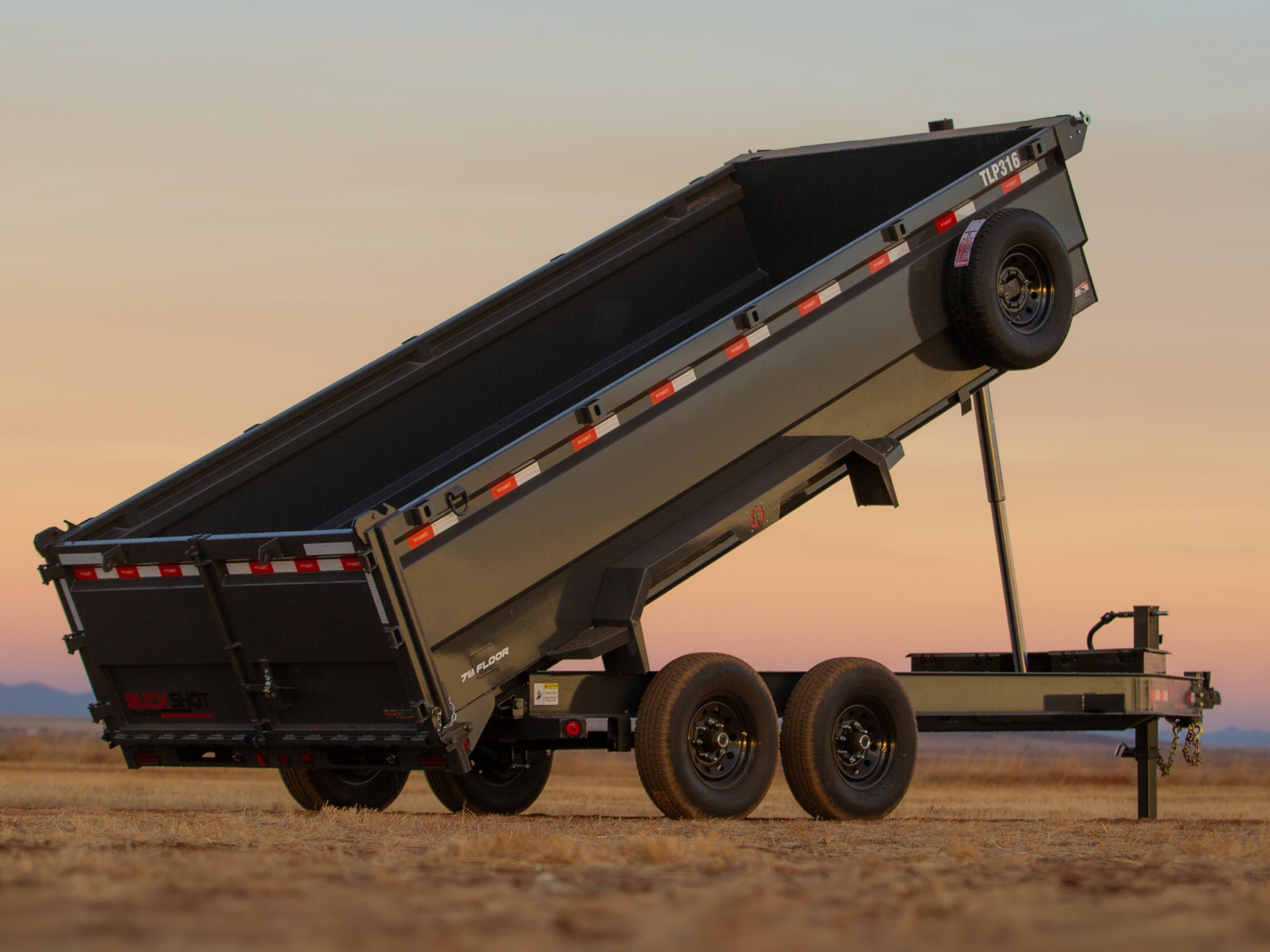

12 TON LIFT WHERE IT COUNTS
When you're dumping dense materials like wet soil, concrete rubble, or heavy aggregate, the 12-Ton Telescopic Cylinder delivers the raw force needed to clear the bed completely. More power at the hinge means cleaner dumps, less residual material, and faster turnaround on every job.
SOLID FLOOR, SERIOUS BONES

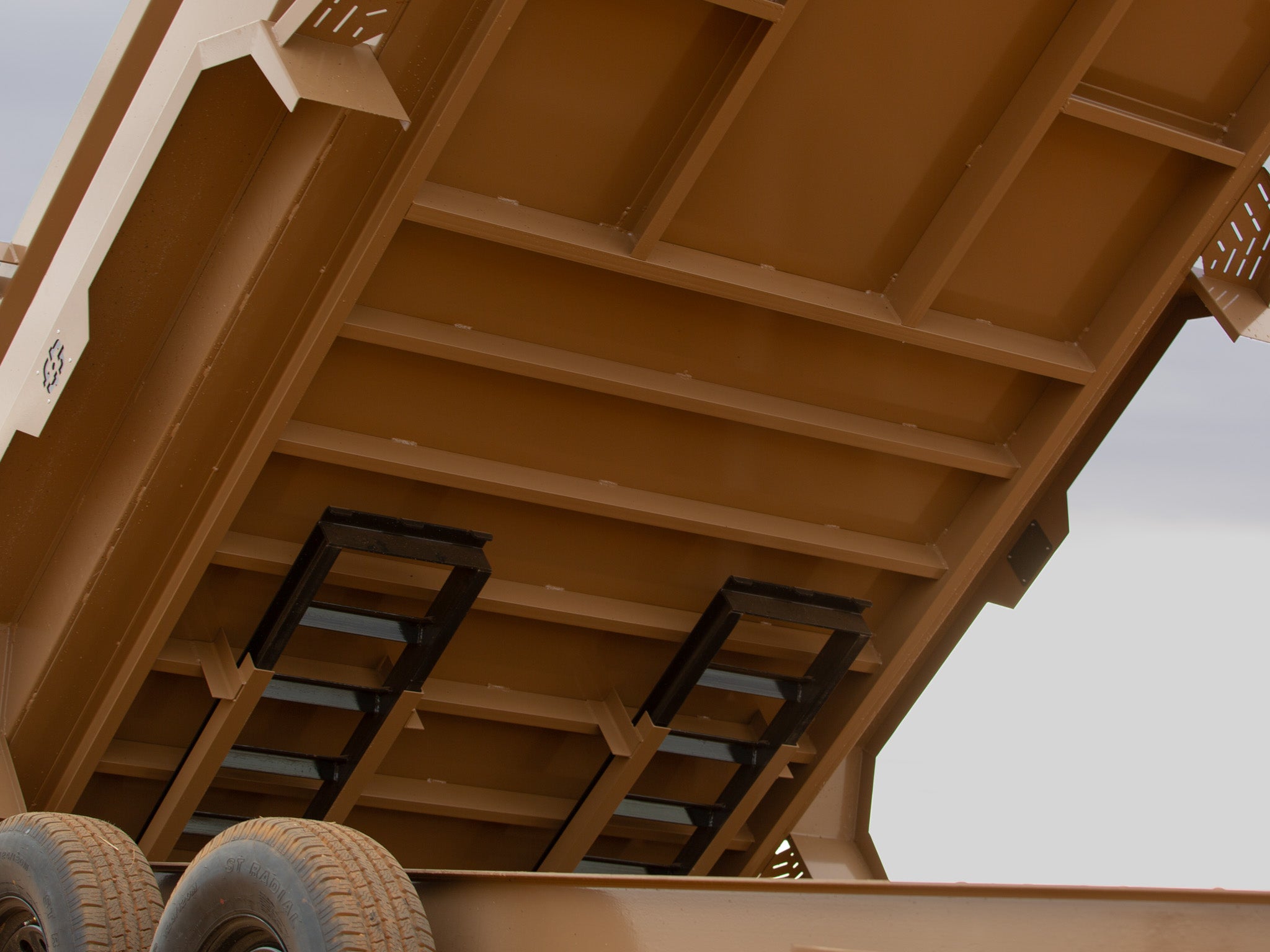

A 3/16" one-piece steel floor paired with an 8" Wide Flange Beam frame at 13 lbs/ft means the TLP absorbs hard loads from the ground up. Crossmembers at 12" centers add structural integrity throughout the bed to handle whatever you throw at it.
BUILT FOR REPEAT CYCLES
The TLP's KTI Hydraulic Pump runs off a 27M Deep-Cycle Marine Battery kept charged by a solar panel — meaning no hunting for a plug-in between jobs and no dead batteries mid-shift. When you're running back-to-back dump cycles all day, the power is always there when you need it.

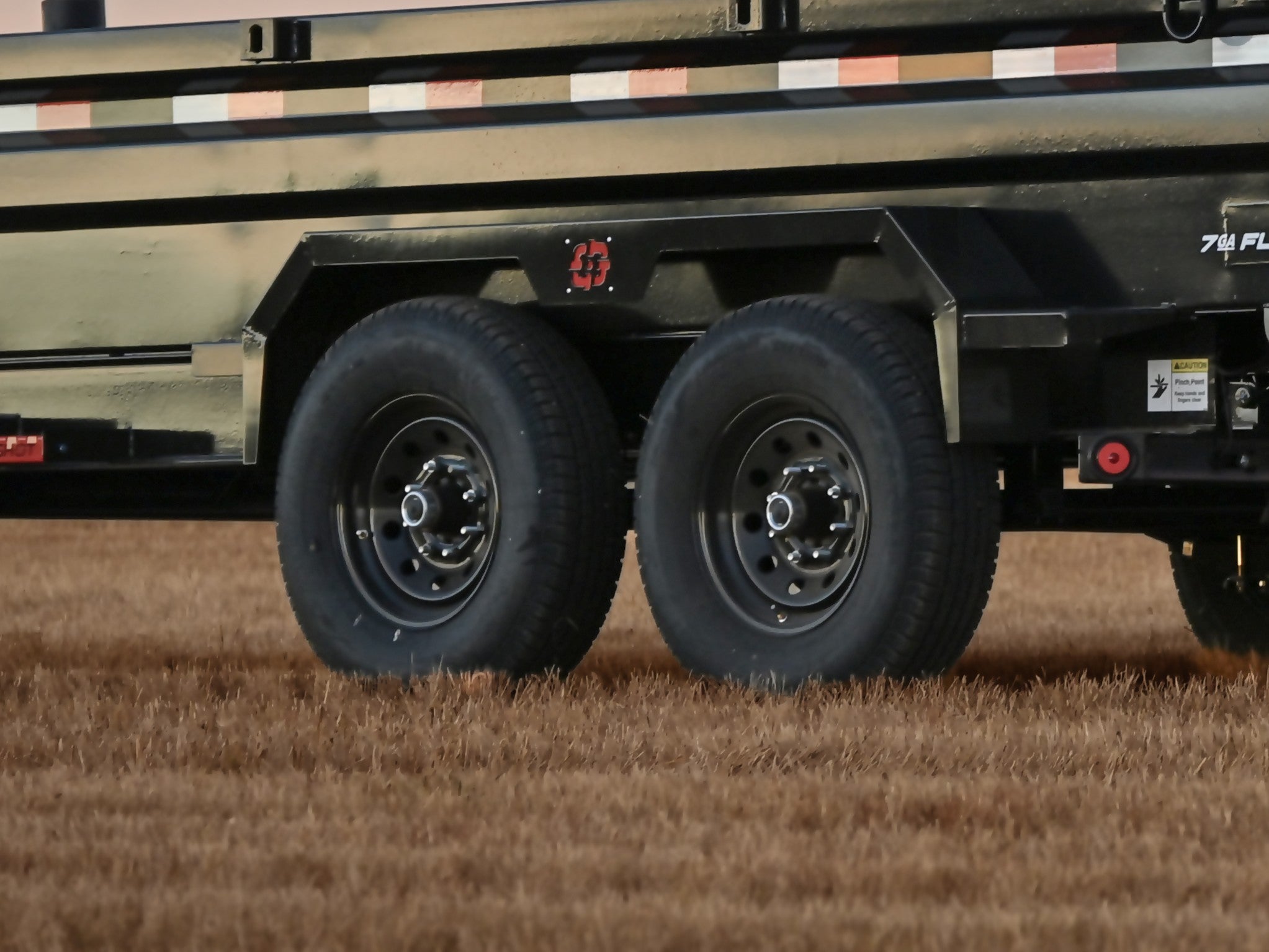

DEXTER AXLES & 10-PLY TIRES
Equipped with 2 - 8k Dexter axles, multi-leaf slipper spring suspension, and ST235/80R16 10-ply radial tires, the TLP handles 14k–16k lbs GVWR with stability and confidence. Electric brakes deliver reliable stopping power whether you're fully loaded or running empty.
LOADED WITH STANDARD FEATURES
Stake pockets, a 2-way spreader gate, 6' slide-in ramps, retractable tarp kit, rear stabilizer stands, and a lockable toolbox all come standard. Add a wireless remote option and solar charging and you've got a trailer built for the most demanding job sites.
BUILT FOR THE LONG HAUL
Sandblasted and finished in professional powdercoat, the TLP is designed to resist wear, corrosion, and the daily beating that comes with contractor-grade use. DOT-approved LED lighting, a sealed wiring harness, and a safety breakaway system keep it safe and compliant on the road.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
- TRAILER TYPE:
- Dump Trailer
WEIGHT RATINGS
- GVWR:
- 14k - 16k lbs
- AXLE OPTIONS:
- 7k, 8k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial Tires
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k EZ Lube Axles
2 - 8k Dexter Axles
2 - 8k Dexter Axles w/ 4 - 17.5" Wheels
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Multi-Leaf Slipper Spring
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Sandblasted
- COLOR:
- Custom Color Options Available
BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" Wide Flange Beam (13 lbs/ft)
- COUPLER:
- Adjustable 2 5/16" Coupler

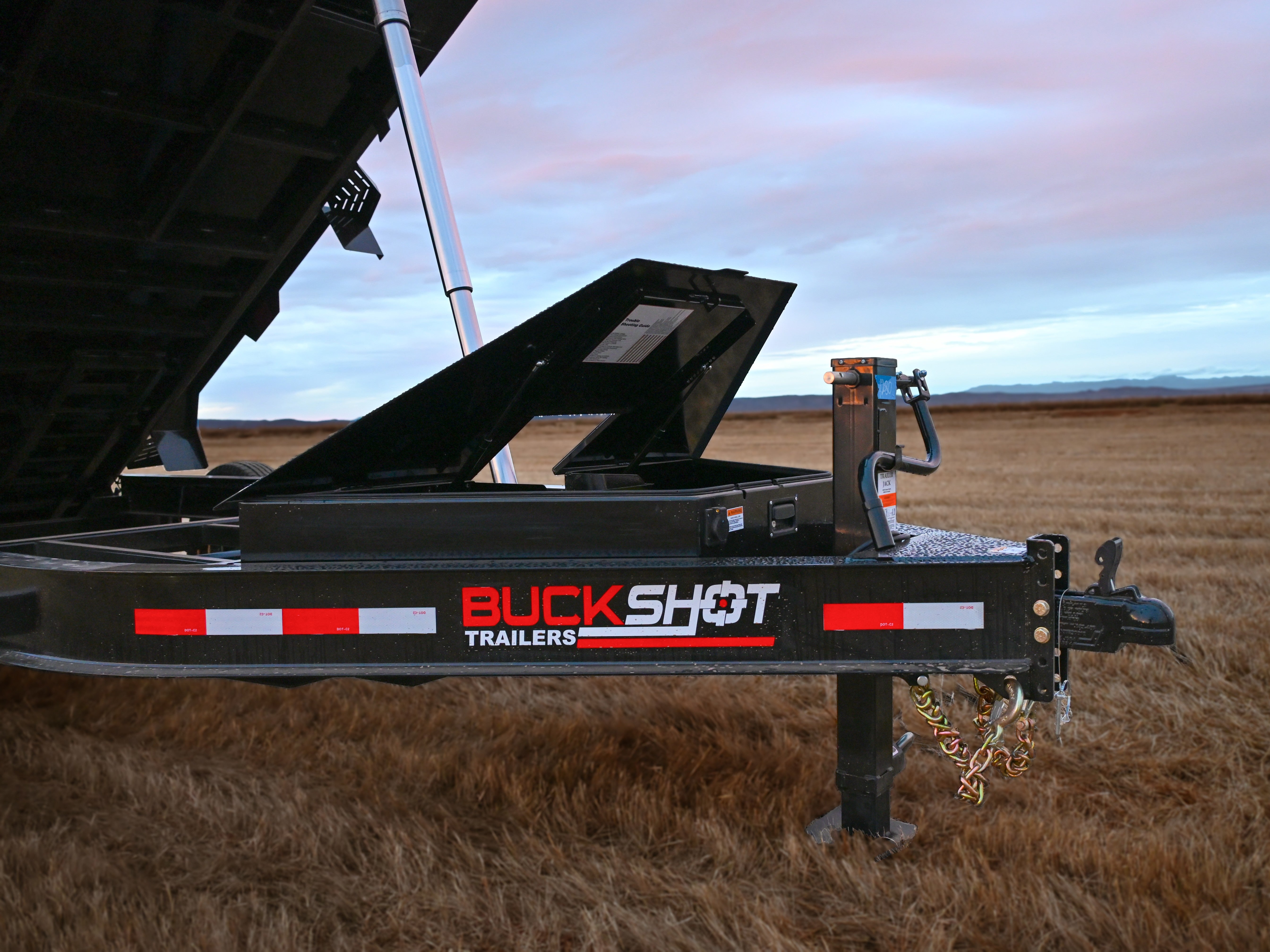

- JACK:
- Single 10k Drop-Leg Jack
- TOOLBOX:
- Lockable Toolbox (Houses Battery & Pump)
- SAFETY CHAINS:
- 2 Safety Chains
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" Wide Flange Beam (13 lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 12" Centers
- FLOORING:
- 3/16" One-Piece Steel Floor
- SIDES:
- 10 Ga. Steel Sides — 2' - 4' Height
- GATE:
- 2 Way Spreader Gate
- FENDERS:
- Weld On Smooth Fenders

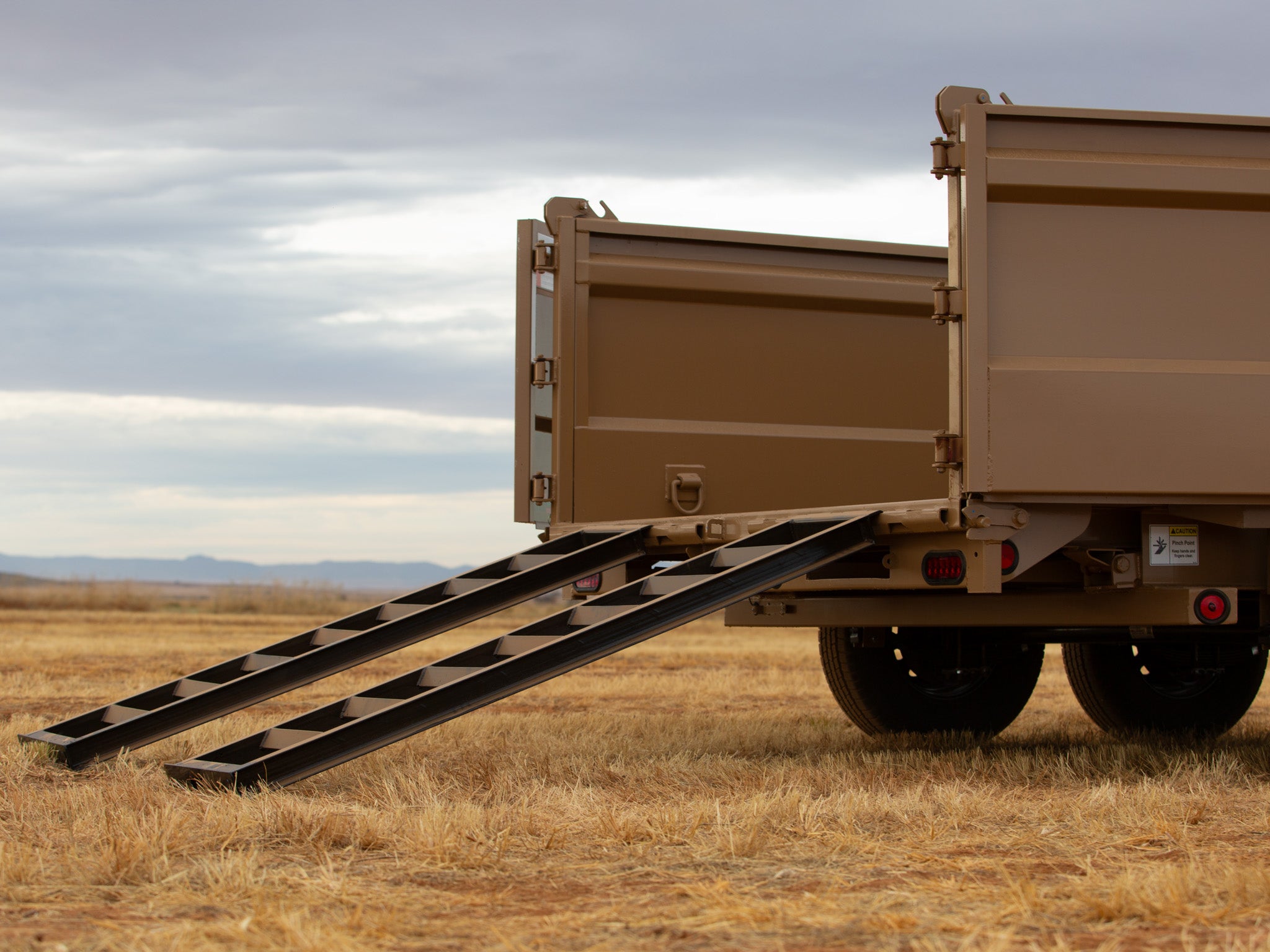

- RAMPS:
- 6' Slide In Ramps
- STAKE POCKETS:
- Standard Stake Pockets

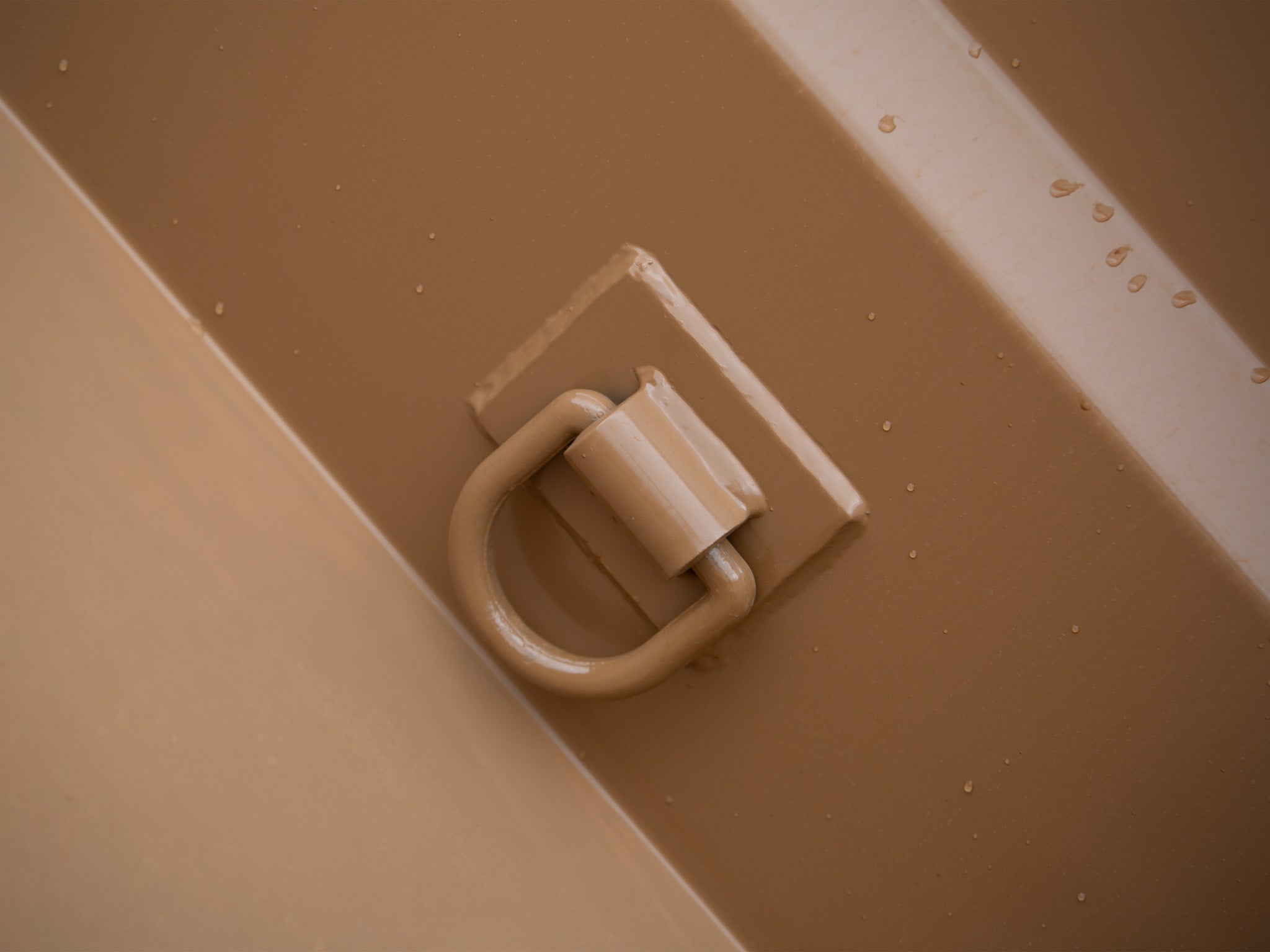

- D-RINGS:
- 4 D-Rings
- TARP:
- Standard Retractable Tarp Kit
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- Telescopic Cylinder (12 Ton)
- CONTROLLER:
- Wired Controller
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved Lifetime LED Lighting
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- 5 Amp Trickle Charger
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
OPTIONS
