Product Features

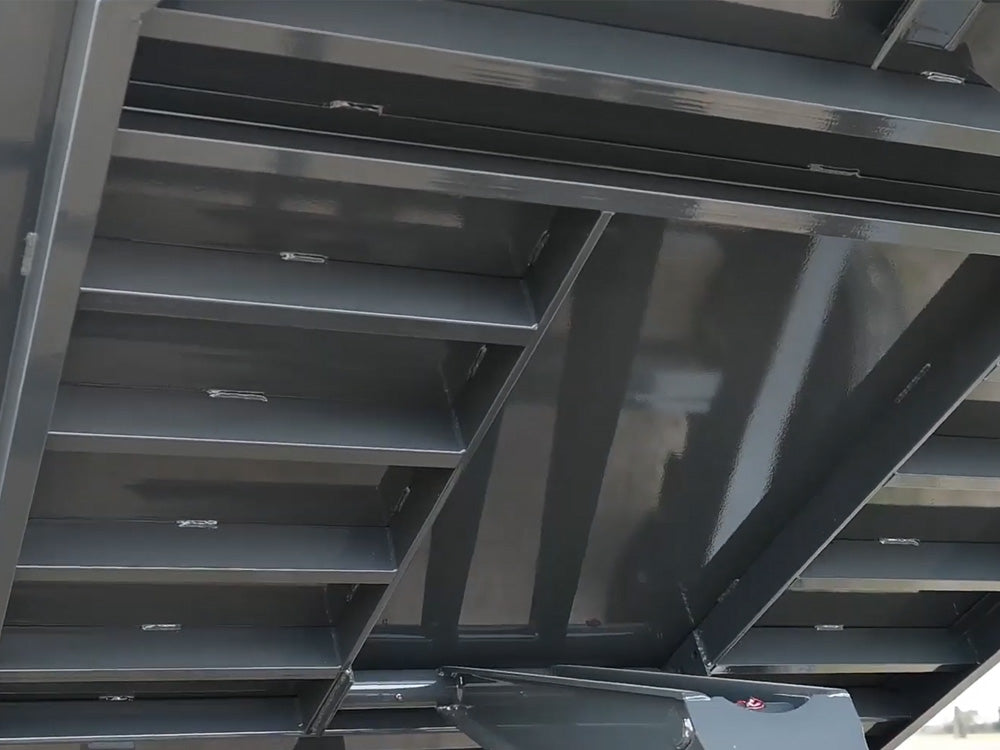

8" I-Beam Main Frame & 12" Spaced Crossmembers
Built on a rugged 8" I-beam main frame (13 lbs/ft) with heavy-duty crossmembers spaced just 12 inches apart. This tight spacing provides exceptional floor support and structural integrity for heavy dumping applications.
2, 3-Axle Configurations with 7k or 8k Easy Lube Axles
Configurable with 2 or 3 axles using 7k or 8k Easy Lube axles with electric brakes. The 3-axle setup provides increased weight distribution and higher payload capacity for heavier loads.

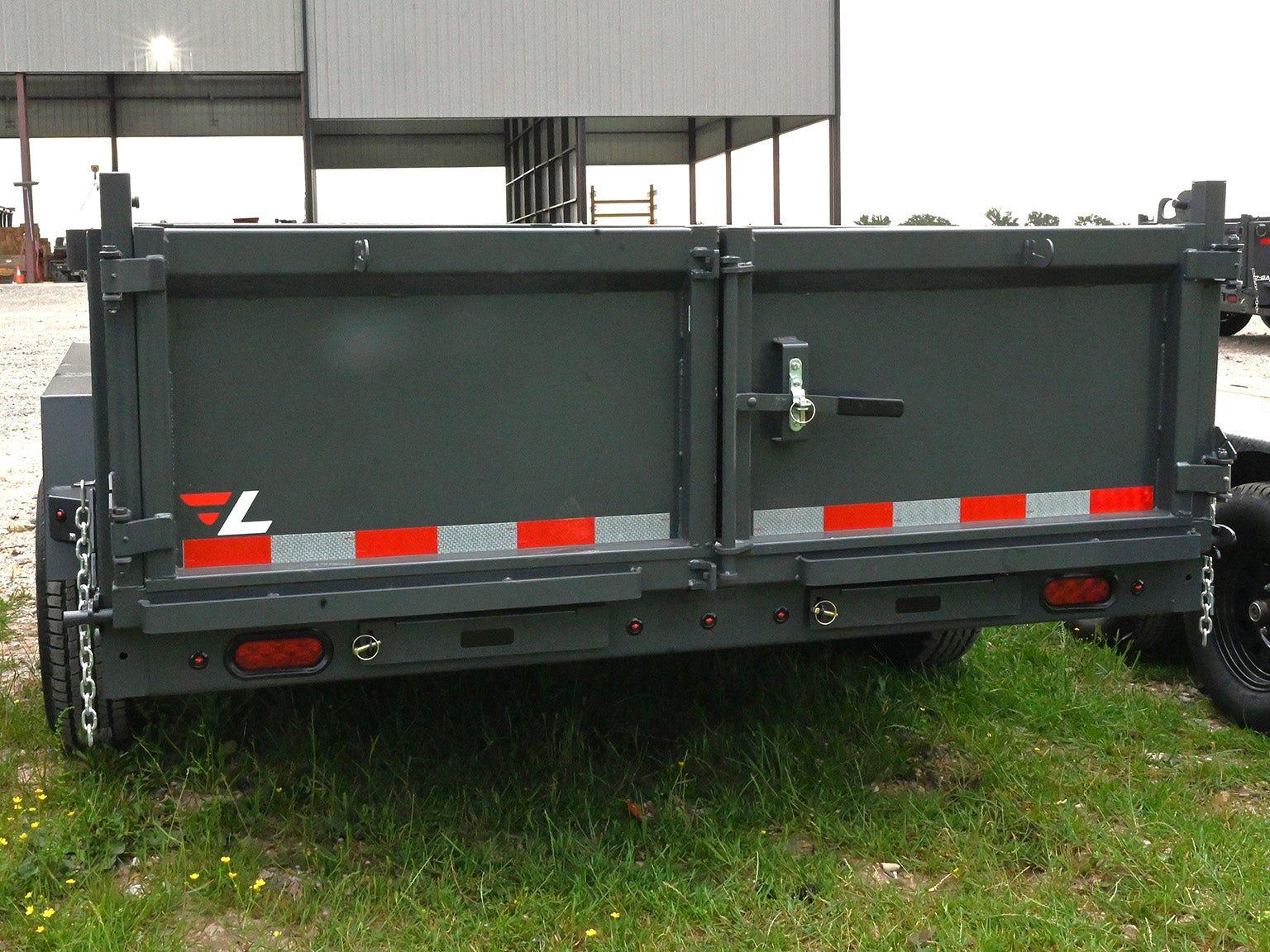

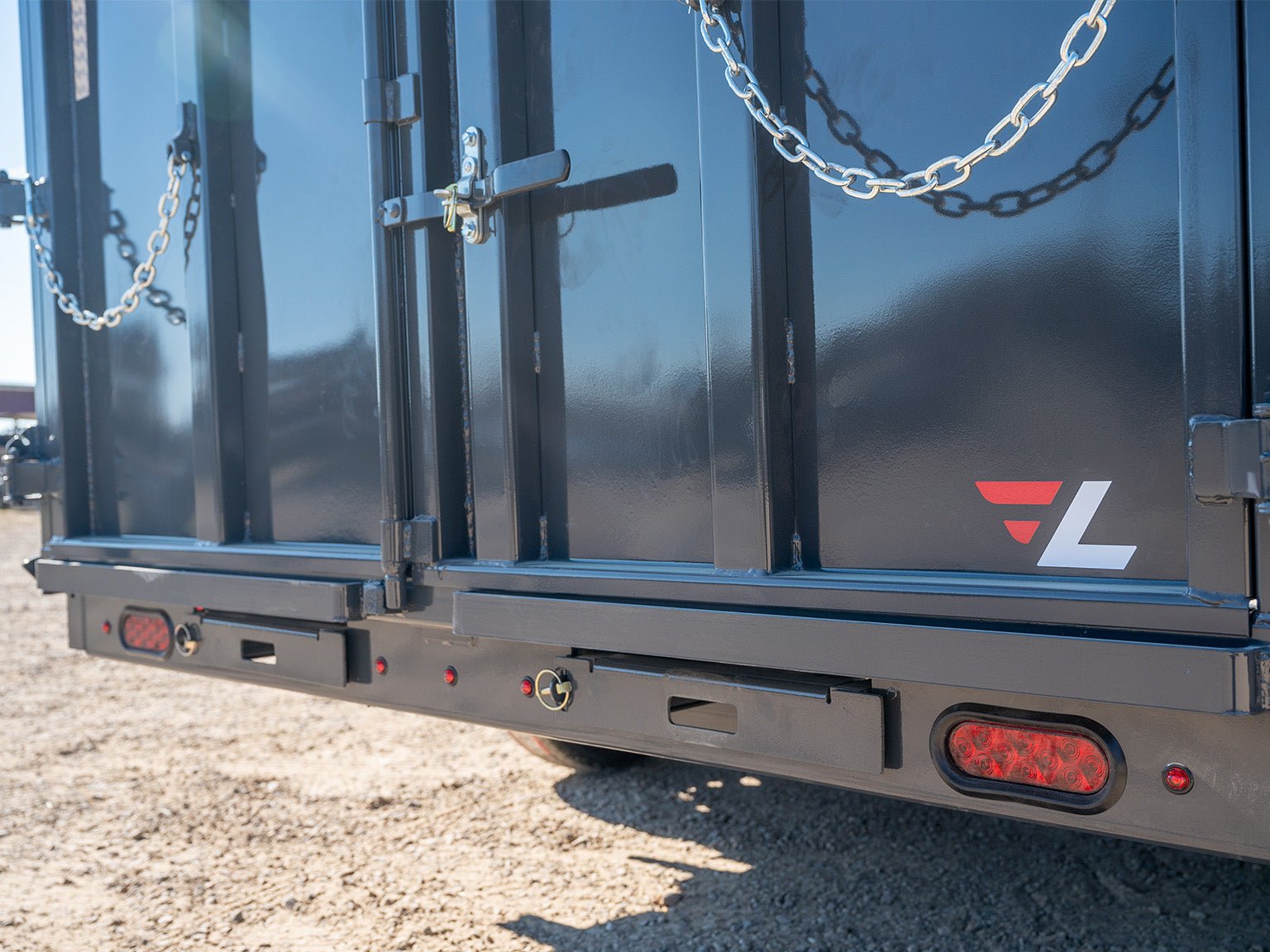

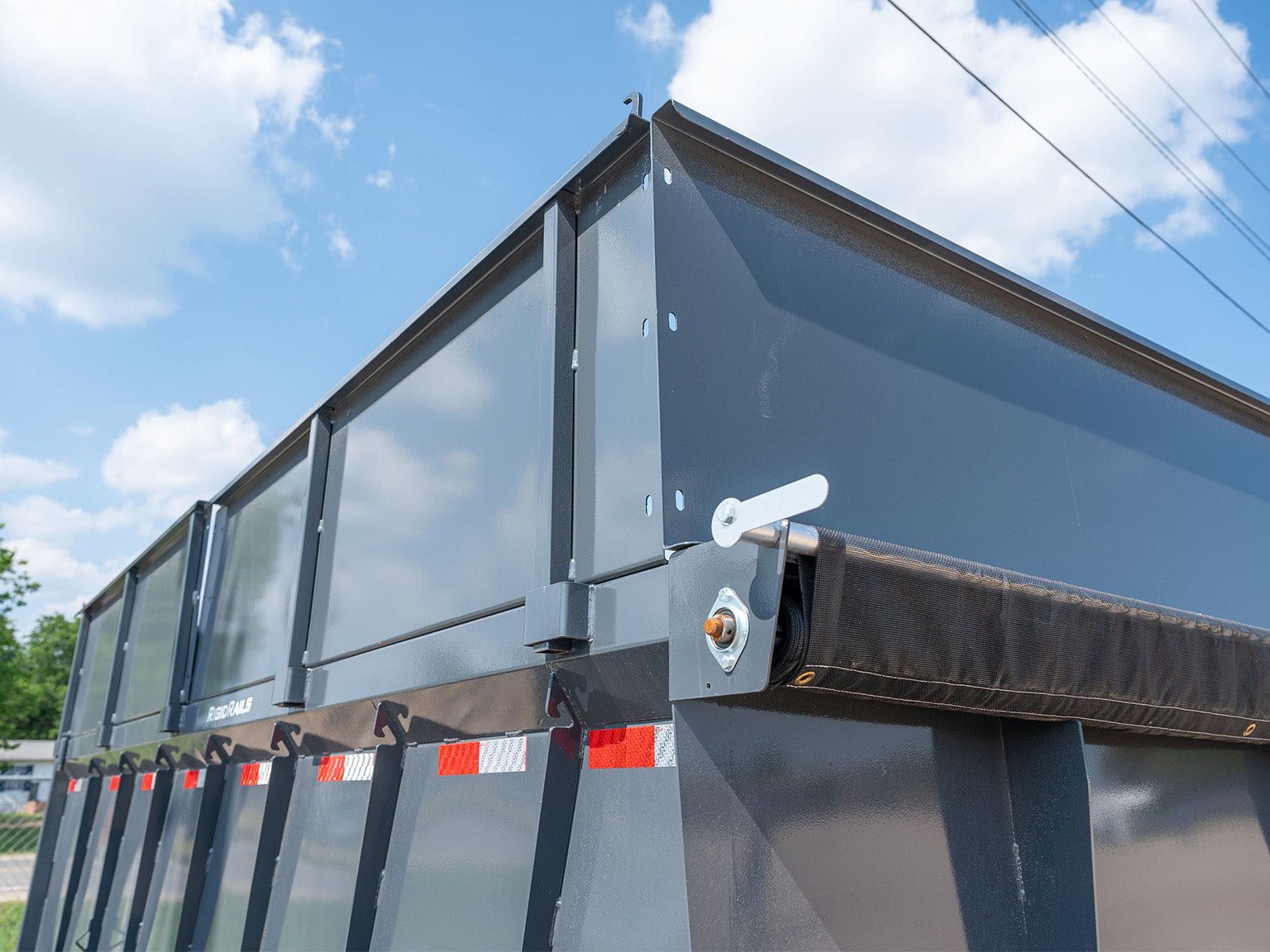

2-Way Spreader Gate & Crank Roll-Up Tarp
Equipped with a versatile 2-way spreader gate for controlled material distribution. A standard crank-style roll-up tarp keeps your load covered and secure during transport.

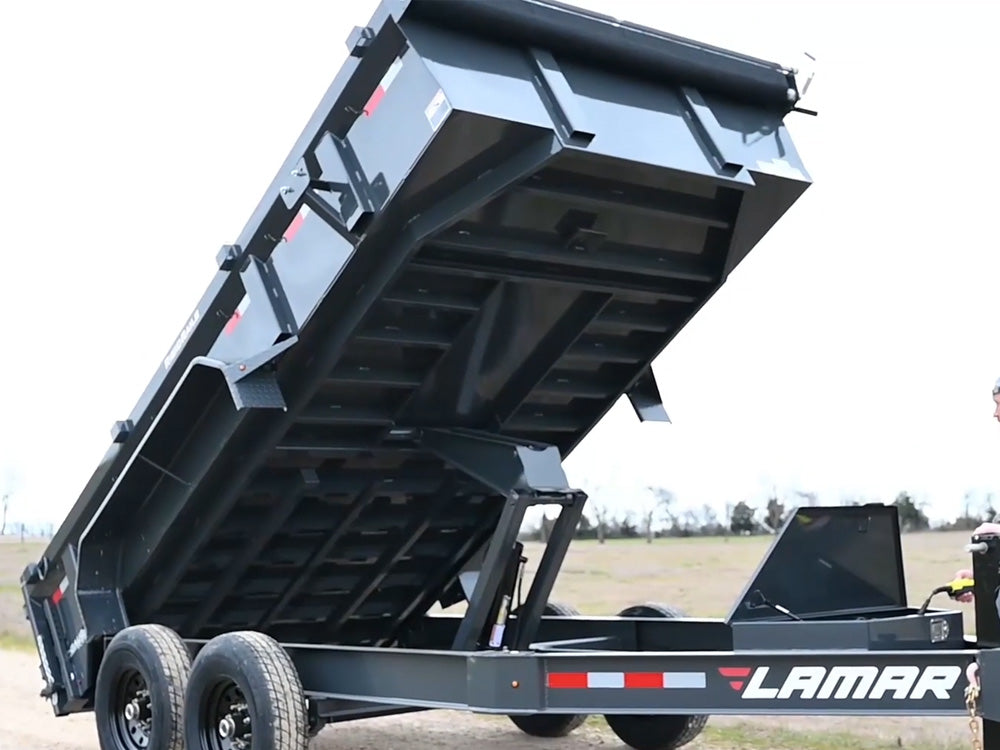

Heavy-Duty Scissor Lift with 6" Bore Cylinder
Models 14' and longer are equipped with a powerful scissor lift system featuring a 6" bore cylinder. This robust lift provides reliable, smooth dumping power for heavy loads up to a 45-degree dump angle.

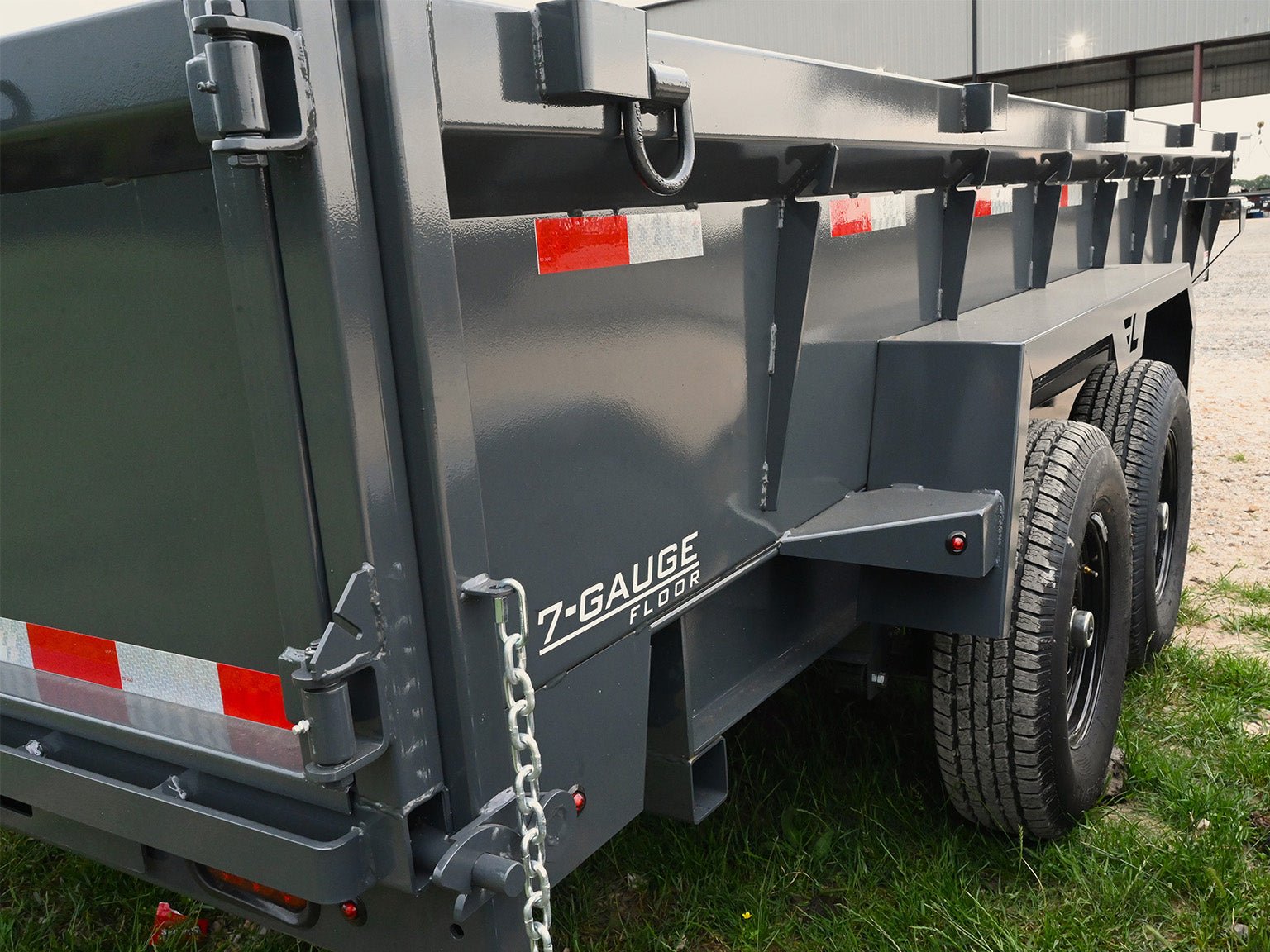

7-Gauge Steel Bed Floor
Features a durable 7-gauge steel bed floor that withstands extreme impact and abrasion. The thick steel construction is built to handle heavy materials like rock, concrete, and demolition debris without puncturing or warping.

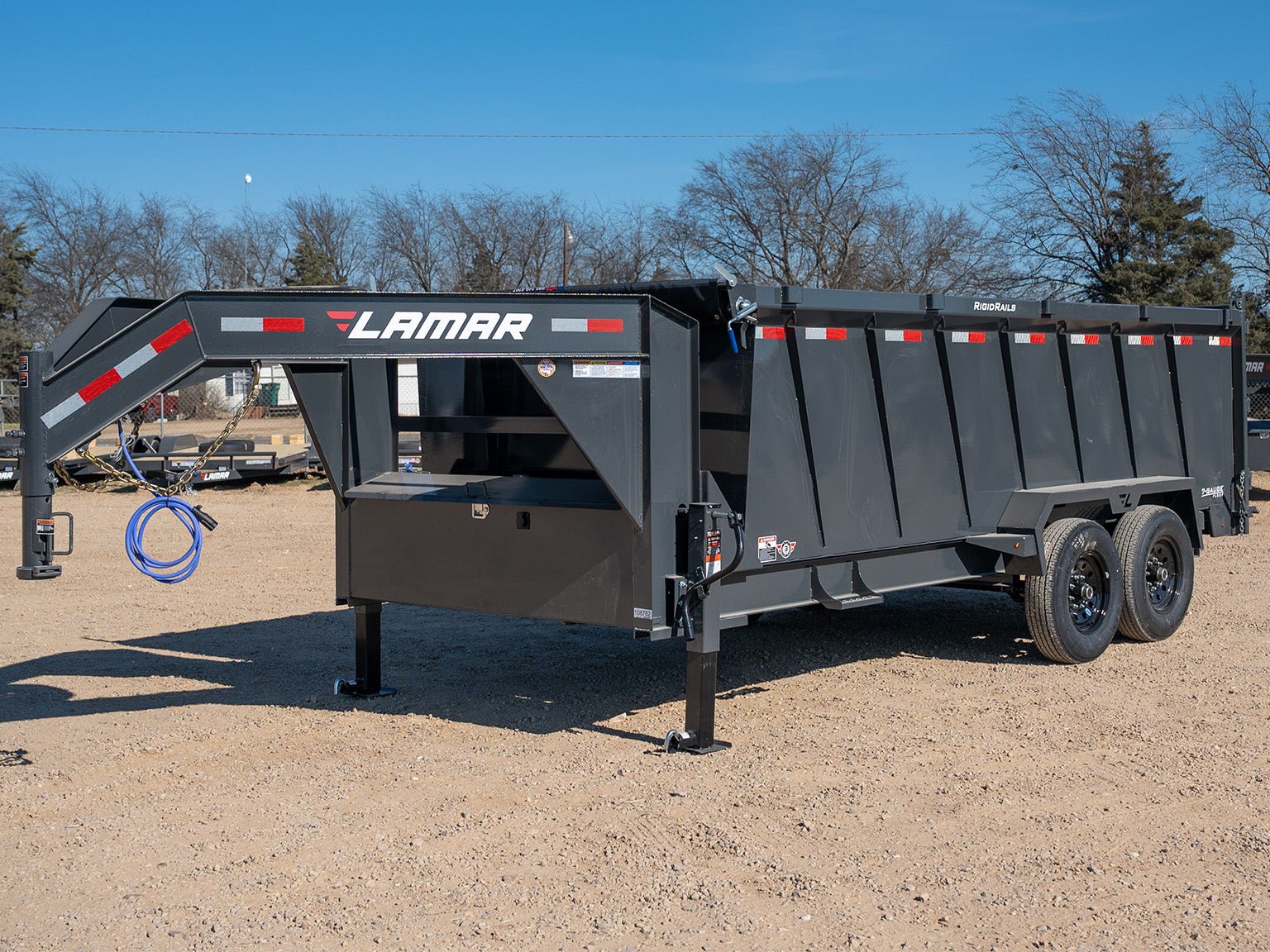

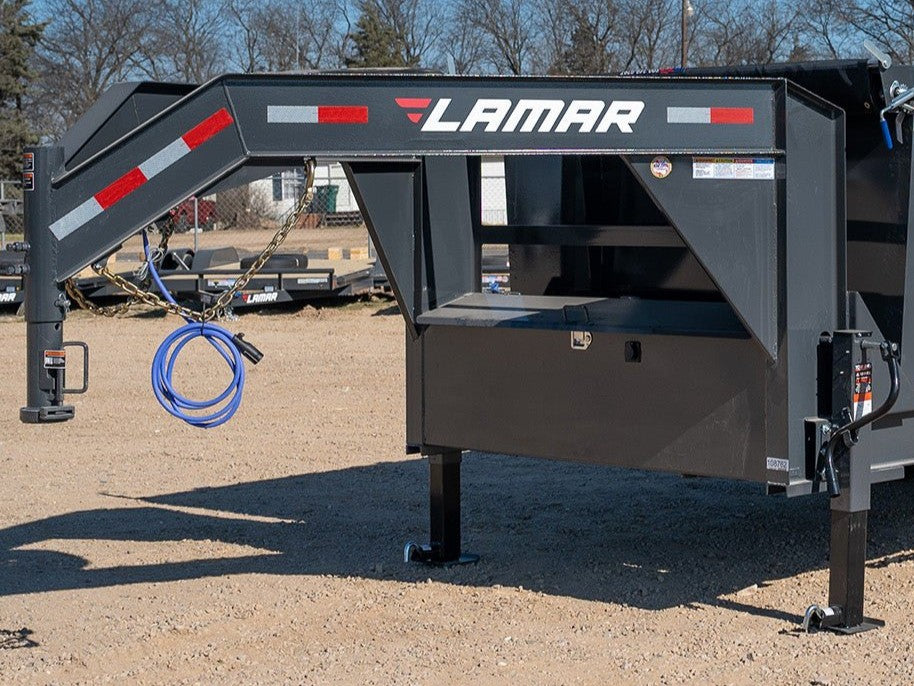

Dual 10k Drop-Leg Jacks & Large Front Toolbox
Standard dual 10,000 lb drop-leg jacks provide essential stability when unhooking on uneven ground. The gooseneck also features a large front-mounted toolbox for secure storage of tools and equipment.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 14k - 16k
RUNNING GEAR

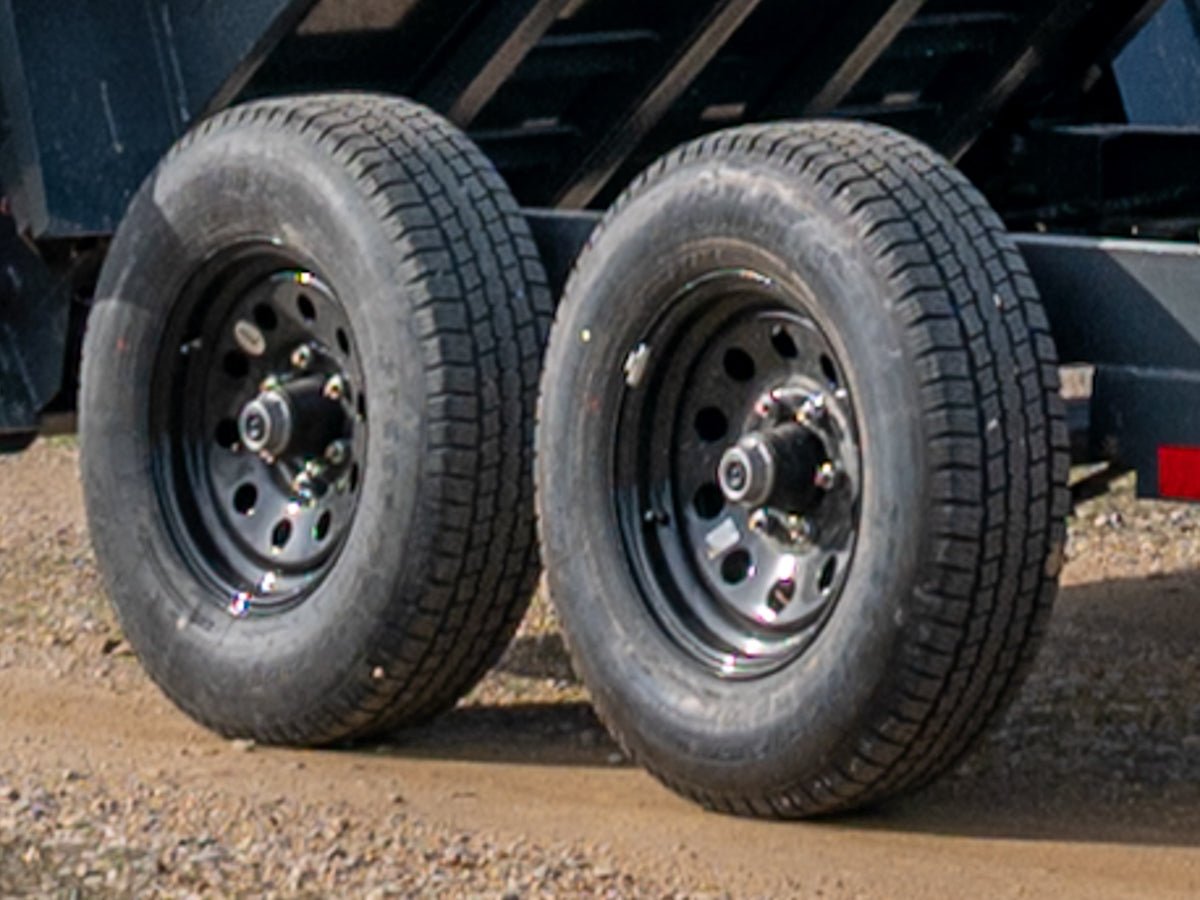

- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Easy Lube Axles
3 - 7k Easy Lube Axles
2 - 8k Easy Lube Axles
- AXLE COUNT:
- 2 or 3
- BRAKES:
- Electric
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 8" I-Beam
- JACKS:
- Dual 10k Drop-Leg Jacks
- COUPLER:
- Adjustable 2 5/16" (30,000 lbs)
- TOOLBOX:
- Large Front Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (13lb/ft)
- BED FRAME:
- 8" I-Beam
- CROSSMEMBERS:
- 12" Spaced Crossmembers
- FLOORING:
- 7ga. Steel Bed
- FENDERS:
- Diamond Plate Fenders
- STAKE POCKETS:
- Standard Stake Pockets
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- 12' CYLINDER:
- Scissor Lift - 5" Bore
- 14', 16'+ CYLINDER:
- Scissor Lift - 6" Bore
- DUMP ANGLE:
- 45 Degrees
CARGO & BODY
- GATE:
- 2 Way Spreader Gate

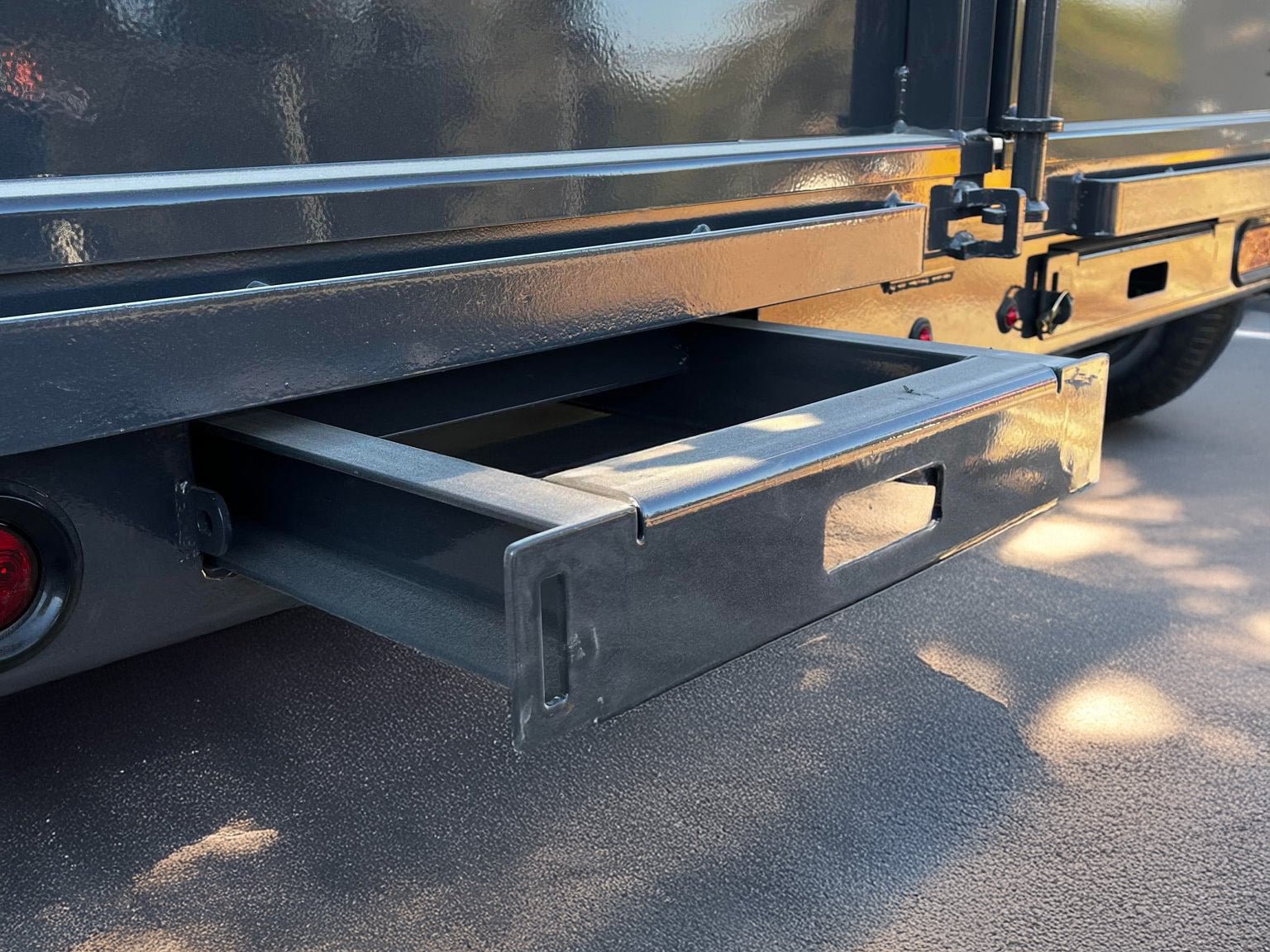

- RAMPS:
- Slide In Ramps
- TARP:
- Crank Style Roll-Up
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 5 Amp Trickle Charger
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Sandblasted
- COLORS:
- Lamar Charcoal Gray
WARRANTY
- TRAILER WARRANTY:
- 3 Year Structural / 1 Year Component
OPTIONS
