8-Foot Heavy-Duty Slide-In Ramps
Utilizes 8-foot heavy-duty slide-in ramps rated for a 5,000 lb transfer weight. The longer ramps provide a gradual incline for easier loading of large equipment.
12-Inch I-Beam Frame with High GVWR
Built on a massive 12-inch I-beam main frame weighing 19 lbs/ft. This robust construction supports the trailer's 25,000 to 30,000 lb GVWR capacity for extreme-duty applications.

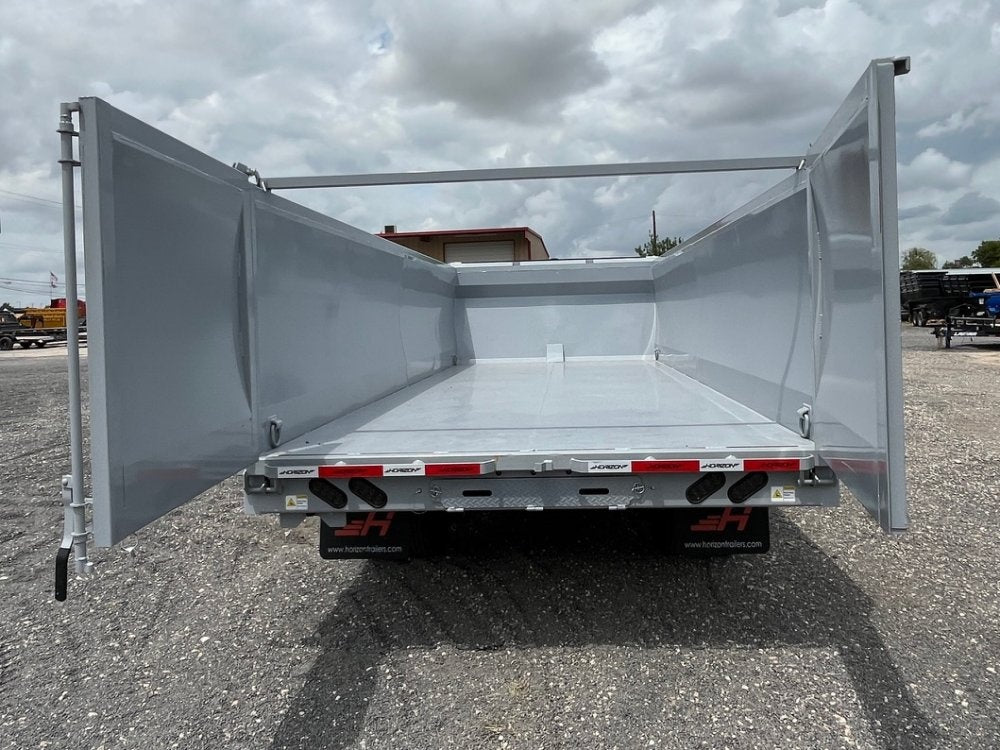

Rounded Steel Sides with Configurable Height
Built with heavy-duty 10-gauge rounded steel sides adjustable from 24 to 48 inches in height. The rounded corners ensure clean material discharge for efficient dumping cycles.

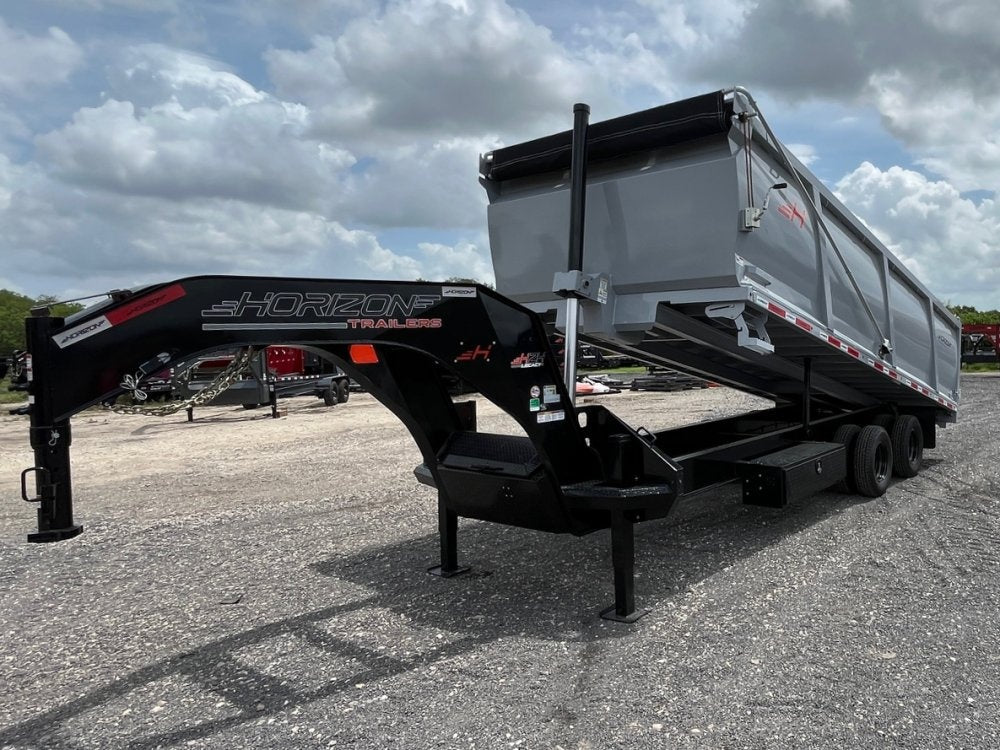

Telescopic Lift Cylinder System
Features a telescopic cylinder lift system for maximum dump height and lifting power. This heavy-duty system is engineered to handle the trailer's high-capacity payloads.

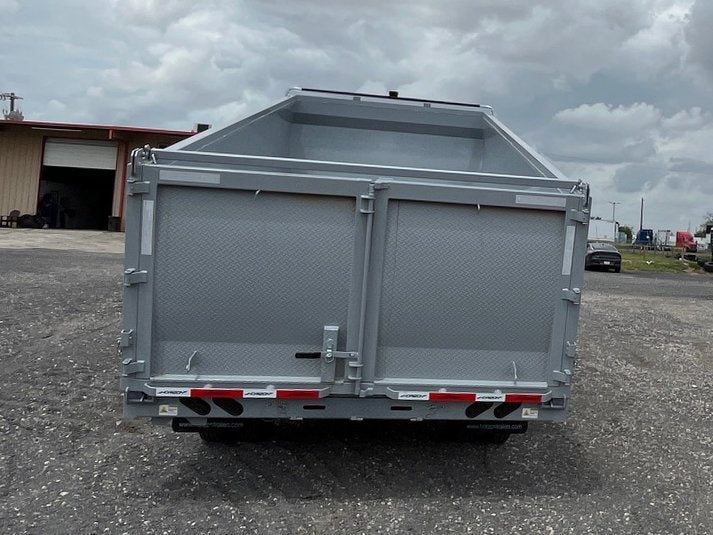

96-Inch Wide Dump Bed
Features a 96-inch wide dump bed, the widest in the Horizon dump lineup. The extra width provides greater volume and stability, ideal for high-volume commercial material hauling.
High-Capacity Dexter Axle and Frame Warranty
Built with your choice of 10k, 12k, or 16k Dexter dual oil bath axles, backed by a 5-year warranty. The trailer frame is protected by a 3-year structural and 1-year parts warranty.

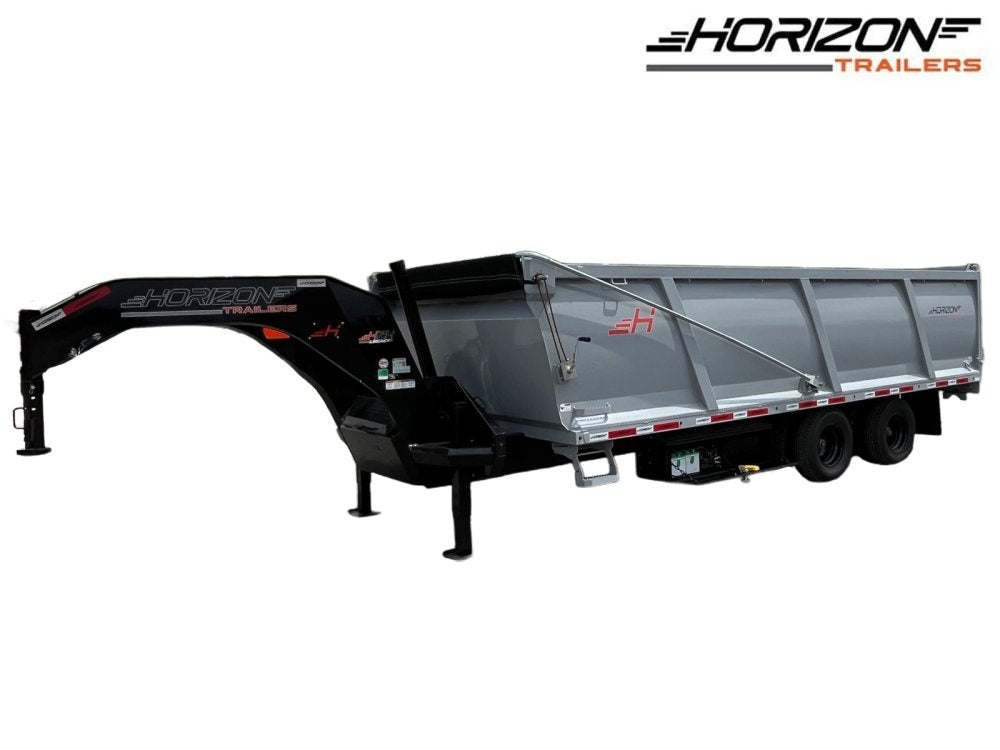

Product Details
DIMENSIONS
- LENGTH:
- 16' - 20'
- BED WIDTH:
- 96"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 37"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k, 12k, 16k
- GVWR:
- 25k - 30k
RUNNING GEAR

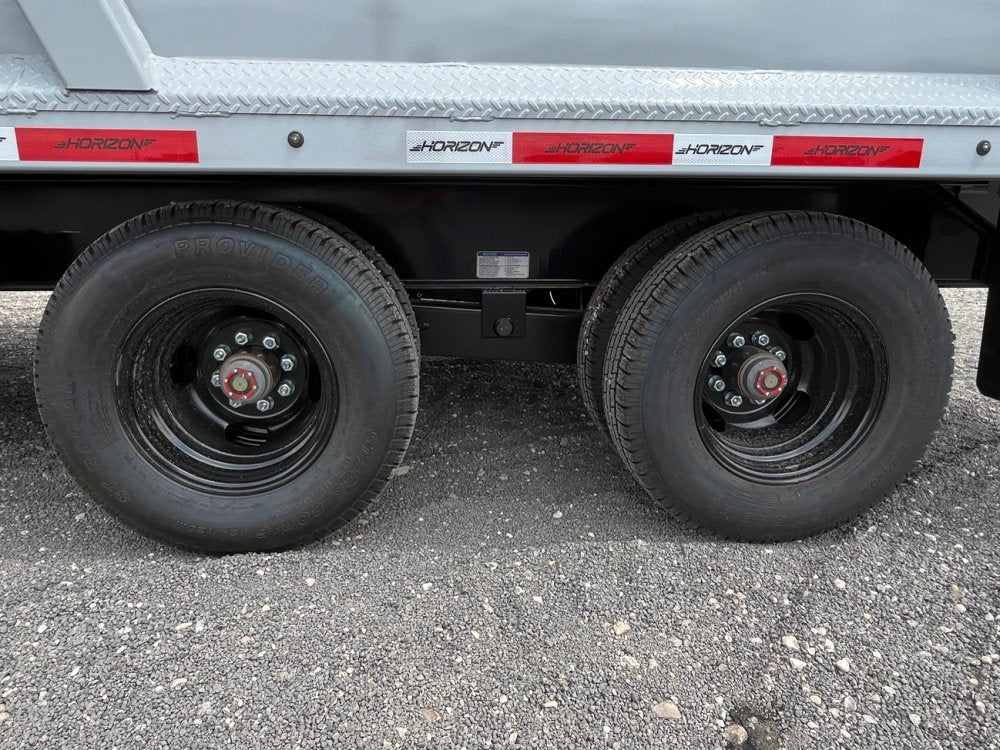

- TIRES:
- ST235/80R16 / ST235/75R17.5 (16k)
- TIRE PLY:
- 10 Ply / 18 Ply (16k)
- RATING:
- 3,080 / 5,675 lbs (16k)
- RIMS:
- 16" / 17.5" Black Mod Wheels (16k)
- AXLE TYPE:
- 2 - 10k Dexter Dual Oil Bath
2 - 12k Dexter Dual Oil Bath
2 - 16k Dexter Dual Oil Bath
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5" / 8 on 10.83" (16k)
- SUSPENSION:
- HD Double Slipper

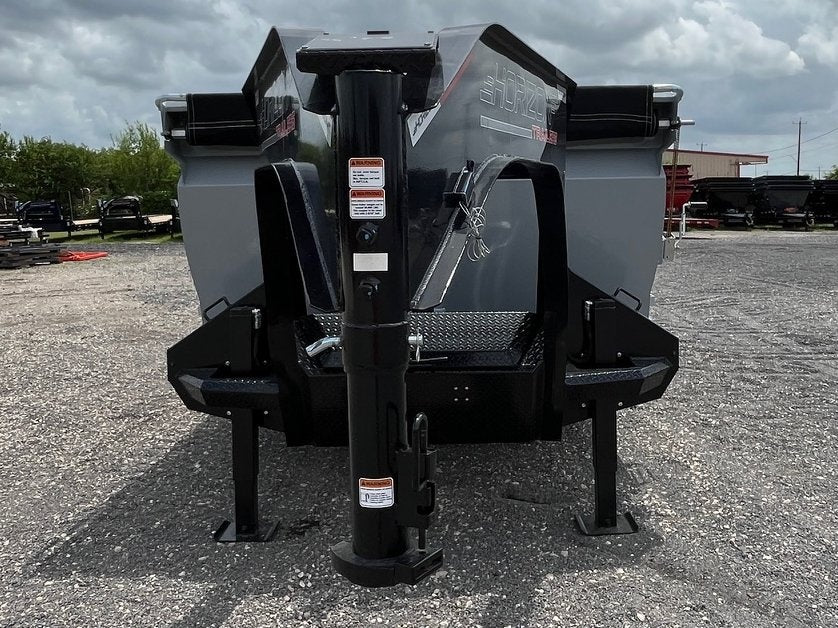

GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 12" Engineered I Beam
- LENGTH:
- 98" From Behind Riser
- HEIGHT:
- 70" High
- JACKS:
- Dual 12k Side-Wind Drop-Leg Jacks
- COUPLER:
- Adjustable 2 5/16" (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lb/ft)
- BED FRAME:
- 3" x 4" x 11 Ga. Tubing
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- FLOORING:
- 7ga. Steel Bed
- SIDES:
- 10 Ga. Rounded Steel
- TORQUE TUBE:
- 4 1/2" Tube (20' Model)
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains

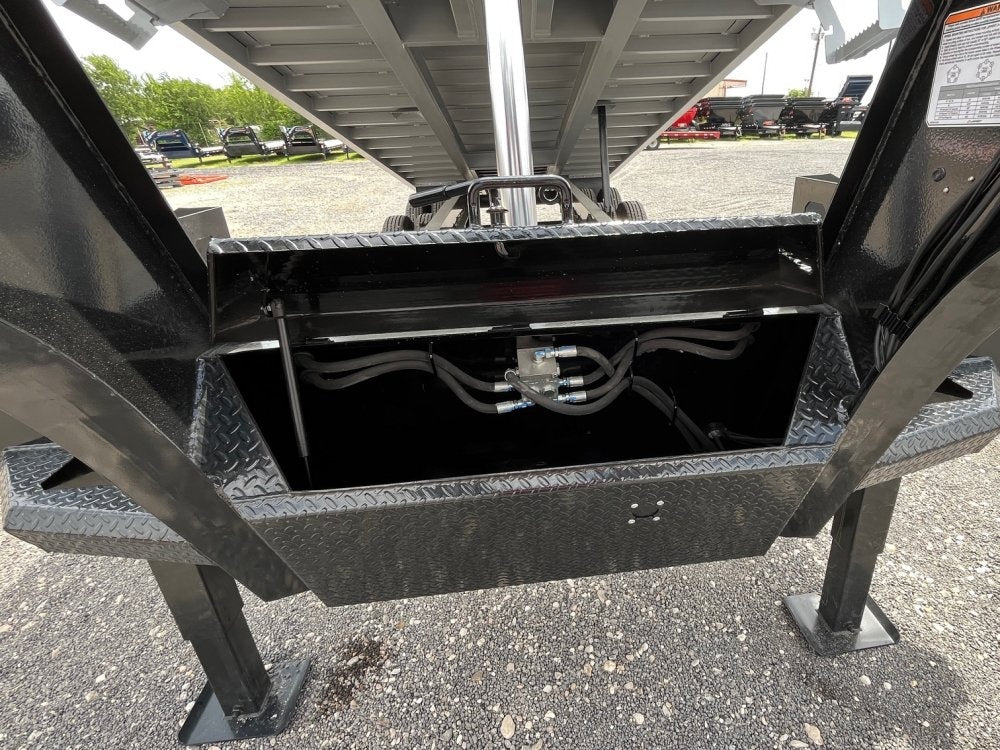

LIFT SYSTEM
- SYSTEM:
- Hydraulic

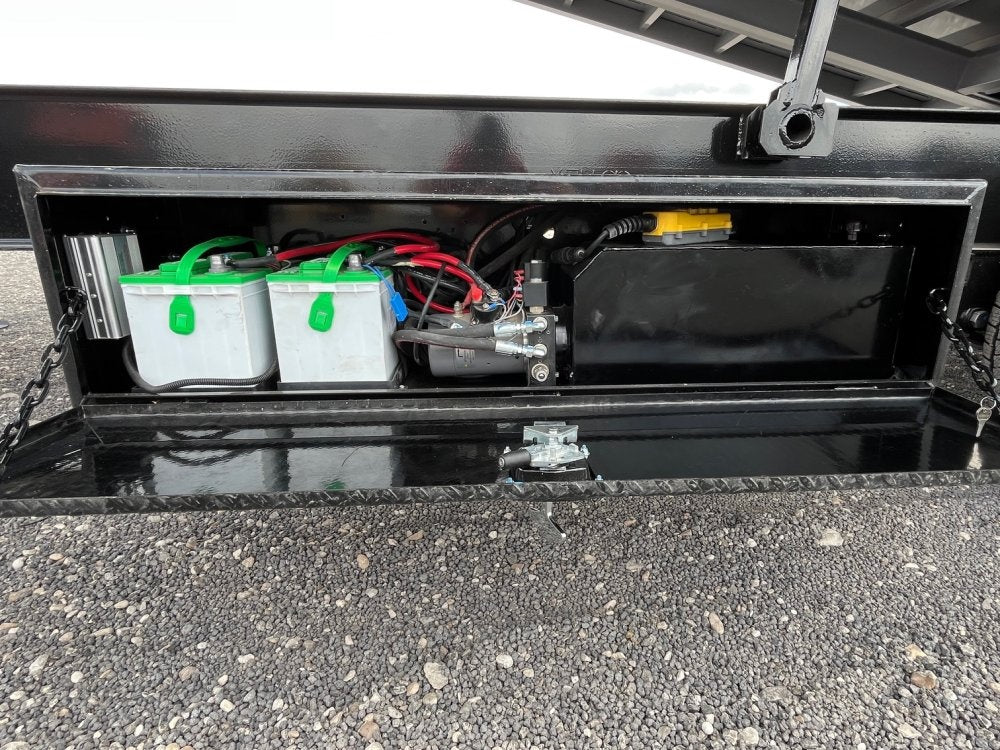

- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER TYPE:
- Telescopic Cylinder
- DUMP ANGLE:
- 44 - 48 Degrees

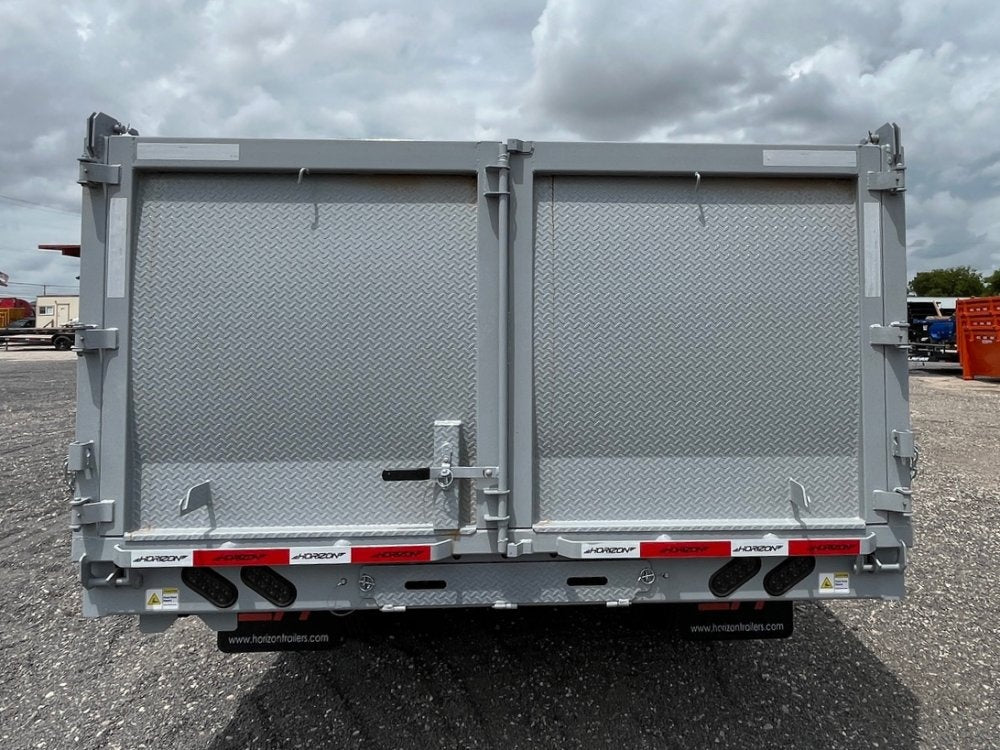

CARGO & BODY

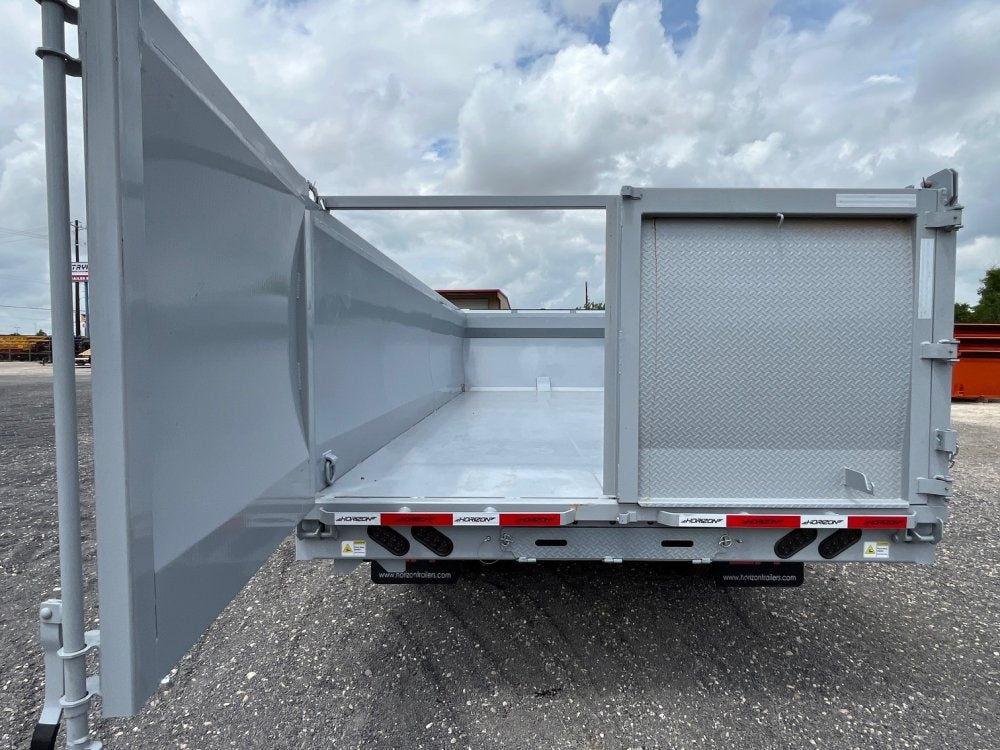

- GATE:
- 3 Way Spreader Gate
- RAMPS:
- 8' HD Slide In Ramps

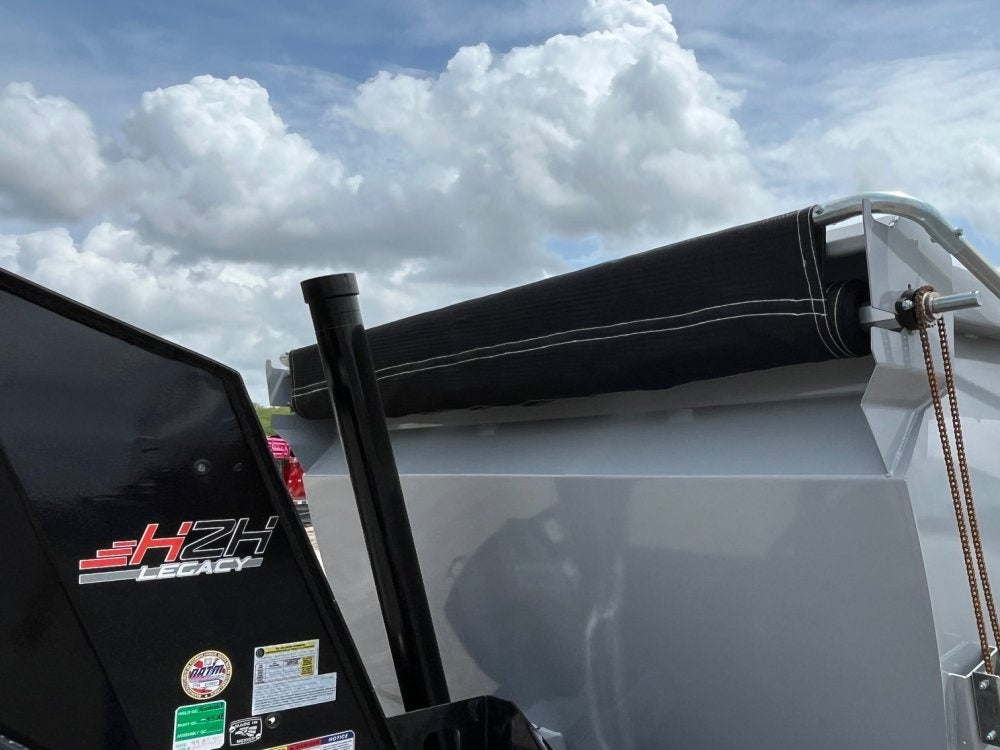

- TARP:
- Crank Style Roll-Up Tarp
- HOOKS:
- 3/8" Round J Hooks
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERIES:
- 2 - 27M Deep-Cycle Marine
- CHARGER:
- 110V Trickle Charger w/ 10W Solar
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts
