Product Features
6-Foot 4-Inch Heavy-Duty Ramps
Utilizes 6-foot 4-inch slide-in ramps rated for a 7,000 lb transfer weight. The heavy-duty construction supports full-sized skid steers and compact excavators.

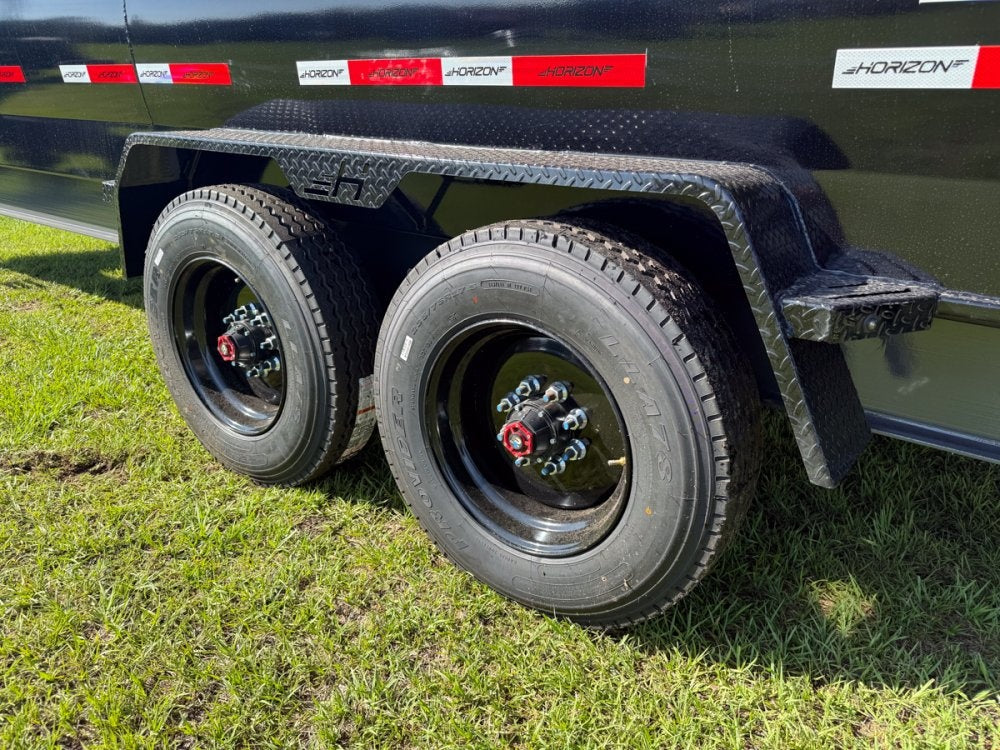

10k Super Single Axle Configuration
Equipped with 10k super single axles with torsion suspension and 18-ply 17.5" tires rated at 6,005 lbs each. This heavy-duty configuration supports the trailer's 22.4k lb GVWR capacity.

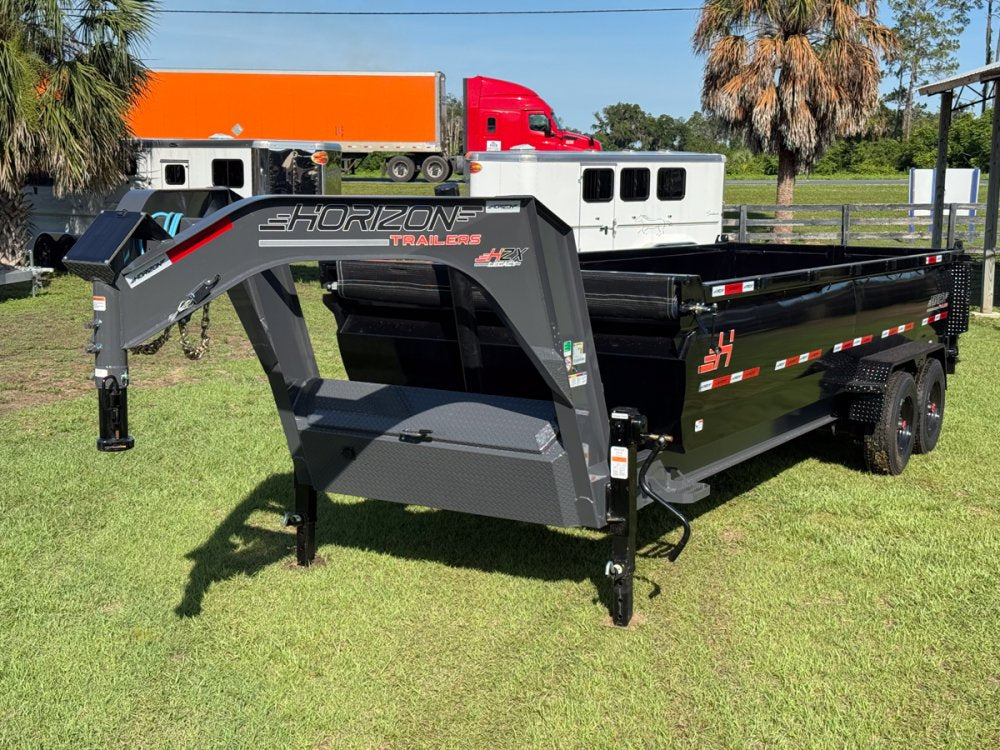

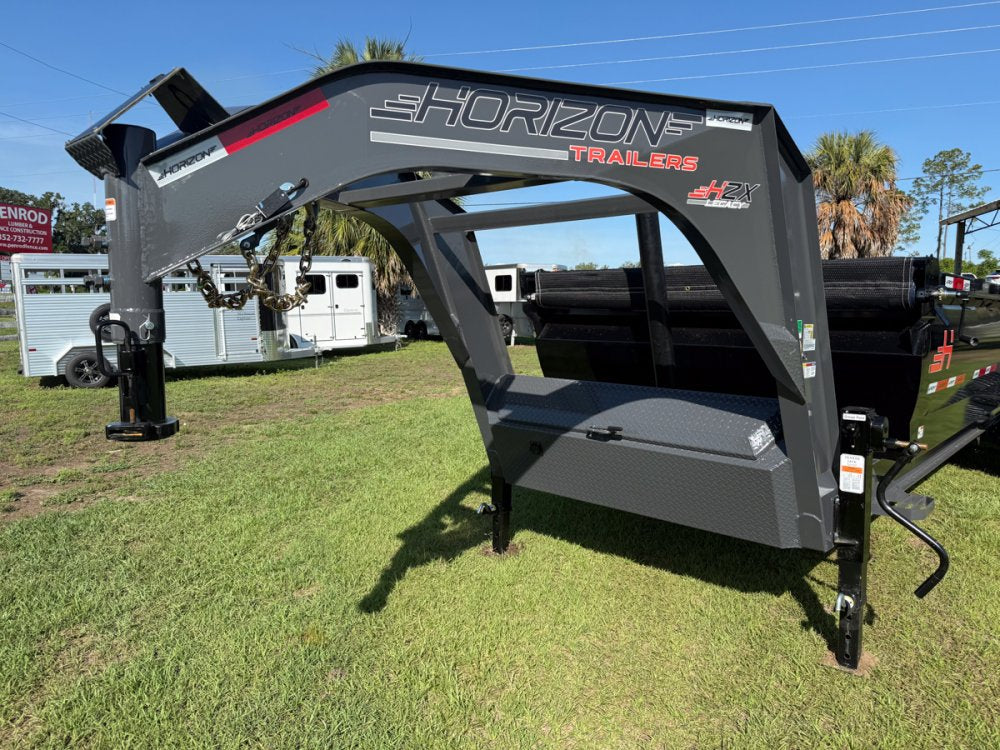

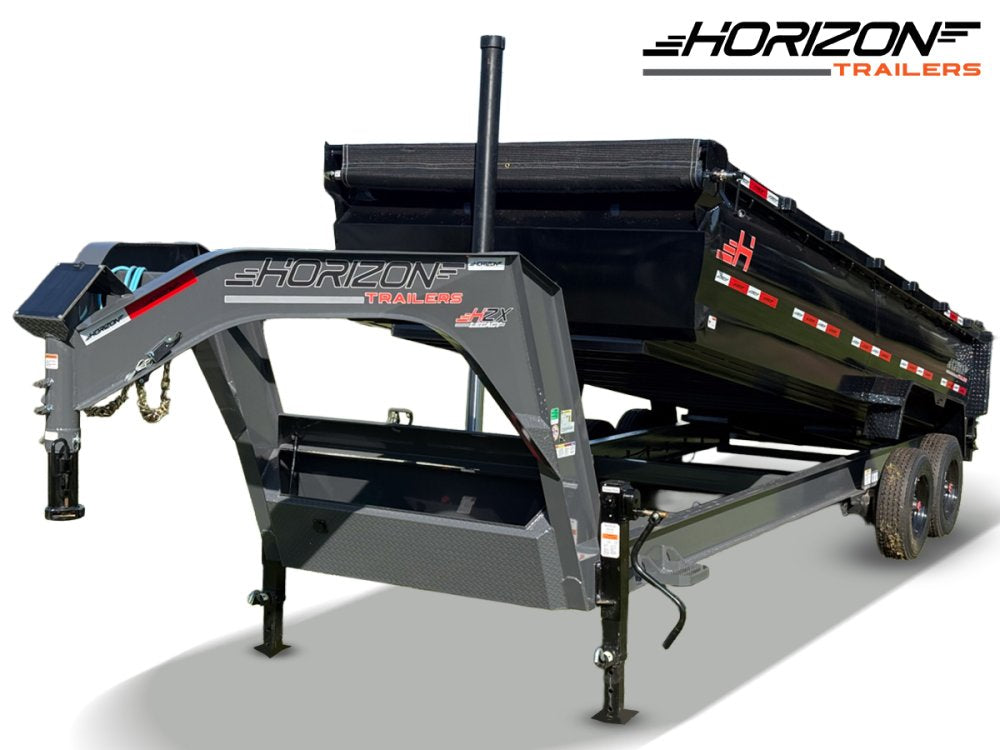

10-Inch I-Beam Gooseneck Frame
Built on a heavy 10-inch I-beam main frame weighing 17 lbs/ft, extending into a 98-inch engineered gooseneck. This robust construction provides the necessary backbone for the 22,400 lb GVWR capacity and the stability required for heavy commercial towing.

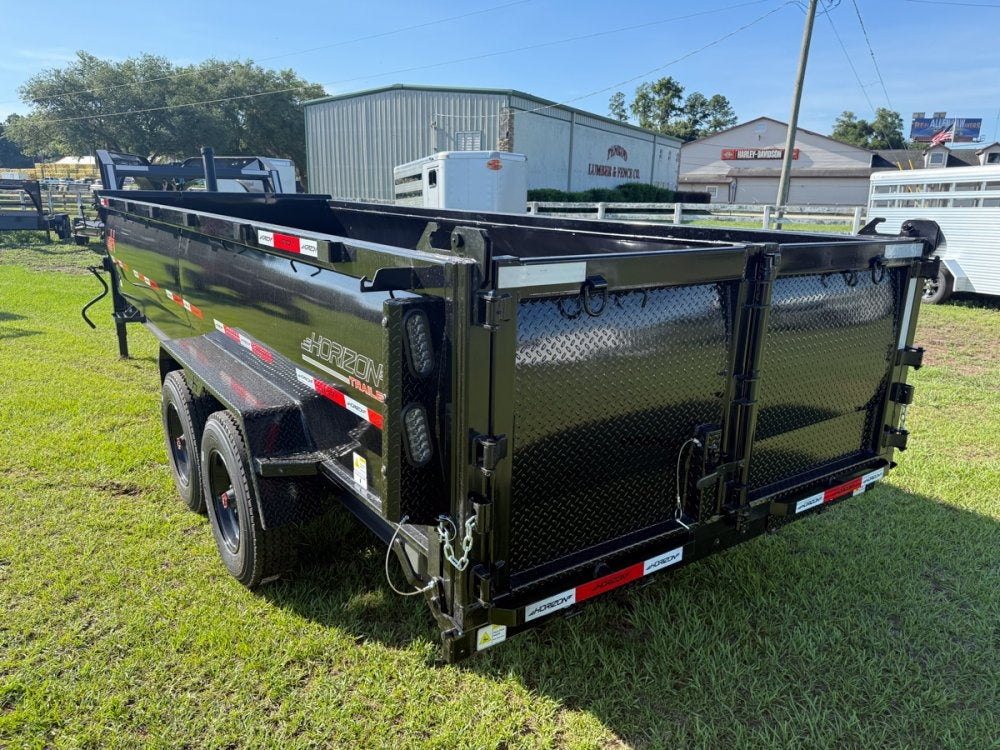

Side-Mounted LED Light Boxes
Features welded, side-mounted light boxes on the dump bed. This placement protects the DOT-approved LED lights from damage during loading and provides optimal rearward visibility, unlike traditional lights mounted low near the ramps.

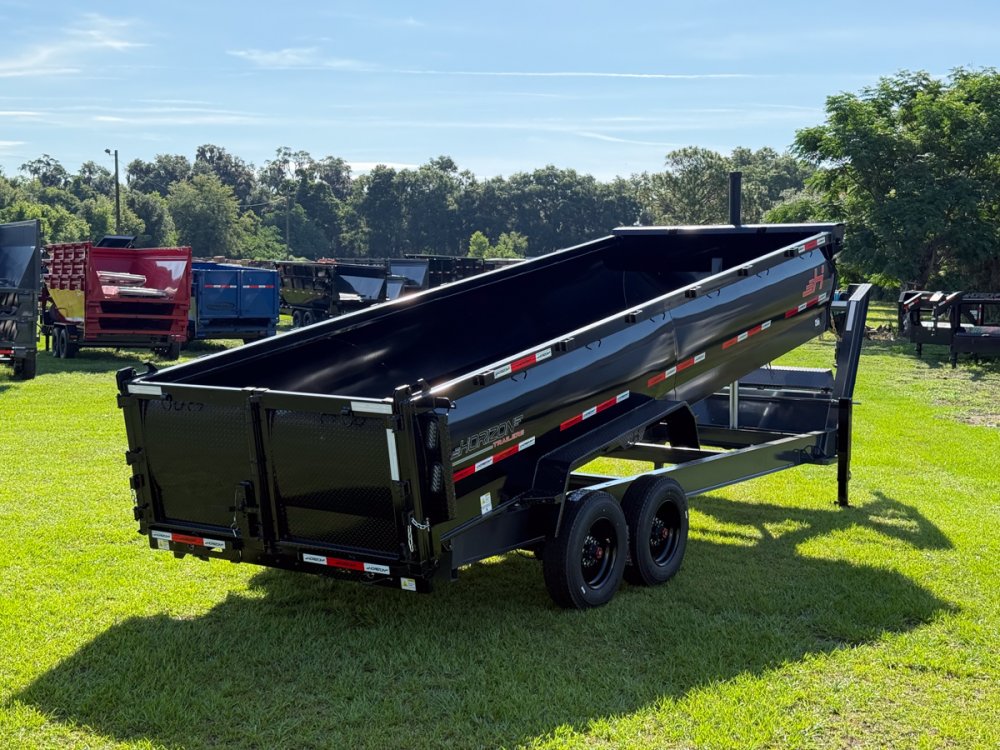

Rounded Steel Bed
Built with heavy-duty 10-gauge rounded steel sides and a 7-gauge steel floor. The combination provides maximum durability for commercial use and high-volume material handling.

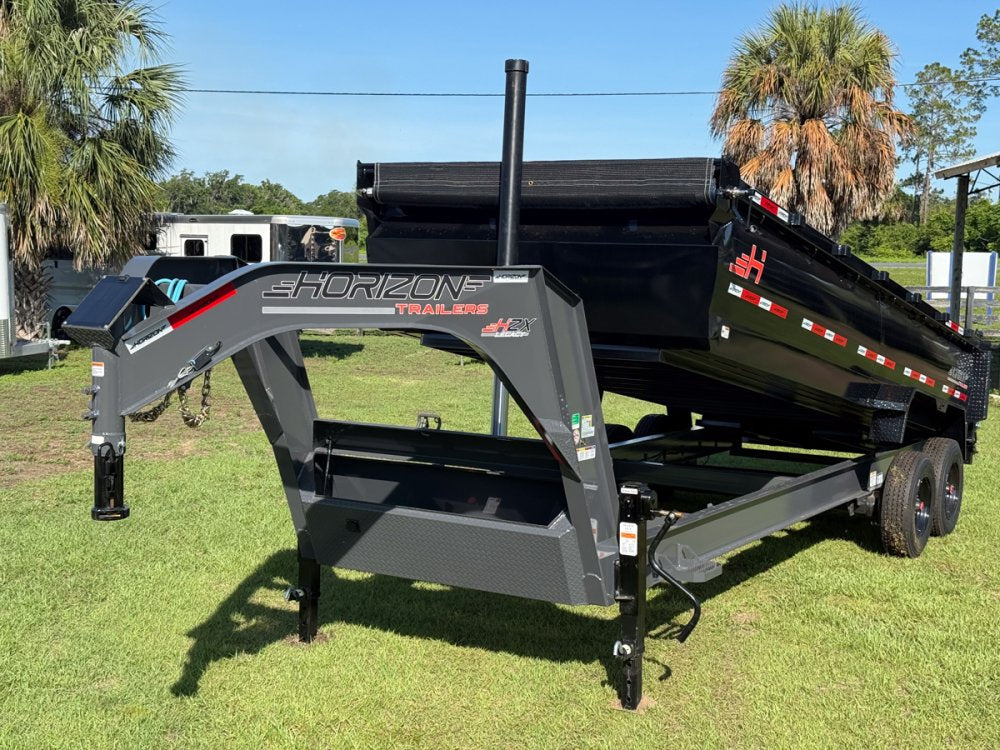

Telescopic Lift Cylinder System
Features a telescopic cylinder lift system for increased dump height and greater lifting capacity. This system provides superior performance for heavy, dense loads.
Product Details
DIMENSIONS
- LENGTH:
- 14' - 20'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k SS
- GVWR:
- 22.4k
RUNNING GEAR
- TIRES:
- ST235/75R17.5 Radial
- TIRE PLY:
- 18 Ply
- RATING:
- 6,005 lbs
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k SS Dexter Oil Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION:
- Torsion
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I Beam
- LENGTH:
- 98" From Behind Riser
- HEIGHT:
- 70" High
- JACKS:
- Dual 12k Side-Wind Drop-Leg Jacks
- COUPLER:
- Adjustable 2 5/16" (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 10" I-Beam (17lb/ft)
- BED FRAME:
- 3" x 5" x 1/4" Angle Iron
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- FLOORING:
- 7ga. Steel Bed
- SIDES:
- 10 Ga. Rounded Steel
- FENDERS:
- 12 Ga. Diamond Plate
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER TYPE:
- Telescopic Cylinder
- DUMP ANGLE:
- 44 - 48 Degrees
- STABILIZERS:
- Rear Stabilizer Stands
CARGO & BODY

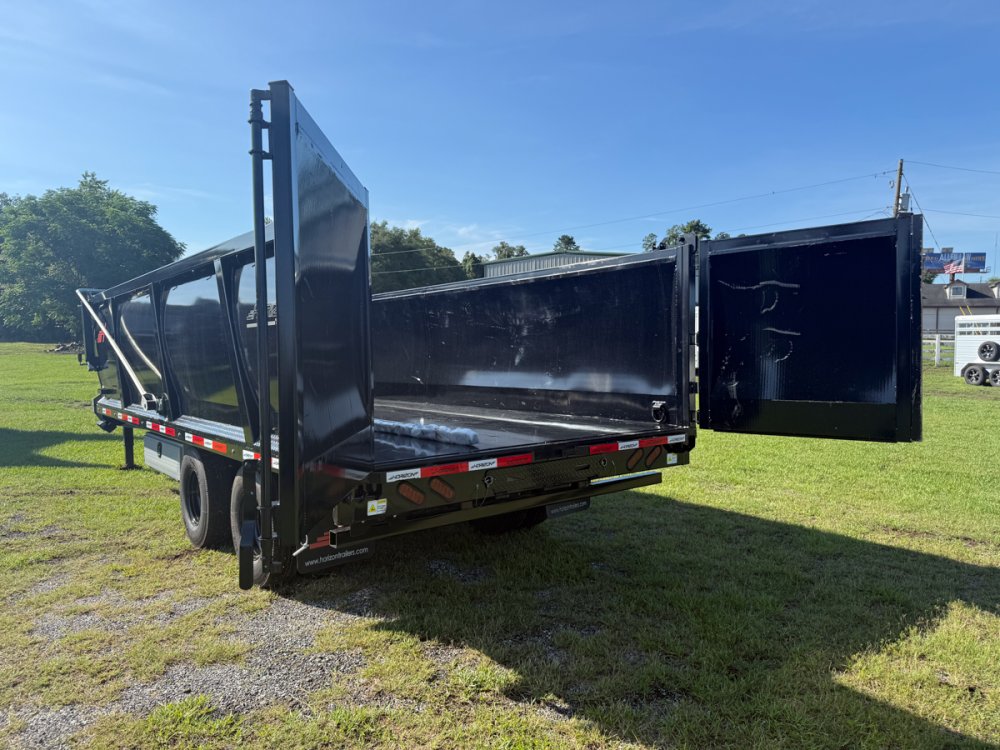

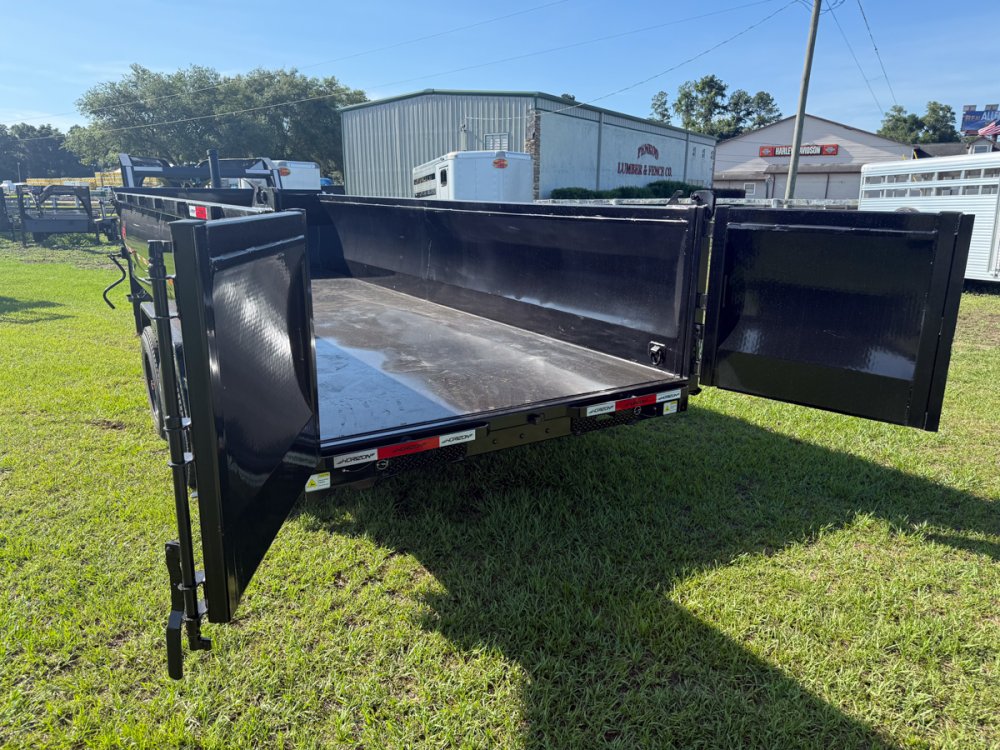

- GATE:
- 3 Way Spreader Gate
- RAMPS:
- 6'4" Slide In Ramps

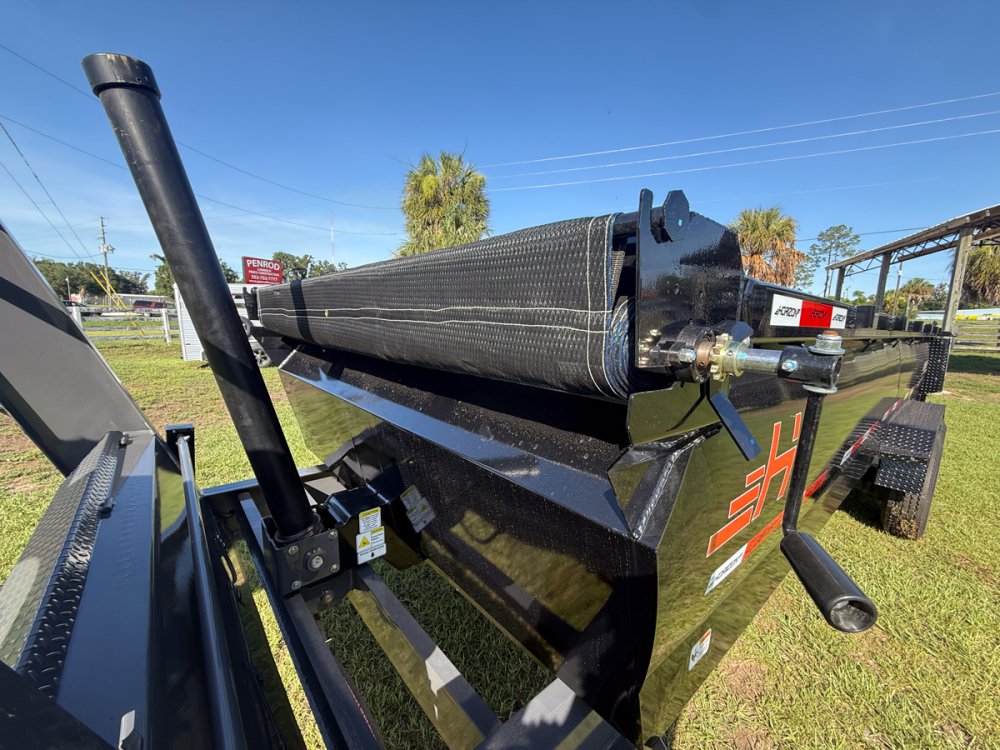

- TARP:
- Crank Style Roll-Up Tarp
- HOOKS:
- 3/8" Round J Hooks
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness

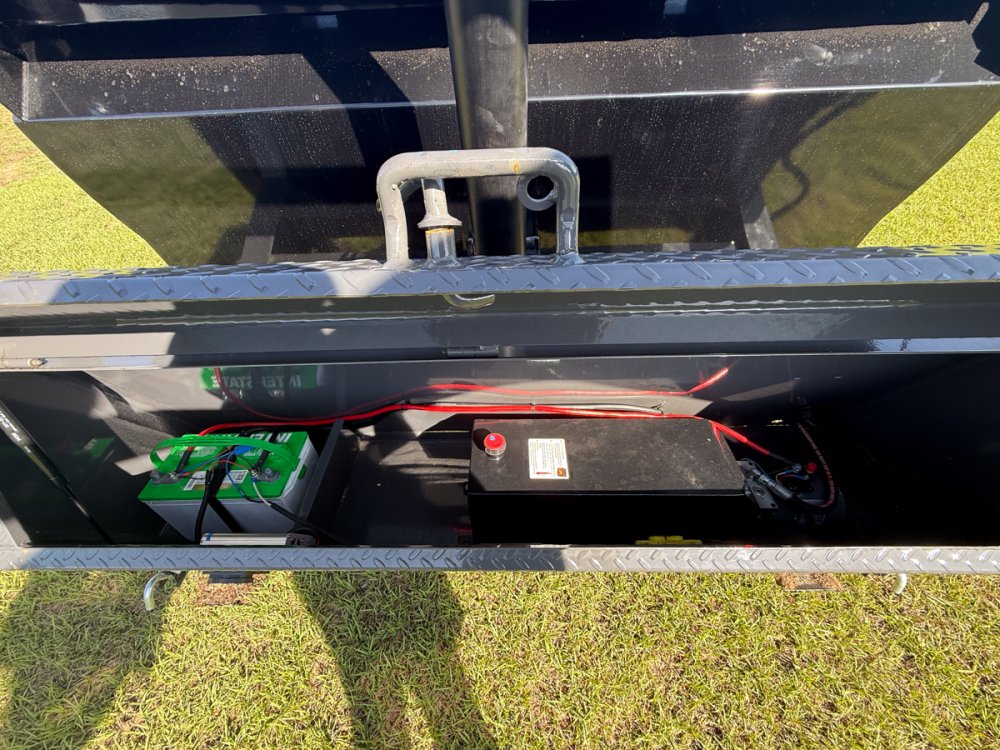

- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 110V Trickle Charger
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts
