Product Features
Removable or Drive-Over Fenders
Offers a choice between standard 12-gauge removable fenders or heavy-duty 3/16-inch diamond plate drive-over fenders to suit different loading needs.
Gravity Tilt with Single Cylinder
Operates using a simple gravity tilt system actuated by a single 3"x16" hydraulic cylinder. The system provides reliable, low-maintenance operation for the 16-foot tilting section.
7k, 8k, and 10k Axle Options
Available with 7k or 8k Dexter electric brake axles, with an upgrade to 10k oil bath super singles. All configurations use a torsion suspension for a smoother ride and better ground clearance.

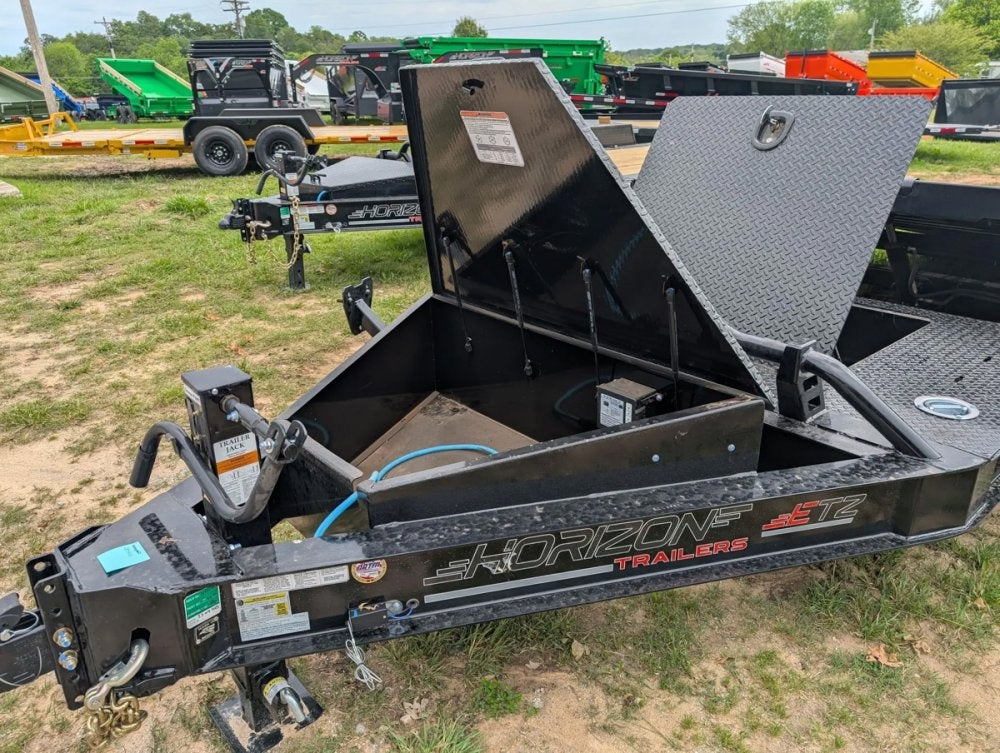

Mega Lockable Tongue Toolbox
A large, heavy-duty toolbox is mounted on the trailer tongue. Its significant storage capacity accommodates multiple straps, chains, tools, and other equipment, keeping them secure, organized, and protected from the weather.

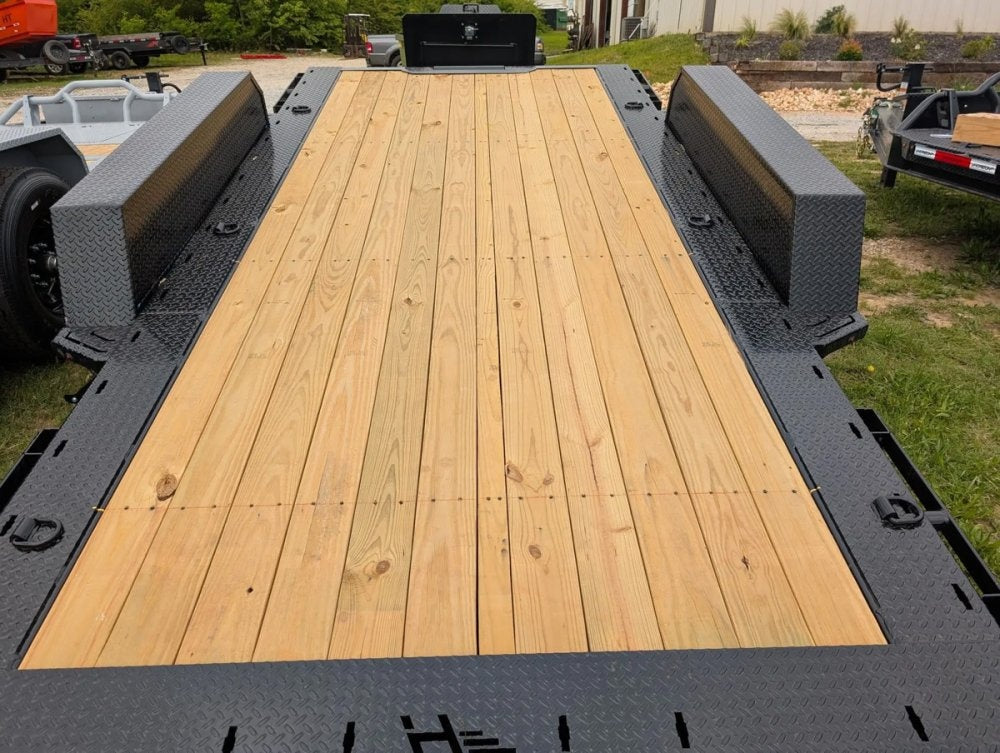

22-Inch Ultra-Low Tilt Deck
Features a 22-inch deck height, one of the lowest available. When tilted, it creates an extremely gradual incline, making it ideal for loading low-clearance equipment.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 24'
- WIDTH:
- 83" - 102"
- DECK HEIGHT:
- 22"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 15.2k - 17k
TILT SYSTEM
- TILT METHOD:
- Gravity Tilt System
- TILT DECK:
- Split Deck (16' Tilt Section)
- LIFT CYLINDER:
- 1 - 3"x16" Cylinder
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" (13lbs - 15lbs/ft on 8ks) I-Beam
- LENGTH:
- 60"
- STANDARD COUPLER BP:
- Adjustable 2 5/16" (17,000 lbs) Coupler
- FRONT JACK BP:
- Single 12k Drop-Leg Jack
- TOOLBOX BP:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- FRAME:
- 8" (13 lbs - 15lbs/ft on 8k) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Removable Fenders
3/16" Diamond Plate DOF
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
RUNNING GEAR
- TIRES:
- ST235/80R16 / ST235/85R16 (8k)
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- BRAKES:
- Electric Brake
- AXLE TYPE:
- 2- 7k Electric Brake Dexter Axles
2 - 8k Electric Brake Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Torsion
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
