Product Features
Lifetime LED Lighting Warranty
All IronBull trailers come with TecNiq branded LED lights, providing superior brightness and reliability. This premium lighting is backed by an industry-leading Lifetime LED warranty for worry-free operation.

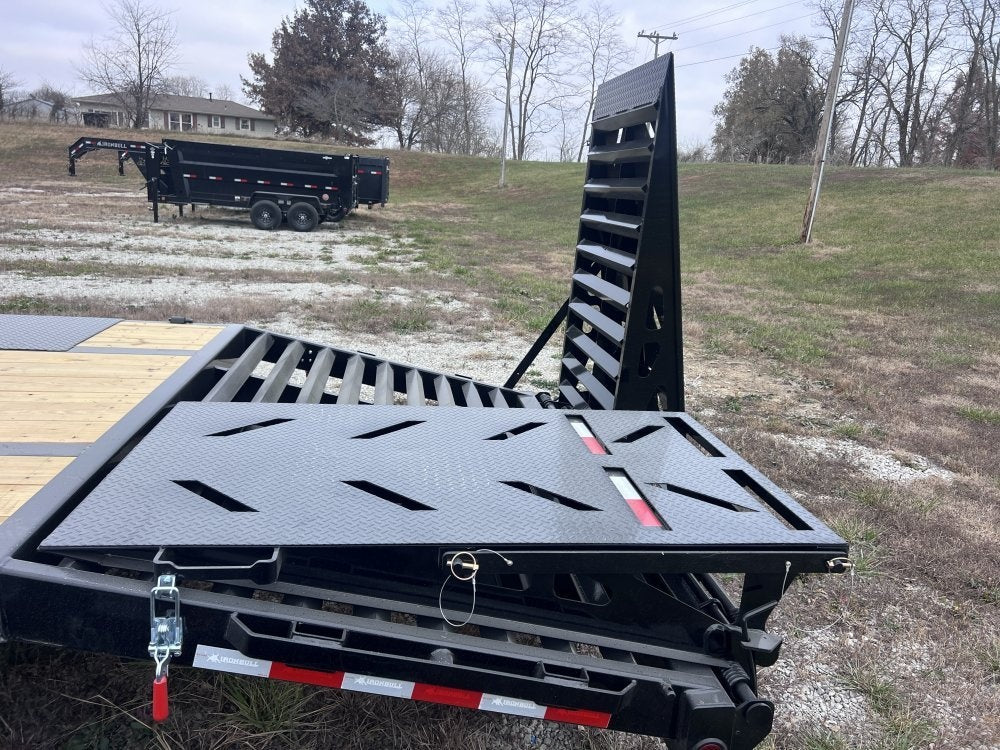

Multiple Heavy-Duty Ramp Options
Configure with standard 8-foot slide-in ramps for easy storage. Upgrade to heavy-duty Mega Ramps or a set of 2 or 3 flip-over ramps for specialized loading needs and maximum versatility.
Comprehensive Cargo Management System
Comes standard with rub rails, stake pockets, and pipe spools. Customize further with multiple options like weld-on ratchets, weld-on adjustable track systems, and side-mounted toolboxes to secure any load.
Low-Profile 12" Pierced I-Beam Frame
Built with a low-profile 12" pierced I-beam main frame. This engineering lowers the overall deck height by 3", providing a decreased center of gravity for better towing stability and a lower, easier loading angle for equipment.
Massive 25" Full-Neck Width Toolbox
The gooseneck is equipped with a massive 25" full-neck width locking toolbox. This provides an exceptional amount of secure, weatherproof storage for all your tools, straps, and equipment, keeping them organized and protected.
Heavy-Duty SCH40 Construction
Built with SCH40 materials, an HD 12" I-Beam (19 lbs/ft) frame & neck, and 3" channel crossmembers on 16" centers. The structure is fortified with a standard torque tube and underframe bridge for maximum rigidity and strength.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34" (Low-Profile Design)
- DOETAIL:
- 5' Dovetail
WEIGHT RATINGS
- GVWR:
- 23,900 lbs
- AXLE OPTIONS:
- 10k, 12k, 15k

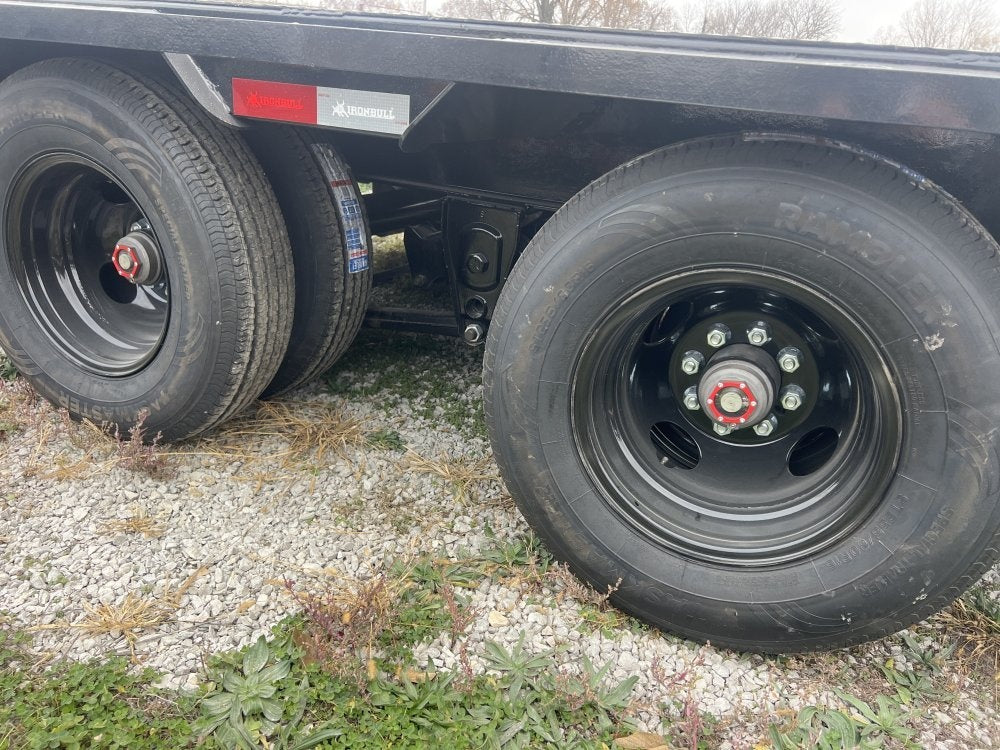

RUNNING GEAR
- TIRES:
- 235/80R16 Radial Tires
- TIRE UPGRADE:
- ST235/85R16 - 14 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k Lippert Electric Brake Axles
2 - 12k Lippert Electric Brake Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric Brake
- SUSPENSION:
- Multi-Leaf Slipper Spring Suspension
- AXLE SPREAD:
- 6' Spread Axles
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- 12" I-Beam Neck
- COUPLER:
- 2 5/16" Adjustable Coupler
- JACKS:
- 2 - 10k Drop-Leg Jacks
- TOOLBOX GN:
- 25" Lockable Full Neck Width Toolbox
- NECK OPTION:
- Deck Over Neck
- WINCH PLATE:
- 1/2" Winch Plate in Neck
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft), Low-Profile Pierced Beam Frame
- CROSSMEMBERS:
- 10" I-Beam (Lower Frame)
3" Channel, 16" Centers (Deck)
- DECK:
- Wood
- TORQUE TUBE:
- Standard Torque Tube & Underframe Bridge
- SUPPORT STANDS:
- Tube Rear Support Stands
- RAMPS:
- 8' Slide In Ramps
- RAIL:
- Rub Rails, Stake Pockets, Pipe Spools
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Molded Sealed Wiring Harness w/ Resistors
- REAR LIGHTS:
- TecNiq DOT Approved Lifetime LED Lighting
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Primer
- COLOR:
- Black
WARRANTY
- TRAILER WARRANTY:
- 3 Year Structural / 2 Year Component
- LIGHT WARRANTY:
- Lifetime LED Warranty
