Product Features

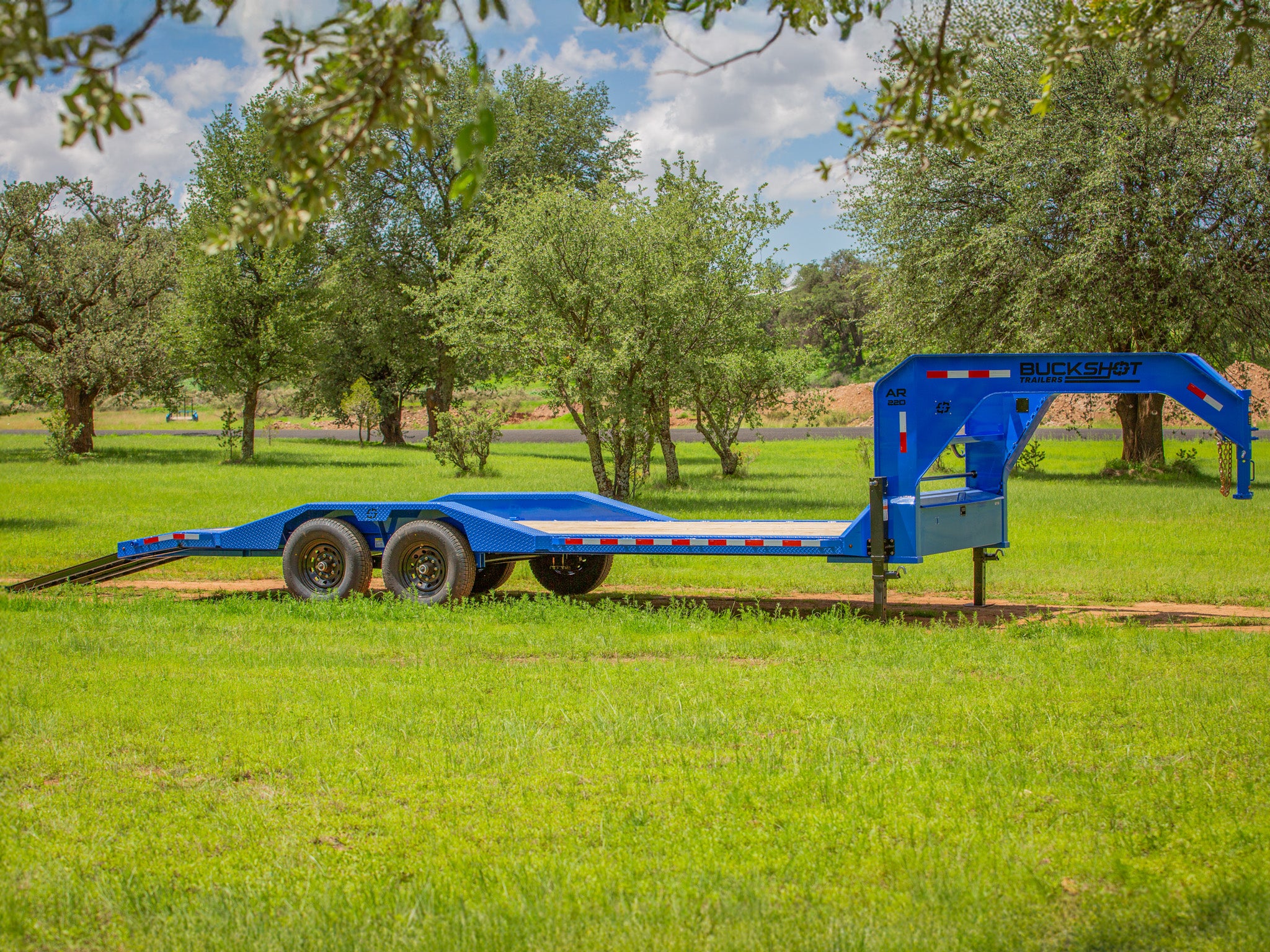

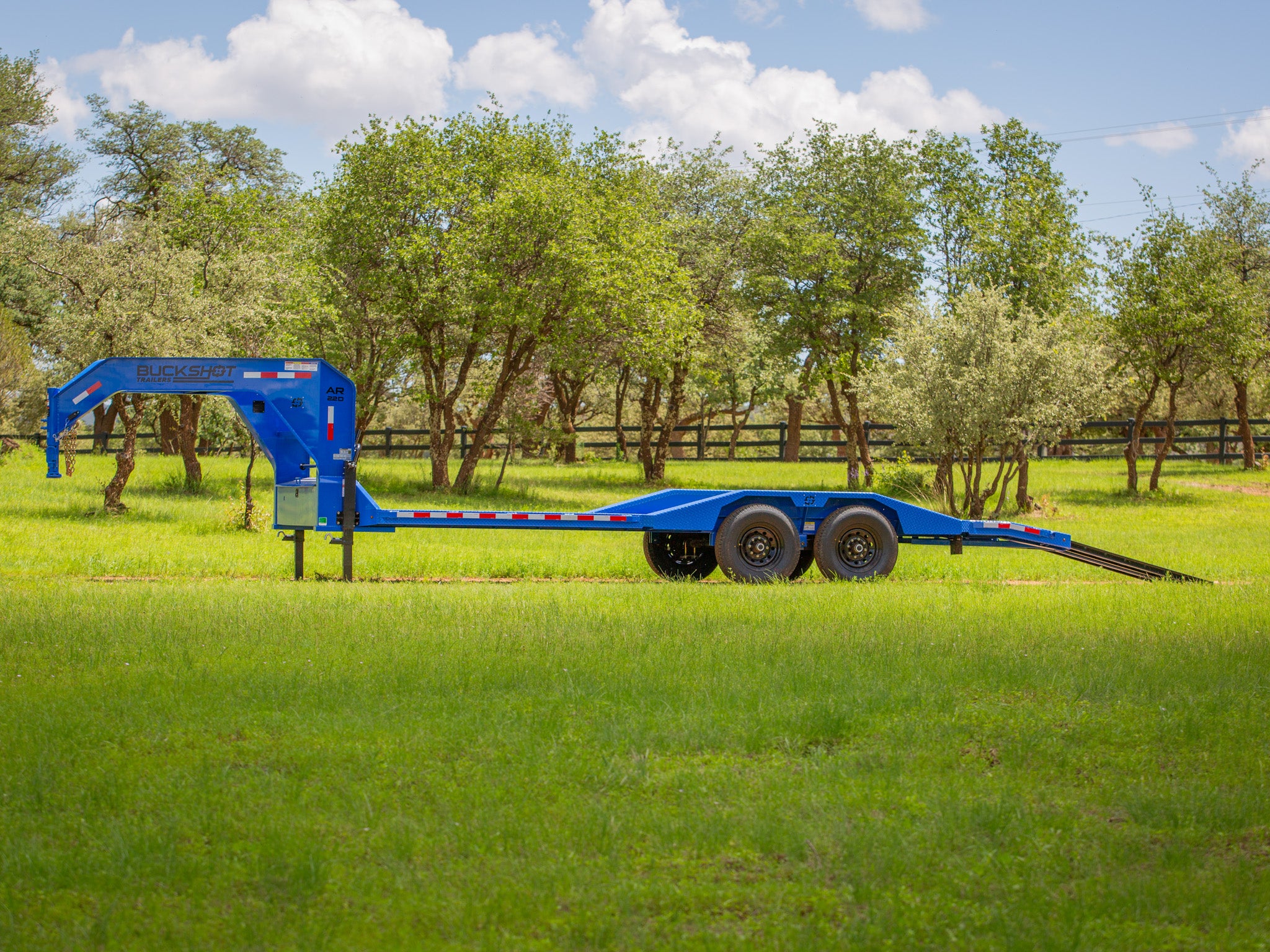

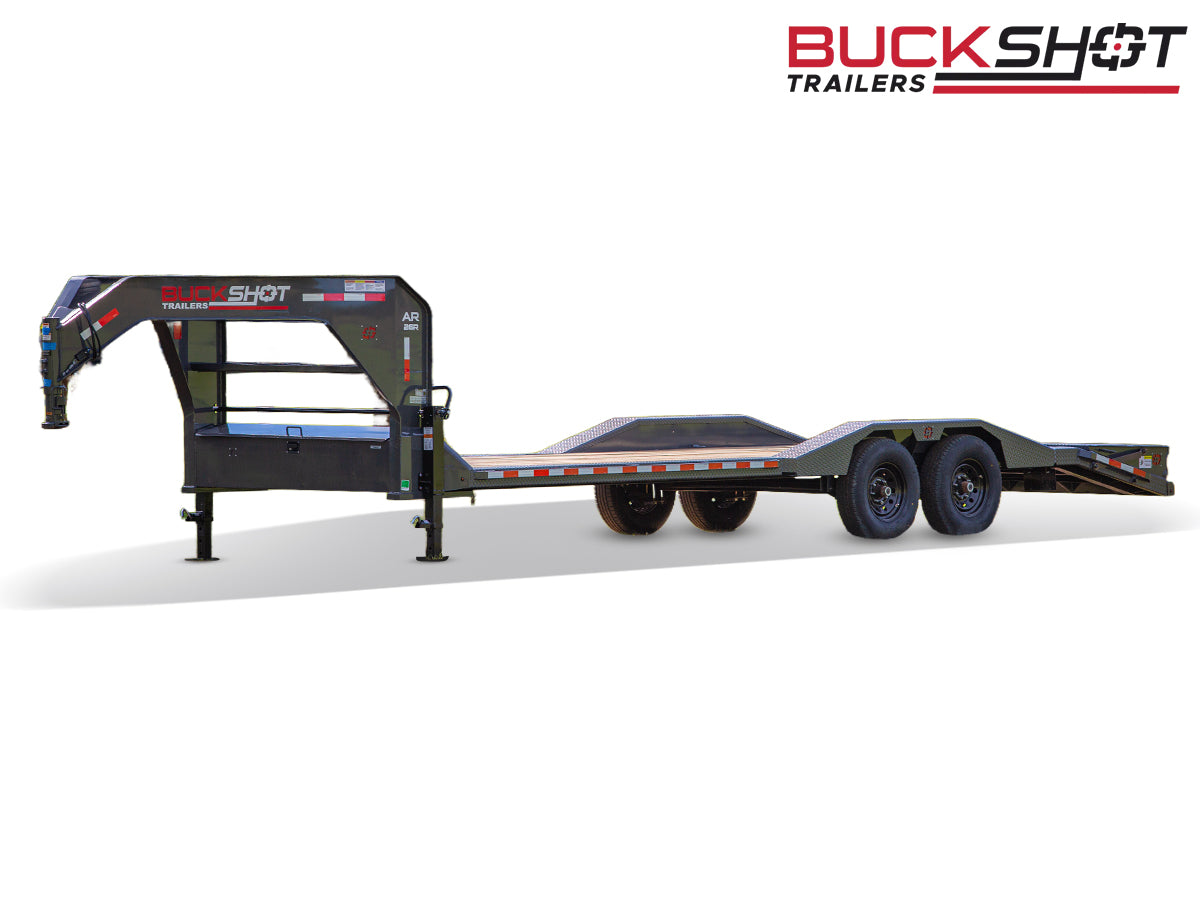

GOOSENECK PRECISION FOR HEAVY EQUIPMENT

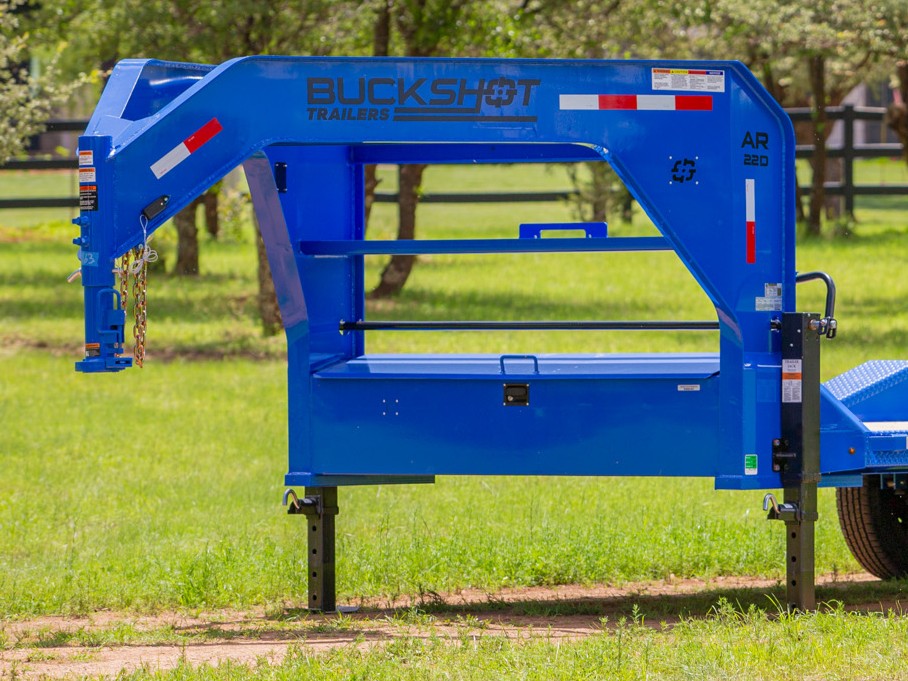

The AR is built on a 6" Wide Flange I-Beam (upgrading to 8" I-Beam on 28'–32' models) with 14k–16k lbs GVWR, delivering the structural strength and gooseneck stability needed to haul your most valuable equipment. An engineered beam gooseneck ensures secure, confident towing at any length.

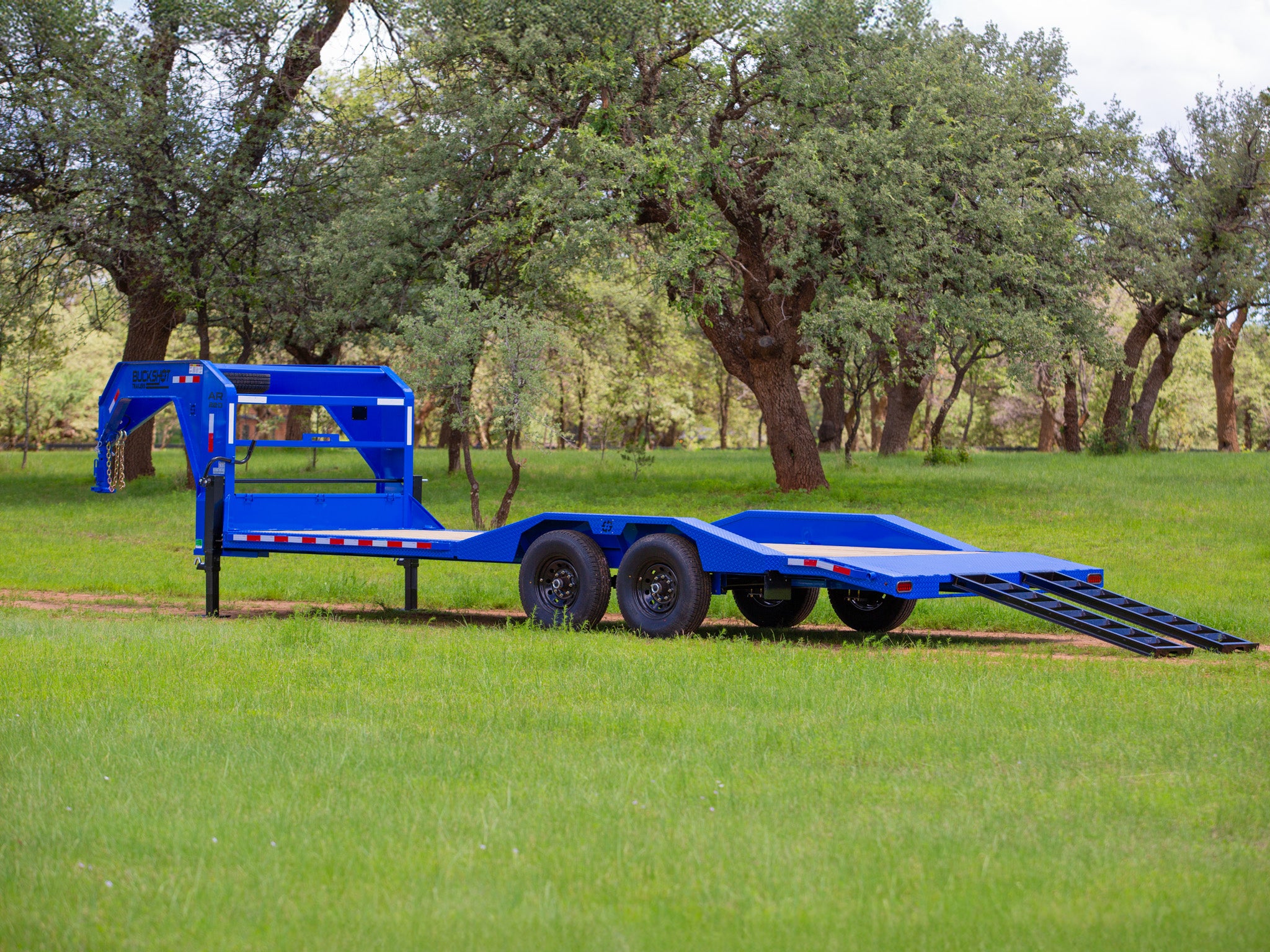

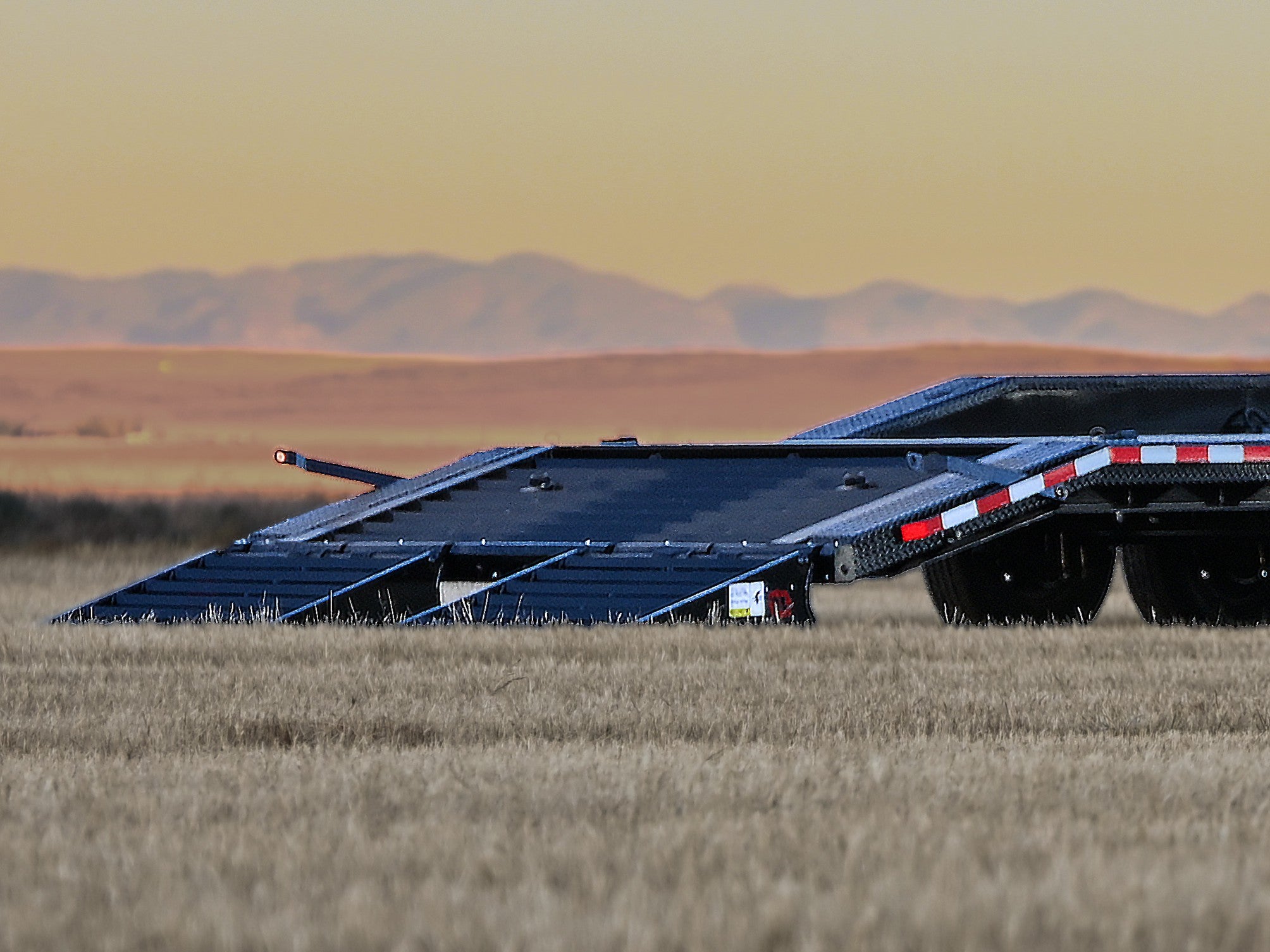

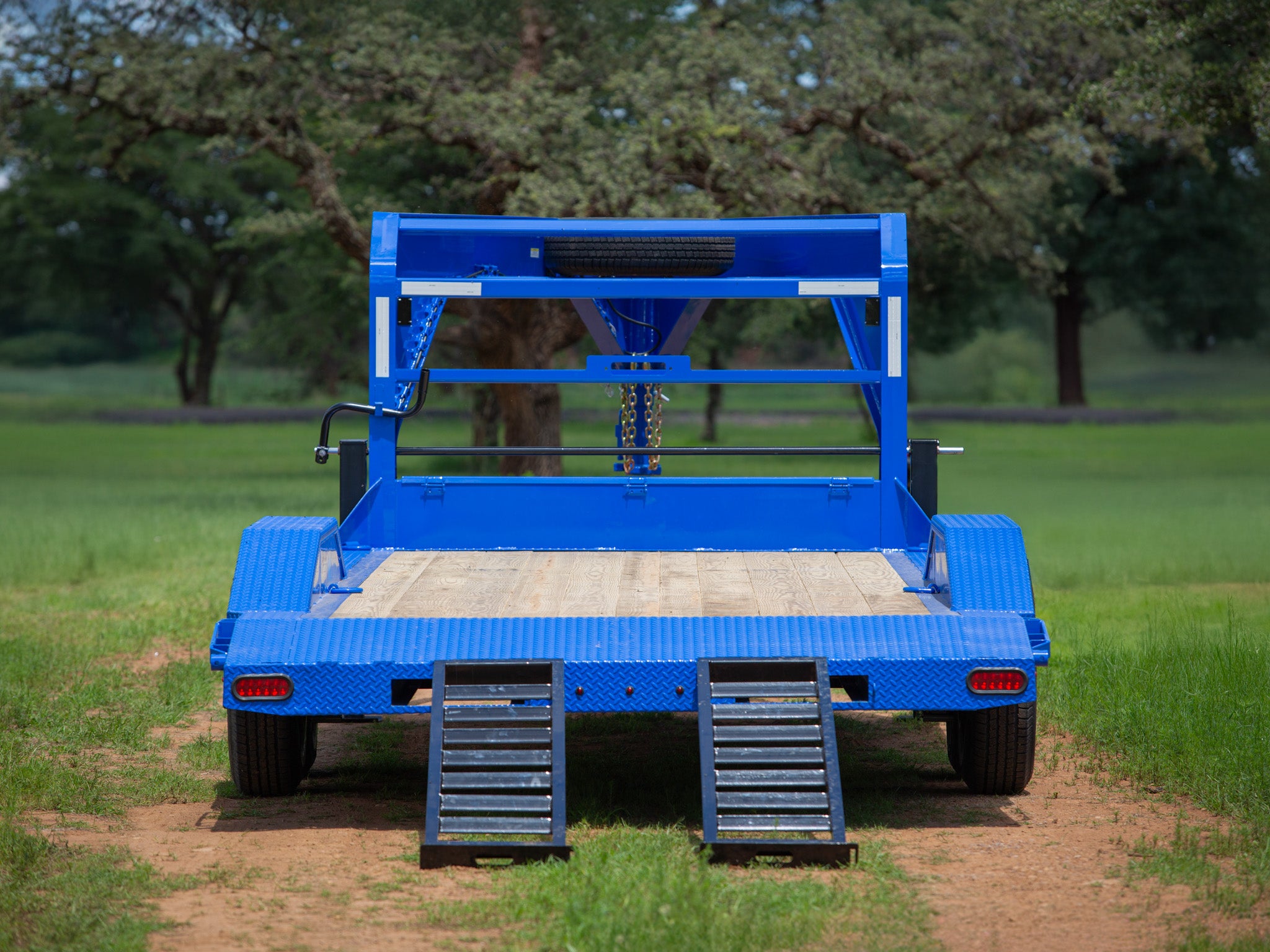

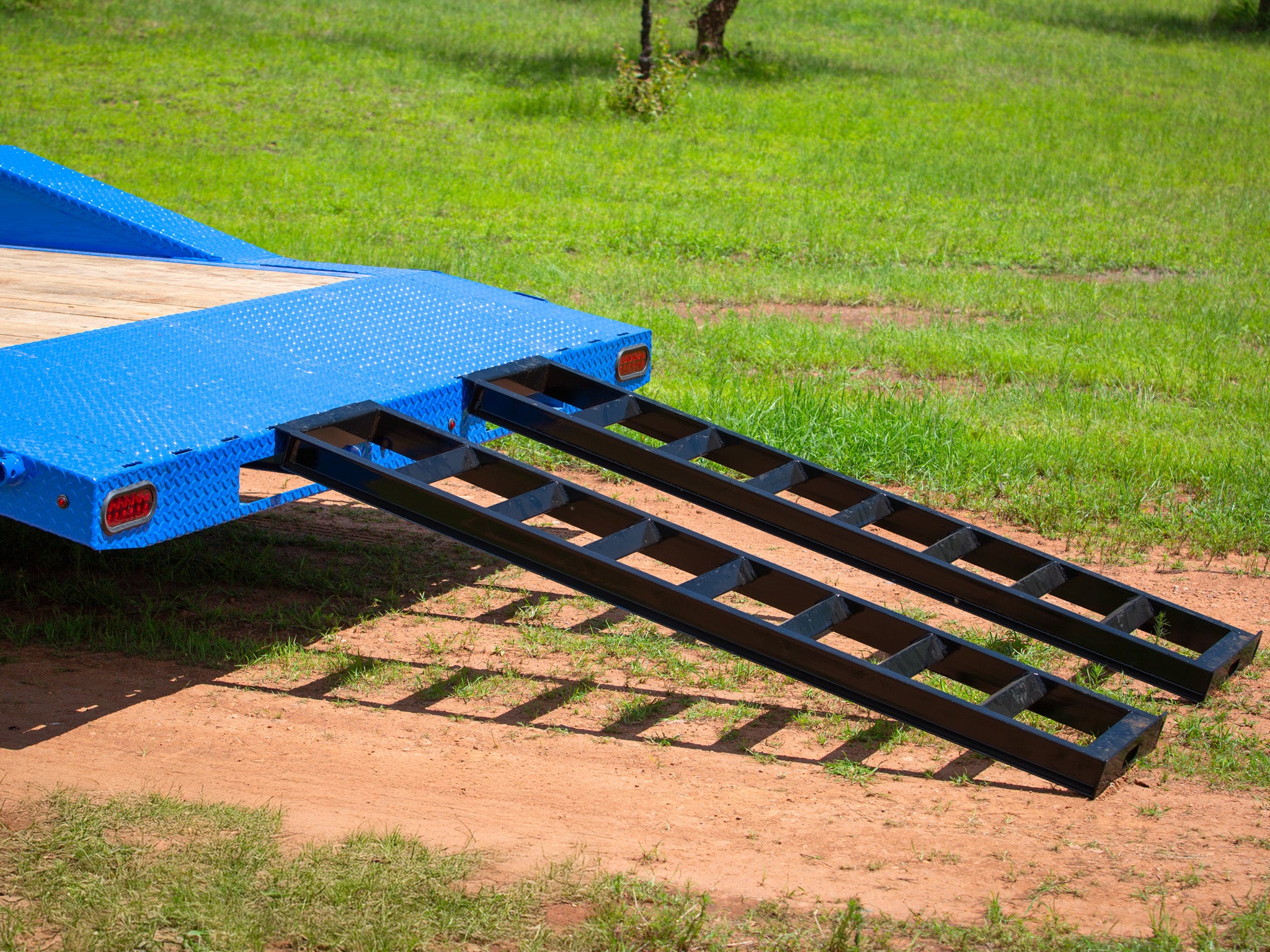

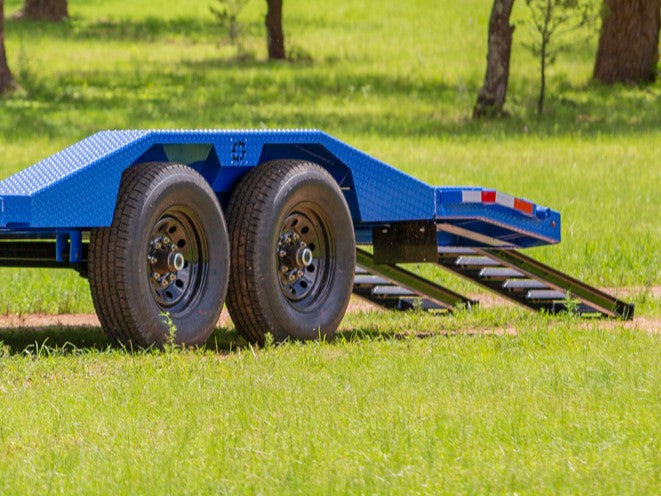

FOLD-UP MEGA RAMPS
The AR comes standard with fold-up loading mega ramps, making it easy to load skid steers, tractors, excavators, and other heavy equipment without auxiliary loading equipment. Wide, heavy-duty construction handles the weight and repeated use of a working equipment hauler.

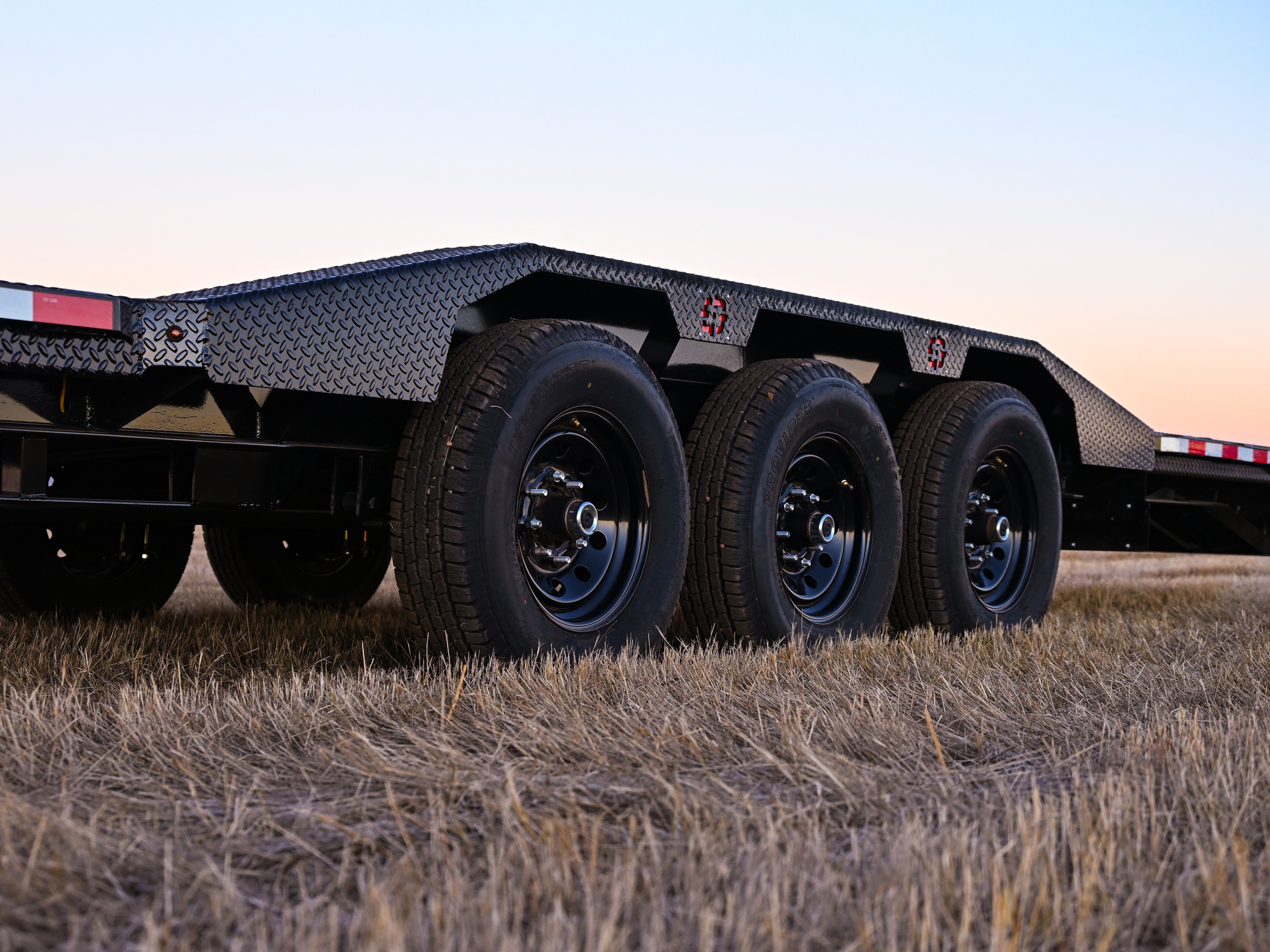

DRIVE-OVER FENDERS
Diamond plate drive-over fenders give the AR an equipment-friendly deck that lets you maximize your usable load surface. No narrow paths or tight clearances — just a clean, wide platform that accommodates large equipment with confidence.
STEEL BLASTED FINISH
Steel blasting followed by professional powdercoat gives the AR a durable, long-lasting finish that holds up under equipment loading, chains, and the constant abuse of job site use. It's not just about looks — it's about a coating that protects the investment underneath.
LIPPERT SPRING BRAKE AXLES
Riding on 2 - 7k Lippert Spring Brake EZ Lube Axles with spring suspension and electric brakes, the AR delivers reliable towing performance at full GVWR. Upgrade to 2 - 8k Lippert Axles with 17.5" wheels for even greater load capacity on longer configurations.

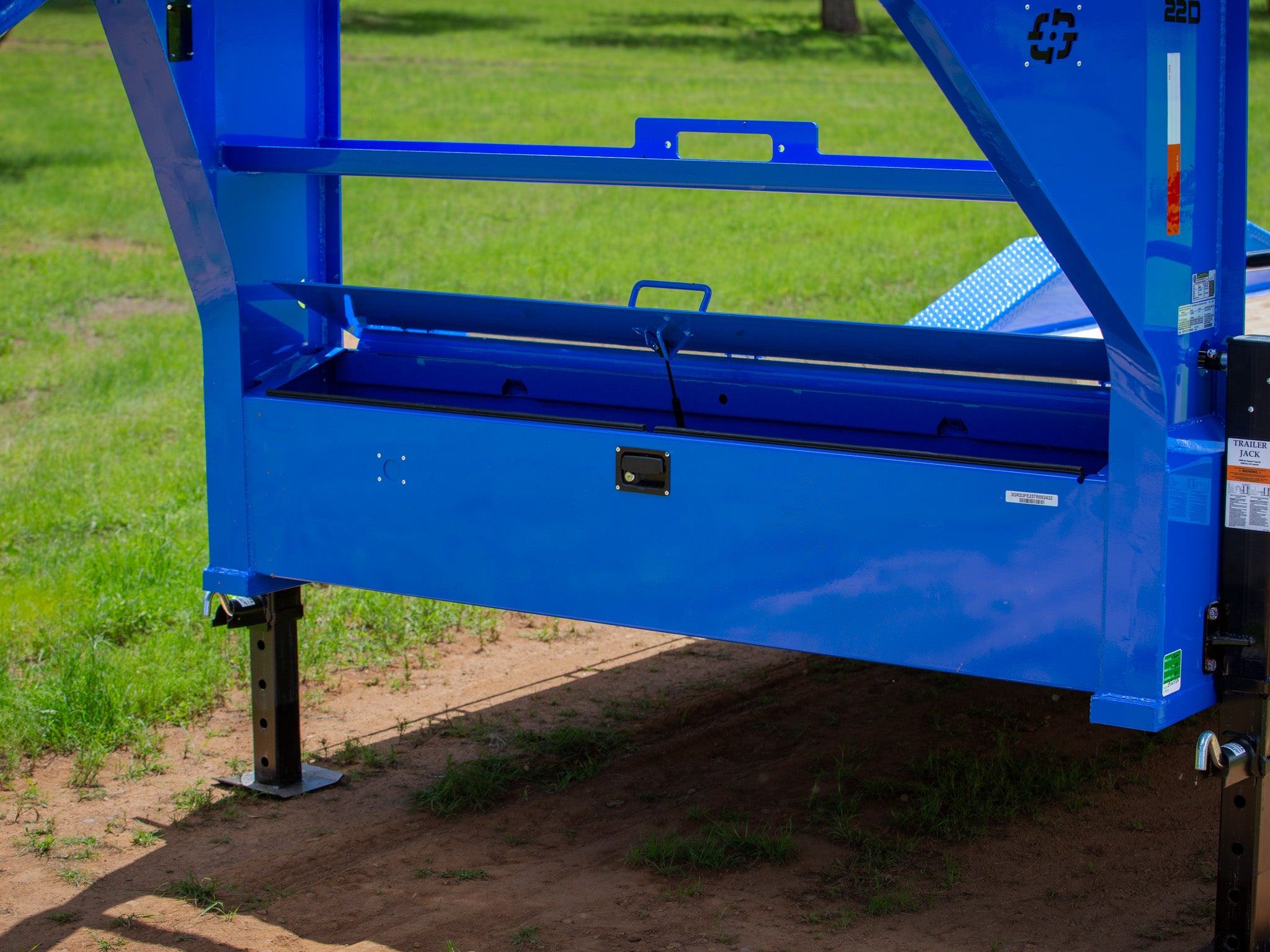

DUAL 10K DROP-LEG JACKS
The AR's dual 10k drop-leg jacks give you a rock-solid, level platform during loading and unloading — no wobble, no shifting, no wasted time stabilizing the trailer before you put equipment on it. It's a standard feature that makes every load and unload faster and safer.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 32'
- WIDTH:
- 102"
- DECK HEIGHT:
- 26"
- TRAILER TYPE:
- Equipment Trailer
WEIGHT RATINGS
- GVWR:
- 14k - 16k lbs
- AXLE OPTIONS:
- 7k, 8k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial Tires
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Mod Steel Wheels
- AXLE TYPE:
- 2 - 7k Lippert Spring Brake EZ Lube Axles
2 - 8k Lippert Axles w/ 4 - 17.5" Wheels
- AXLE COUNT:
- 2
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Spring
- SPARE TIRE:
- Spare Tire Mount (Included)
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Blasted
- COLOR:
- Custom Color Options Available

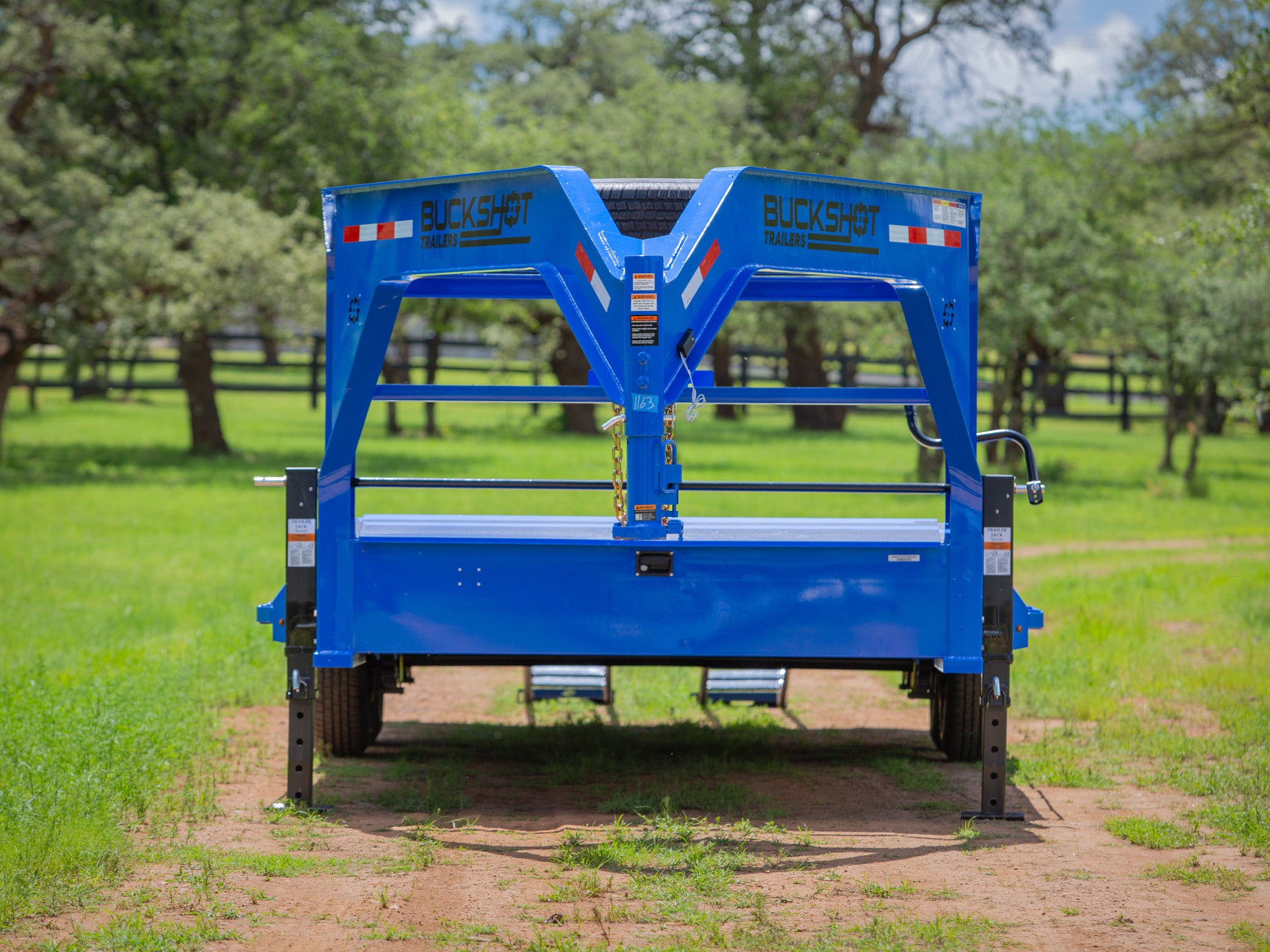

GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- Engineered Beam Gooseneck
- COUPLER:
- Adjustable 2 5/16" Coupler
- JACKS:
- Dual 10k Drop-Leg Jacks
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 6" Wide Flange I-Beam (12 lbs/ft)
8" I-Beam (28' - 32')
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- DECK:
- Wood (2x8 Treated Pine Lumber)
- FENDERS:
- Diamond Plate Drive Over Fenders
- RAMPS:
- Fold-Up Loading Mega Ramps
- SIDES:
- Rub Rail, Stake Pockets & Pipe Spools (Standard)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved Lifetime LED Lighting
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
OPTIONS
