Product Features

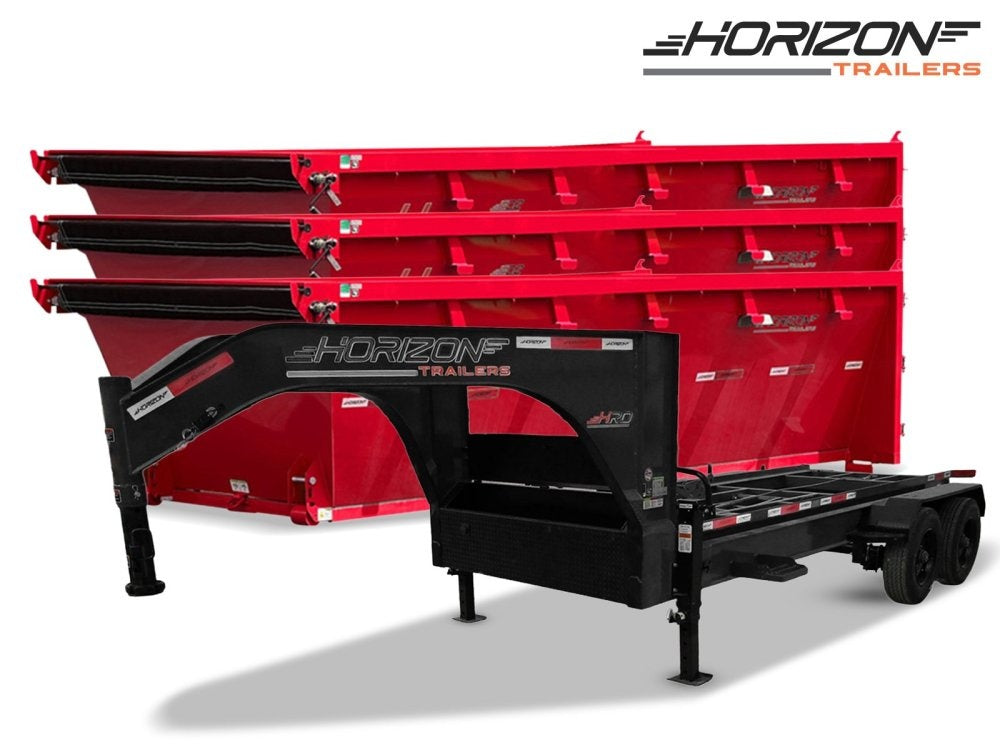

Versatile Roll-Off Capability
The RDZ roll-off trailer is designed for versatility, seamlessly pairing with various roll-off dumpster boxes or decks without needing modifications. Available in lengths of 14' and 16', it features robust tandem axles supporting a sturdy 10" I-beam main frame, with an optional upgrade to 15 lb./ft. steel for increased durability.
Hydraulic Tilt System
This trailer is operated by a heavy-duty scissor lift hoist and a 6" hydraulic cylinder. With a 14' wired controller and optional wireless controller, it allows for convenient mobile operation of the 12V KTI hydraulic pump, enabling a tilt angle of up to 40 degrees for efficient dumping.
High-Quality Construction

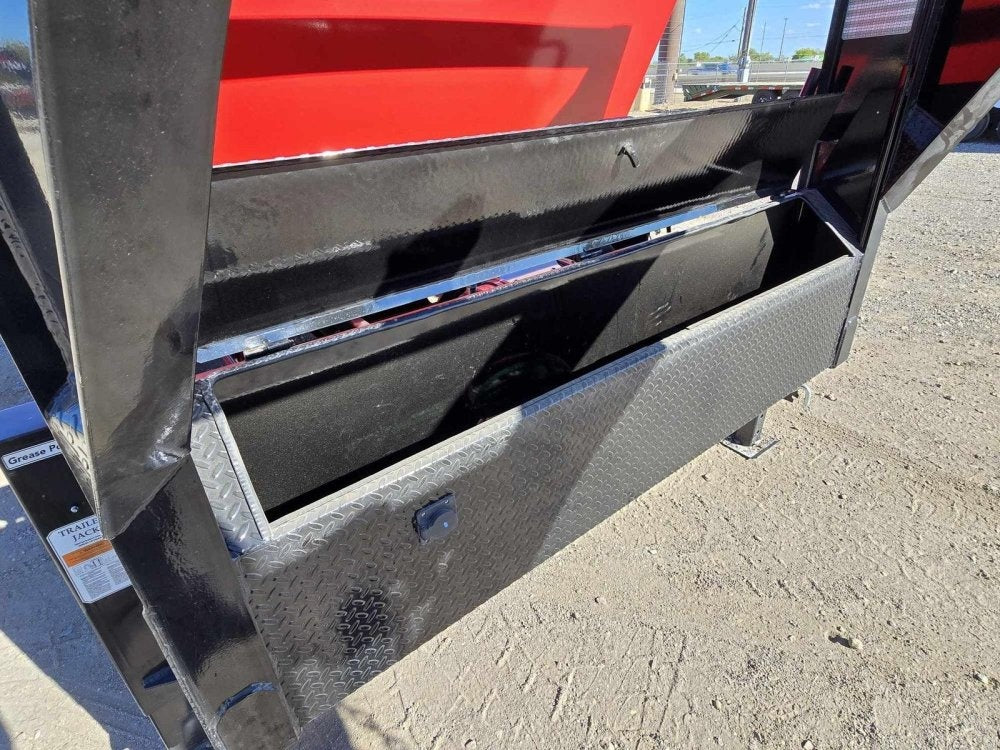

Built to withstand rigorous use, the RDZ trailer features a sturdy 2" x 3" x 7ga. tubing bed frame and crossmembers, along with essential safety components like DOT-approved LED lights, reflective tape, and grade 70 safety chains.
Efficient Electrical System
Equipped with an integrated electrical system, including two deep cycle marine batteries and an on-board trickle charger, the RDZ ensures reliable power distribution for its motors, lights, and hydraulic pump. This setup enhances operational efficiency and minimizes downtime on the job.
Customization Features
With options like hydraulic jacks, an electric tarp kit, and a customized "Locker Style" gooseneck toolbox, the RDZ trailer can be tailored to meet specific operational needs. These customization choices provide added functionality and convenience, ensuring the trailer meets diverse hauling requirements.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Horizon RDZ Roll Off Trailer
- TYPE:
- Bumper Pull, Gooseneck
- LENGTHS:
- 14’, 16’
- DECK HEIGHT:
- 30"
- BED HEIGHT:
- 28"
- INSIDE WIDTH:
- 72"
- LENGTH (GN):
- 86"
- AXLE COUNT:
- 2
- AXLE RATING:
- 7K, 8K
- GVWR (BUMPER PULL):
- 15,260 lbs - 17,920 lbs
- GVWR (GOOSENECK):
- 15,680 lbs
- GAWR:
- 7,000 lbs x 2
FRAME & CONSTRUCTION
FRAME:
- FRAME:
- 10" I-Beam (15 lbs/ft)
- TILT FRAME:
- 2" x 3" x 3/16" Tubing
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) at 16" Spacing
- FLOORING:
- 1/8" Steel
- FENDERS:
- 16" x 9" x 72" Diamond Plate Steel
RUNNING GEAR & SAFETY
RUNNING GEAR:
- TIRES:
- Radial Tires, ST235/80R16
- COUPLER (GN):
- RAM Coupler 2-5/16" (25,000 lbs)
SAFETY:
- TOOLBOX:
- Lockable Toolbox (Houses Battery and Pump)
- SAFETY CHAINS:
- (2) 3/8", Grade 70, Safety Chain w/ Clevis Hooks
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M Dot Compliant Reflective Tape
- SAFETY CHAINS FOR ROLL OFF:
- (2) 1/4" Grade 30 Chain w/ Clevis Hook
ELECTRICAL & HYDRAULIC SYSTEM
ELECTRICAL:
- BATTERY:
- (2) 27 Deep Cycle Marine Battery
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
- WIRING HARNESS:
- All-Weather (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- SIDE MARKERS:
- DOT Approved LED Lights
HYDRAULIC SYSTEM:
- SYSTEM:
- Hydraulic - Power Up / Down
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 14’ Control Cable
- CYLINDER:
- 5" x 21" Single Push Cylinder w/ Scissor Lift
- TILT ANGLE:
- 55°

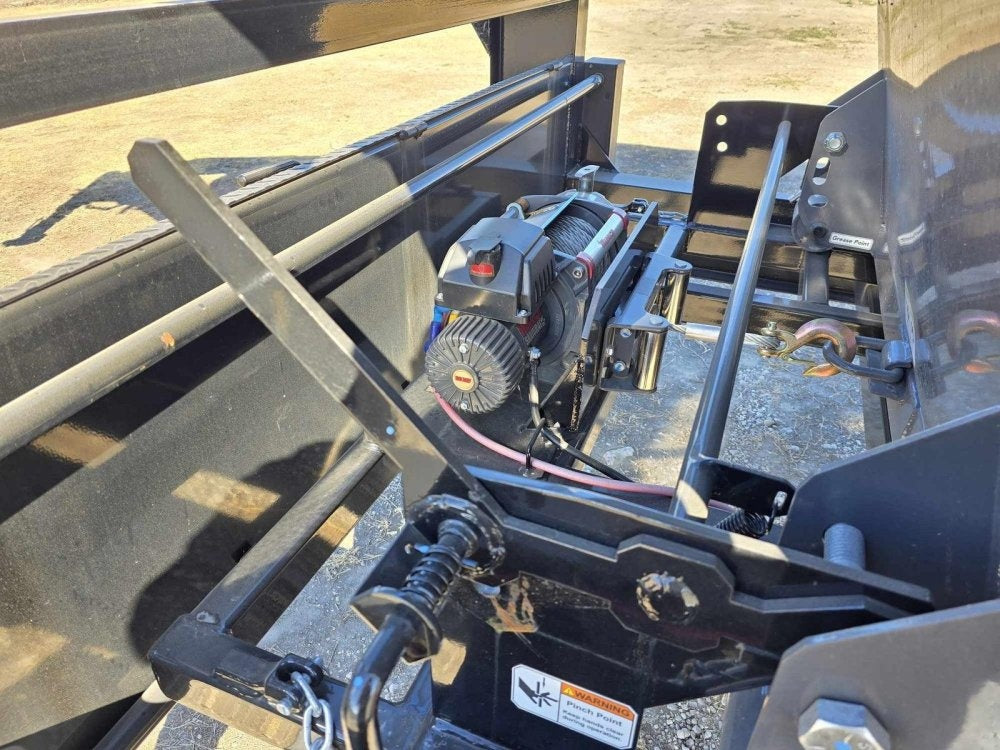

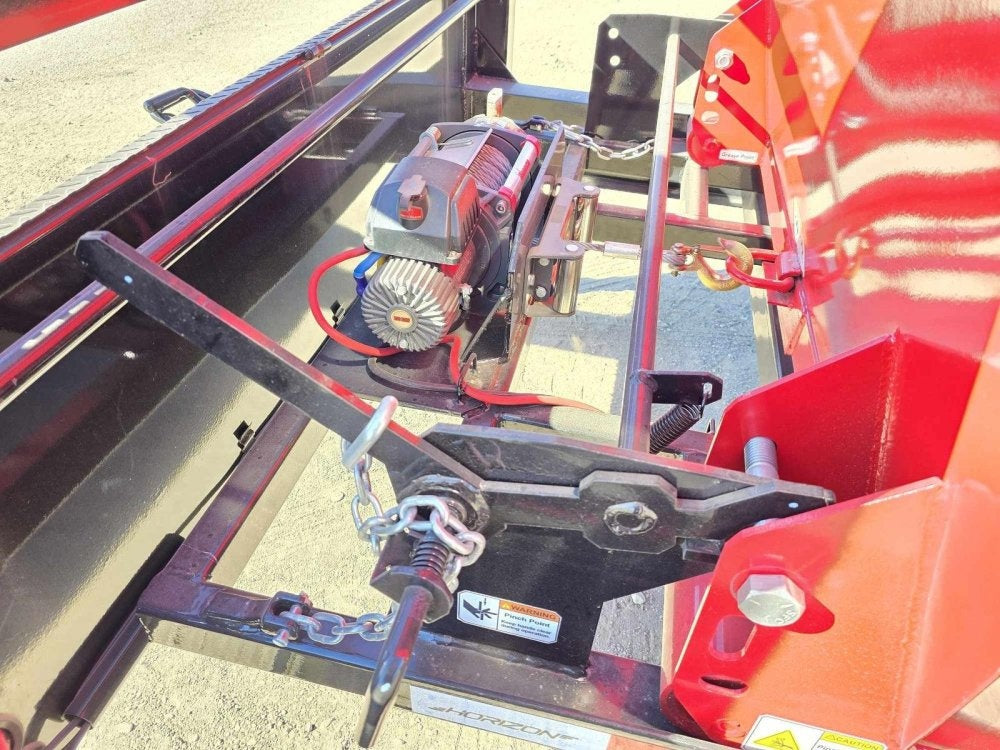

WINCH:
- WINCH:
- Warrior 17,500 lbs with 7.2 Hp Electric Motor
- WINCH CONTROLLER:
- Wireless Controller
