Product Features

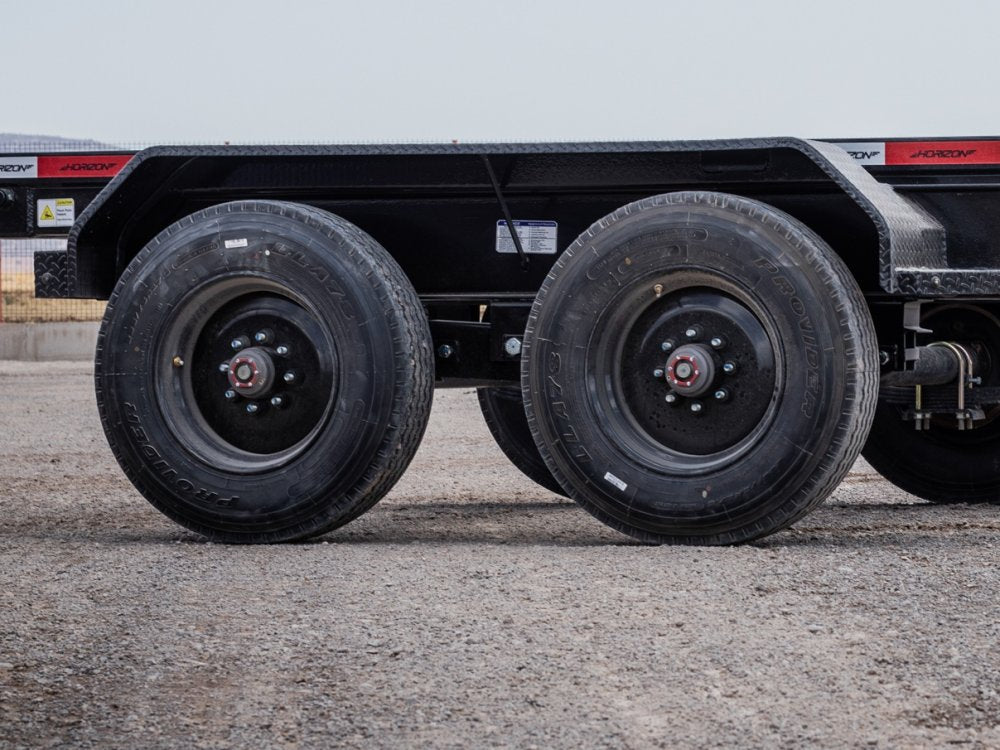

Heavy-Duty 10K Lippert Axles
Built for maximum durability, the Horizon HRD features two 10K Lippert electric brake super single oil bath spring axles, ensuring reliable performance under heavy loads. The 18-ply ST235/75R17.5 super single tires provide a 6,005 lbs rating per tire, while the 6-year Lippert warranty guarantees long-term peace of mind.

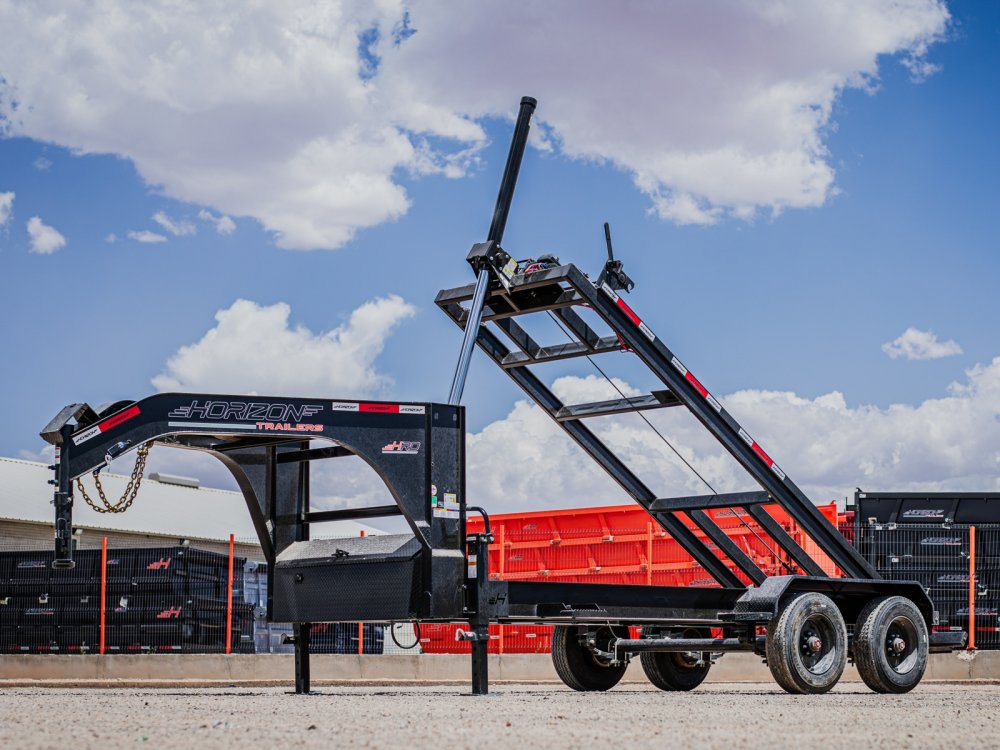

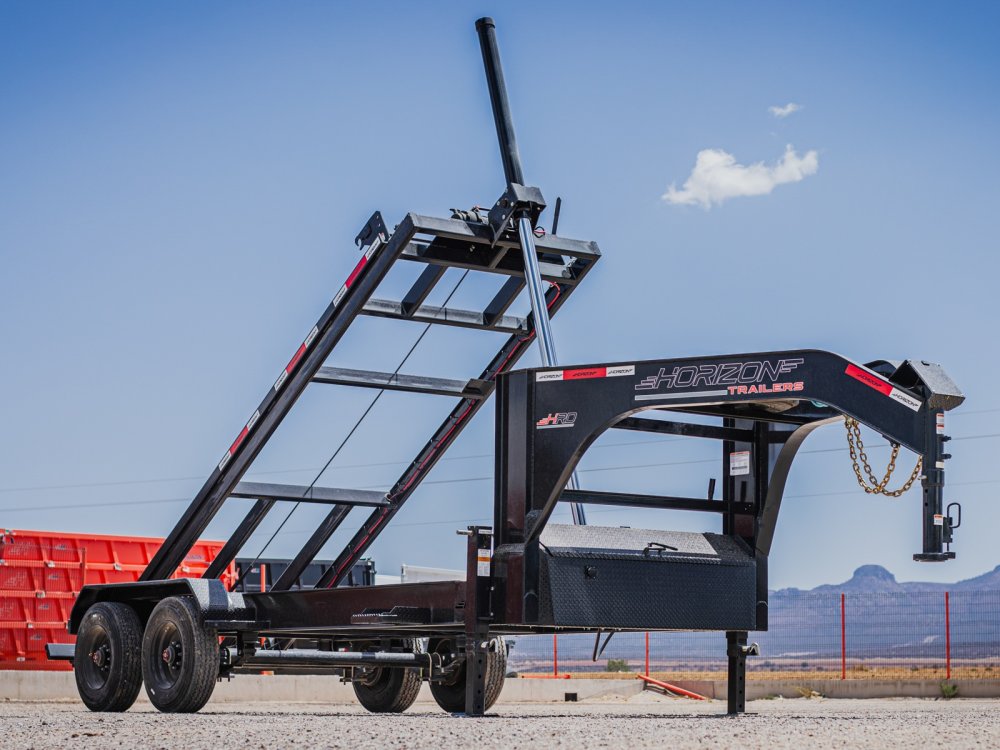

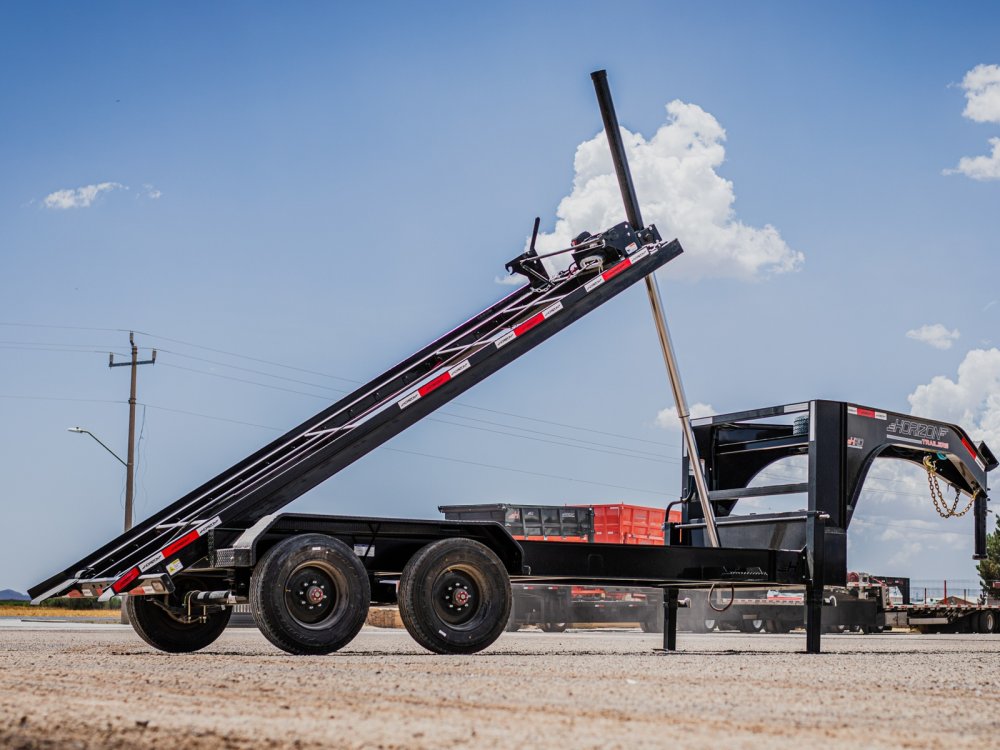

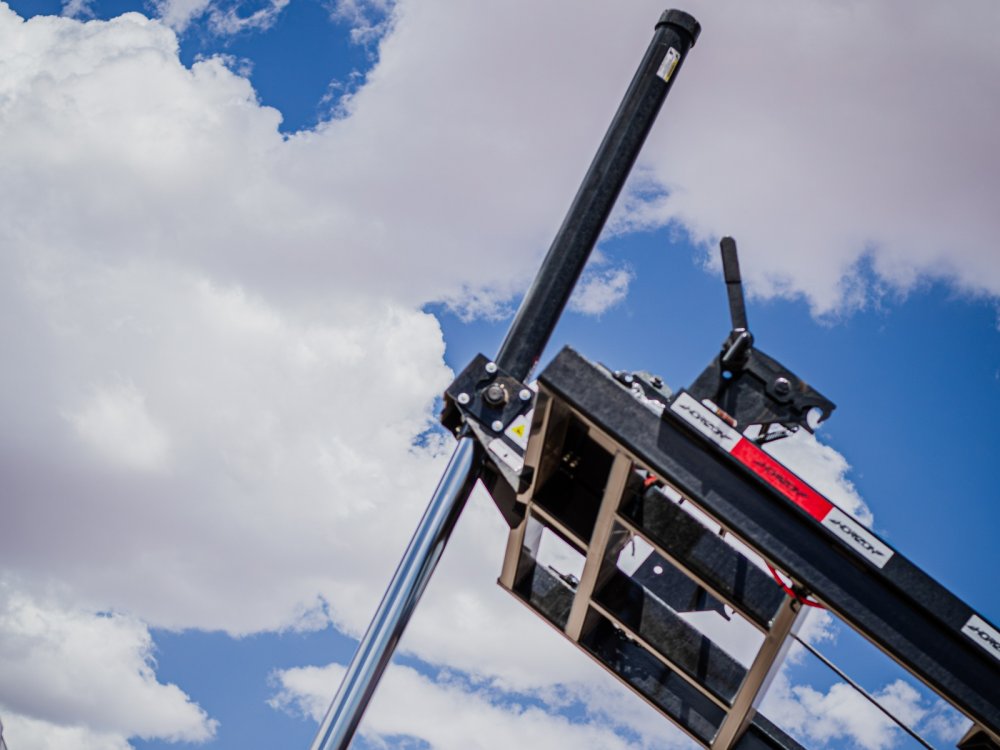

12-Ton Telescopic Lift System
Designed for effortless loading, the trailer’s 12-ton telescopic cylinder provides powerful lifting capacity across all models (14’, 16’, 20’). The 60" loading angle ensures smooth operation, while the 20K Warrior winch (with wireless remote) makes securing loads quick and easy.
Reinforced 10” I-Beam Frame
The 10” I-beam main frame (17 lbs/ft) and 2”x5”x7 ga. tubing bed frame deliver unmatched strength and stability. Heavy-duty crossmembers and spring-loaded drop jack legs (12K lbs capacity) ensure durability and ease of use, even under extreme workloads.

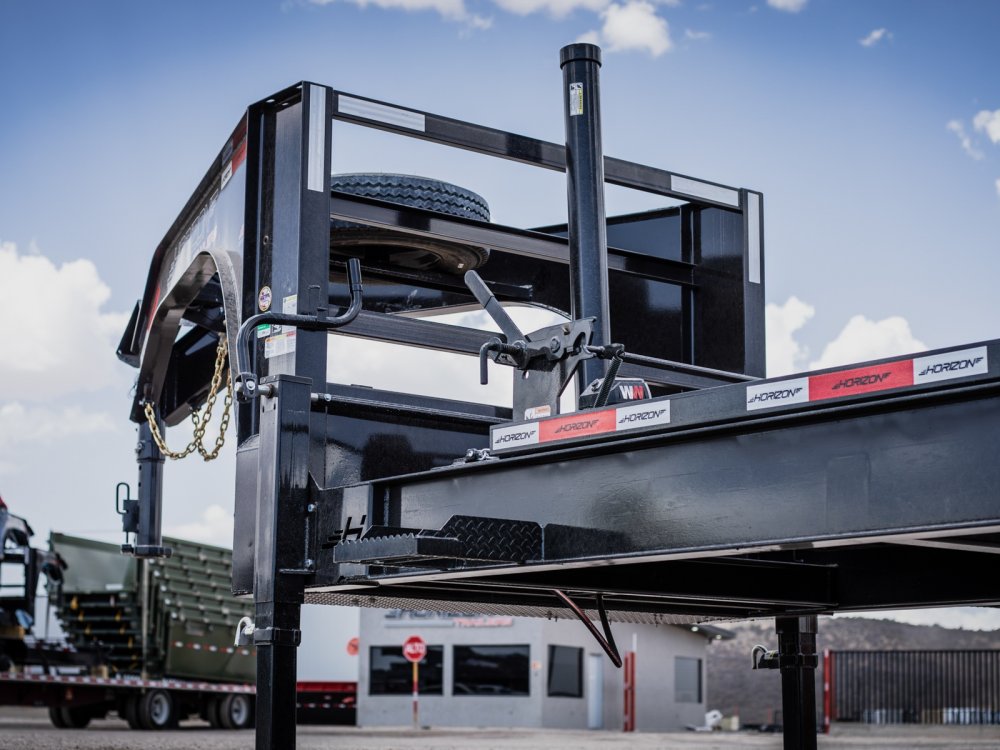

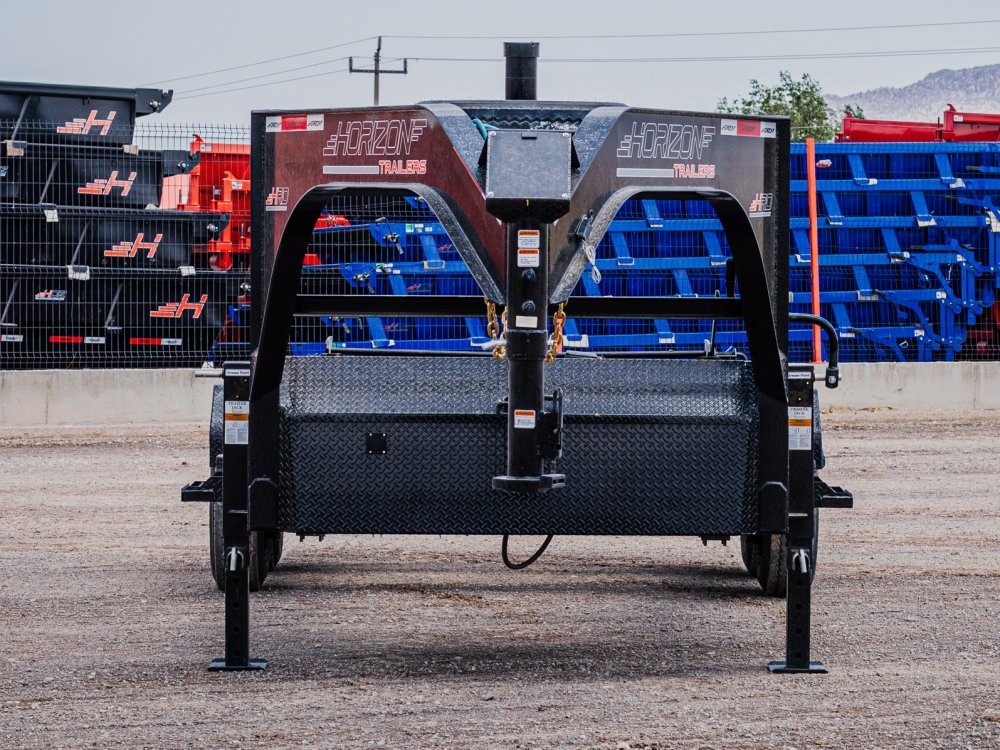

Integrated Toolbox & Spare Tire Mount
Stay organized with a lockable toolbox housing dual Interstate 27 deep-cycle batteries and the hydraulic pump. A weld-on spare tire mount comes standard with an 18-ply super single spare, ensuring you’re prepared for any roadside situation.
Advanced Safety & Electrical System
Safety is prioritized with 3/8” Grade 70 safety chains, a Brightway electric breakaway kit, and all-weather wiring harnesses. The 110V integrated trickle charger keeps batteries powered, while the 7-way RV plug ensures reliable connectivity on the road.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Horizon HRD Gooseneck Roll Off Trailer
- LENGTH:
- 14’, 16’, 20’
- GVWR:
- 24,000 lbs - 25,000 lbs
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 10” I-Beam (17 lbs/ft)
- BED FRAME:
- 2” x 5” x 7 ga. Tubing Bed Frame
- CROSSMEMBERS:
- 2” x 5” x 7 ga. Crossmembers
- STEPS:
- Side Step On Both Sides
TONGUE & STORAGE
TONGUE:
- TYPE:
- 10” Engineered Steel I-Beam
- LENGTH:
- 98” (From Behind Riser)
- HEIGHT:
- 70” (From Underneath Neck)
- COUPLER:
- Adjustable 2-5/16” GN Coupler
- COUPLER RATING:
- 30,000 lbs
- JACK:
- 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
STORAGE:
- TOOL BOX:
- Lockable Toolbox (Houses Batteries and Pump)
- SPARE TIRE MOUNT:
- Weld On Spare Tire Mount
- SPARE TIRE:
- ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
RUNNING GEAR
AXLES:
- TYPE:
- 2 - 10k Lippert Electric Brake Super Single Oil Bath Spring Axles
- BOLT PATTERN:
- 8 On 6.5”
- QUANTITY:
- 2
- SUSPENSION:
- Spring
- TIRES:
- ST235/75R17.5, Super Single, 18 Ply
- TIRE RATING:
- 6,005 lbs
- WHEELS:
- 17.5” Black Mod Wheels
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
SAFETY
SAFETY:
- SAFETY CHAINS:
- 3/8” Grade 70 Safety Chain
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
LOADING & ELECTRICAL
LOADING:
- LOADING ANGLE:
- 60”
- LIFT SYSTEM:
- Telescopic Cylinder
- CYLINDER CAPACITY:
- 12 Ton
- CYLINDER:
- 14’ Lift: 6” x 21” Single Push Cylinder (20k)
- 16’ Lift: 6” x 30” Single Push Cylinder (20k)
- 20’ Lift: Telescopic Cylinder (12 Ton)
- WINCH:
- 20k Steel Cable Warrior Winch
- WINCH CONTROLLER:
- 12' Control Cable and Wireless Controller
ELECTRICAL:
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
BED
BED:
- DECK WIDTH:
- 61”
- DECK HEIGHT:
- 30”
