DIMENSIONS & CAPACITY
- MODEL:

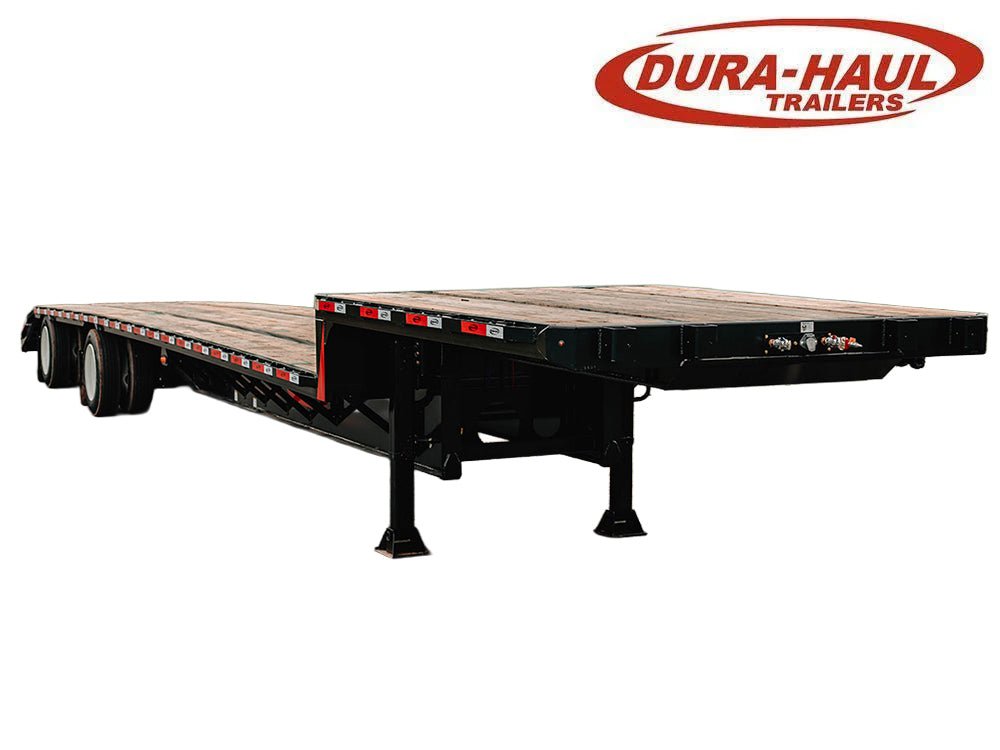

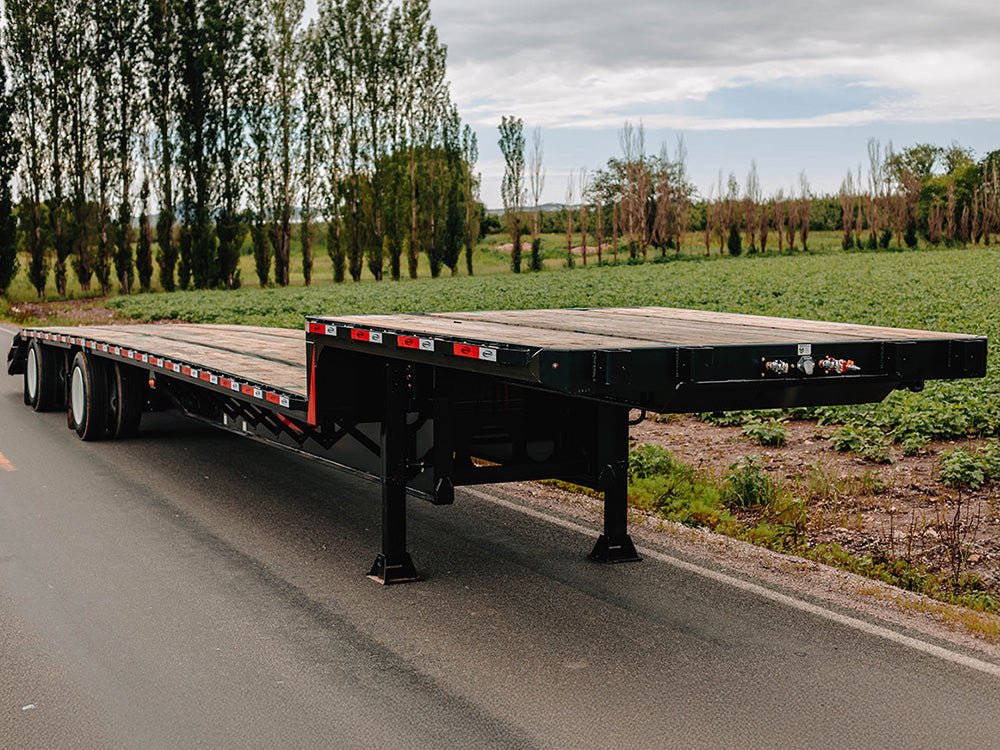

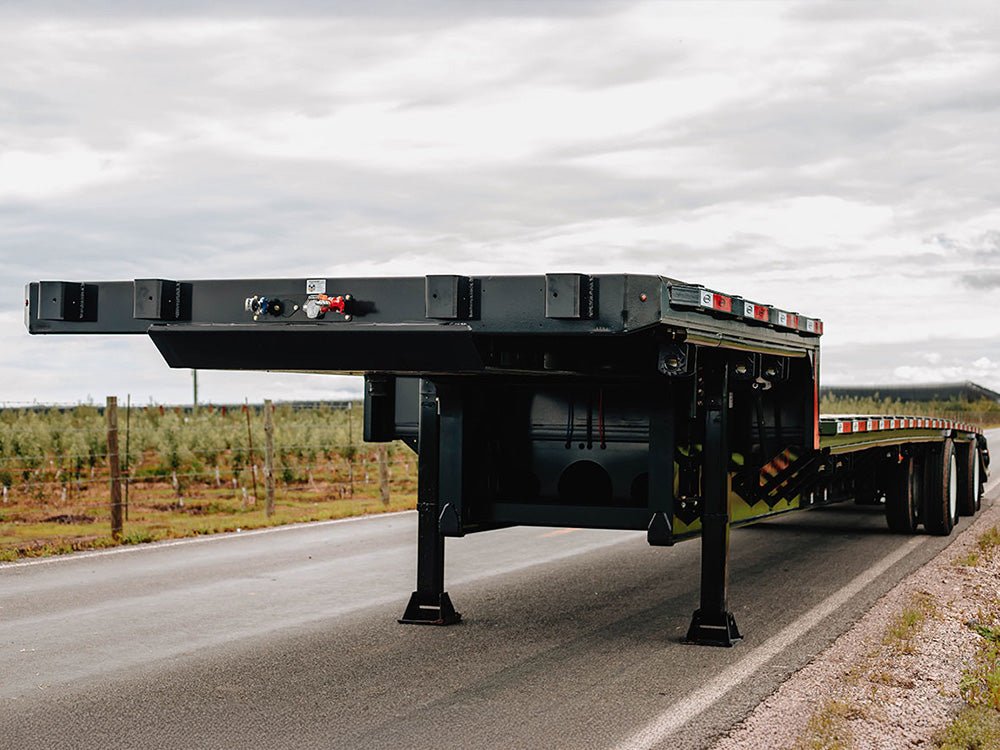

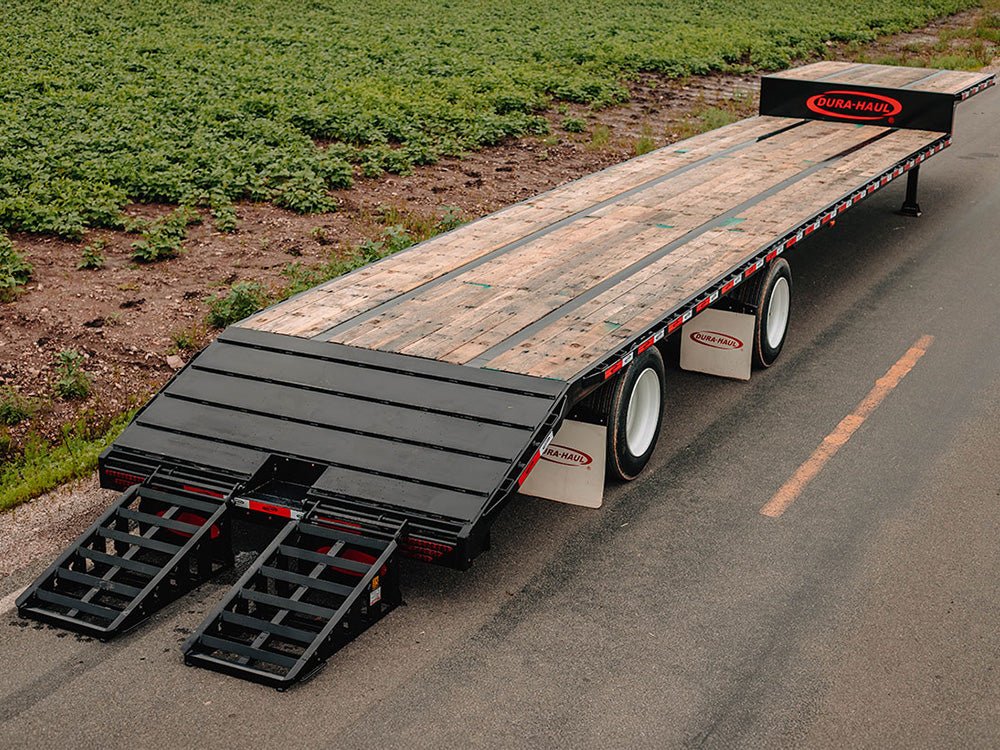

- Dura-Haul BLT Beaver Tail Trailer
- LENGTHS:
- 48', 53'
- UPPER DECK LENGTH:
- 10' 6"
- LOWER DECK LENGTH:
- 33'1" (48'), 38'1" (53')
- WIDTH:
- 102"
- LOWER DECK HEIGHT:
- 41"
- UPPER DECK HEIGHT:
- 62"
- COUPLER HEIGHT:
- 48"
- GVWR:
- 80,000 lbs
- EMPTY WEIGHT:
- 13,330 lbs (48'), 13,920 lbs (53') ±3%
AXLES & BRAKES
- AXLES:
- Included with all-wheel parking brakes
- BRAKES:
- 16 1/2" x 7" Quick Change
- ABS:
- Wabco, 251M
- HUBS:
- Standard Cast, Oil Lubricated, 10-Stud Unimount, Hub Piloted
- DRUMS:
- Standard Cast, Outboard Mount
FRAME & STRUCTURE
- MAIN BEAM:
- 27" High Tensile Steel Web, Grade 80
- FRONT SKIRT:
- Formed Steel with Tapered Corners
- REAR SKIRT:
- Formed Steel with Integral Stake Pockets
- CROSS MEMBERS:
- 4" Steel I-Beam on 12" Centers
- SIDE RAIL:
- 6" Steel Channel
- FLOORING:
- 1-1/8" Apitong Hardwood
- STAKE POCKETS:
- External Mount, 24" on Center with Double Pipe Spools
- RUBRAIL:
- 3/8" x 2-1/2" Steel
WHEELS & LIGHTING
- WHEELS:
- Hub Piloted Steel
- LIGHTING:
- DOT Approved Sealed LED System
COUPLER & ACCESSORIES
- COUPLER:
- 2" Holland King Pin, Setting 24" or 18"
- PLATE:
- 1/4"
- LOAD SECUREMENT:
- Sliding Winch C-Track

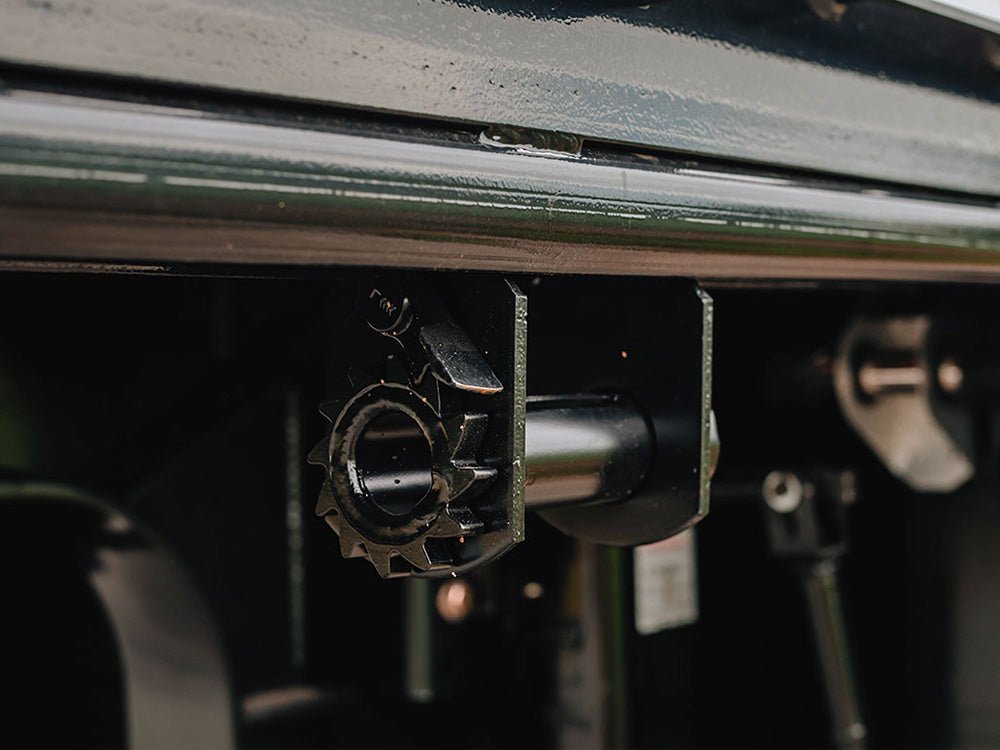

- WINCHES:
- 12 (48'), 14 (53')
- WINCH TRACK:
- Steel Slide Driver Side

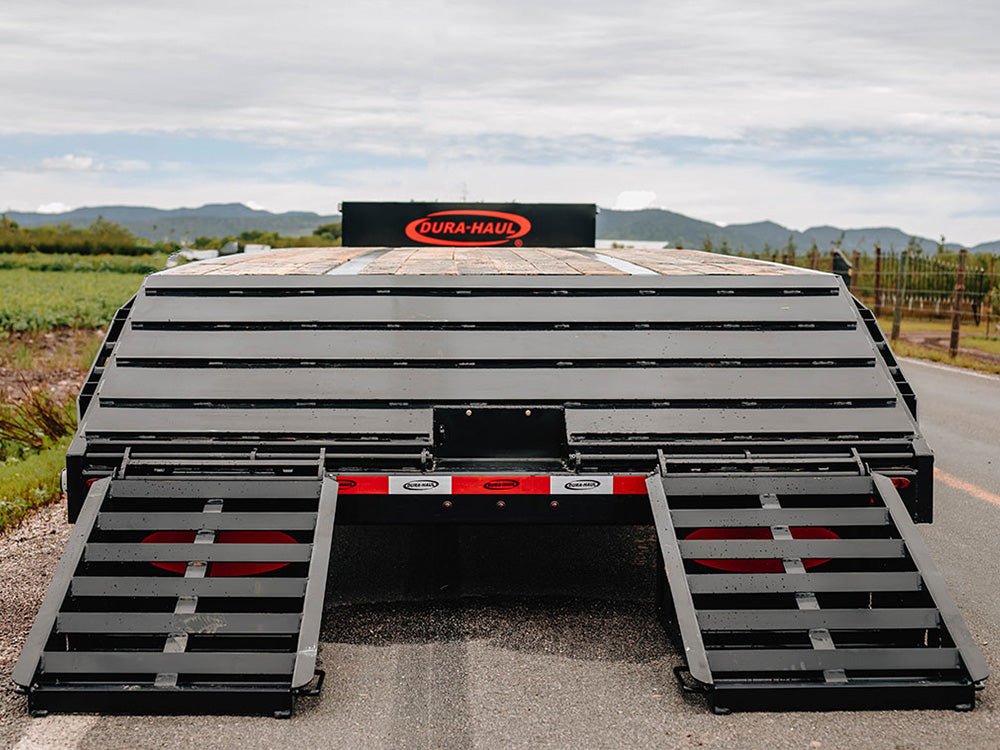

- RAMPS:
- DuraRamps, Spring Assisted, Third Ramp Optional
- MUD FLAPS:
- Heavy Duty, White
- FINISH:
- 5-Step Process: Grit Blast, Acid Wash, Phosphate, Heated Silicone, Powder Coat
RUNNING GEAR & SUSPENSION
- SUSPENSION:
- Heavy Duty Air Ride, 25,000 lbs Capacity
- LANDING GEAR:
- Jost – 2-Speed Gear Drive, 160,000 lbs Static Load
