Product Features

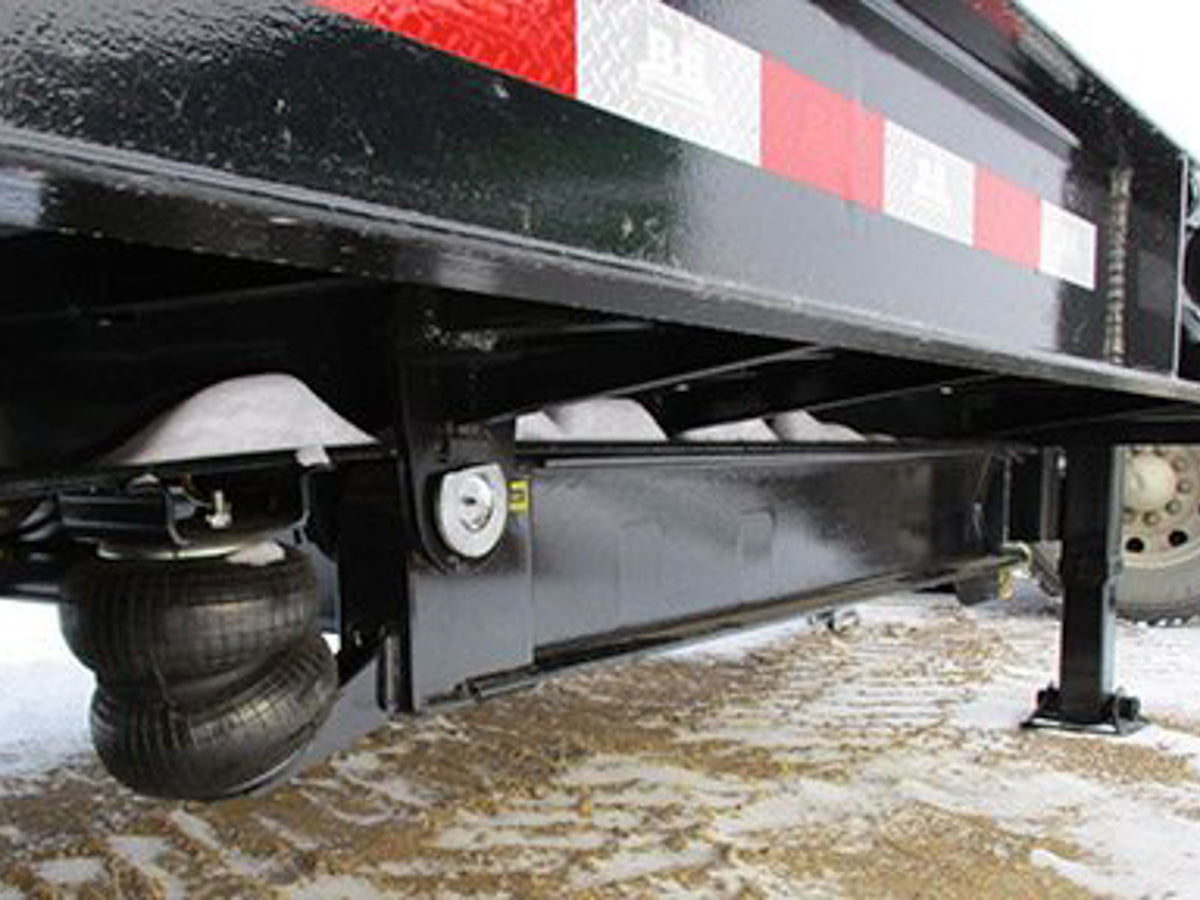

AIR TILT SYSTEM
Unlike gravity tilts, the FB8X31ATPT uses a dual air bag system with air-locking — controlled tilt every time, holds position under load, and releases smoothly. No chains, no mechanical pins.

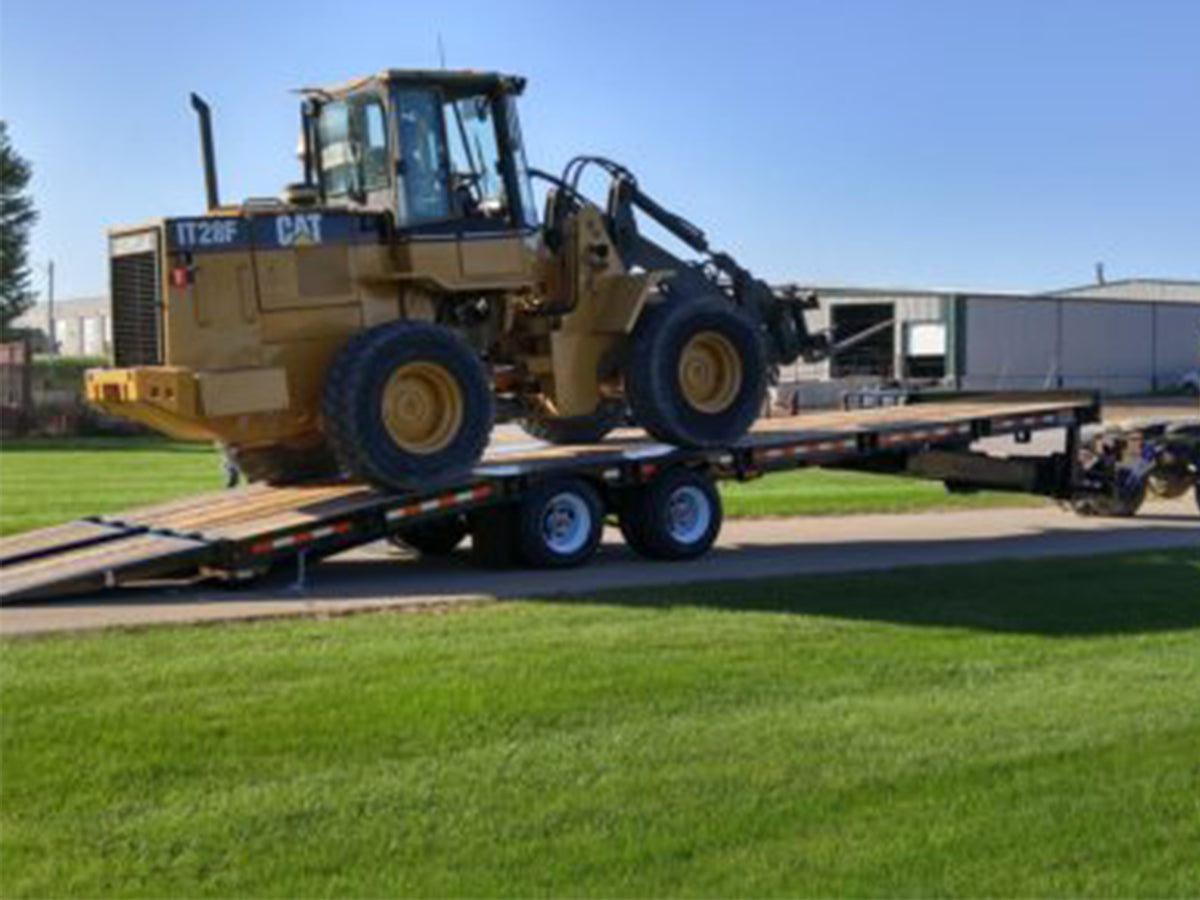

LOW 34" DECK HEIGHT
34" unloaded deck height — lower than most tag tilts on the market. Easier loading for low-clearance equipment, reduced center of gravity on the road.

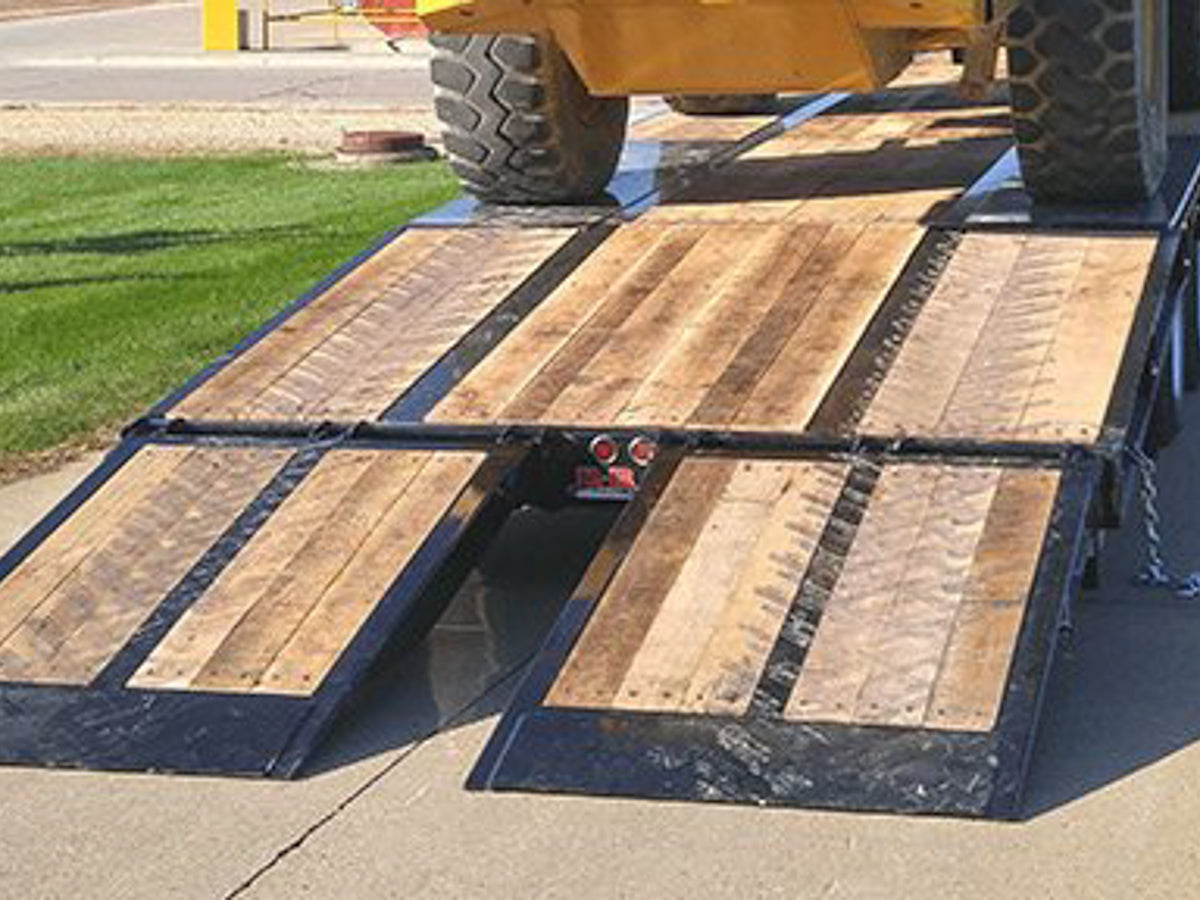

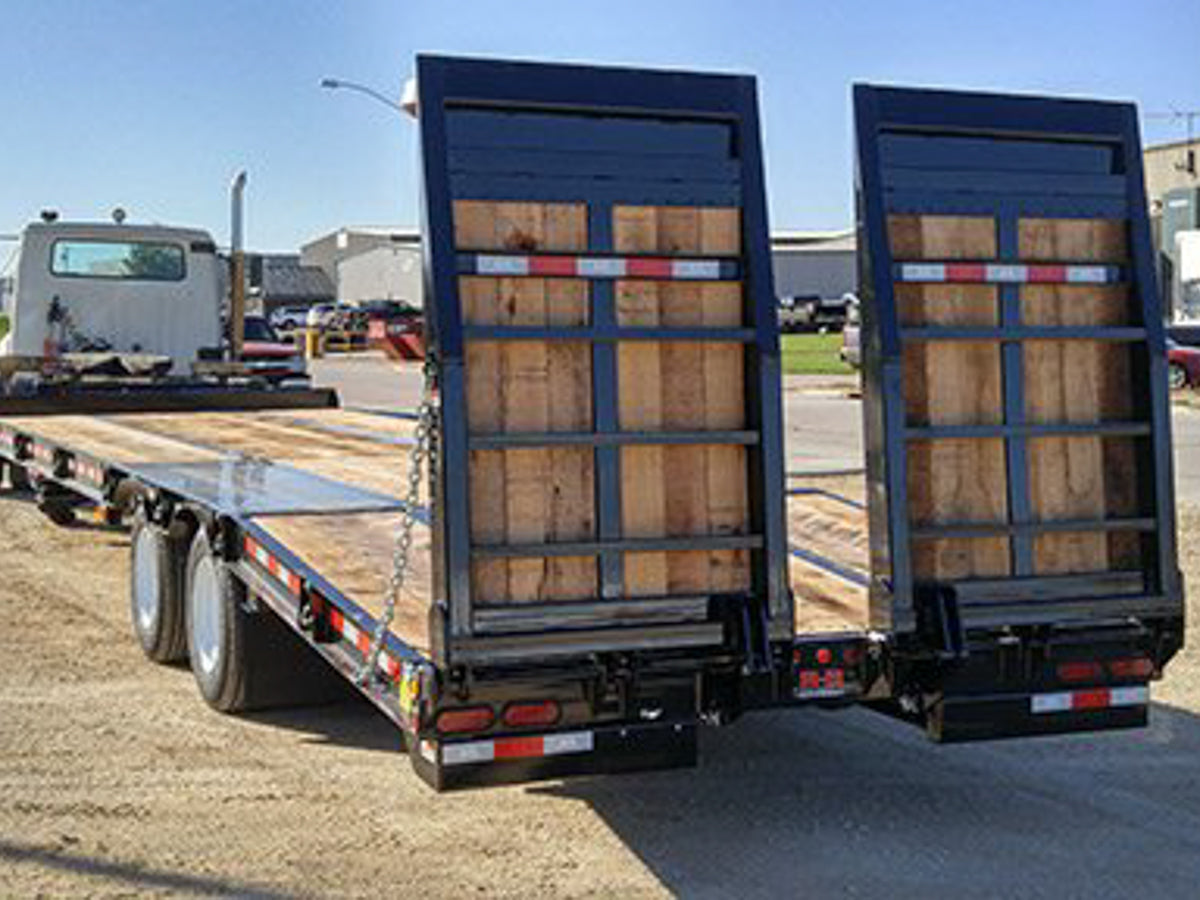

OPTIONAL 6' AIR RAMPS
Add air-powered 6' ramps for equipment that needs extra help getting on deck. Controlled from the cab — no manual ramp wrestling on the job site.

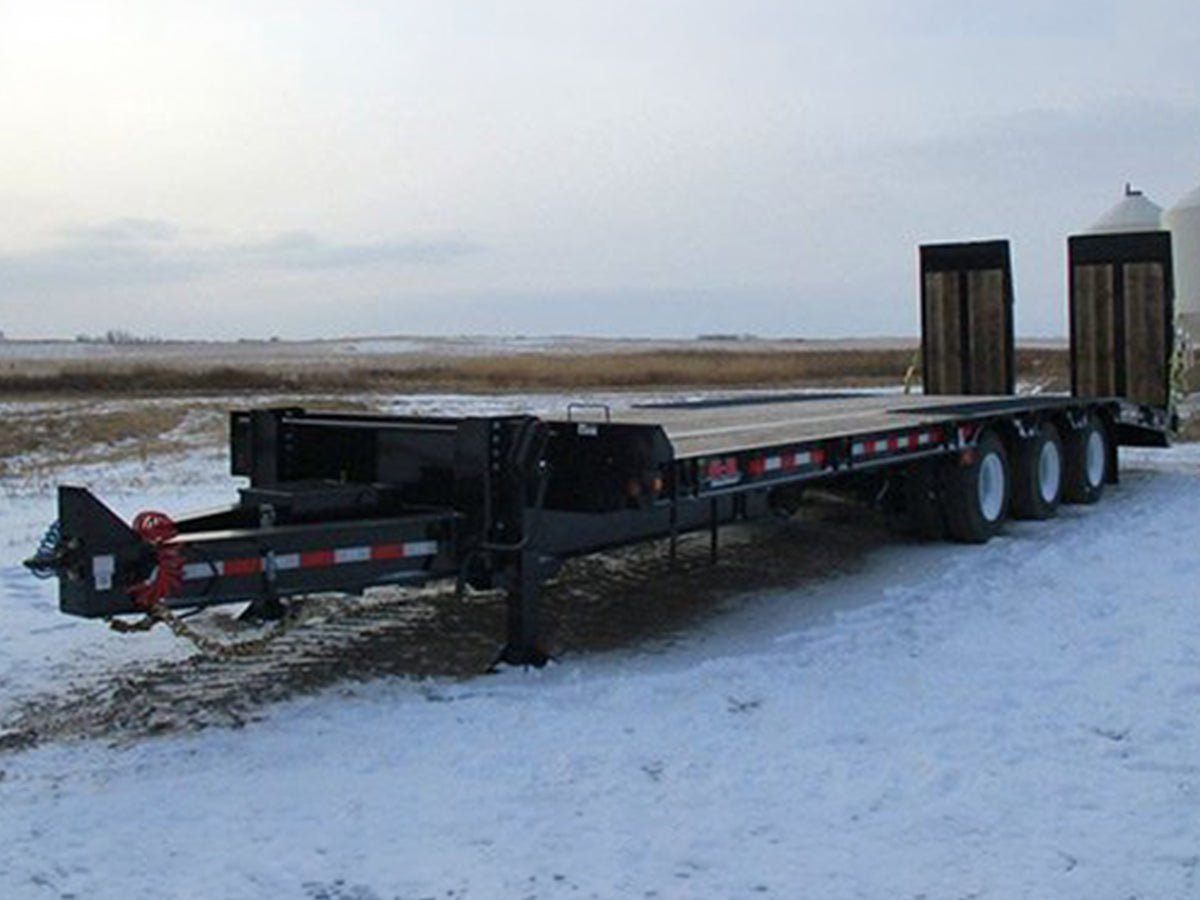

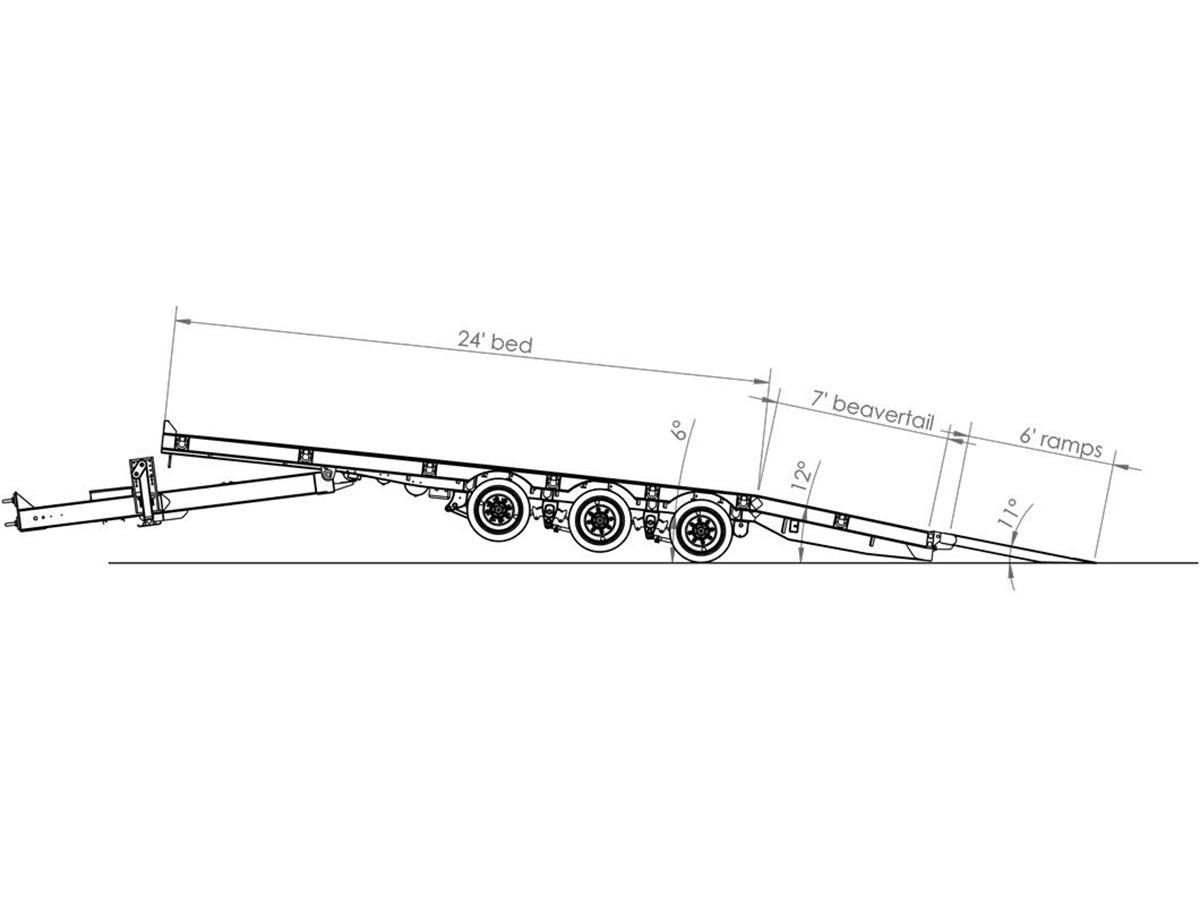

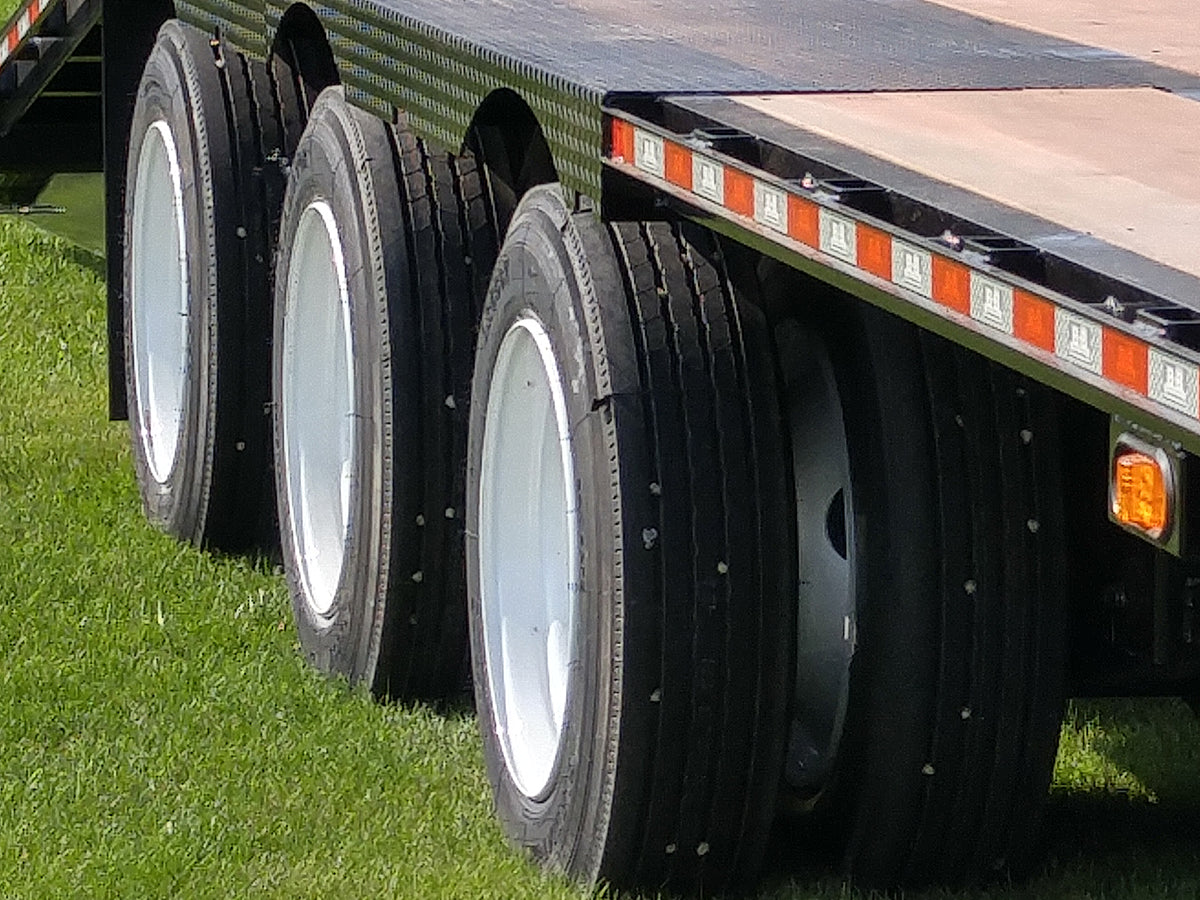

SCALE IT UP WITH TRIPLE AXLE
Step up to the 50L triple-axle configuration when the load demands it. Same proven frame and air tilt system, engineered for heavier hauls without sacrificing maneuverability.
ENGINEERED FROM THE GROUND UP
1-piece manufactured I-beam frame with 80K web and T1 flanges, 4" Jr. I-beam crossmembers on 16" centers, and Gr. 50 knee braces throughout. Built to take the beating of daily commercial use.
Product Details

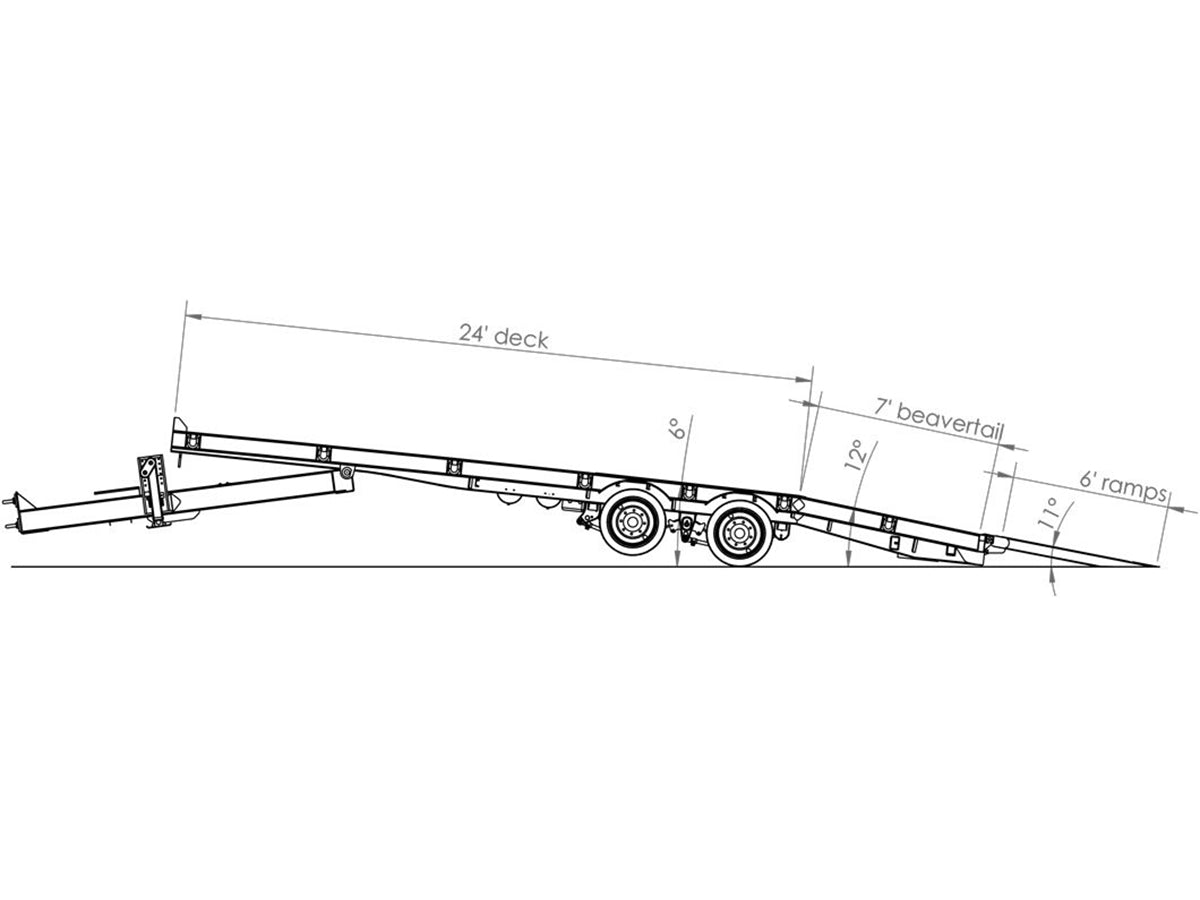

DIMENSIONS
- LENGTH:
- 24' bed + 7' beavertail
- WIDTH:
- 102"
- OVERALL HEIGHT:
- 34" (unloaded deck height)
- TRAILER TYPE:
- Air Tilt Flatbed
- PULL TYPE:
- Tag / Pintle Hitch
WEIGHT RATINGS
- GVWR:
- 40,000 or 50,000 lbs
- GAWR:
- 22,500 lbs (per axle)
- ESTIMATE DRY WEIGHT:
- 11,880 or 13,400 lbs
- AXLE COUNT:
- 2
FINISH
- PAINT TYPE:
- Powder Coated
- PREP:
- Bead Blasted, Acid Washed, Zinc Rich Primed
- UNDERCOAT:
- Zinc Rich Primer
PINTLE HITCH
- TYPE:
- 3" Pintle Eye — 90,000 lb Rated
- LANDING GEAR:
- (2) Dual Speed Semi-Style Landing Gear — 50,000 lb Capacity
- SAFETY CHAINS:
- (2) 1/2" Gr. 70 Safety Chains
- TOOLBOX:
- V-Style Toolbox in Tongue
FRAME & CONSTRUCTION
- FRAME:
- 1-Piece Fabricated I-Beam (80 KSI)
- CROSSMEMBERS:
- 4" Jr. I-Beams on 16" Centers
- KNEE BRACES:
- Formed 3/16" Gr. 50 Knee Braces Throughout Frame
- FLOORING:
- 1-1/2" Rough Oak

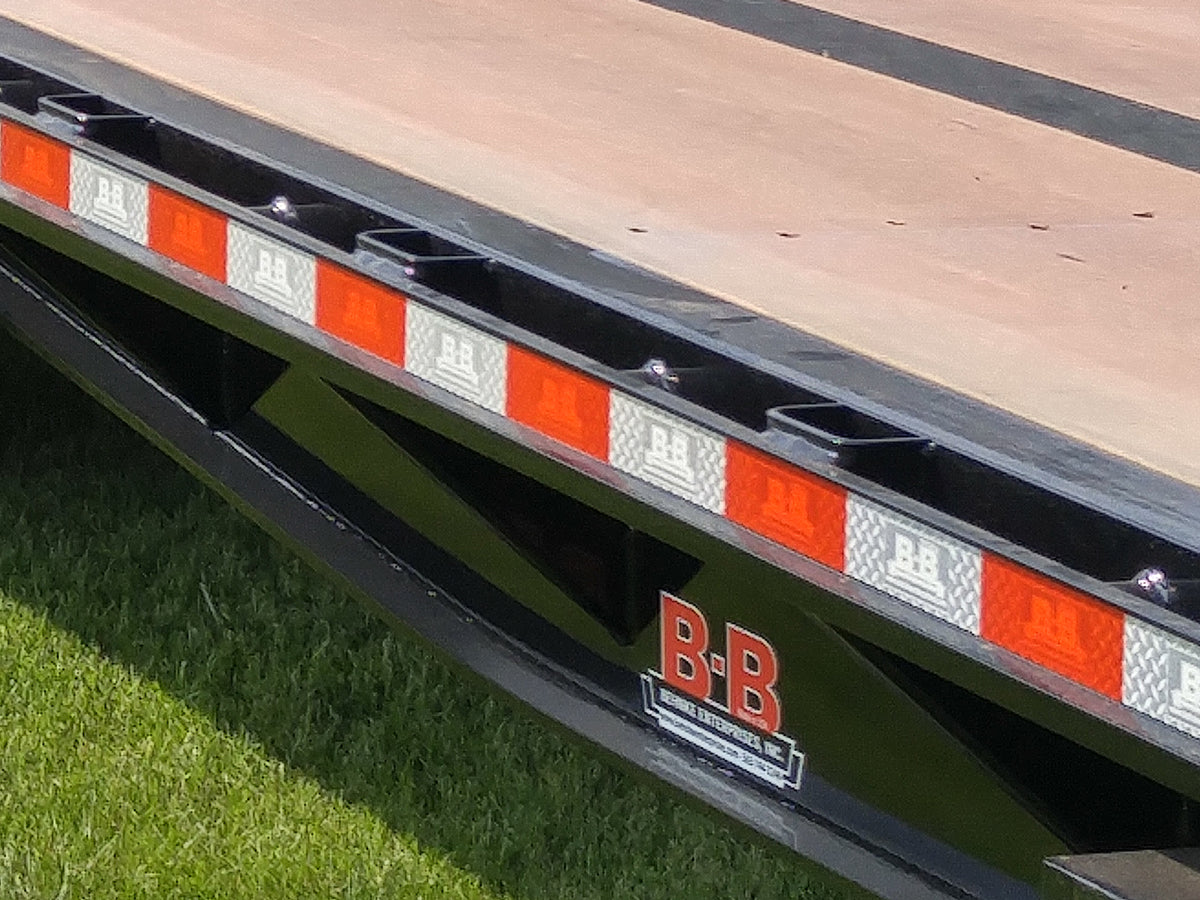

- SIDE RAILS:
- 8" Channel
- FENDERS:
- 1/4" Sheet
RUNNING GEAR
- AXLE TYPE:
- 22,500 lb. Dexter Air Brake
- SUSPENSION:
- Dexter HDSS / Hutch H9700
- ABS SYSTEM:
- Bendix ABS
TIRES & WHEELS
- TIRE TYPE:
- Dual
- TIRE SIZE:
- 235/75R-17.5
- RIMS:
- 8-Bolt 17.5 x 6.75 Rim
ELECTRICAL & LIGHTING
- 7-WAY RECEPTACLE:
- Semi Plug
- LIGHTING:
- LED Flush Mount
CARGO & TIE-DOWN
- D-RINGS:
- 1" Bent D-Rings
- GATE OPERATION:
- Dual Air Bag System (Air-Locking)
OPTIONS
