Product Features
YOUR RAMP, YOUR WAY

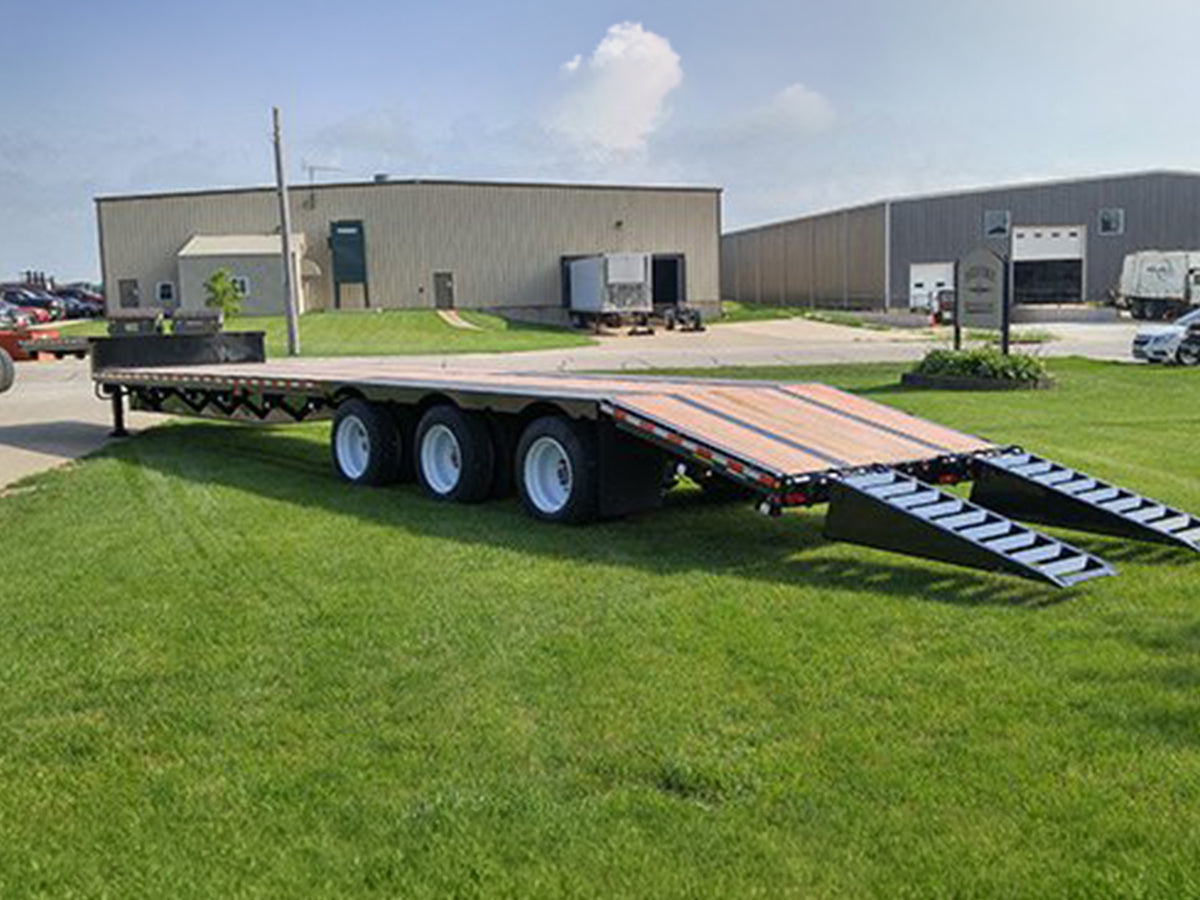

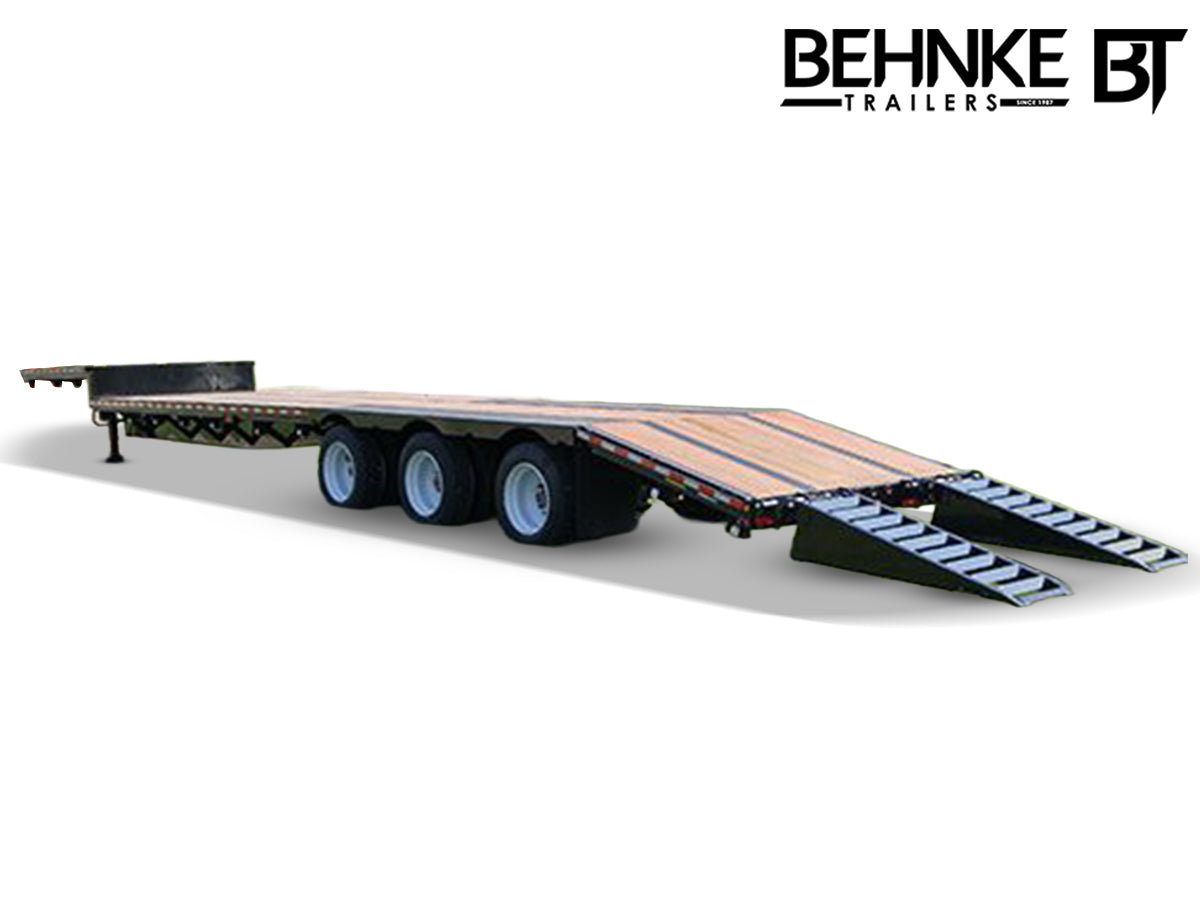

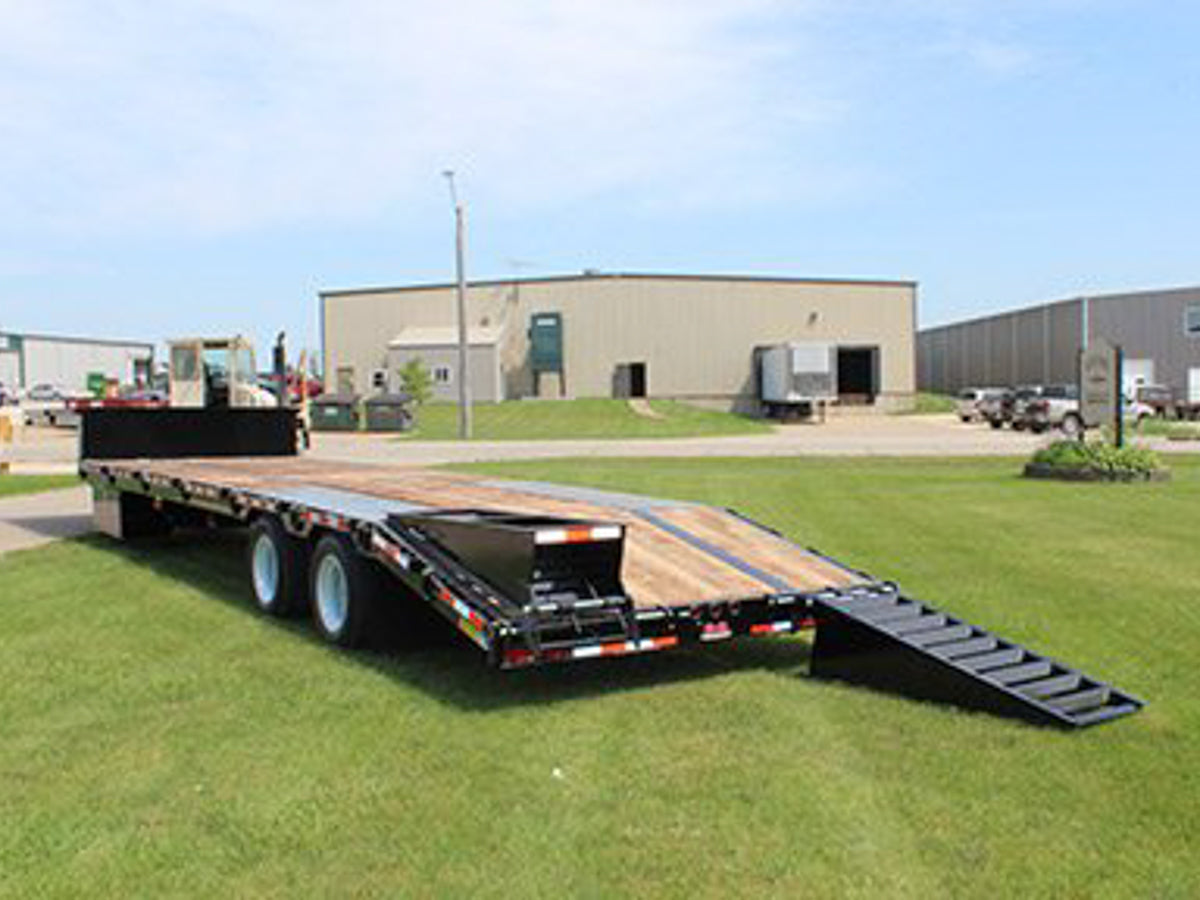

The FB8X53SS comes with your choice of air ramps, hydraulic ramps, or bi-folding ramps. One trailer, multiple loading solutions — spec the ramp system that fits how your crew works.

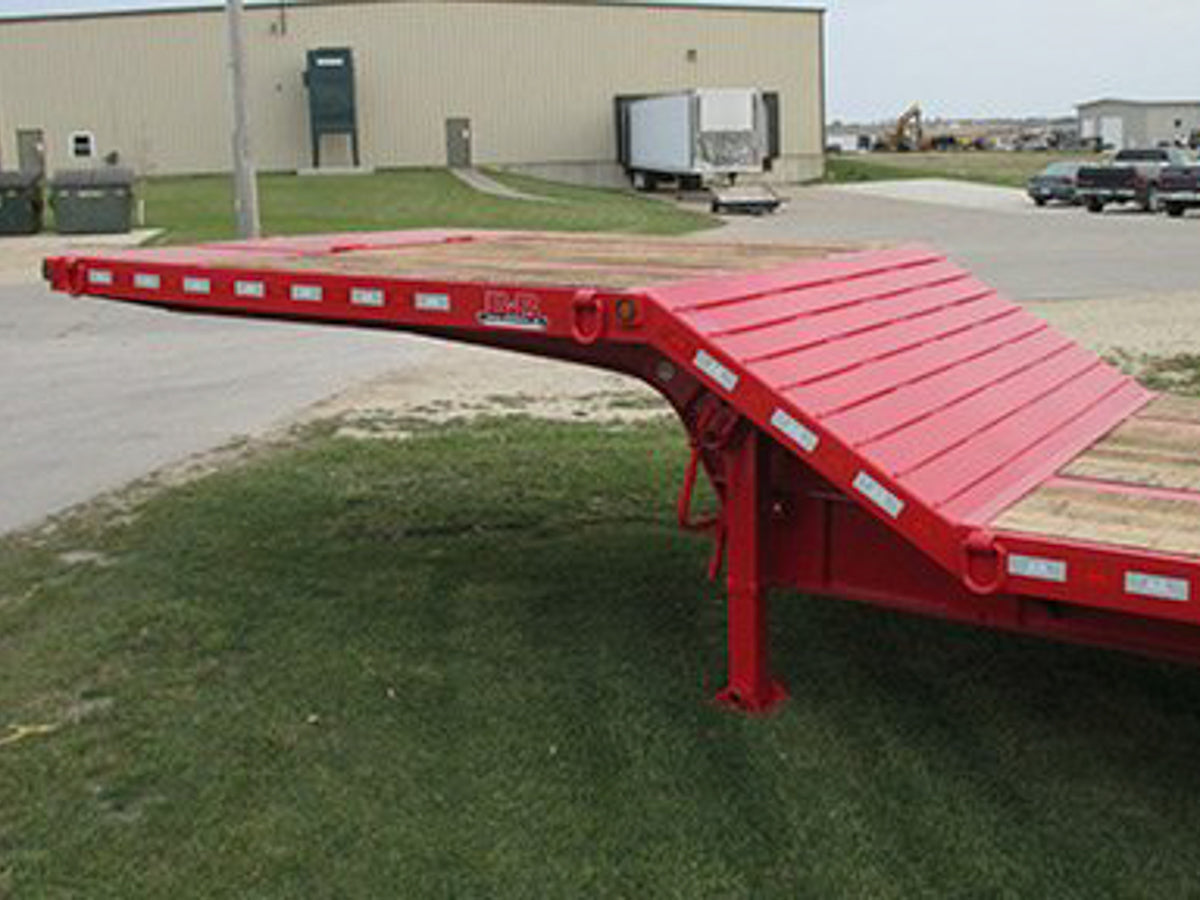

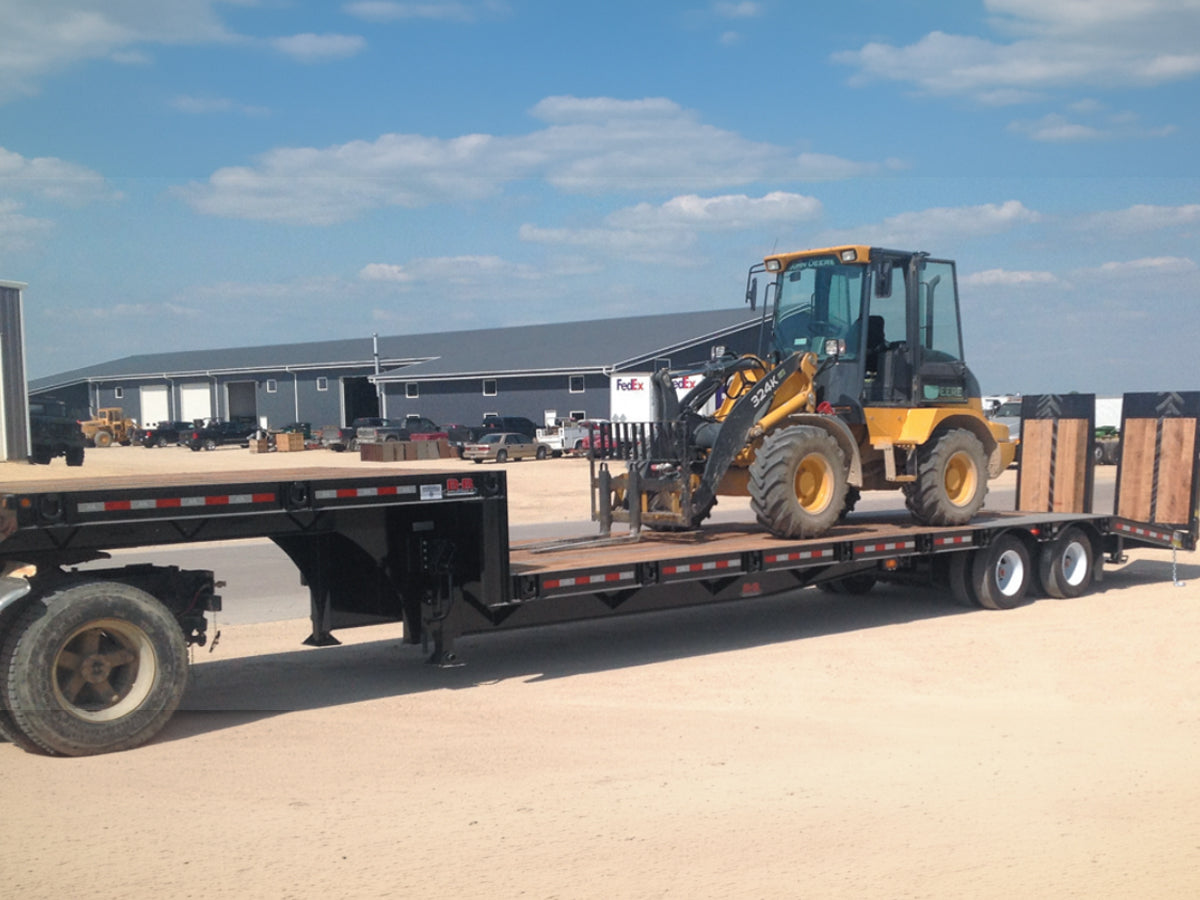

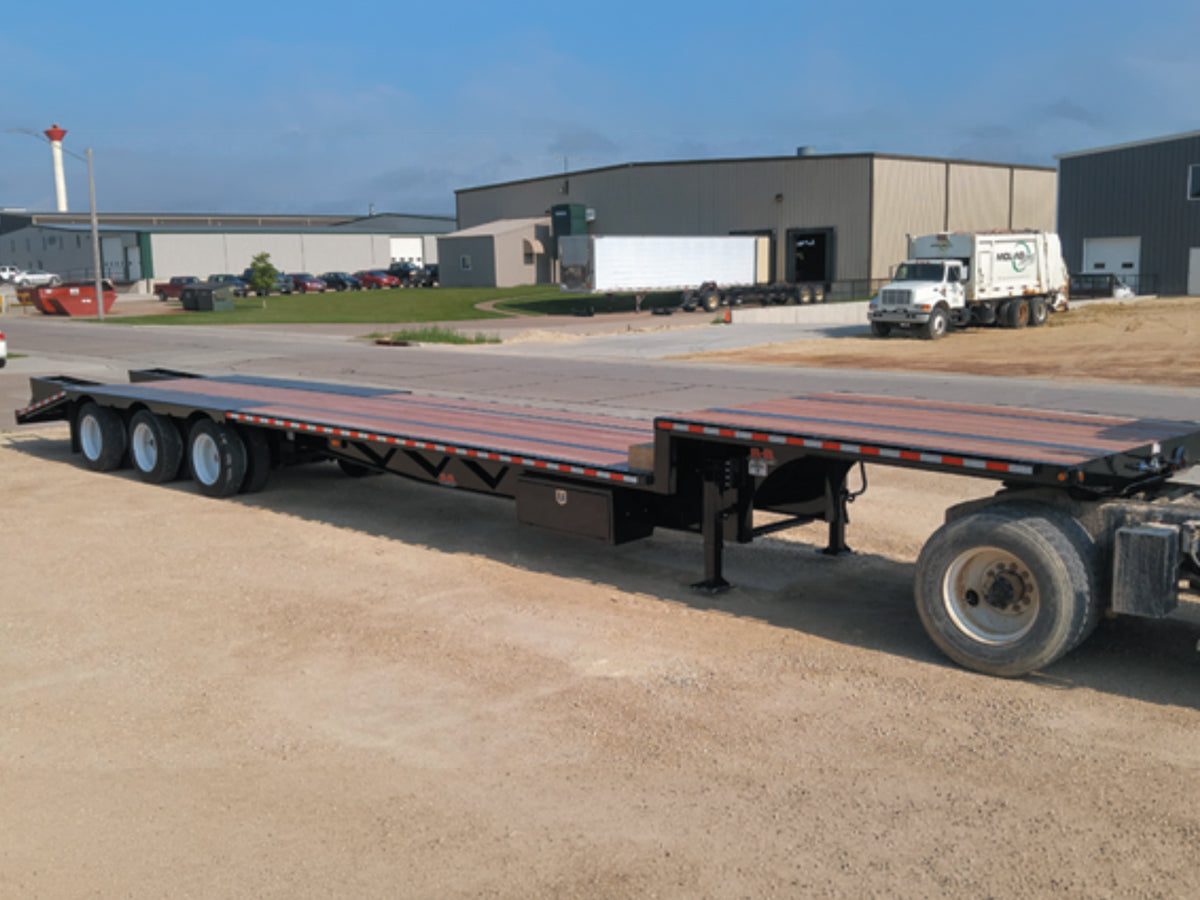

UPPER AND LOWER DECK VERSATILITY

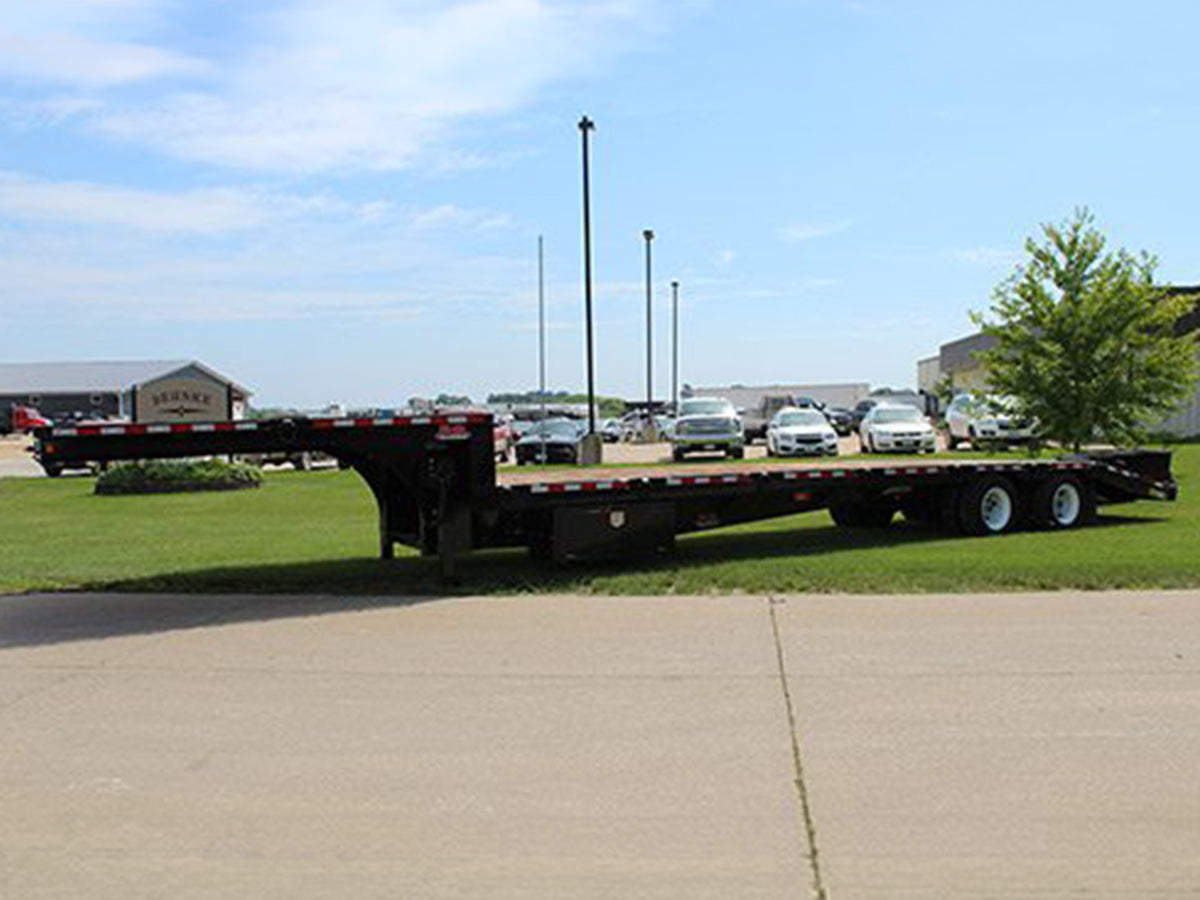

10-13' upper deck + 20-39' lower deck + up to 6' beavertail. The step-down design gives you a lower working height on the main deck while the upper deck handles strapped cargo or equipment at the front.
A MODEL FOR EVERY HAUL
The FB8X53SS series spans the FB8X42SS, FB8X51SS, and FB8X53SS — Pine or rough oak decking, OTR 80H or 60L ratings, triple axle available. One platform scaled to your payload.
BUILT AROUND THE LOAD
1-piece manufactured I-beam frame (80K web + T1 flanges), 4" Jr. I-beam crossmembers throughout. 5x3x1/4 angle or 8" channel side rails keep the structure rigid from tongue to tail.
DIALED IN FOR THE ROAD

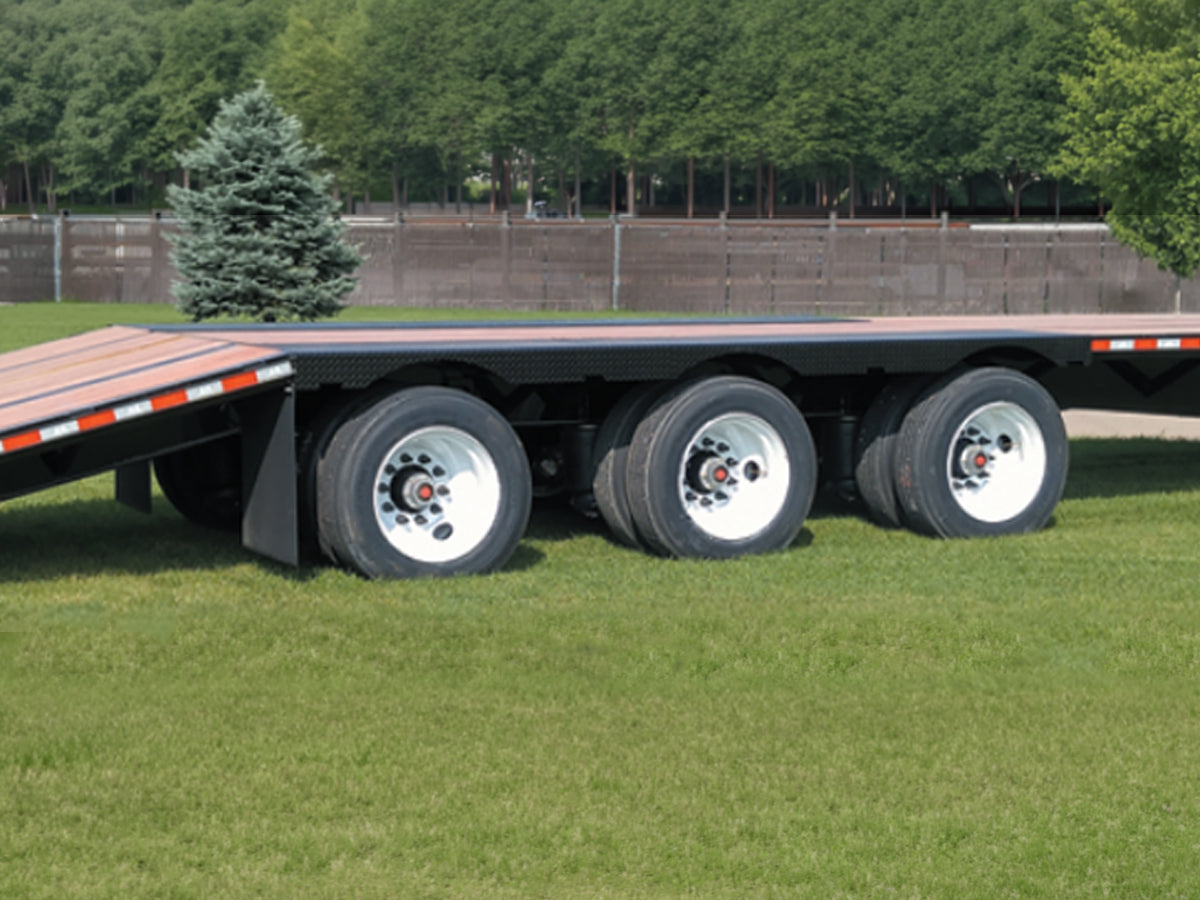

22,500 or 25,000 lb air brake axles paired with Hutch H9700 or Ridewell RAR260 suspension. Triple and quad axle available — scale up when the load demands it. Lift axle option keeps tire wear down on empty runs.

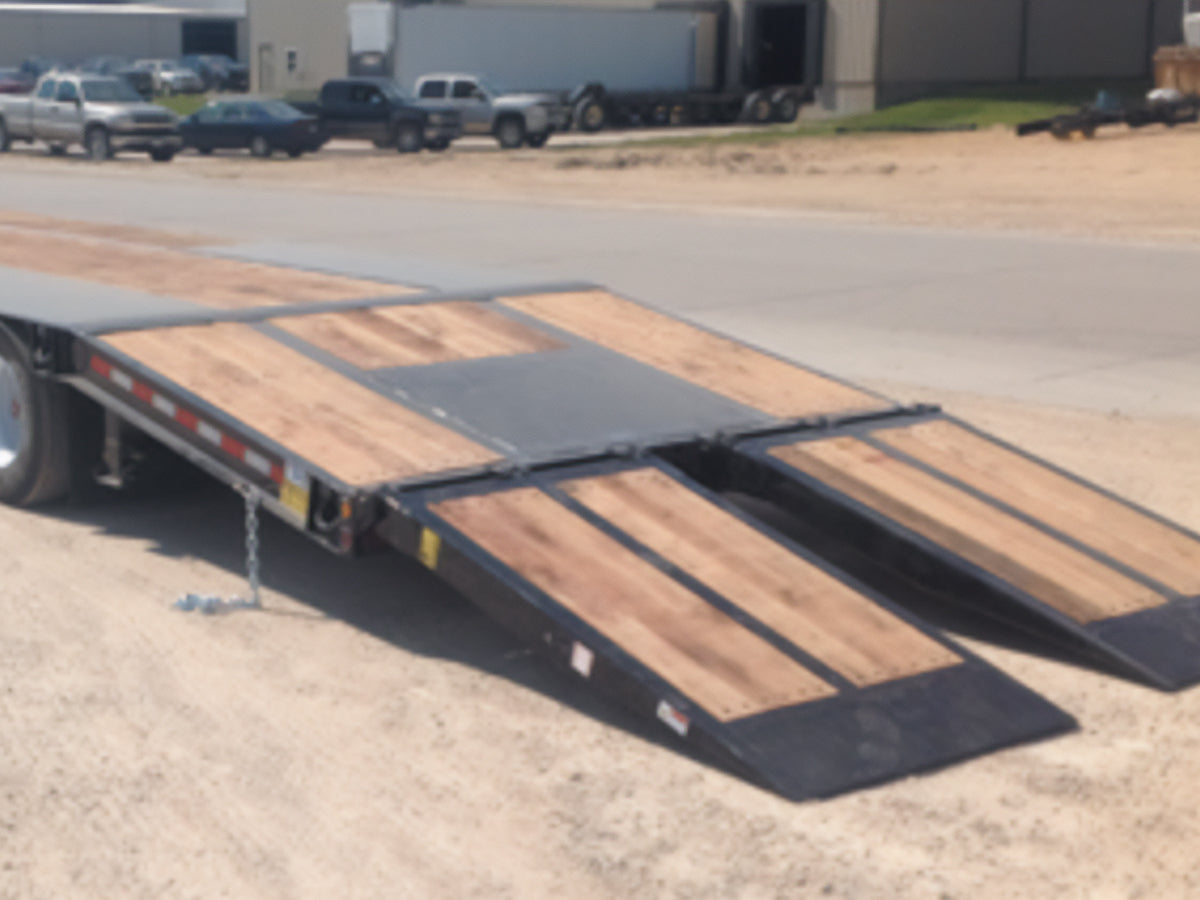

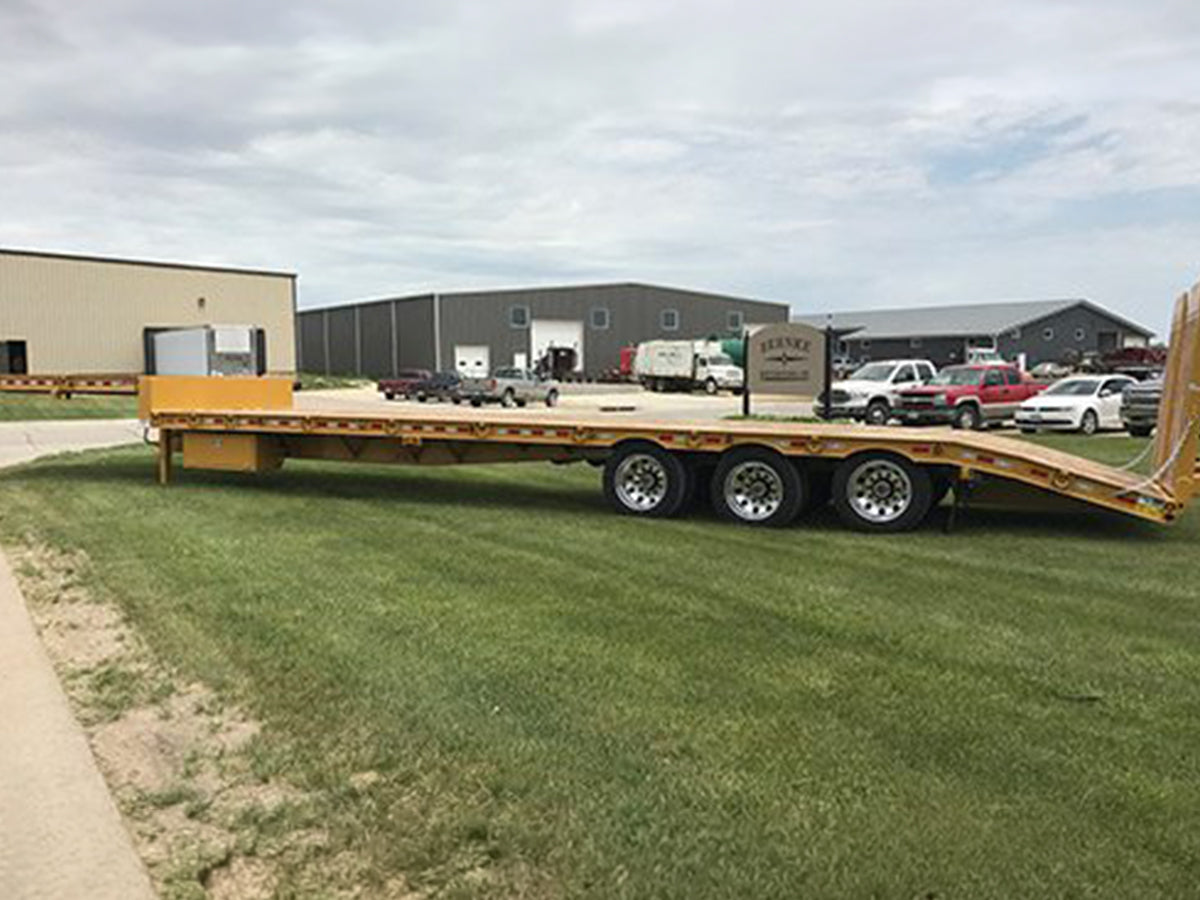

6' DOUBLE-BREAK WOOD BEAVERTAIL
The optional 6' double-break wood beavertail transitions smoothly from deck to ground — critical for wheeled or tracked equipment with low ground clearance. Flip-over ramps available as an alternative.
Product Details
DIMENSIONS
- LENGTH:
- 10'-13' upper + 20'-39' lower + 4'-6' beavertail
- WIDTH:
- 102"
- UNLOADED DECK HEIGHT:
- 34" or 40"
- TRAILER TYPE:
- Step Deck / Ramp Trailer
- PULL TYPE:
- King Pin (Semi Trailer)
- COLLECTION:
- Heavy Haul — Semi-Style
WEIGHT RATINGS
- GVWR:
- 60,000 - 100,000 lbs
- GAWR:
- 22,500 or 25,000 lbs (per axle)
- ESTIMATE DRY WEIGHT:
- Various
- AXLE COUNT:
- 2, 3, or 4 (tandem/triple/quad)
FINISH
- PAINT TYPE:
- Powder Coated
- PREP:
- Bead Blasted, Acid Washed, Zinc Rich Primed
- UNDERCOAT:
- Zinc Rich Primer
KING PIN
- TYPE:
- 2" King Pin

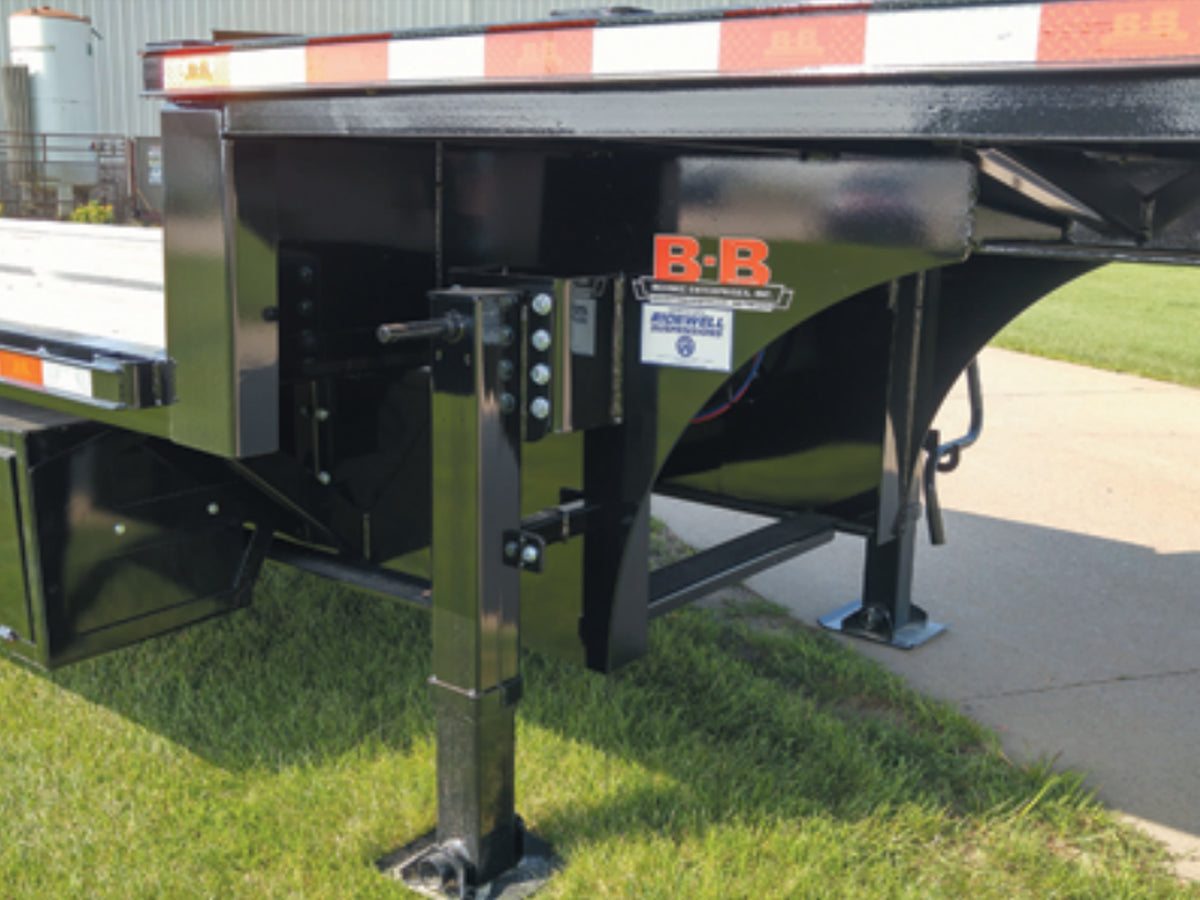

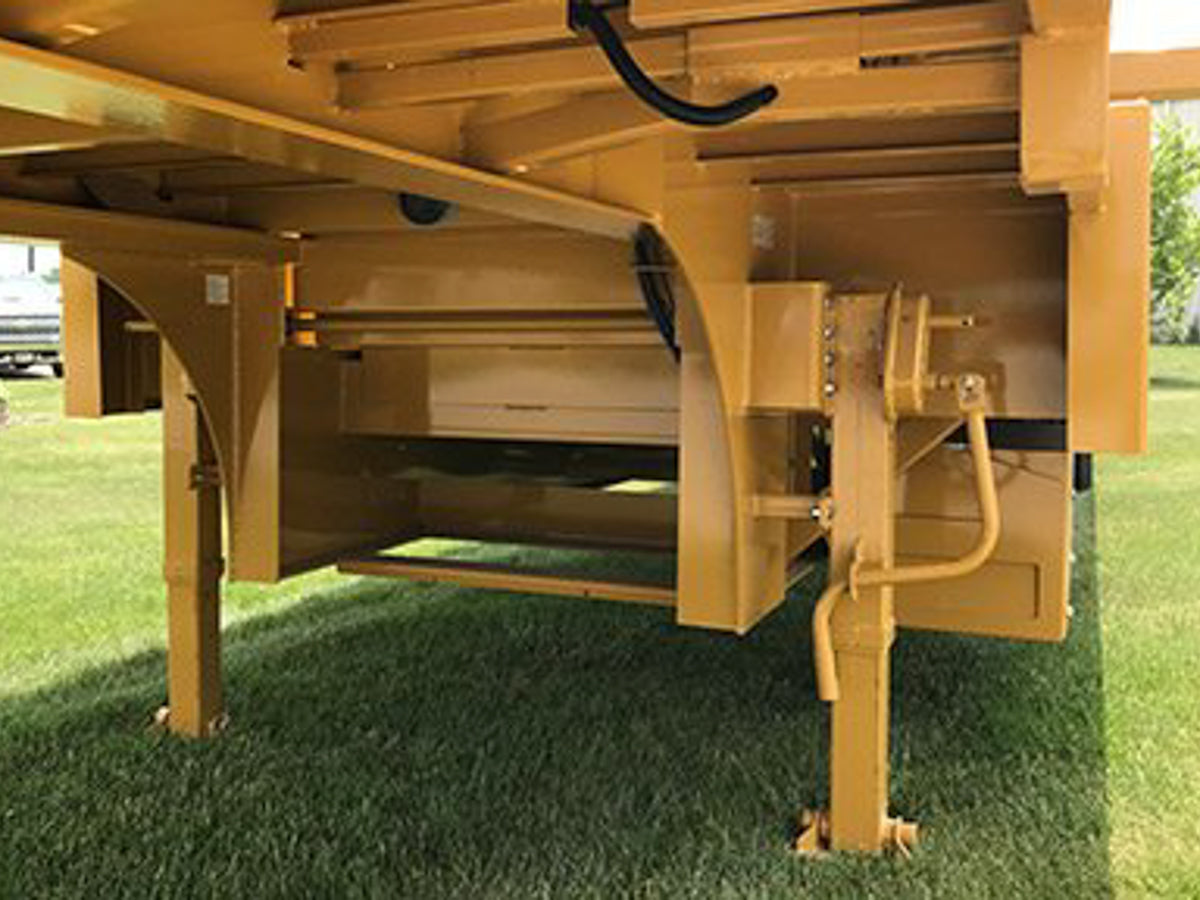

- LANDING GEAR:
- Dual Speed, Semi Style
- TOOLBOX:
- (1) 18 x 18 x 48 Toolbox
FRAME & CONSTRUCTION
- FRAME:
- 1-Piece Fabricated I-Beam (80 KSI)
- CROSSMEMBERS:
- 4" Jr. I-Beams (80 KSI)
- FLOORING:
- 1-1/2" Rough Oak or Pine (Optional)
- SIDE RAILS:
- 5x3x1/4 Angle or 8" Channel
- FENDERS:
- 1/4" Sheet
- RUB RAIL:
- Rub Rail (stake pocket config)
- STAKE POCKETS:
- Stake Pockets + Rub Rail or 1" D-Rings
RUNNING GEAR
- AXLE TYPE:
- 22,500 or 25,000 lb Air Brake Axles
- SUSPENSION:
- Hutch H9700 or Ridewell RAR260
TIRES & WHEELS
- TIRE TYPE:
- Dual
- TIRE SIZE:
- 235/75R-17.5H or 255/70R-22.5
ELECTRICAL & LIGHTING
- 7-WAY RECEPTACLE:
- Semi Plug
- LIGHTING:
- LED Flush Mount
CARGO & TIE-DOWN
- LOAD SECUREMENT:
- Stake Pockets & Rub Rail or 1" D-Rings
OPTIONS
