Product Features
Load and unload with confidence

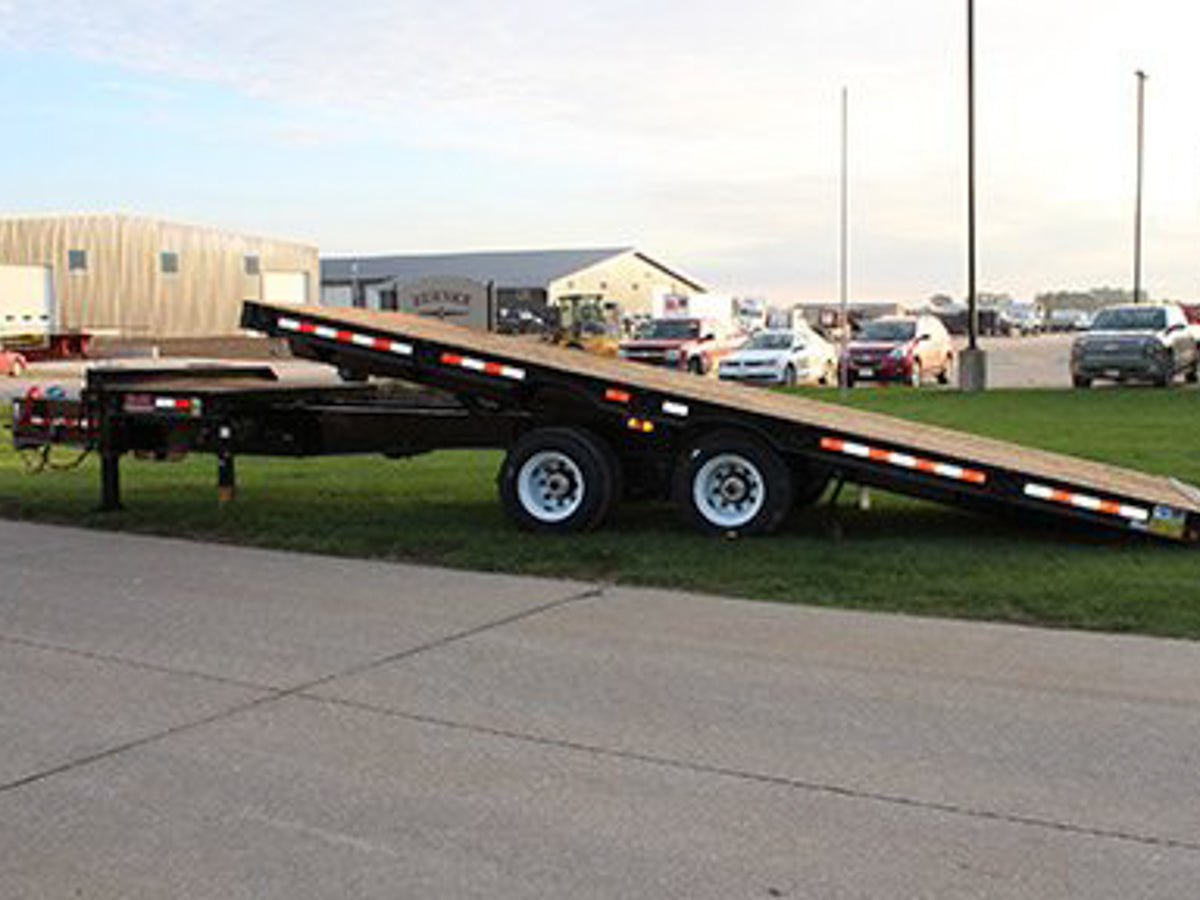

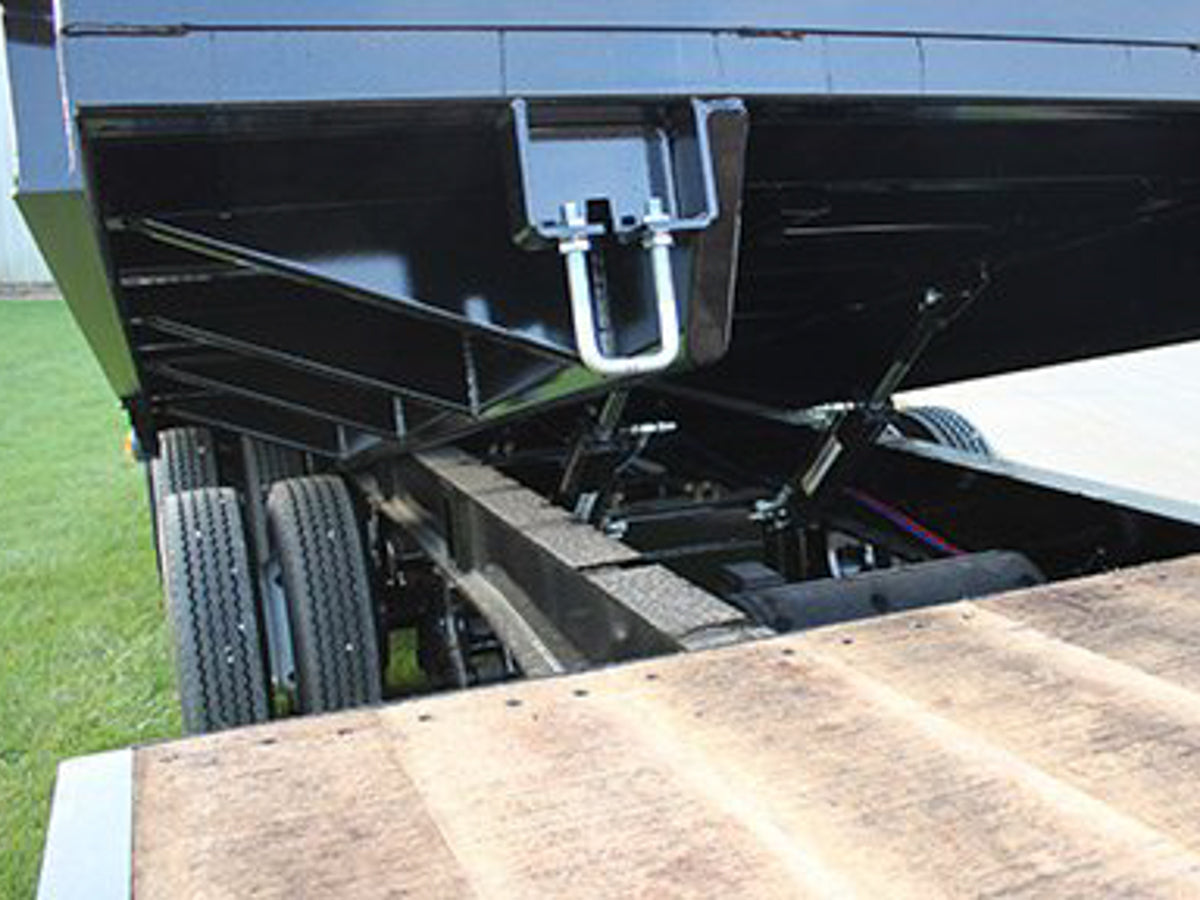

A gravity tilt system with dual cushioned cylinders and a 13° tilt angle keeps every load smooth and controlled. The heavy-duty pipe latch locking system with safety pin locks the deck solid the moment it levels out.
One trailer, two capacities
Choose the 40,000 lb tandem axle version or step up to the 50,000 lb tri-axle — same proven frame, same build quality, just more muscle when the load demands it. 29,950 lb payload on the 40L, 37,900 lb on the 50L.
Strength starts at the frame
A 1-piece manufactured I-beam with an 80K web and T1 flanges — not welded together from sections, formed as a single piece. 4" Jr. I-beam crossmembers on 16" centers and Grade 50 knee braces throughout keep it rigid mile after mile.

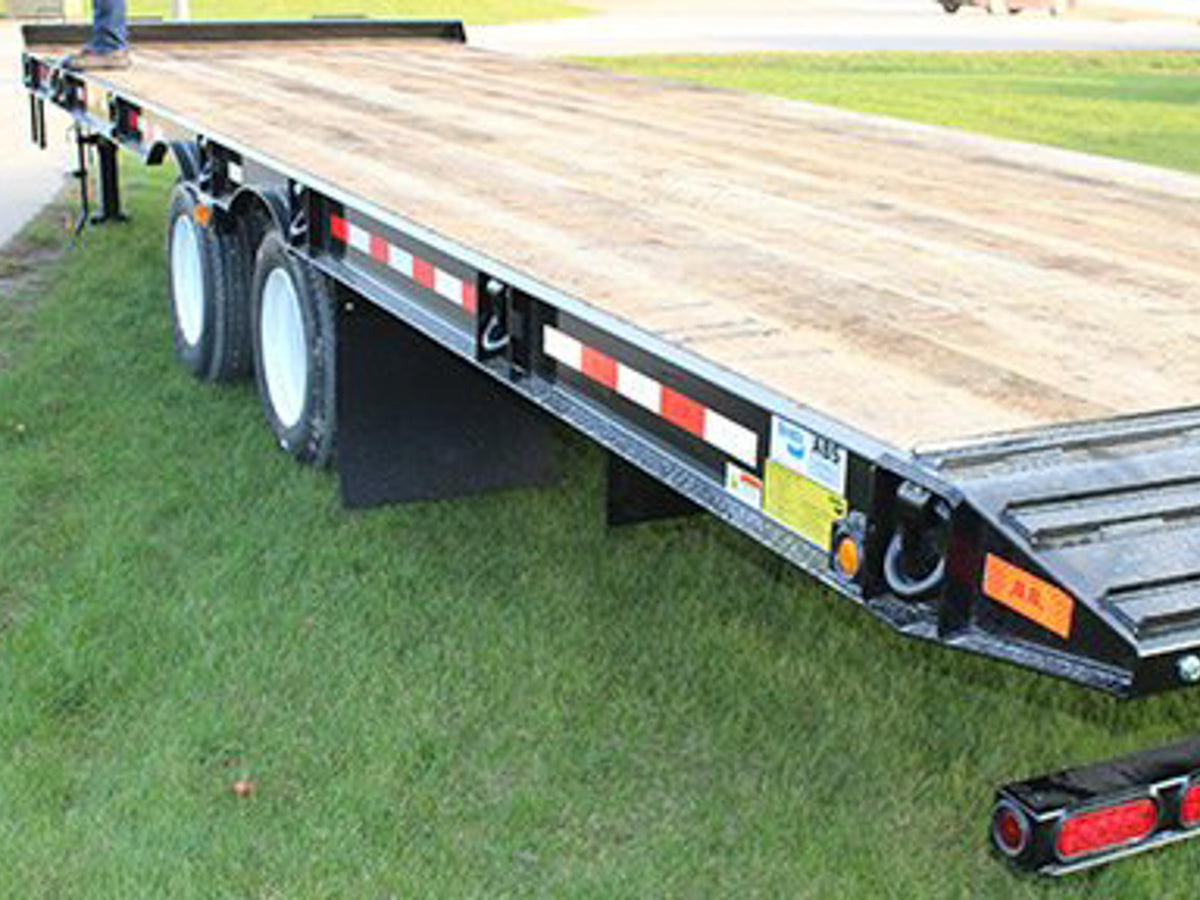

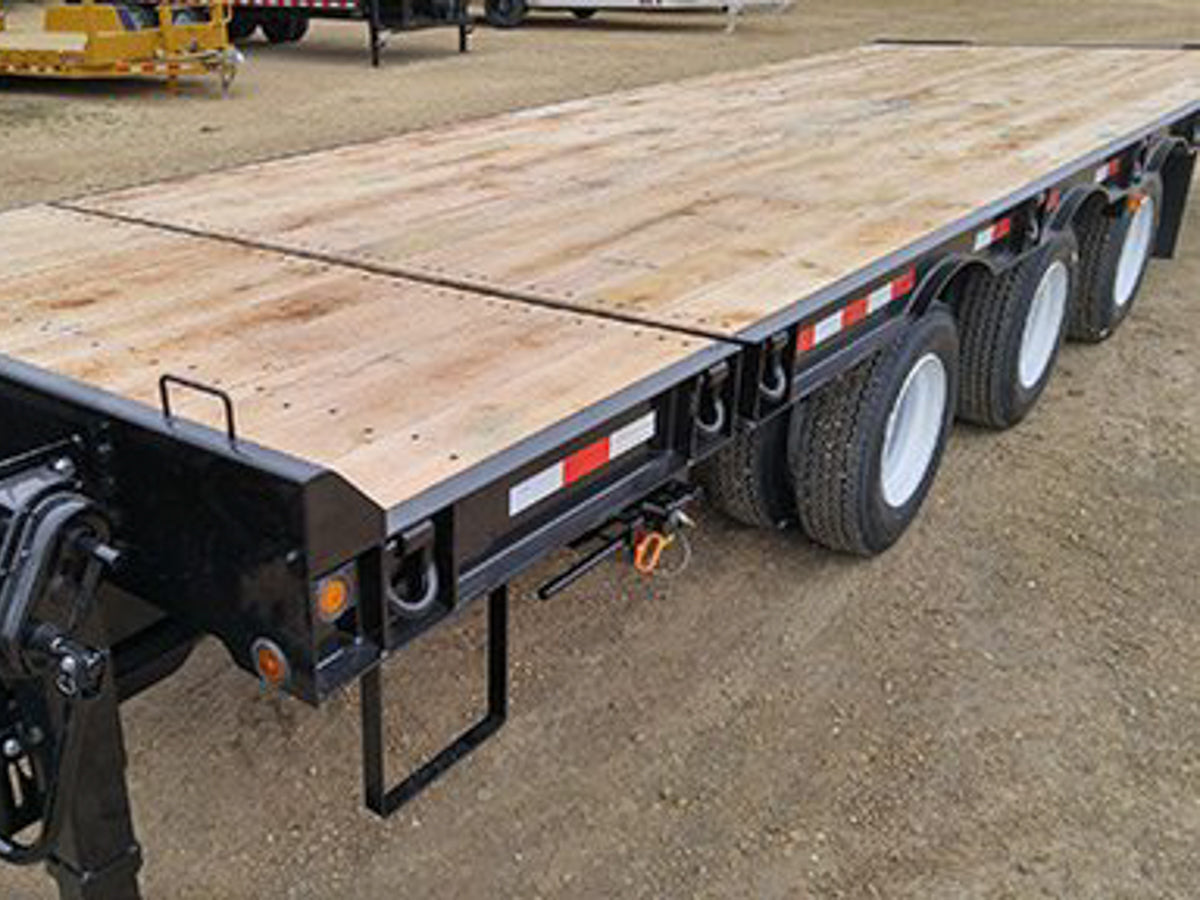

1-1/2" Rough Oak Floors
Both the stationary and tilt sections are decked in 1-1/2" rough oak. It grips, it drains, and when a board takes a beating it swaps out in the field without special tools or a trip to the shop. Functional decking built for real-world use.
ABS is not an upgrade here
ABS comes standard on every axle. 25,000 lb Dexter axles, 12-1/4" x 7-1/2" brake drums, and Dexter HDSS suspension give you stopping power and ride quality whether you are loaded to capacity or running empty.

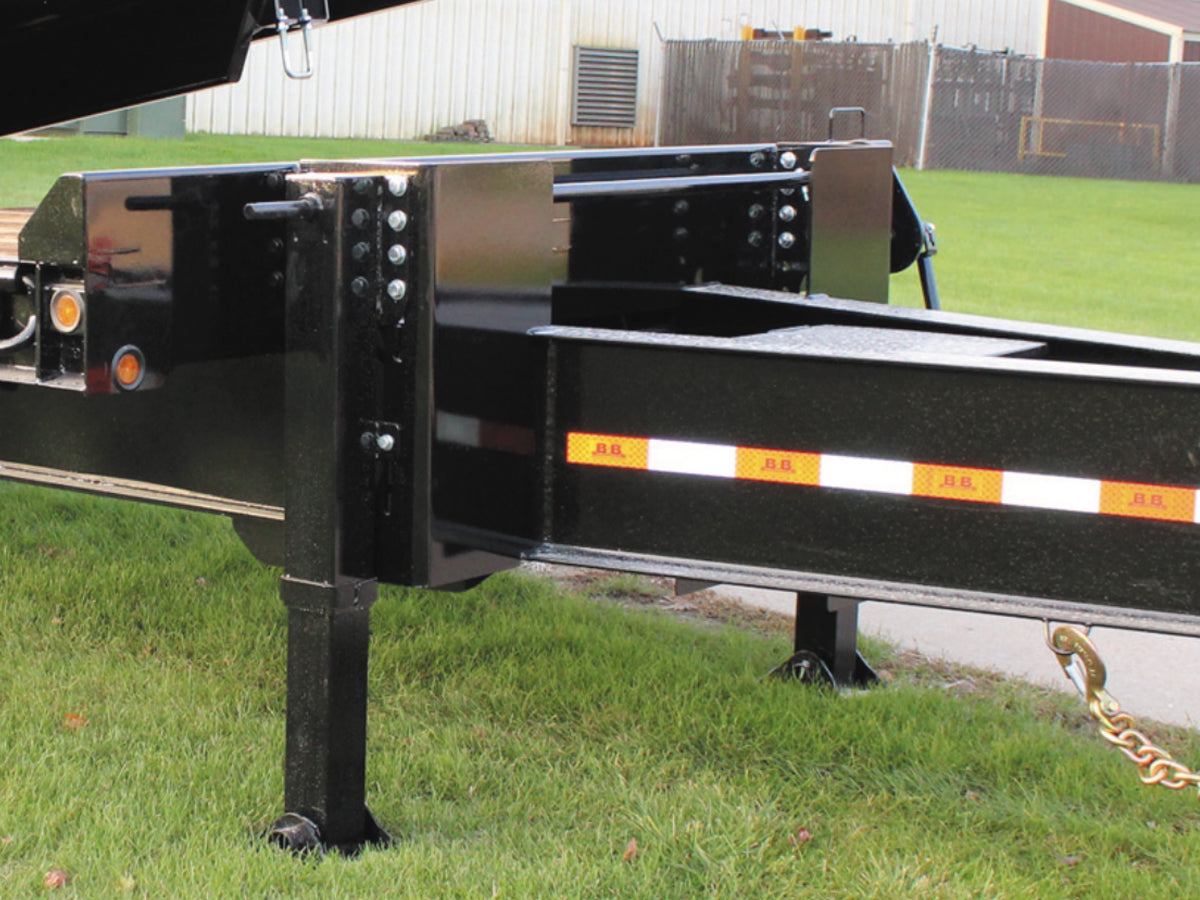

Semi Style Landing Gear
Dual-speed semi-style landing gear rated at 50,000 lbs drops fast and holds firm on any surface. DOT approved fully sealed rubber-mounted LED lighting is installed after paint, keeping connections clean and corrosion-free from day one.
Product Details

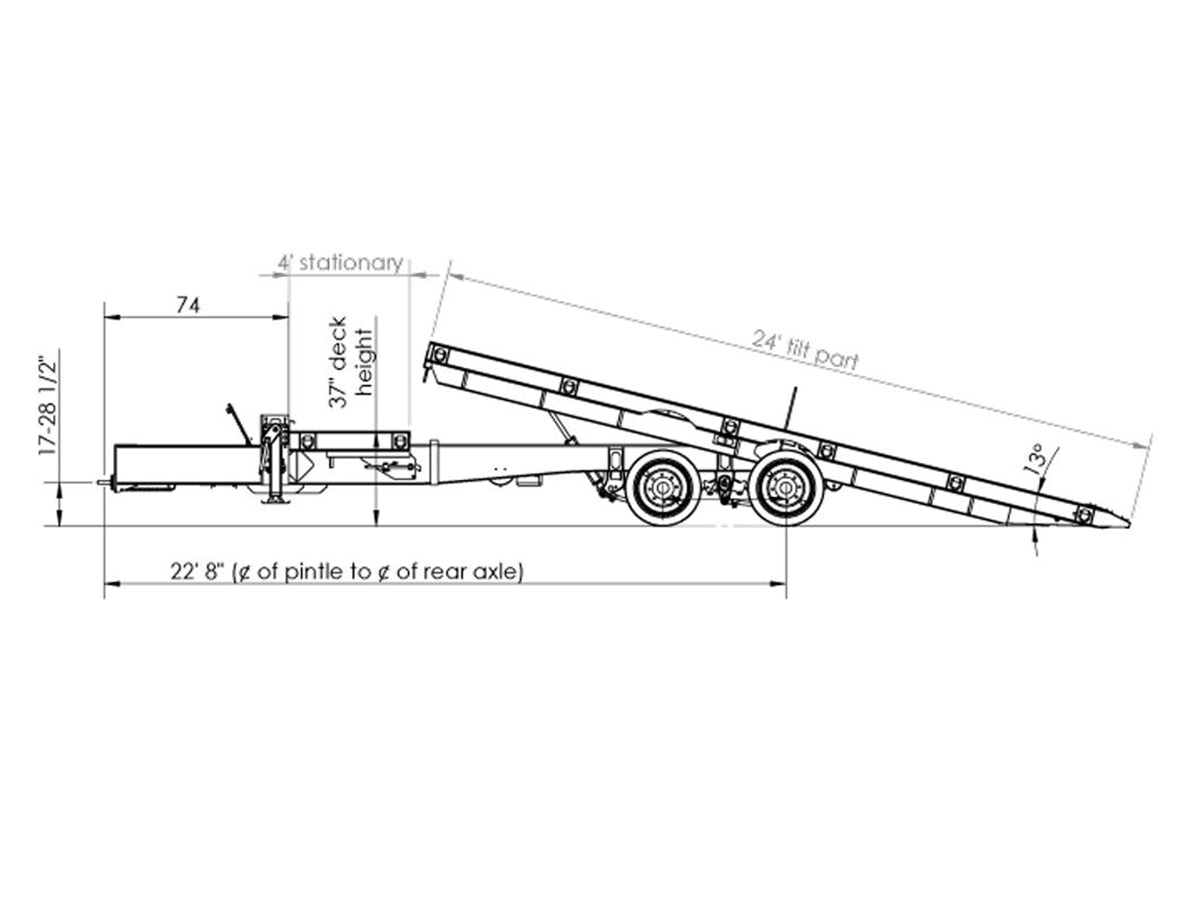

DIMENSIONS

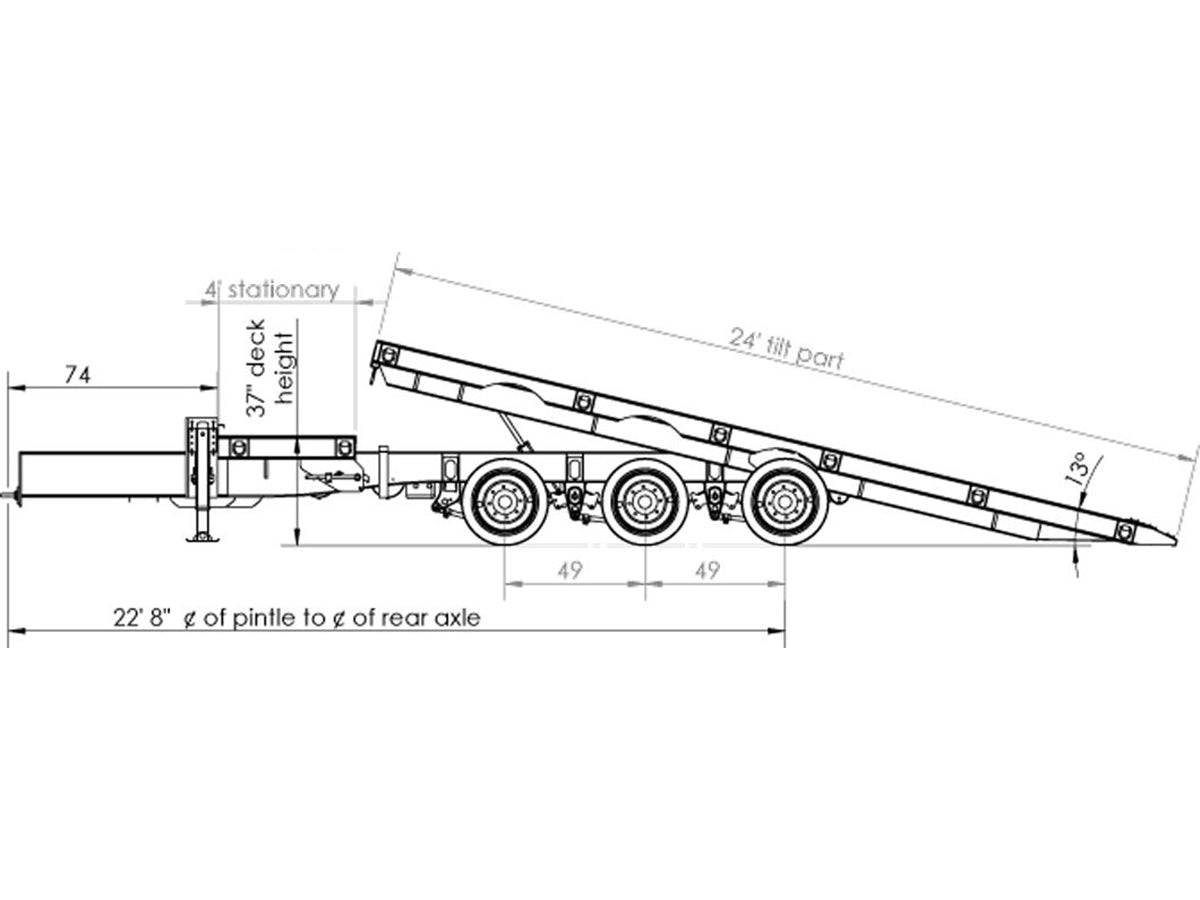

- LENGTH:
- 4' stationary + 24' tilt deck
- WIDTH:
- 102"
- OVERALL HEIGHT:
- 37" (unloaded deck height)
- TRAILER TYPE:
- Flatbed Tilt
- PULL TYPE:
- Tag / Pintle Hitch
- TILT ANGLE:
- 13°
WEIGHT RATINGS
- GVWR:
- 40,000 or 50,000 lbs
- GAWR:
- 25,000 lbs (per axle)
- ESTIMATE DRY WEIGHT:
- 10,050 lbs (40L) / 12,100 lbs (50L)
- ESTIMATED PAYLOAD:
- 29,950 lbs + tongue wt (40L) / 37,900 lbs + tongue wt (50L)
- AXLE COUNT:
- 2 (40L) / 3 (50L tri-axle)
FINISH
- PAINT TYPE:
- Powder Coated
- PREP:
- Bead Blasted, Acid Washed, Zinc Rich Primed
- UNDERCOAT:
- Zinc Rich Primer

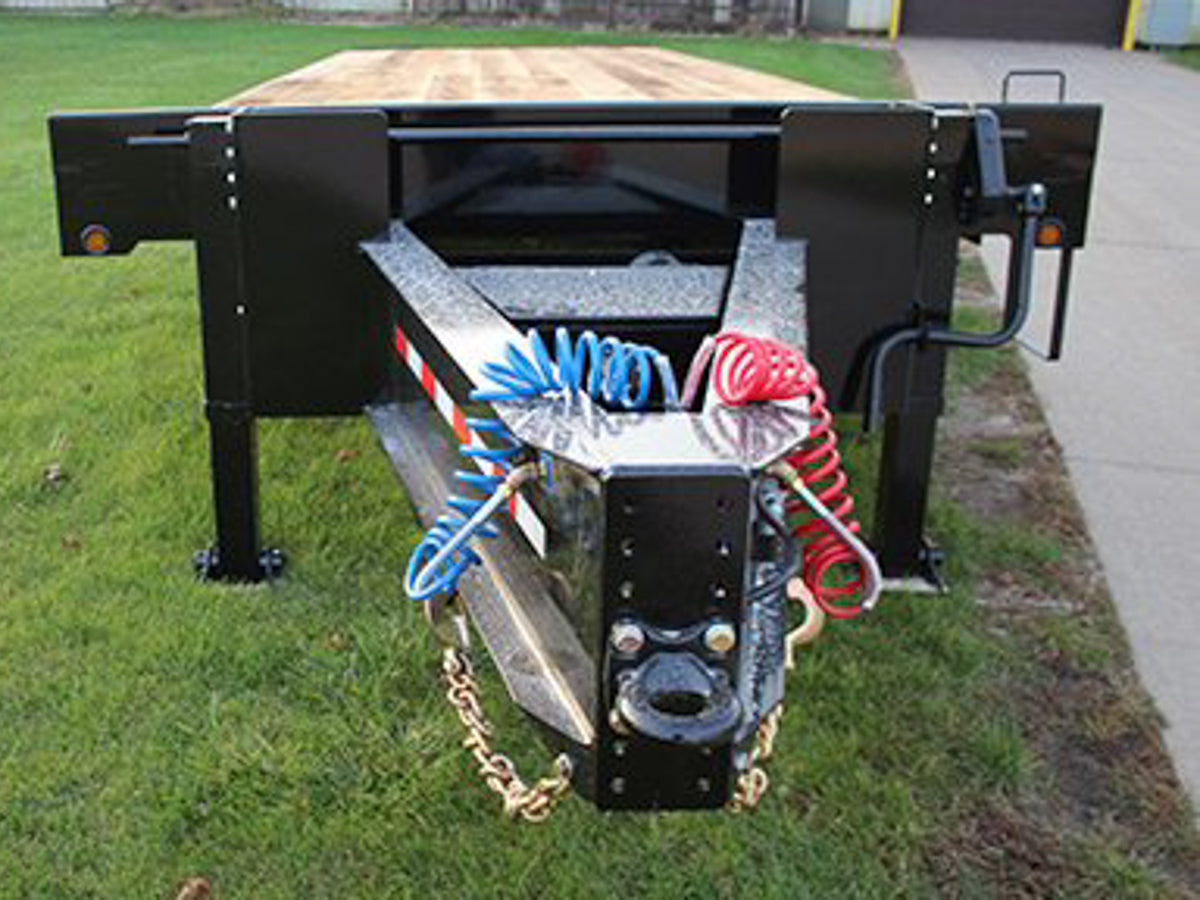

PINTLE HITCH
- TYPE:
- 3" Pintle Eye — 90,000 lb Rated
- ADJUSTABLE HEIGHT:
- 17" - 28.5"
- LANDING GEAR:
- (2) Dual Speed Semi-Style Landing Gear — 50,000 lb Capacity
- SAFETY CHAINS:
- (2) 1/2" Gr. 70 Transporter Safety Chain
- TOOLBOX:
- Lockable Toolbox in V-Part of Tongue
FRAME & CONSTRUCTION
- BOTTOM FRAME:
- 1-Piece Mfg. I-Beam (80K web + T1 flanges); 8" Channel Side Rail
- TOP FRAME:
- 10" x 2" x 1/4" Tube w/ 8" Channel Side Rail
- CROSSMEMBERS:
- 4" Jr. I-Beams on 16" Centers
- KNEE BRACES:
- Formed 3/16" Gr. 50 Knee Braces Throughout Frame
- FLOORING:
- 1-1/2" Rough Oak
- SIDE RAILS:
- 8" Channel
- HEADBOARD:
- 4" Above Deck
- FRONT SKIRT:
- 1' Sloped w/ 1" Lip and Traction Bars
- FENDERS:
- 1/4" Sheet
RUNNING GEAR
- AXLE TYPE:
- 25,000 lb Dexter — (1) ABS + (1) Non-ABS (40L) / (2) ABS + (1) Non-ABS (50L)
- SUSPENSION:
- Dexter HDSS / Hutch H9700
- BRAKE SIZE:
- 12-1/4" x 7-1/2"
- BRAKE CAPACITY:
- 22,500 lbs / axle
- ABS SYSTEM:
- Bendix ABS
TIRES & WHEELS
- TIRE TYPE:
- Dual
- TIRE SIZE:
- 235/75R/17.5
- RIMS:
- 8-Bolt 17.5 x 6.75 Rim
ELECTRICAL & LIGHTING
- 7-WAY RECEPTACLE:
- Semi Plug
- LIGHTING:
- DOT Approved — All Sealed Rubber-Mounted LED (Air & Electric Done After Paint)
CARGO & TIE-DOWN
- D-RINGS:

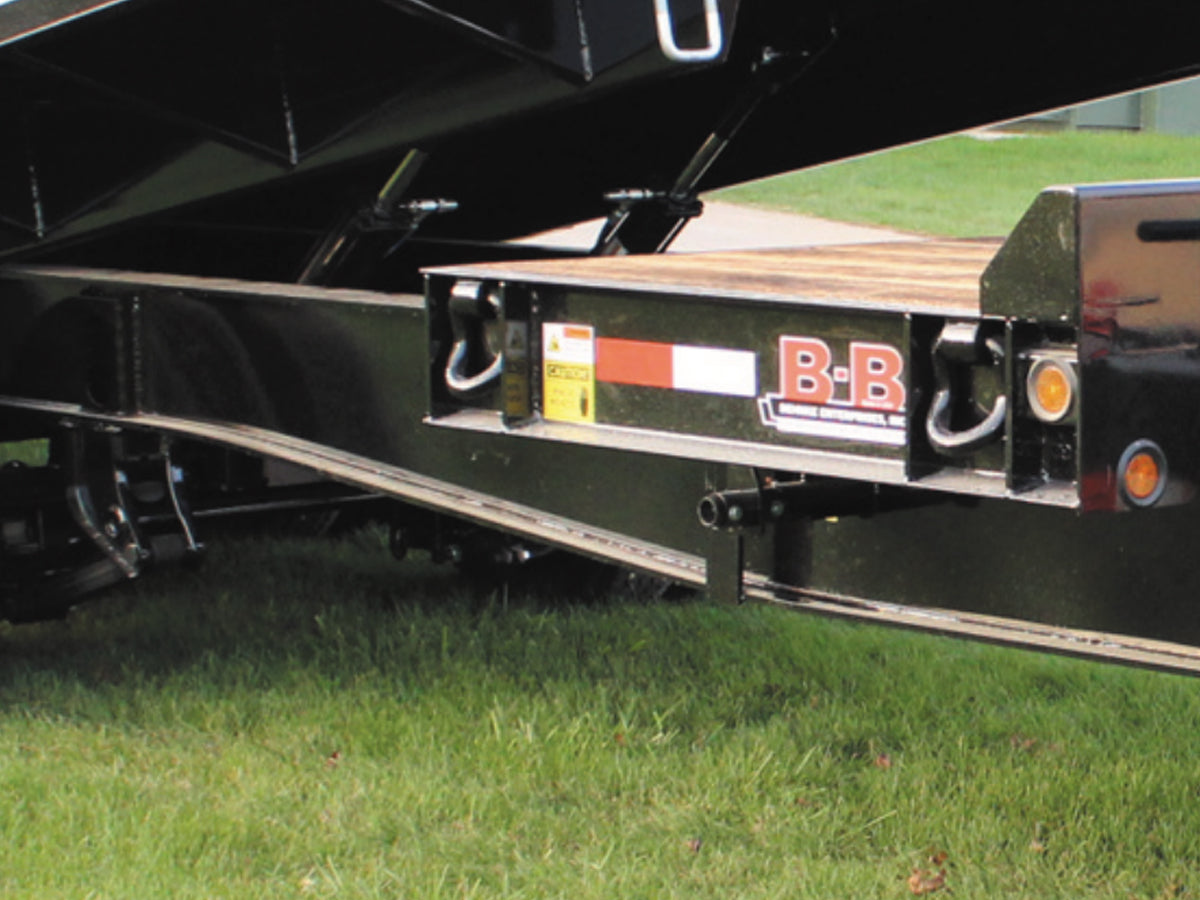

- (16) 1" Bent D-Rings — 8 Each Side
- GATE OPERATION:
- Heavy Duty Pipe Latch Locking System w/ Safety Pin
OPTIONS
