Product Details
DIMENSIONS
- LENGTH:
- 28'
- WIDTH:
- 102"
- DECK HEIGHT:
- 36"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k
- GVWR:
- 15.7k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

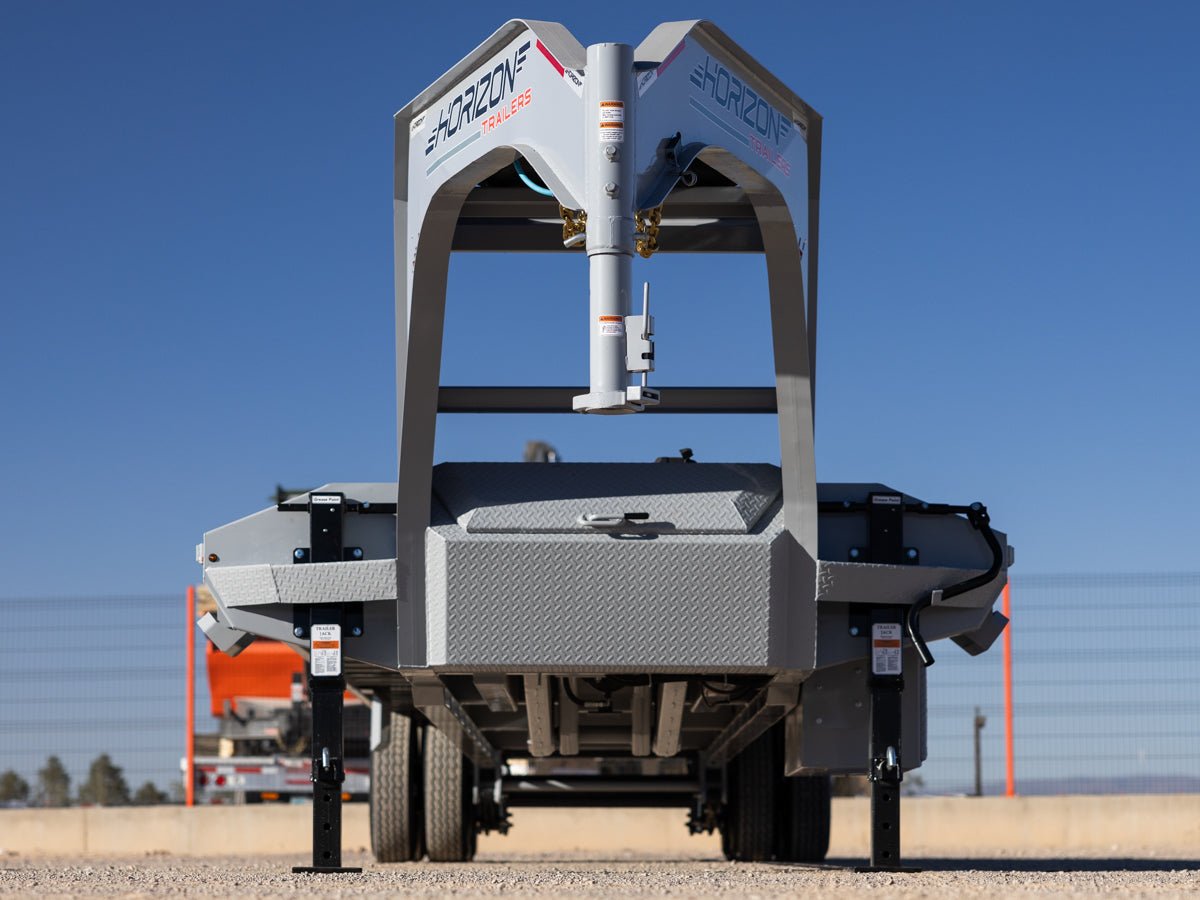

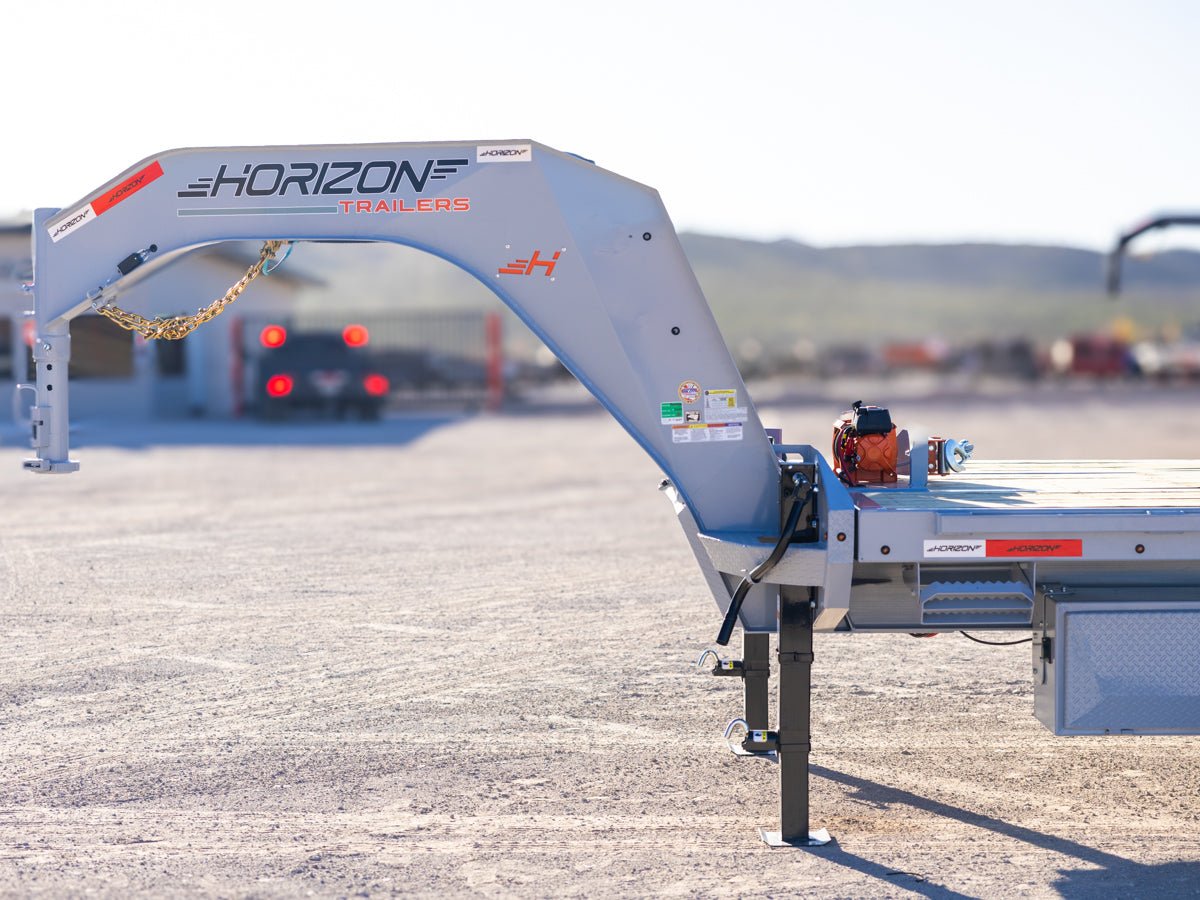

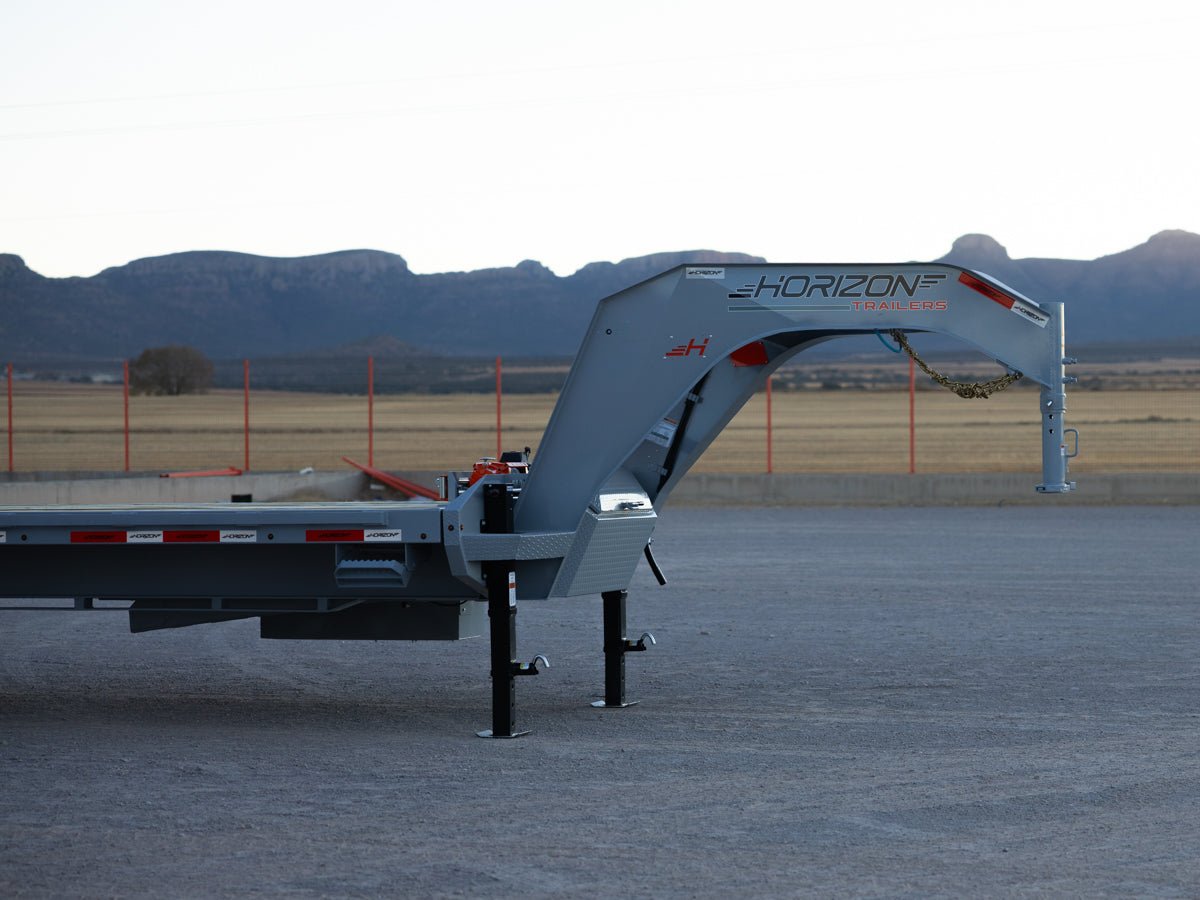

GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 83" Long
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)

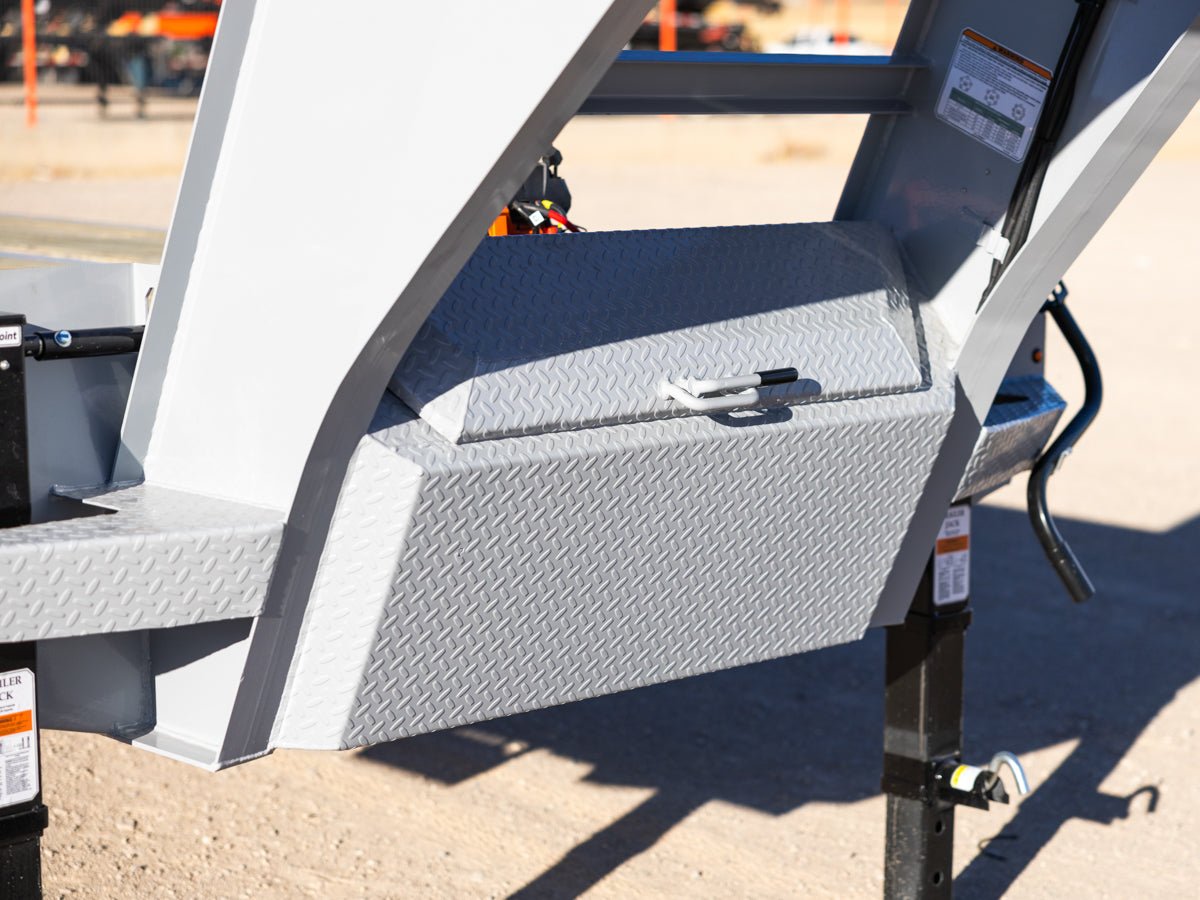

- TOOLBOX GN:
- Mega Lockable Toolbox
DECK & LOADING
- DECK TYPE:
- Wood
- TILT METHOD:
- Power Up & Power Down

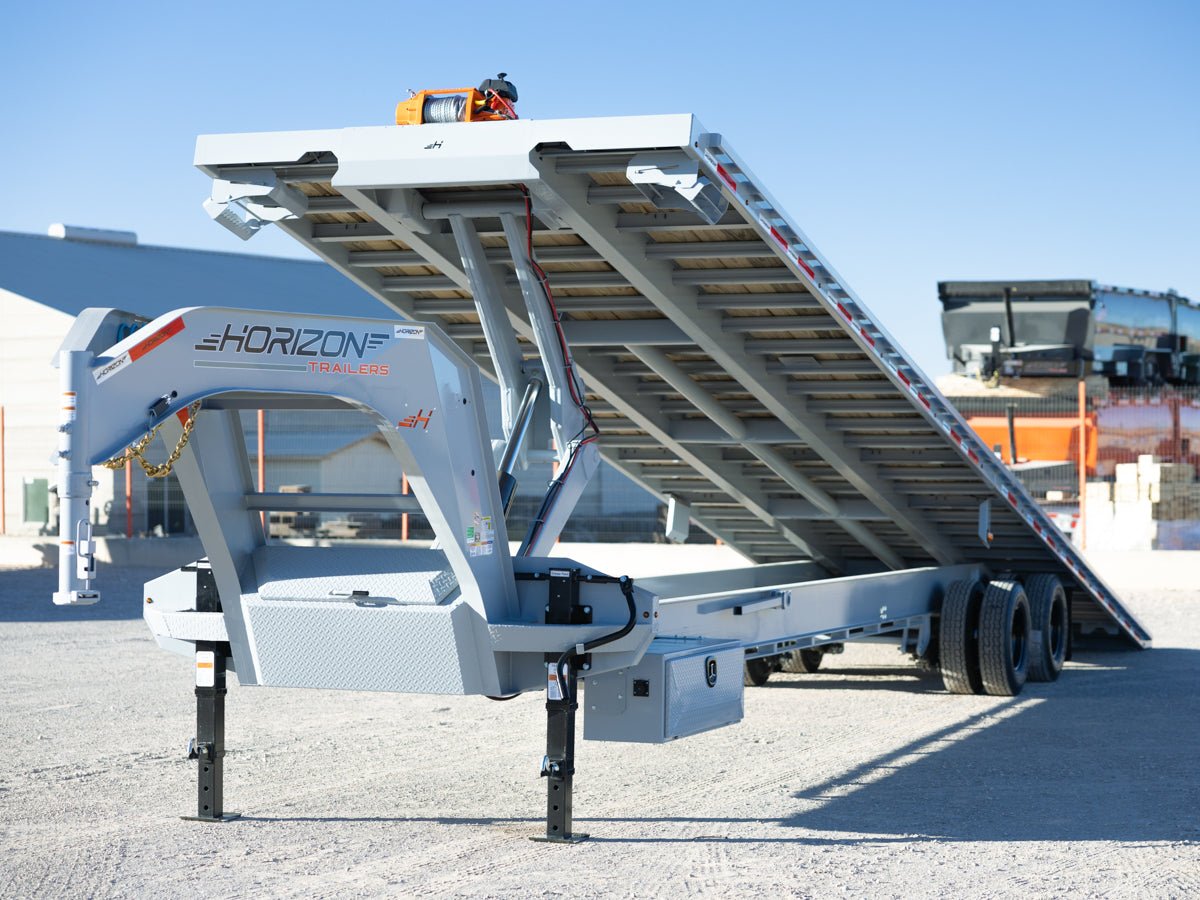

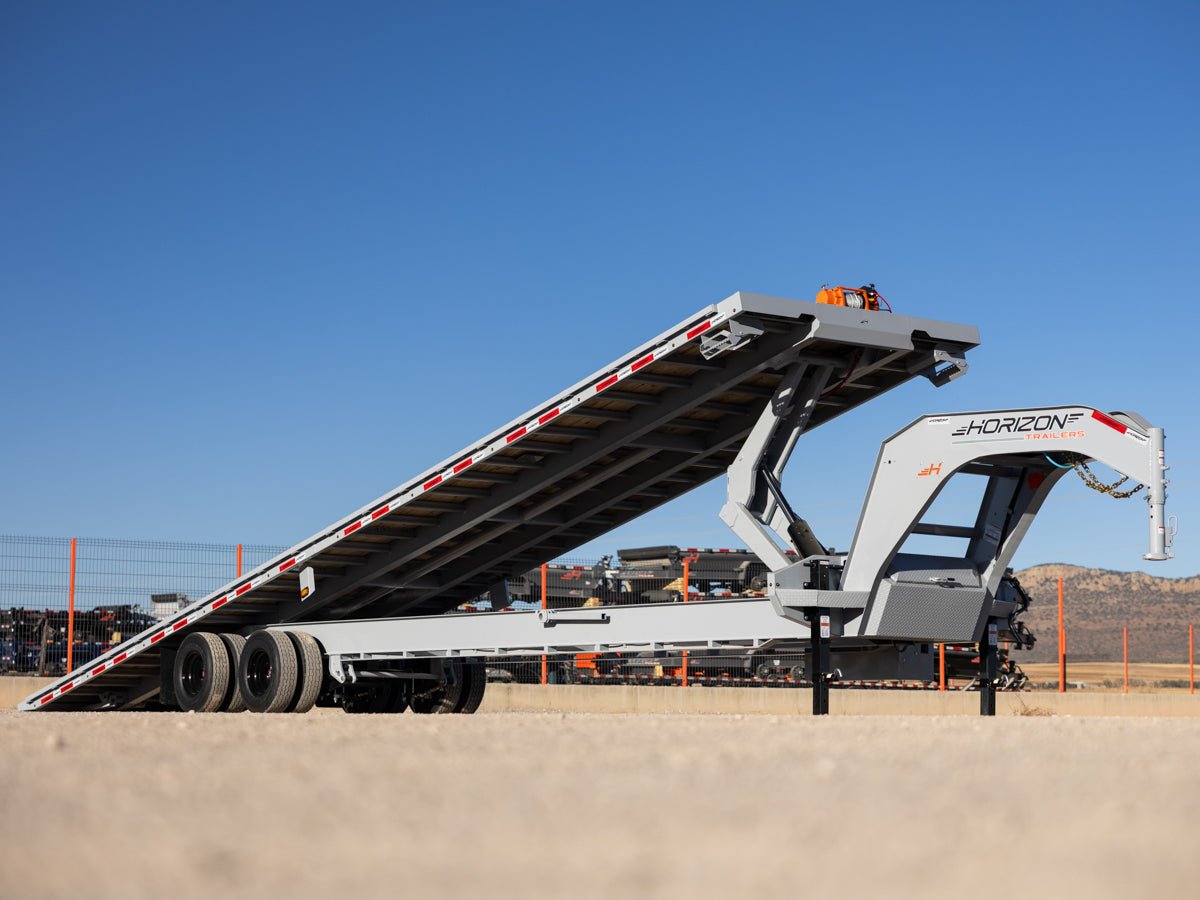

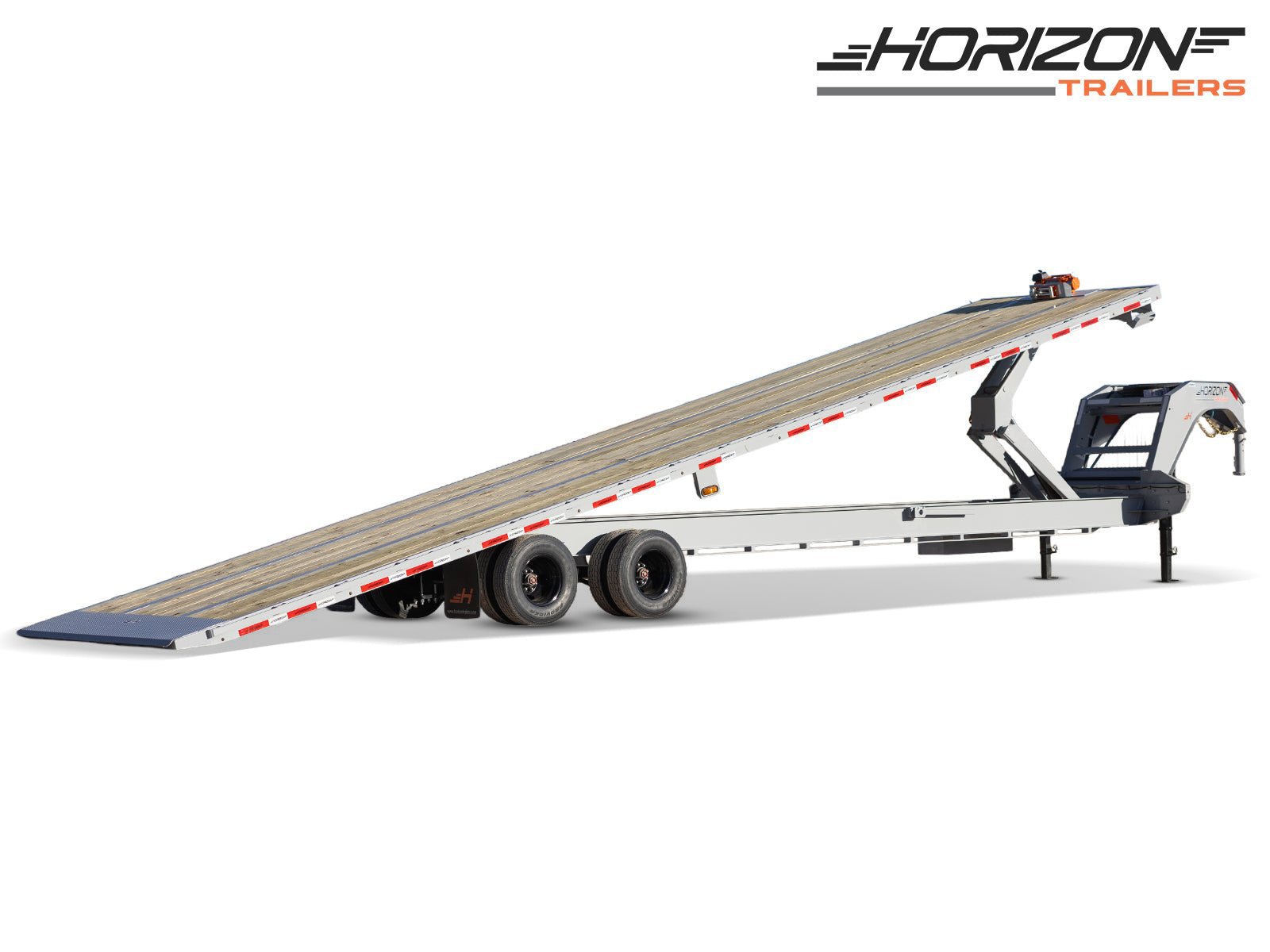

- TILT DECK:
- 24' Tilt Deck
ELECTRICAL & LIGHTING
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness

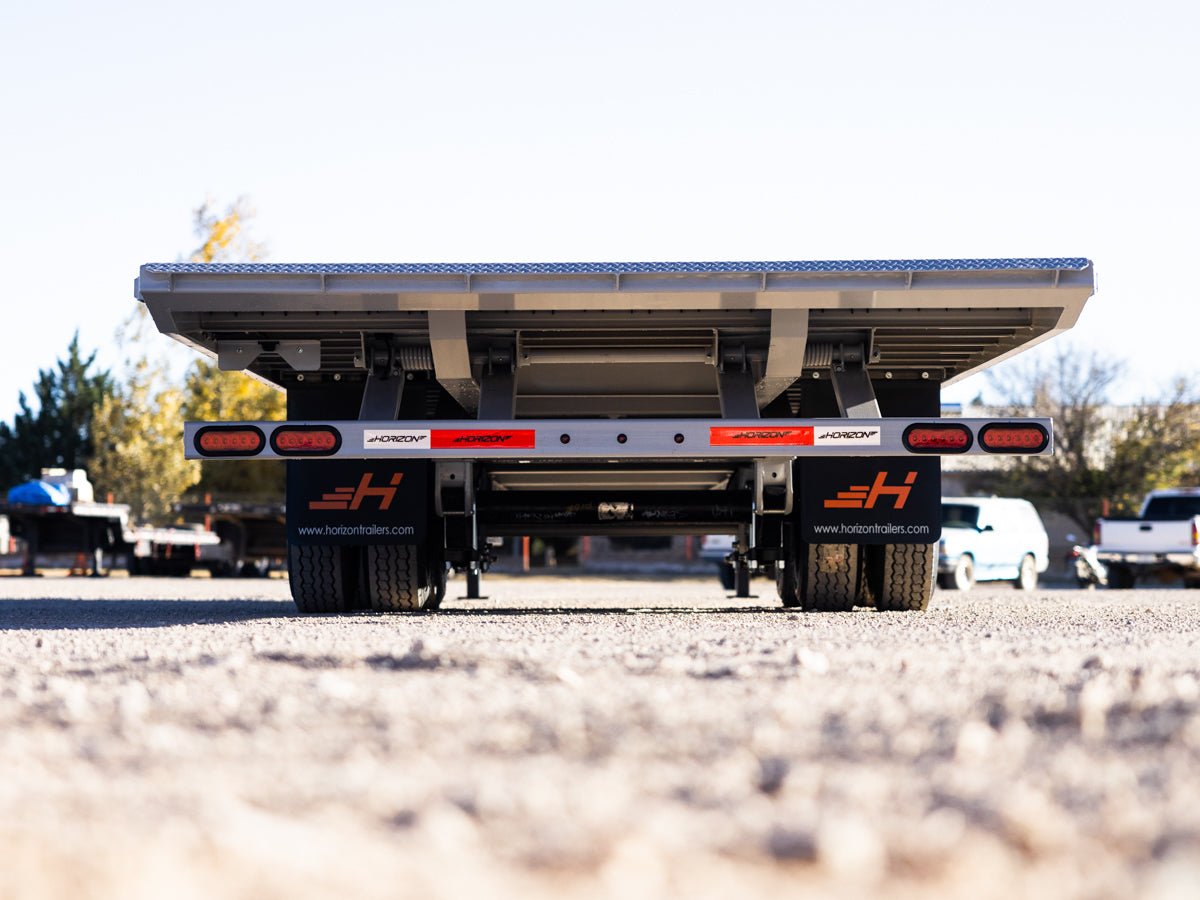

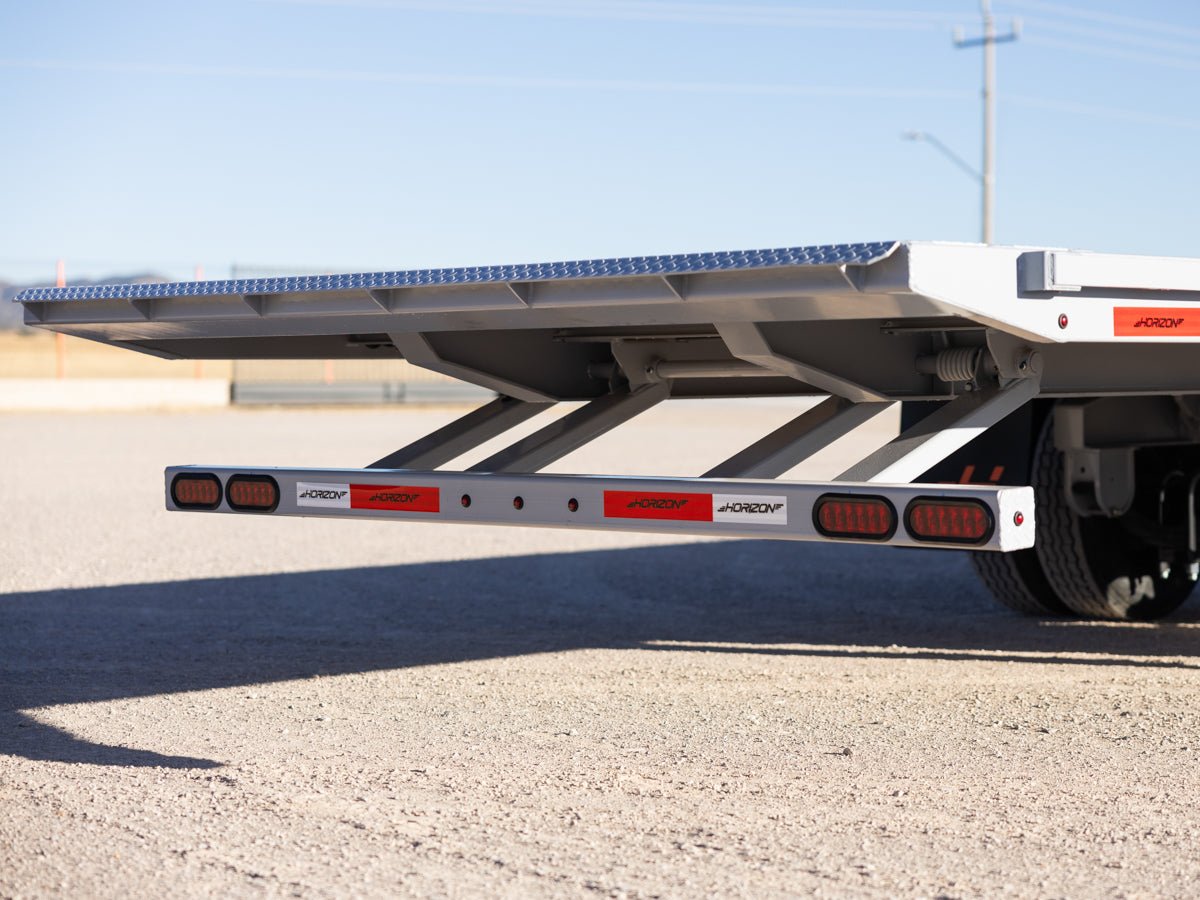

- REAR LIGHTS:
- DOT Approved LED Lighting

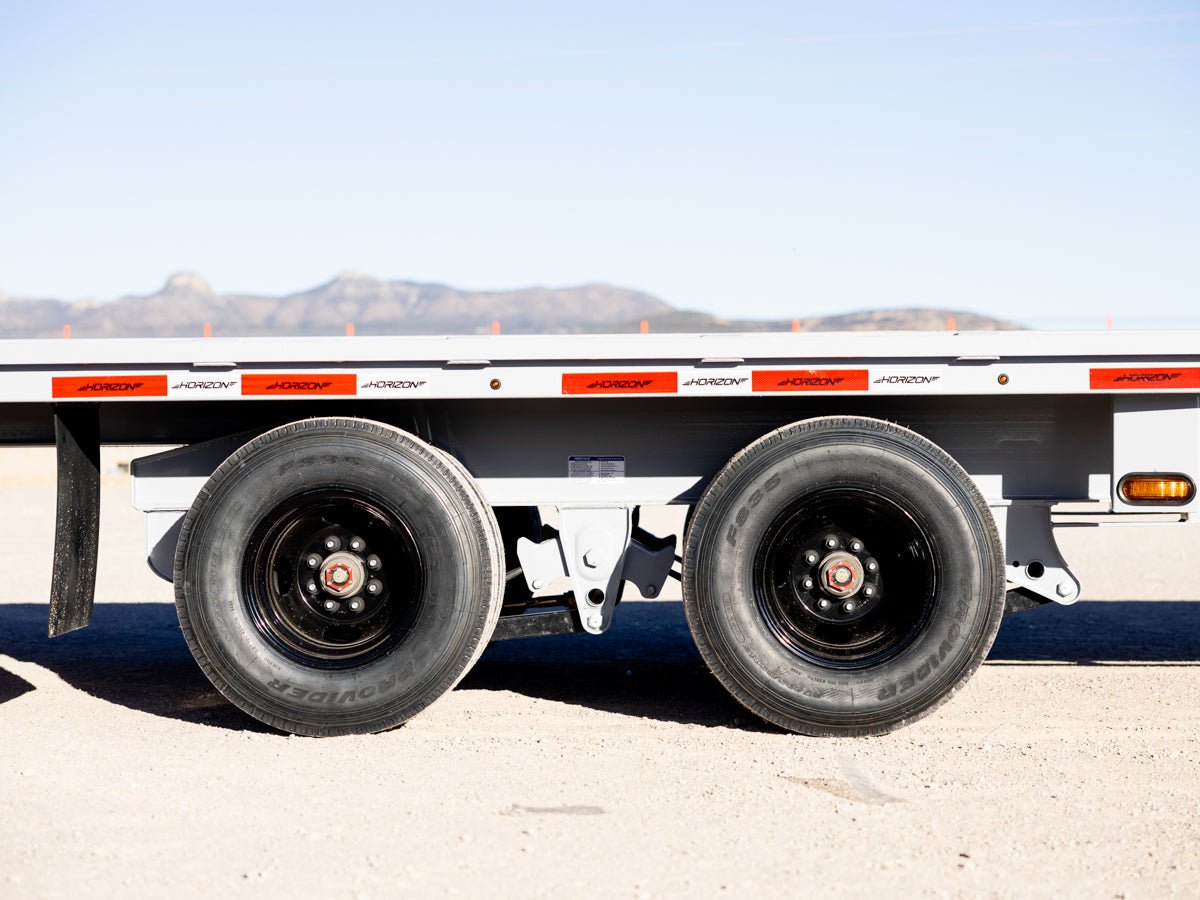

RUNNING GEAR
- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 7k Electric Brake EZ Lube Axles
2 - 8k Oil Bath Spring Axles
2 - 10k Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring

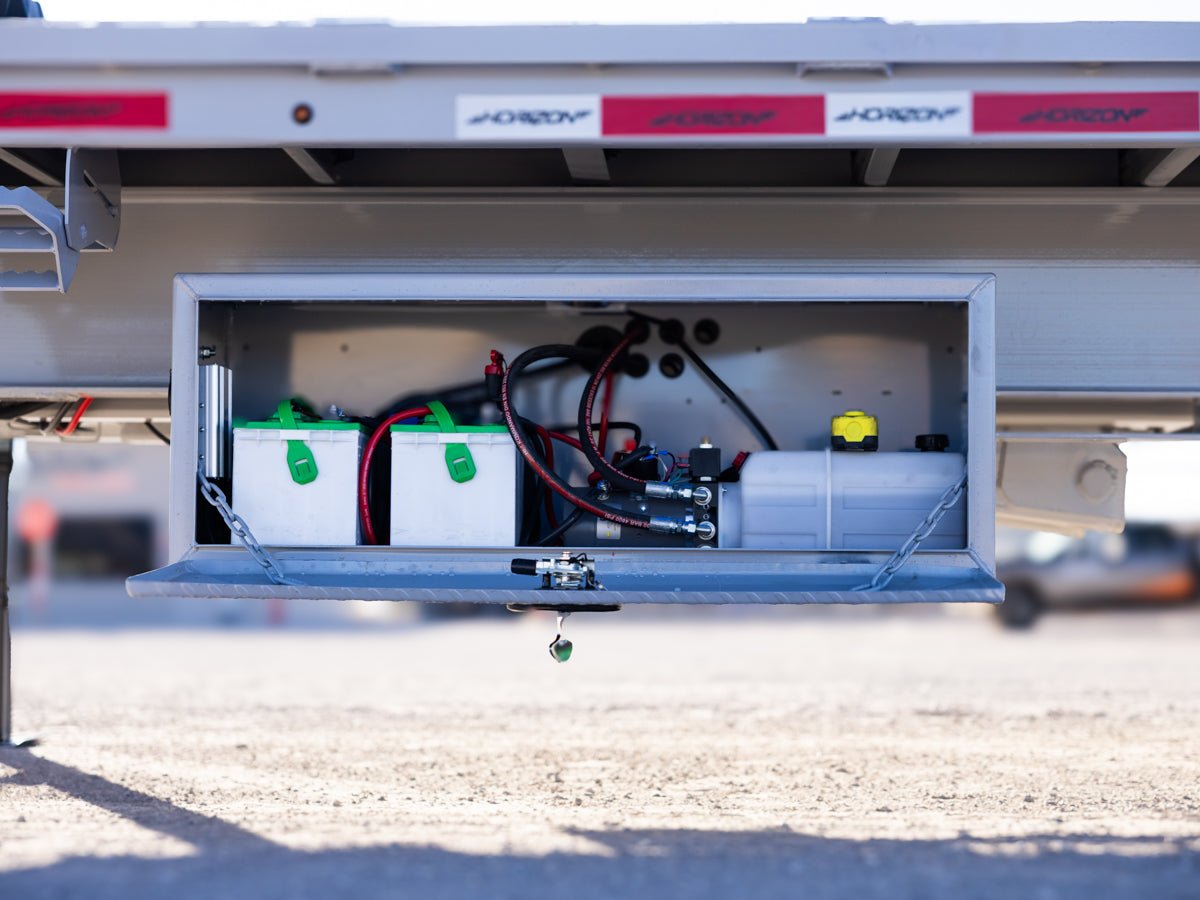

HYDRAULIC SYSTEM
- PUMP:
- KTI 12V Hydraulic Pump

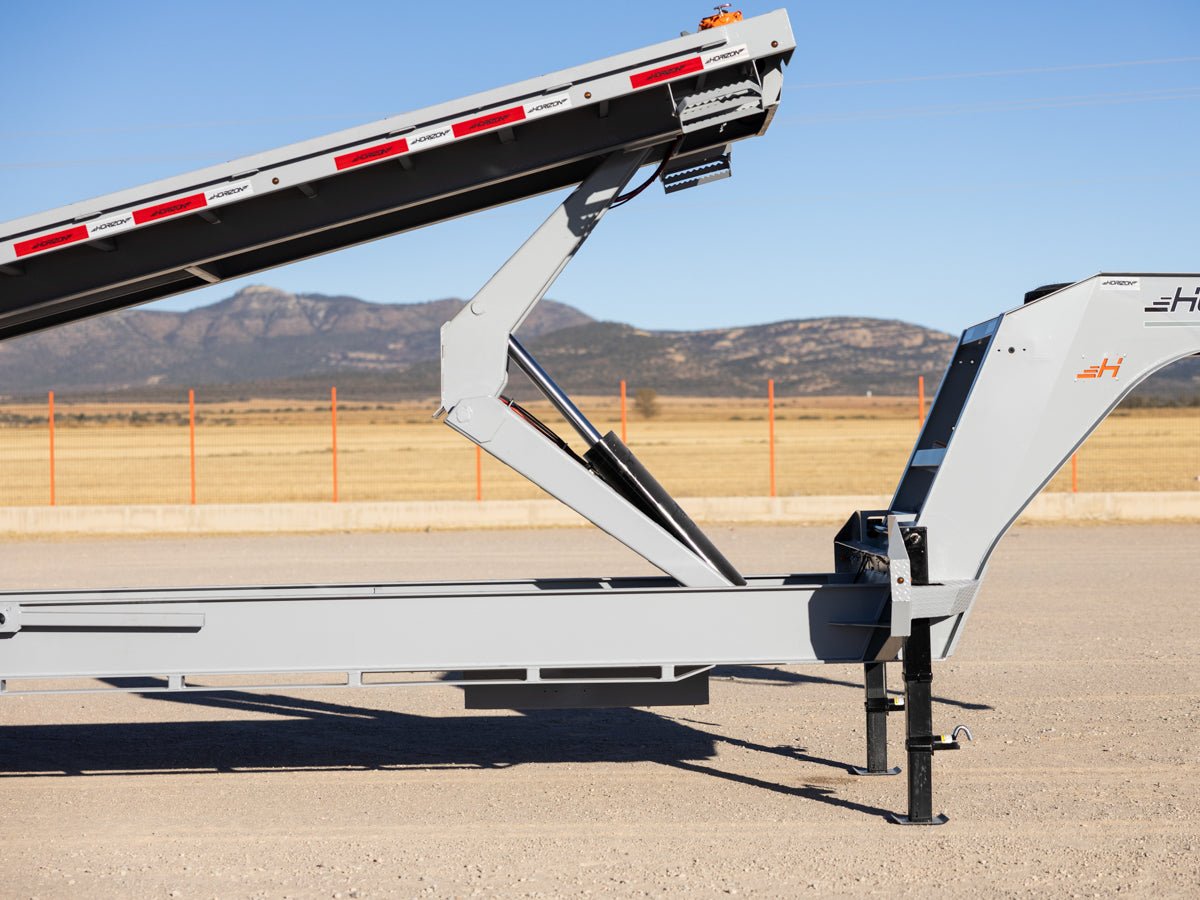

- LIFT CYLINDER:
- Hoist w/ 6"x21" Single Cylinder (20,000 lbs)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
