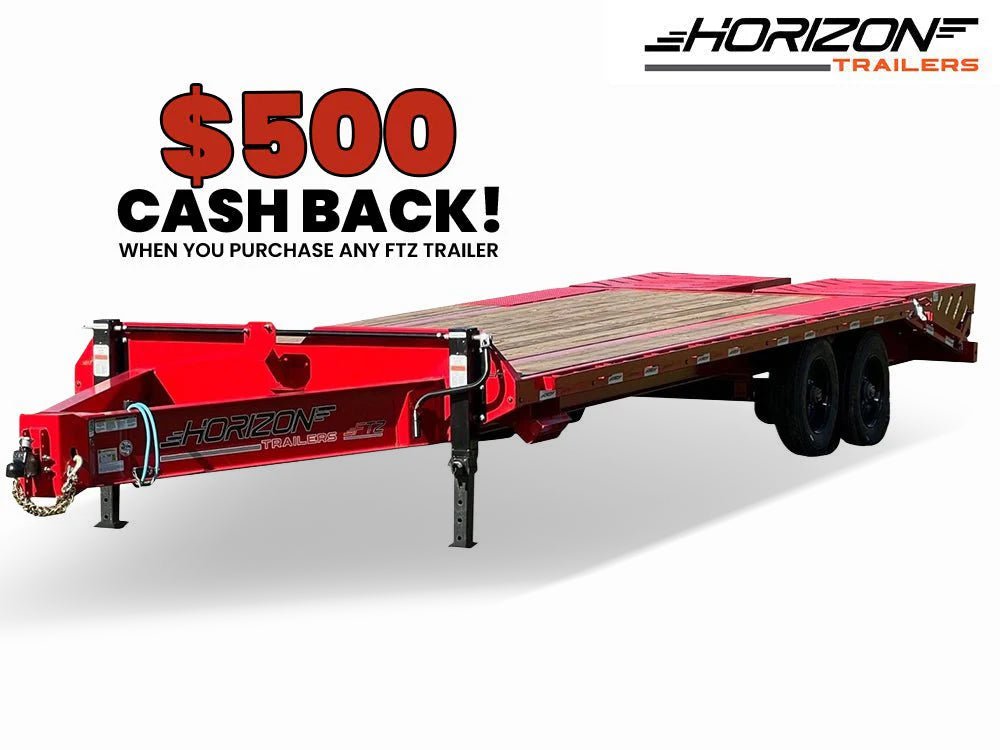

Product Details
DIMENSIONS
- LENGTH:
- 20' - 32'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k SS
- GVWR:
- 15.2k - 31k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
TONGUE
- PULL TYPE:
- Bumper Pull
- LENGTH:
- 83" Long
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (17,000 lbs)
- FRONT JACK BP:
- 2 - Side Wind Spring Loaded 12k Drop-Leg Jacks
- TOOLBOX BP:
- Diamond Mesh Wire Floor Storage
DECK & LOADING

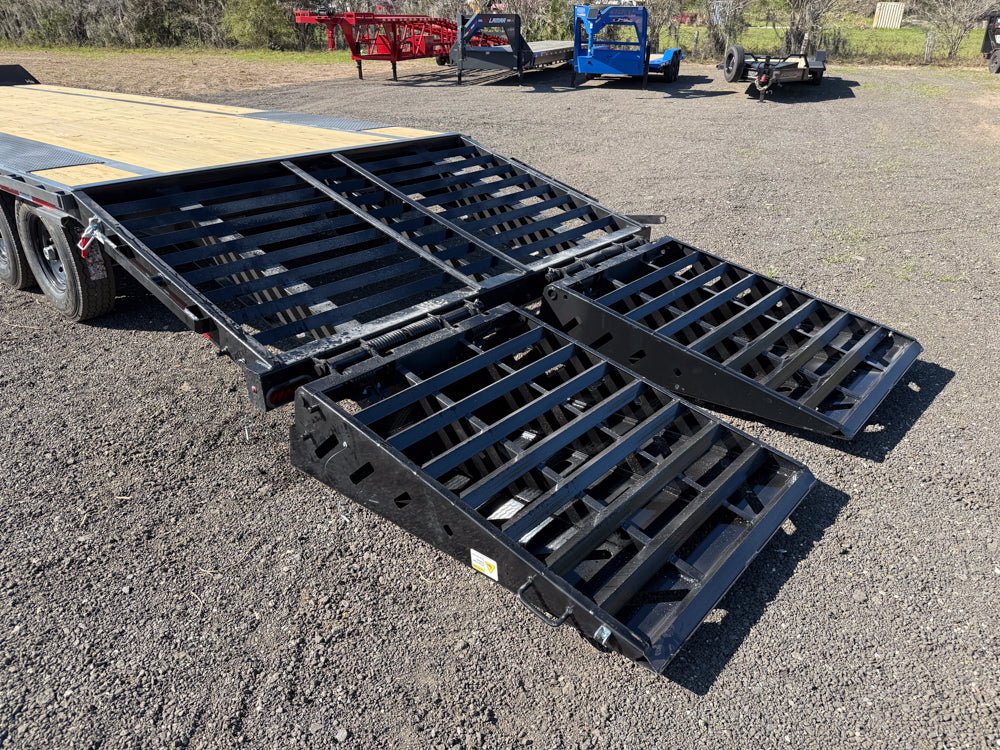

- RAMPS:
- 8' Slide In Ramps

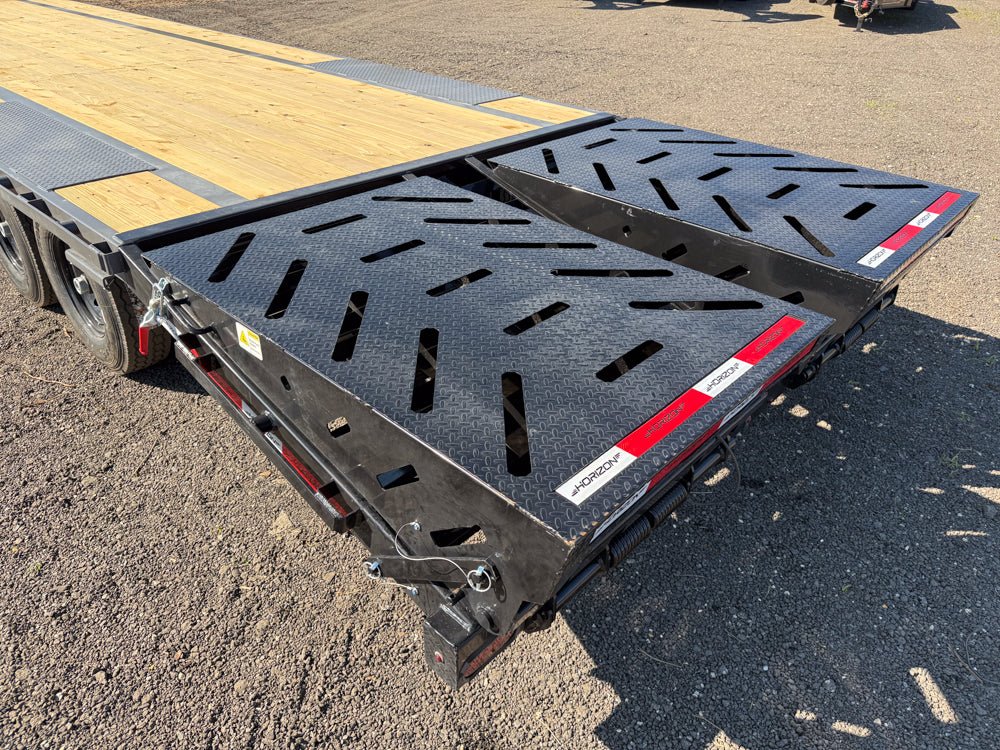

- RAMP TYPE:
- 5' Dovetail w/ 2 Mega Ramps

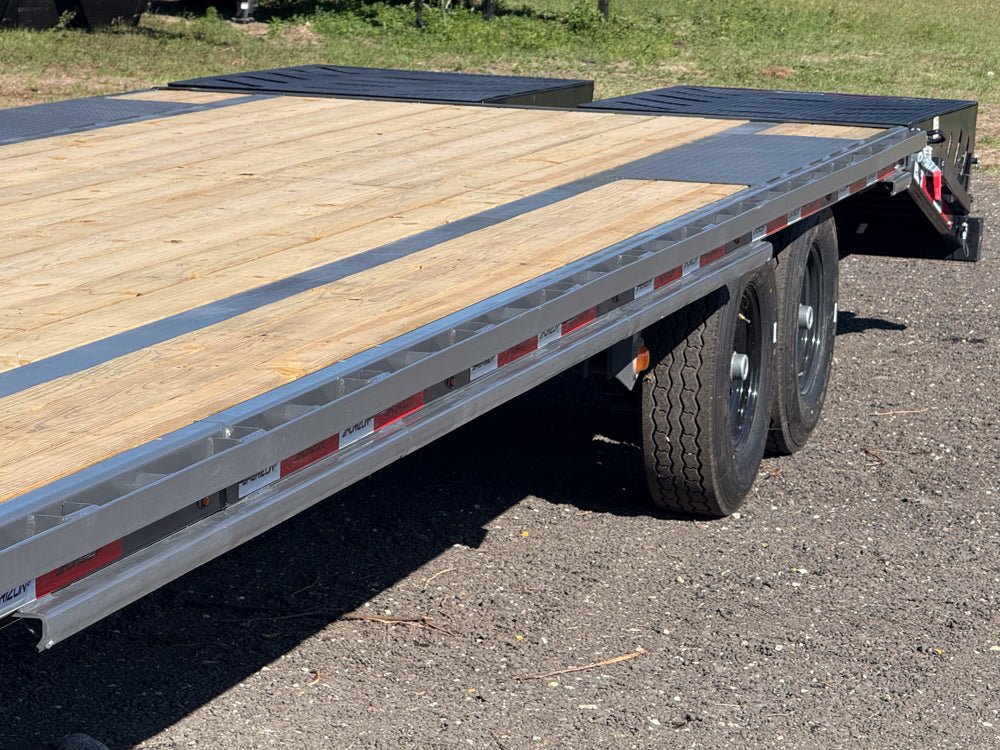

- DECK TYPE:
- Wood
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (14-19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
RUNNING GEAR

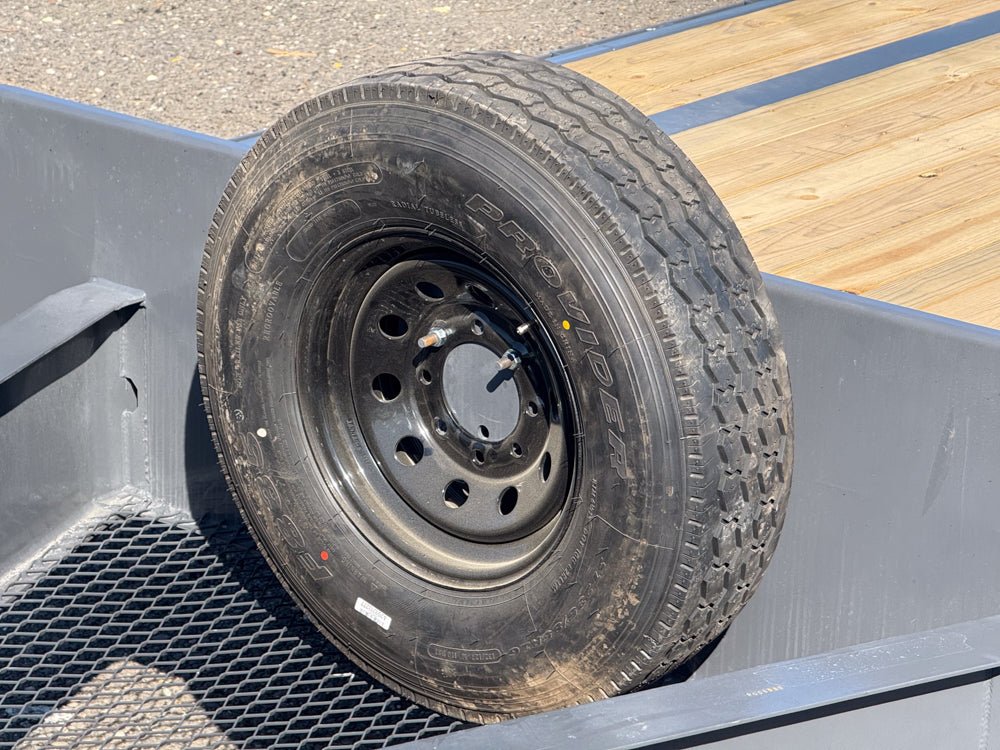

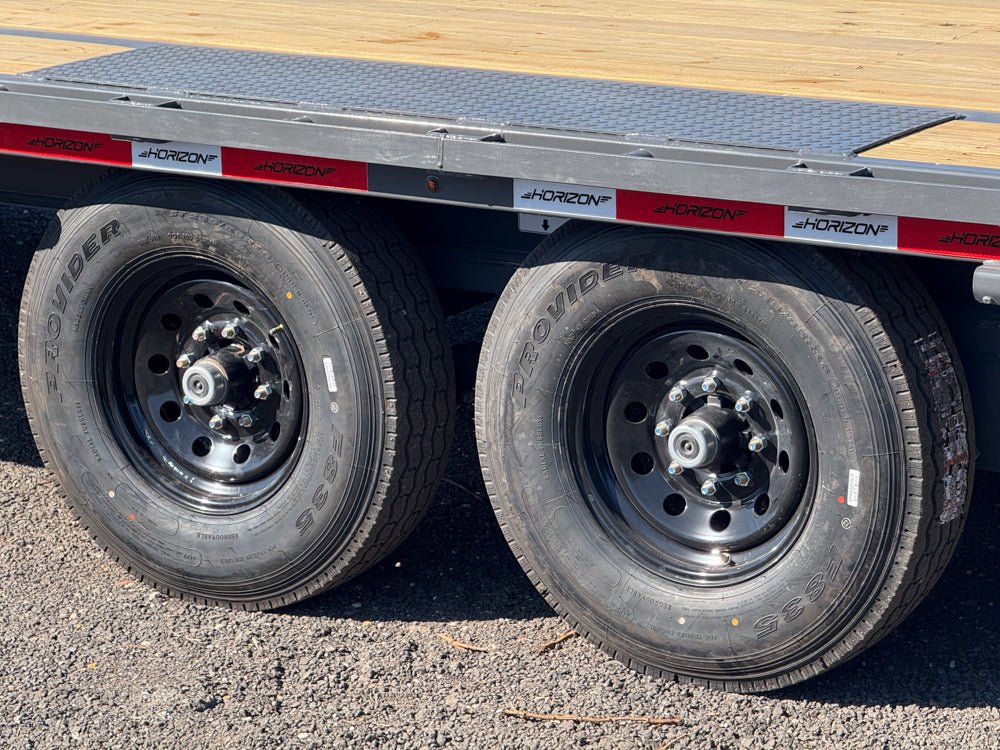

- TIRES:
- ST235/80R16 (7k), ST235/85R16 (8k), ST235/75R17.5 (10k)
- PLY:
- 10 Ply (7k), 14 Ply (8k), 18 Ply (10k SS)
- RIMS:
- 16" Black Mod Wheels (17.5" Black Mod Wheels on 10k)
- BRAKES:
- Electric Brake
- AXLE TYPE:
- 2 - 7k EZ Lube Axles
2 - 8k EZ Lube Axles
2 - 10k Oil Bath Super Single Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
