Product Details
DIMENSIONS
- LENGTH:
- 12'
- BED WIDTH:
- 77"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 27"
WEIGHT RATINGS
- AXLE OPTIONS:
- 5.2k
- GVWR:
- 11.3k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains

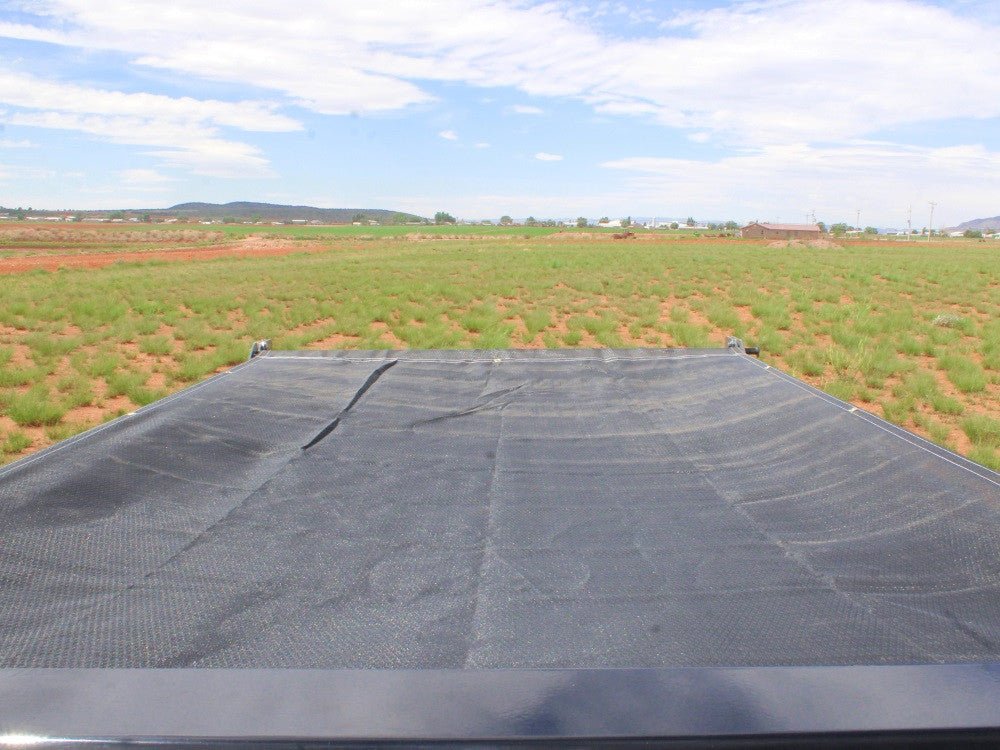

- TARP:
- Crank Style Roll-Up Tarp

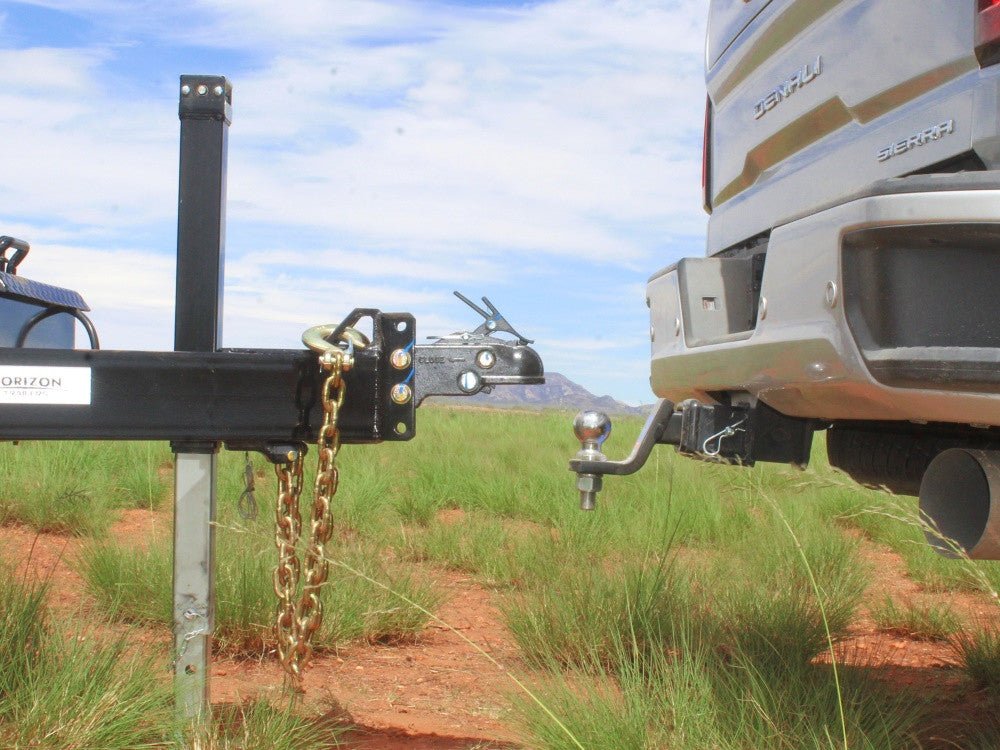

TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- LENGTH:
- 50"
- STANDARD COUPLER BP:
- Adjustable 2" Coupler (10,000 lbs)
- FRONT JACK BP:
- Single 7k Drop-Leg Jack

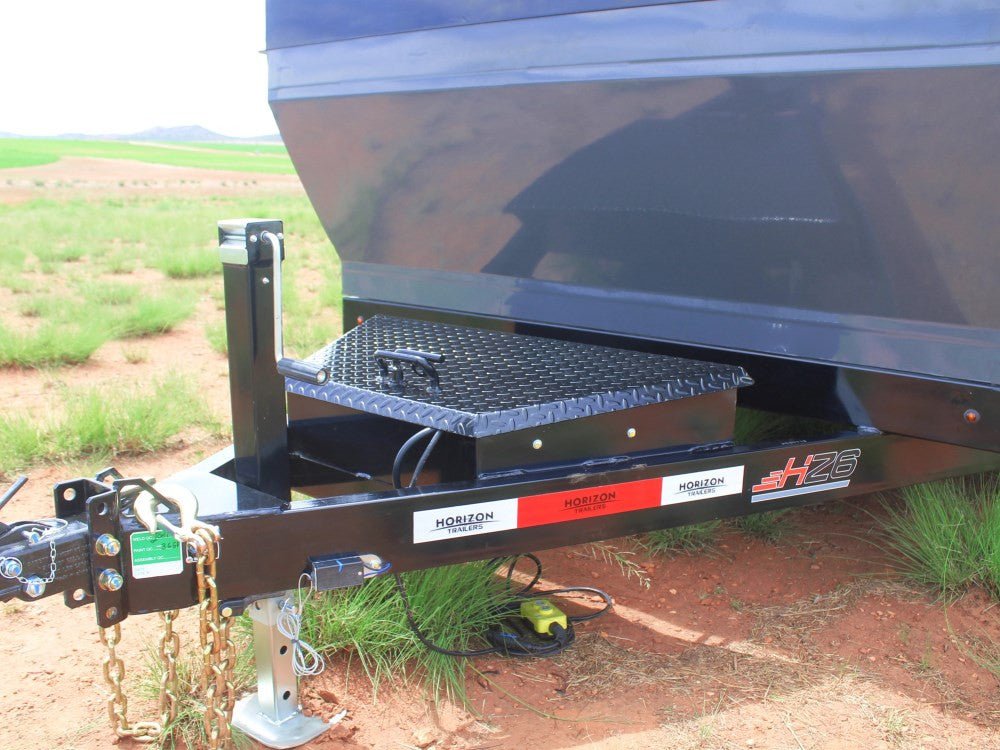

- TOOLBOX BP:
- Lockable Toolbox
CARGO AREA
- FLOORING:
- 9ga. Steel Bed

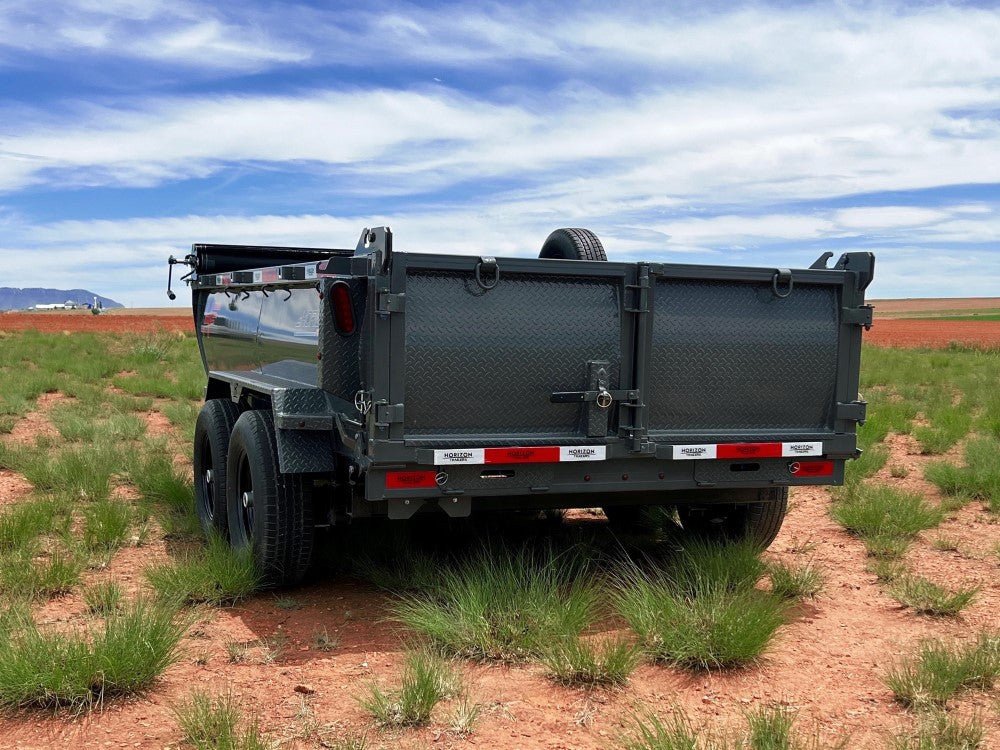

- GATE:
- 3 Way Spreader Gate
- D-RINGS:
- 4 D-Rings
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- RAMPS:
- 5' Slide In Ramps
- HOOKS:
- 3/8" Round J Hooks
- FENDERS:
- 14 Ga. Diamond Plate Fenders
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue

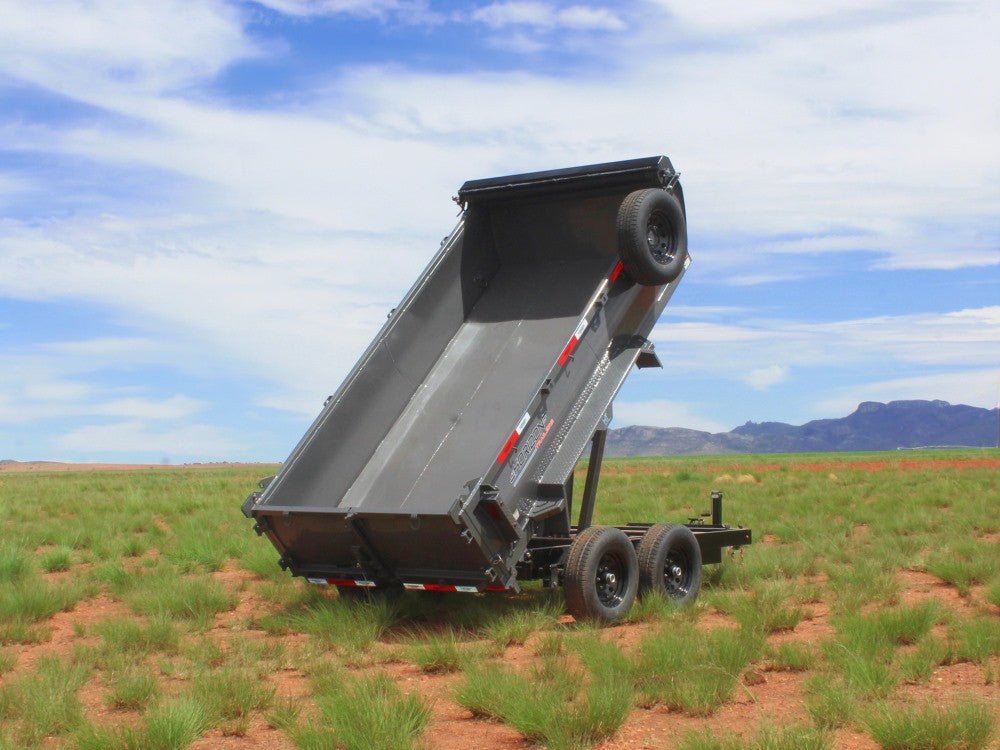

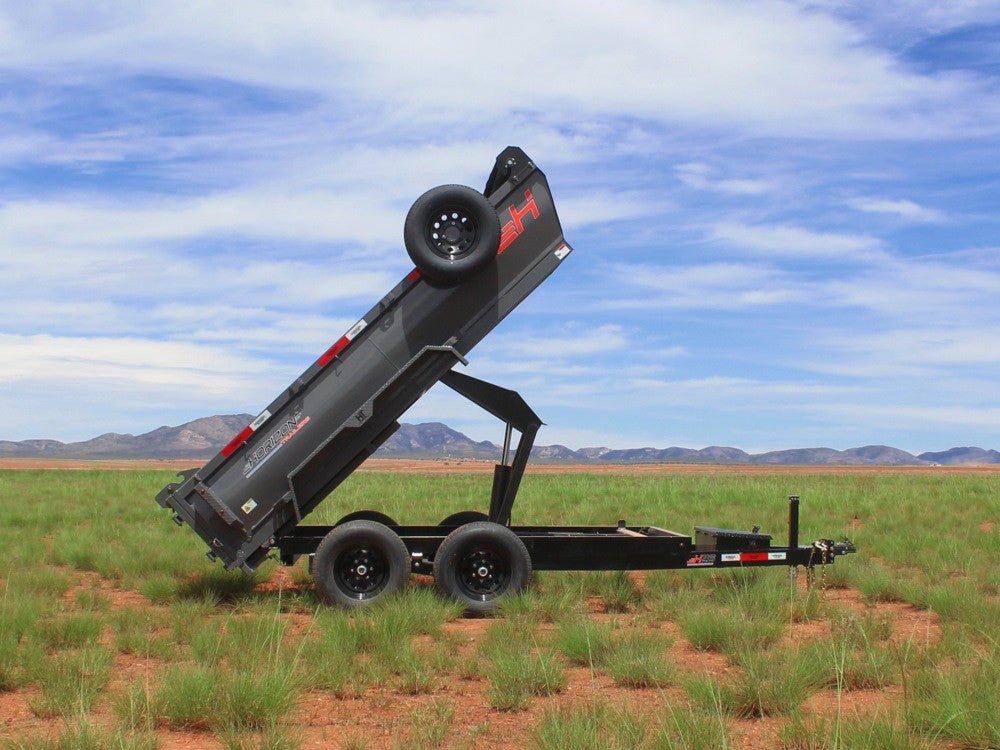

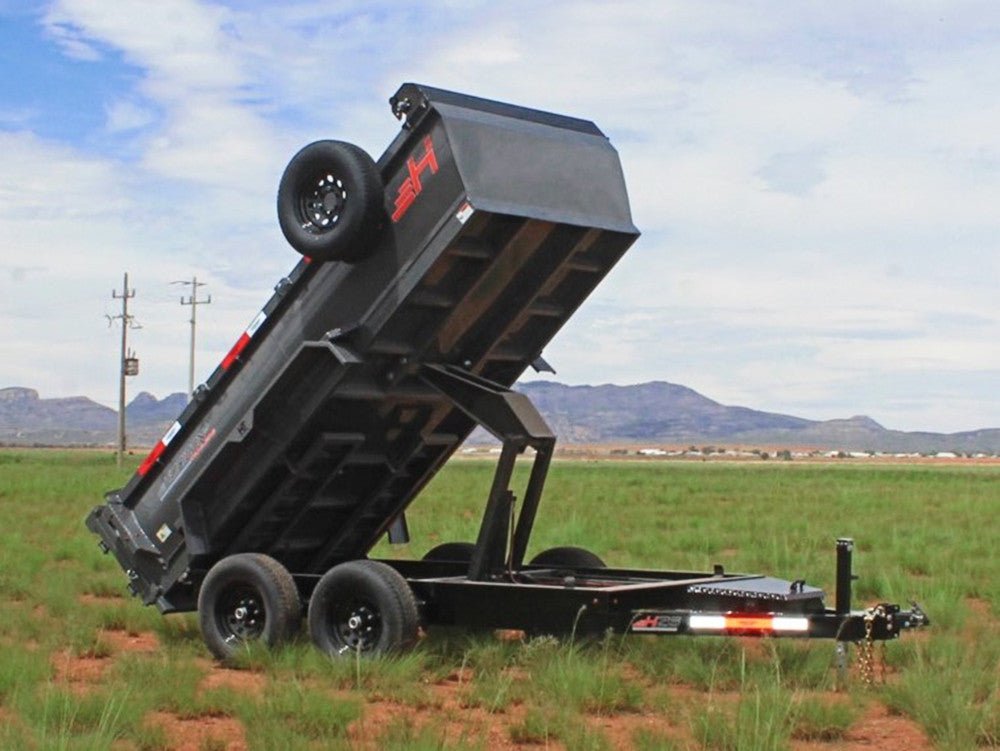

LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- Hoist w/ 5" x 16" Single Push Cylinder
- CONTROLLER:
- Wired
- HOIST CAPACITY:
- 15,000 lbs
- DUMP ANGLE:
- 45 Degrees
RUNNING GEAR
- TIRES:
- ST225/75R15
- TIRE PLY:
- 10
- TIRE RATING:
- 2,830 lbs
- RIMS:
- 15" Black Mod Wheels
- AXLE TYPE:
- 2 - 5.2k Dexter EZ Lube Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 6 on 5.5"
- SUSPENSION TYPE:
- Spring
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- 110V Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lights
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
