Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

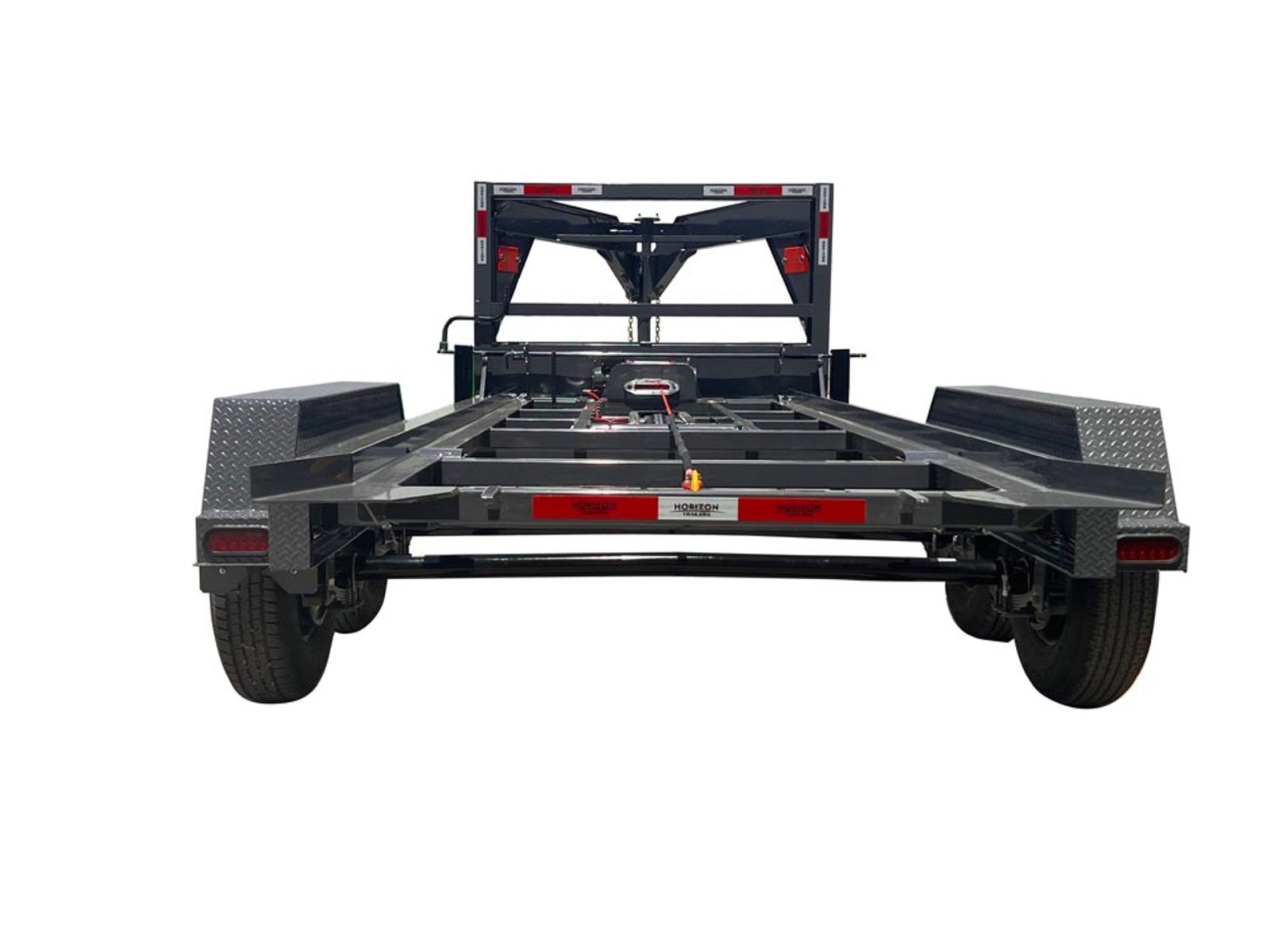

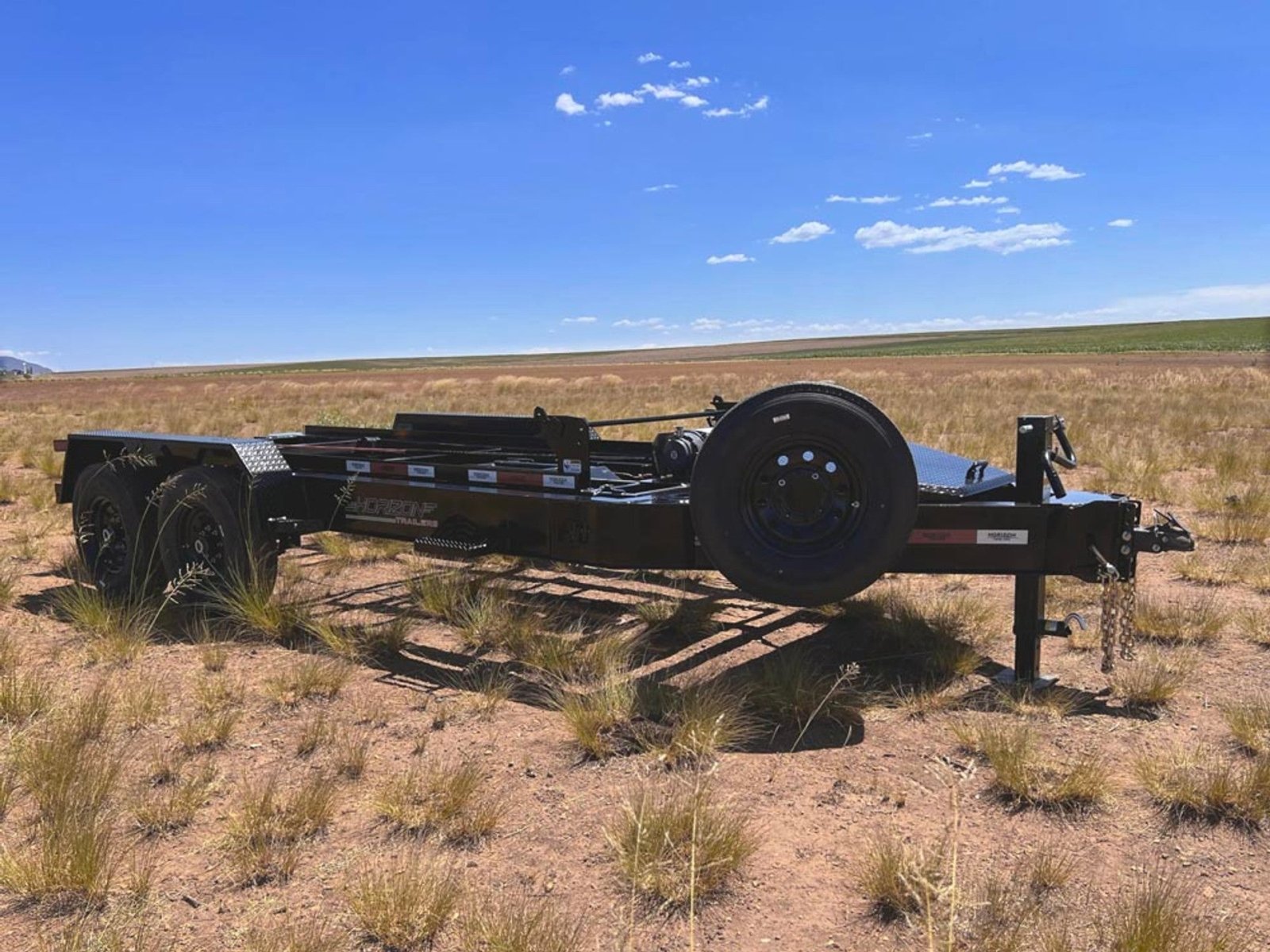

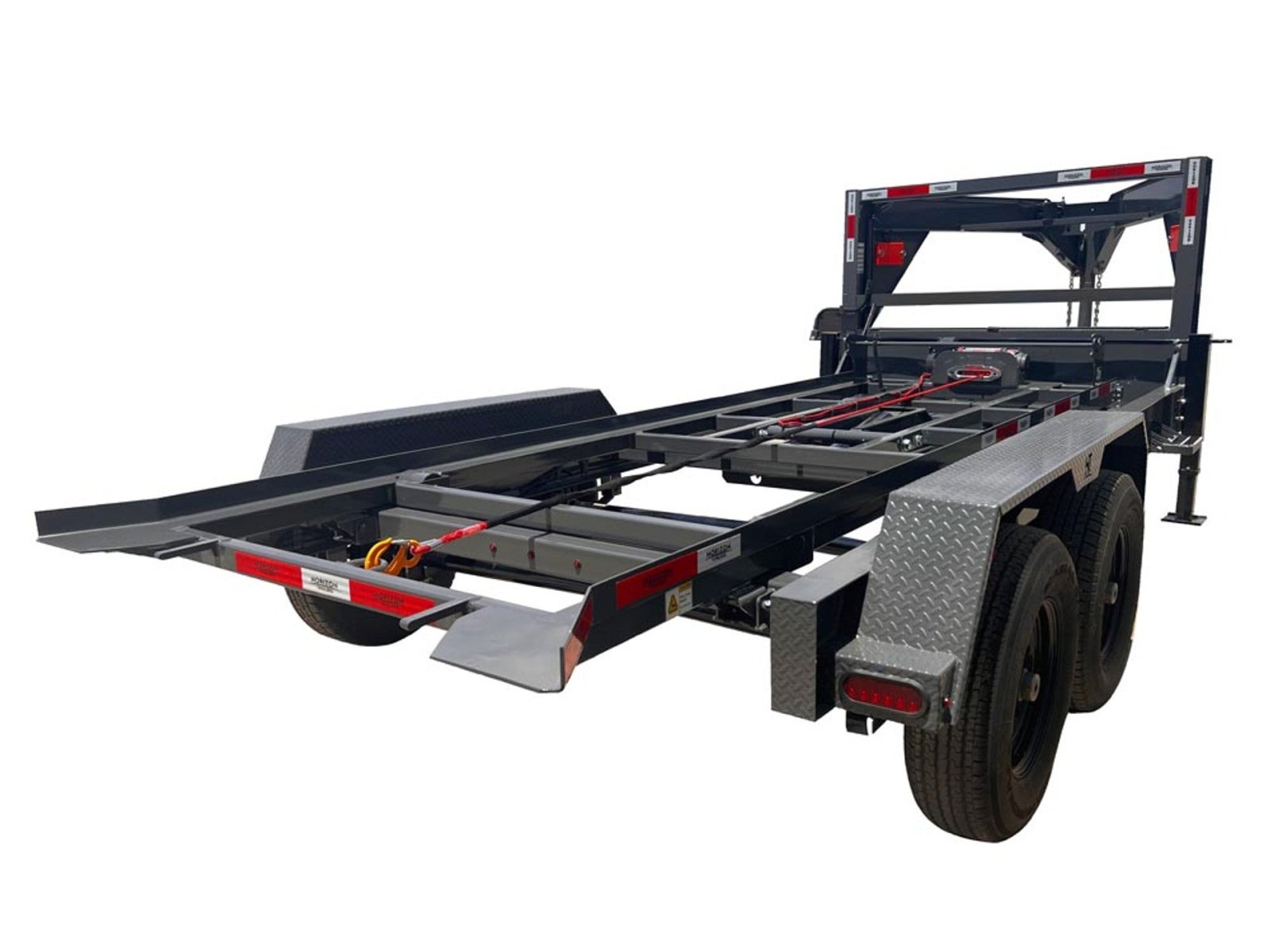

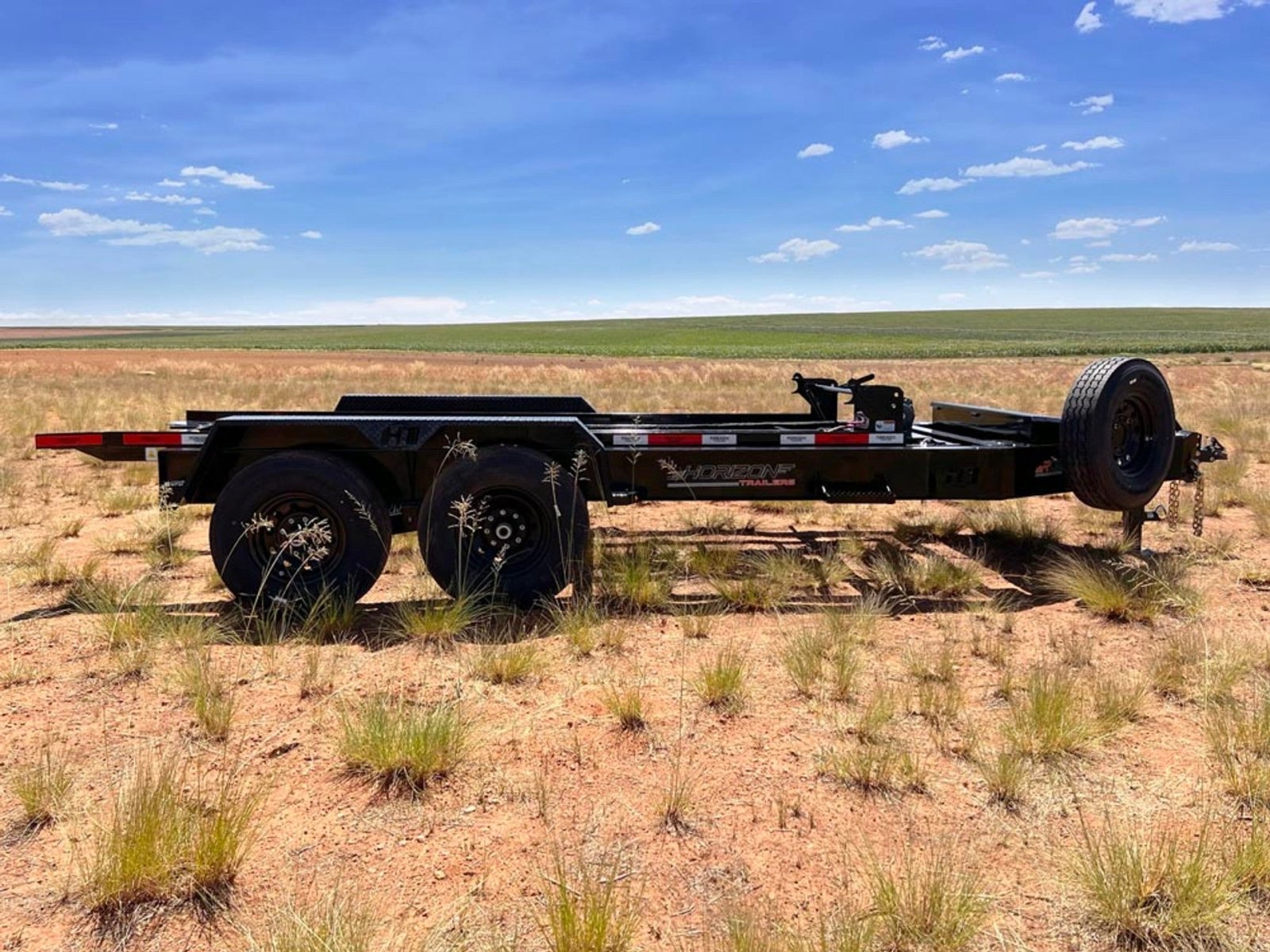

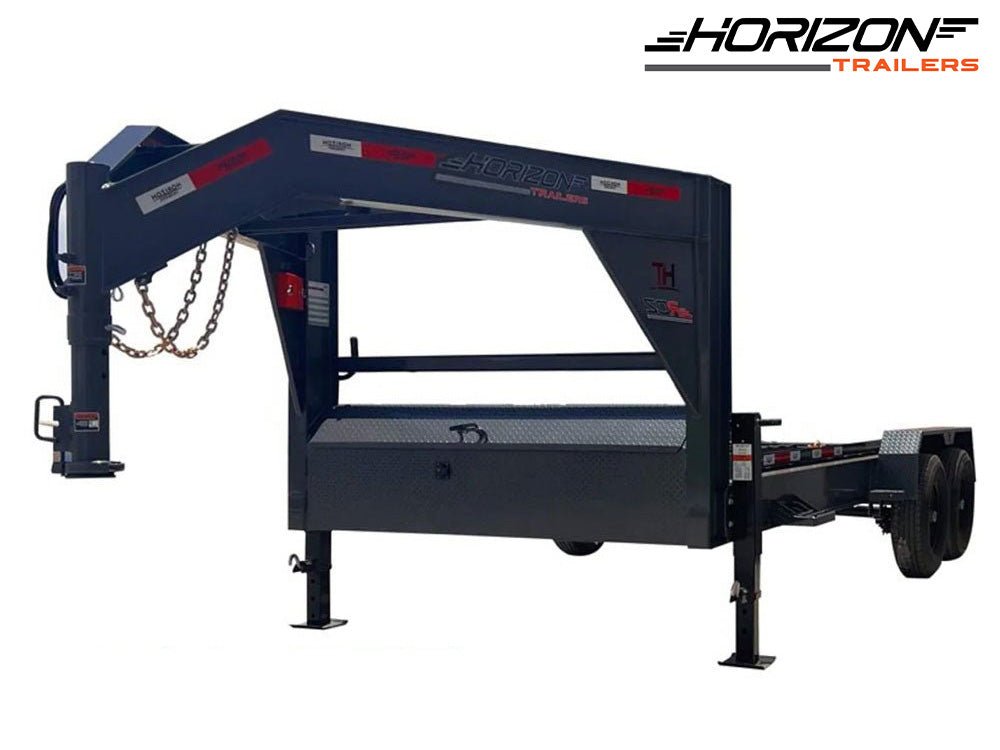

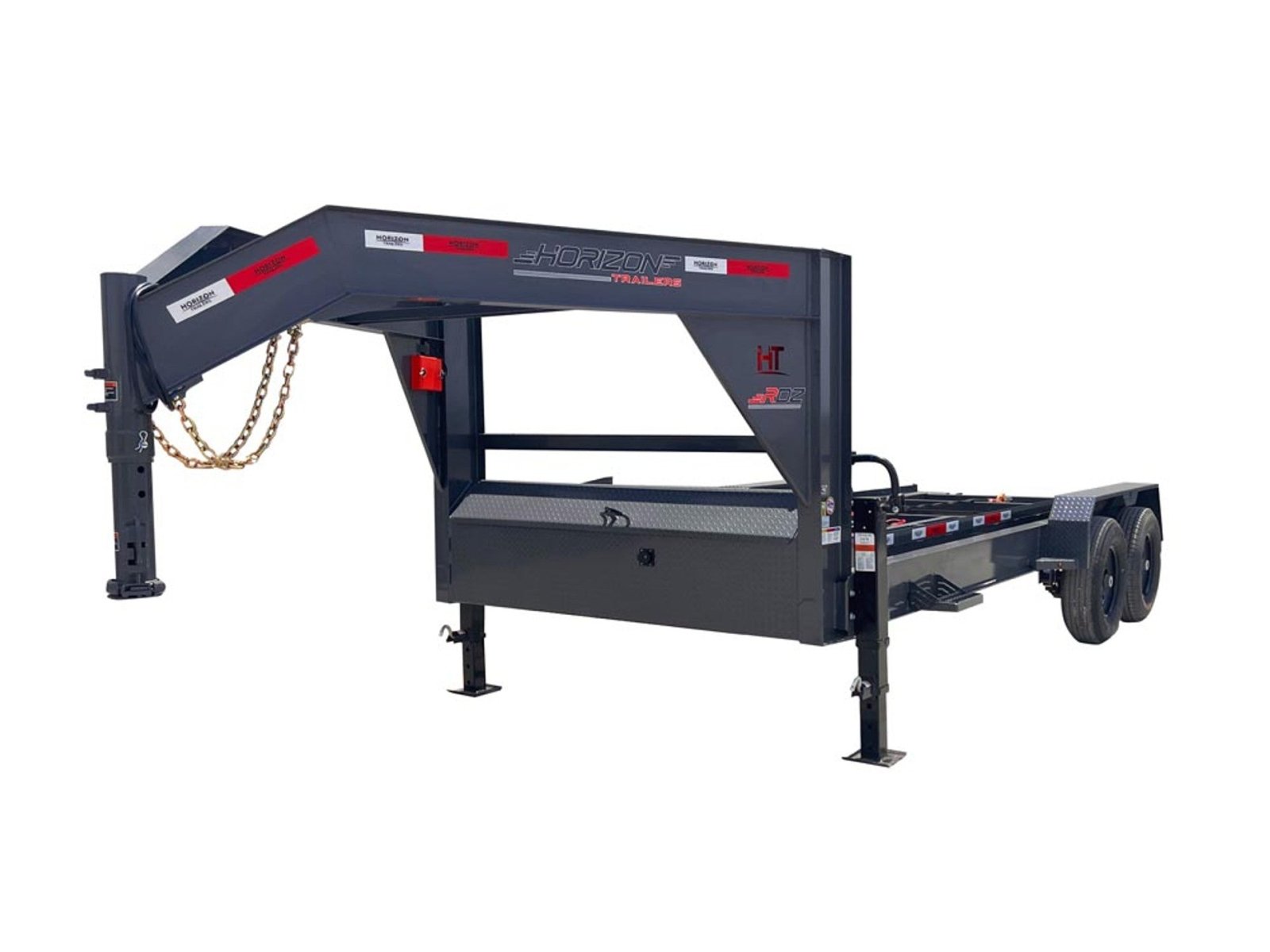

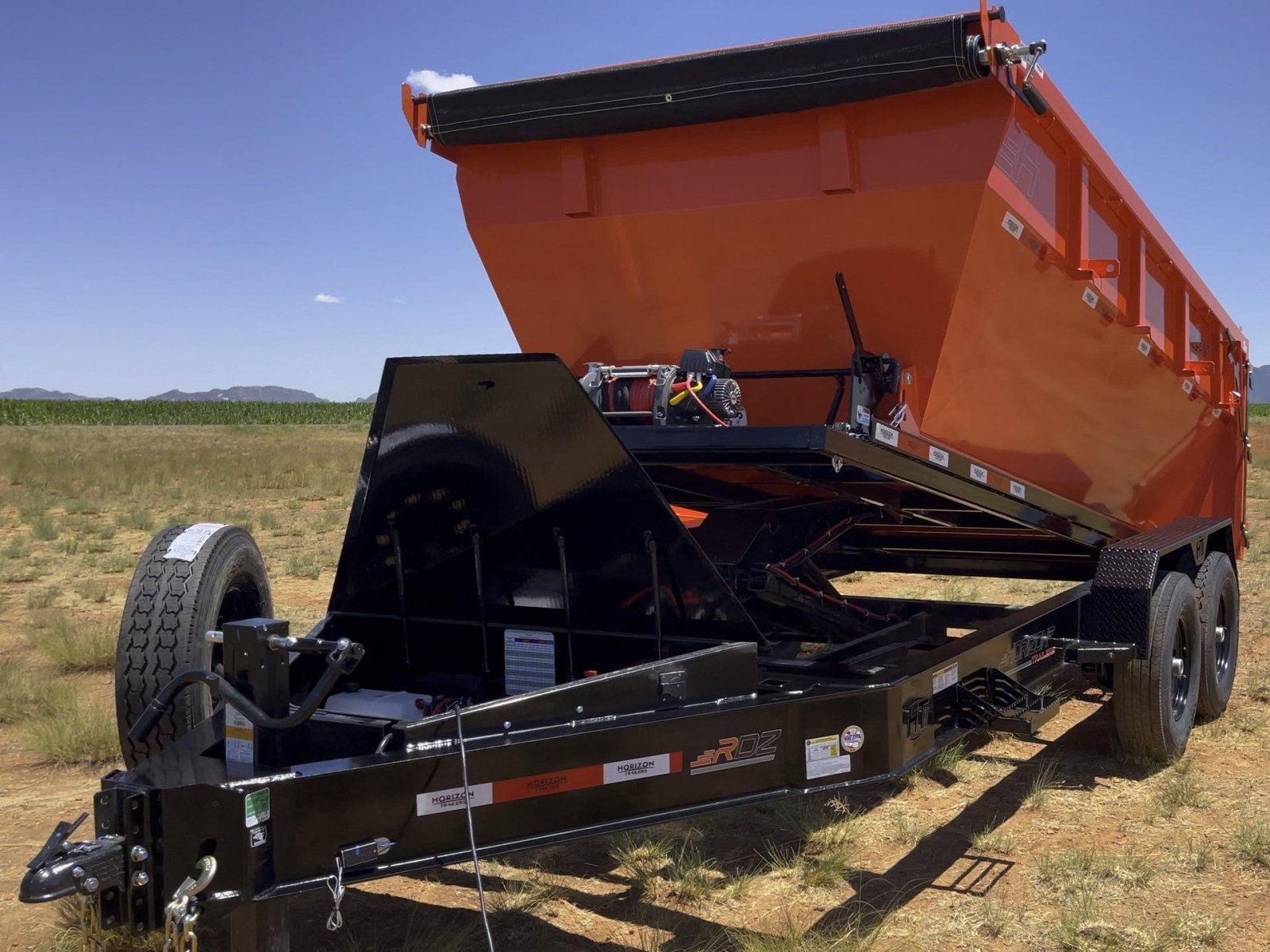

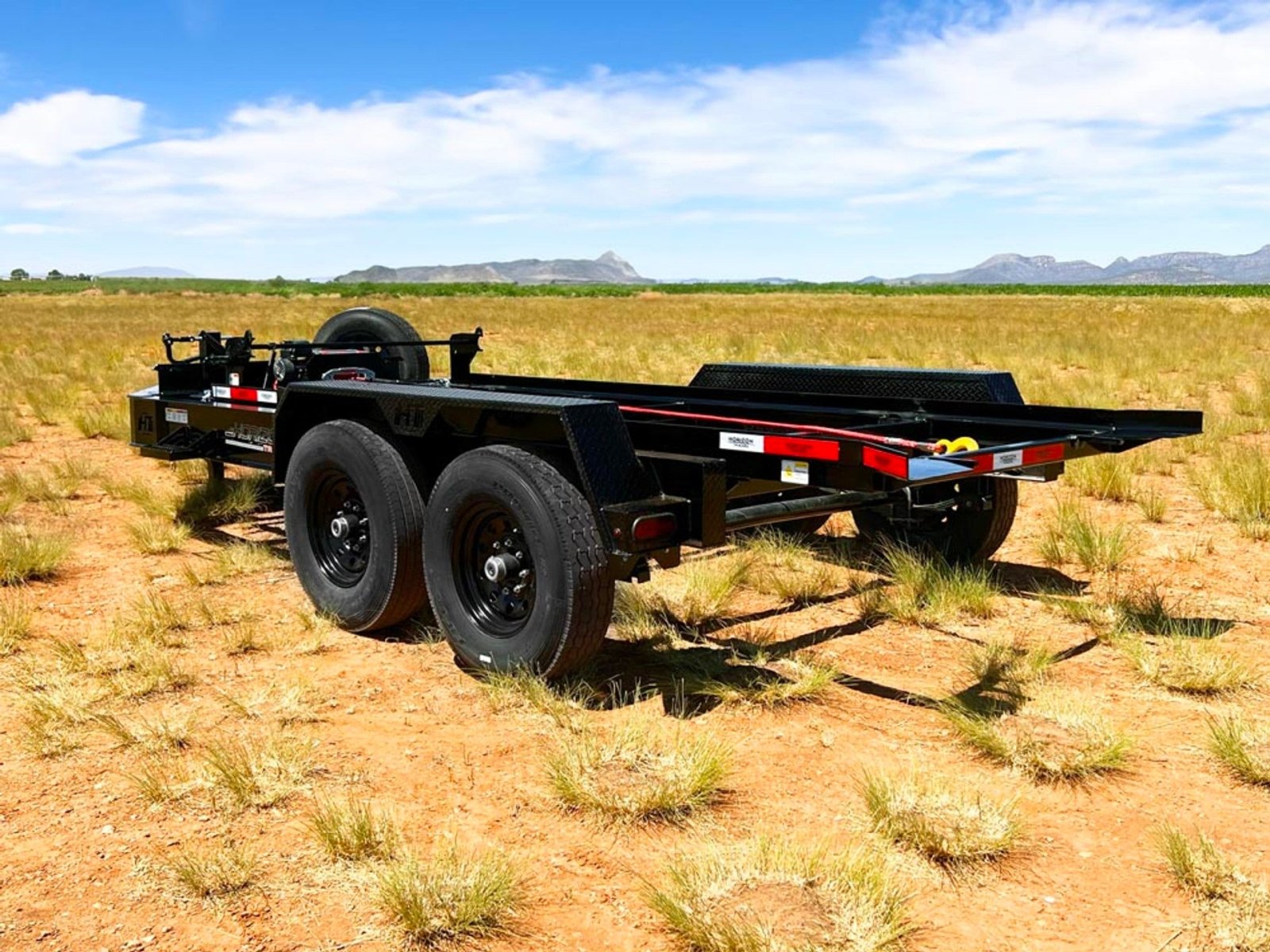

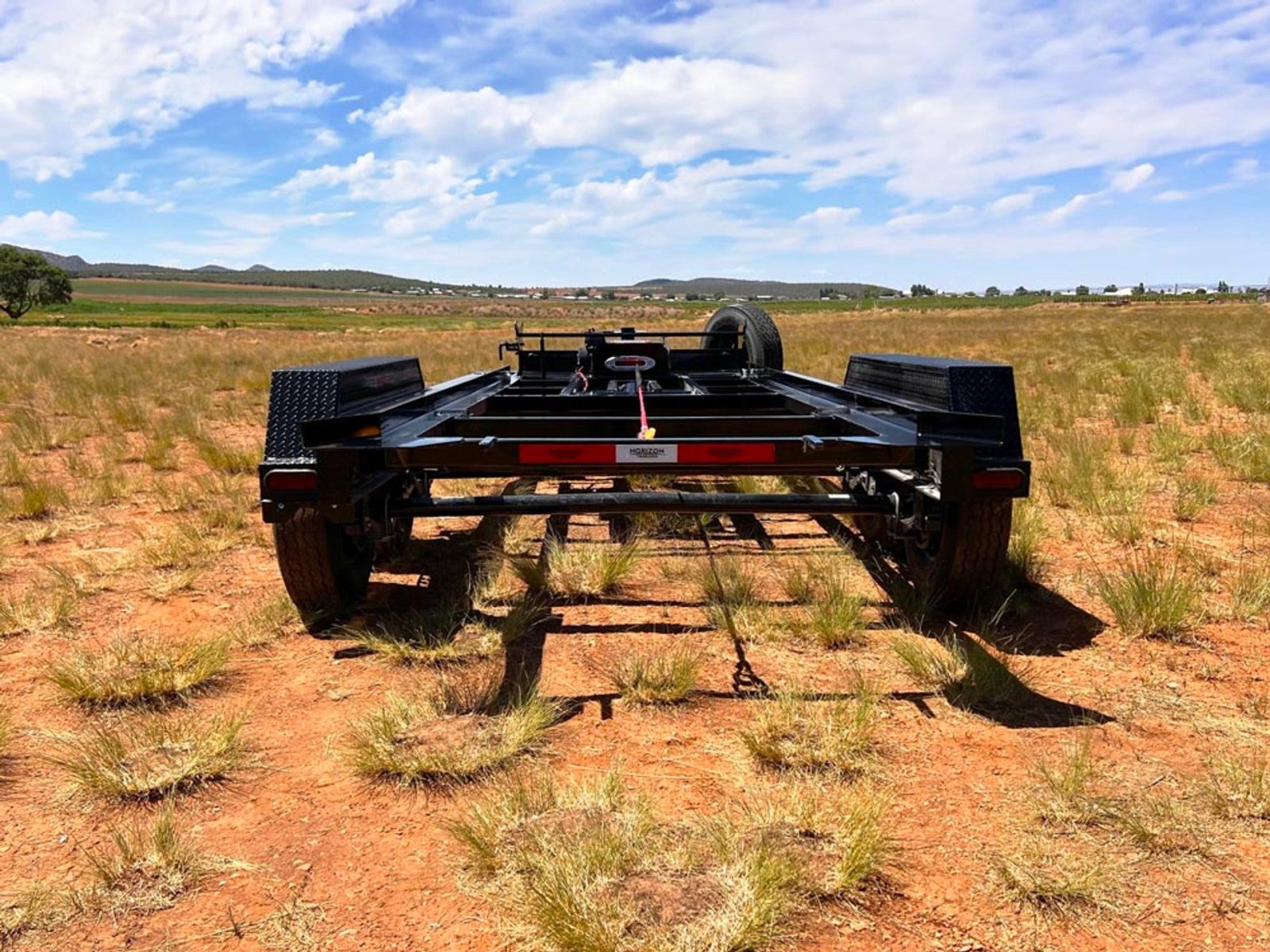

- Horizon RDZ Roll Off Trailer
- TYPE:
- Bumper Pull, Gooseneck
- LENGTHS:
- 14’, 16’
- DECK HEIGHT:
- 30"
- BED HEIGHT:
- 28"
- INSIDE WIDTH:
- 72"
- LENGTH (GN):
- 86"
- AXLE COUNT:
- 2
- AXLE RATING:
- 7K, 8K
- GVWR (BUMPER PULL):
- 15,260 lbs - 17,920 lbs
- GVWR (GOOSENECK):
- 15,680 lbs
- GAWR:
- 7,000 lbs x 2
FRAME & CONSTRUCTION
FRAME:
- FRAME:
- 10" I-Beam (15 lbs/ft)
- TILT FRAME:
- 2" x 3" x 3/16" Tubing
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) at 16" Spacing
- FLOORING:
- 1/8" Steel
- FENDERS:
- 16" x 9" x 72" Diamond Plate Steel
RUNNING GEAR & SAFETY
RUNNING GEAR:
- TIRES:
- Radial Tires, ST235/80R16
- COUPLER (GN):
- RAM Coupler 2-5/16" (25,000 lbs)
SAFETY:
- TOOLBOX:
- Lockable Toolbox (Houses Battery and Pump)
- SAFETY CHAINS:
- (2) 3/8", Grade 70, Safety Chain w/ Clevis Hooks
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M Dot Compliant Reflective Tape
- SAFETY CHAINS FOR ROLL OFF:
- (2) 1/4" Grade 30 Chain w/ Clevis Hook
ELECTRICAL & HYDRAULIC SYSTEM
ELECTRICAL:
- BATTERY:
- (2) 27 Deep Cycle Marine Battery
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
- WIRING HARNESS:
- All-Weather (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- SIDE MARKERS:
- DOT Approved LED Lights
HYDRAULIC SYSTEM:
- SYSTEM:
- Hydraulic - Power Up / Down
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 14’ Control Cable
- CYLINDER:
- 5" x 21" Single Push Cylinder w/ Scissor Lift
- TILT ANGLE:
- 55°
WINCH:
- WINCH:
- Warrior 17,500 lbs with 7.2 Hp Electric Motor
- WINCH CONTROLLER:
- Wireless Controller
