Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

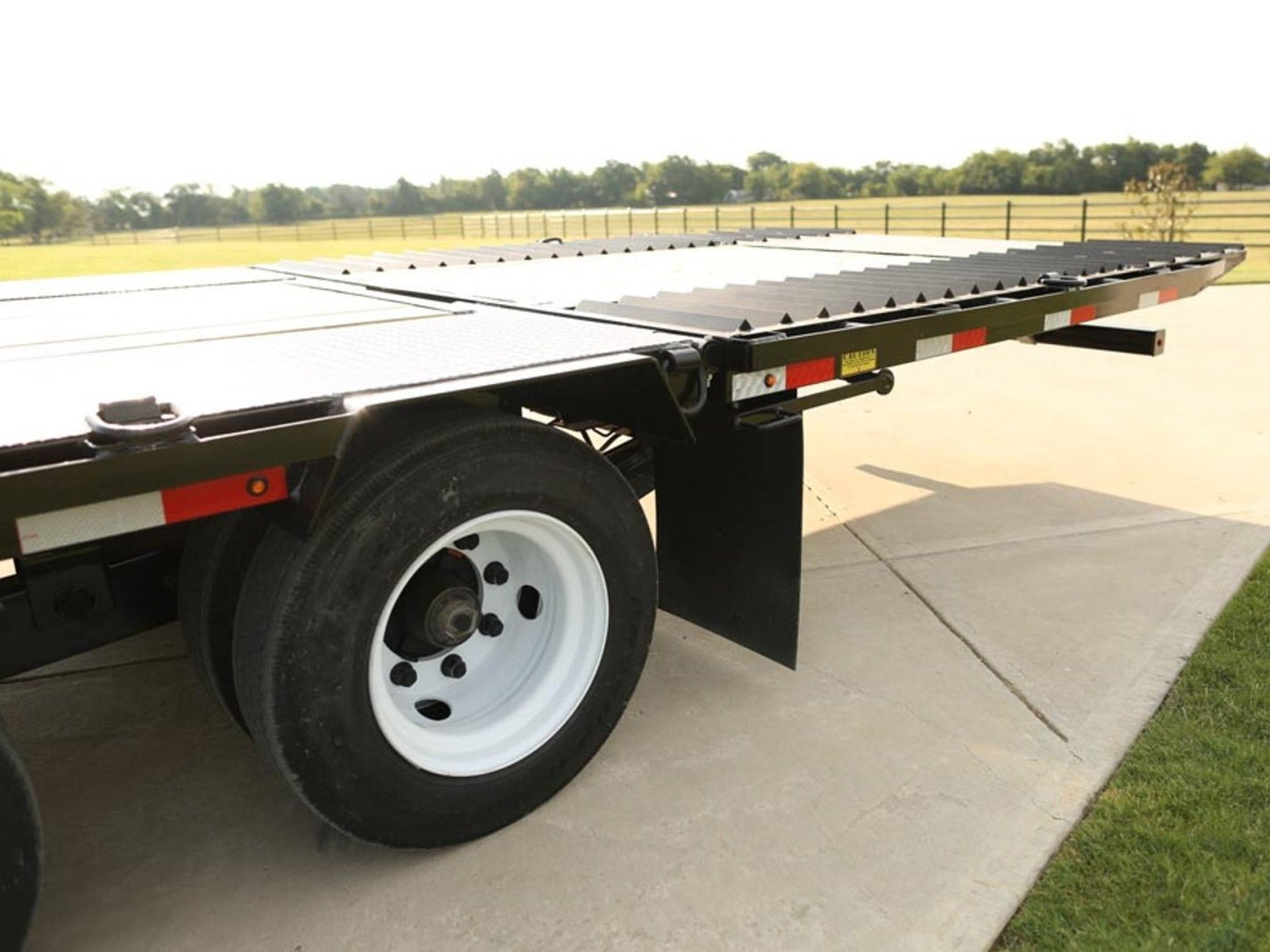

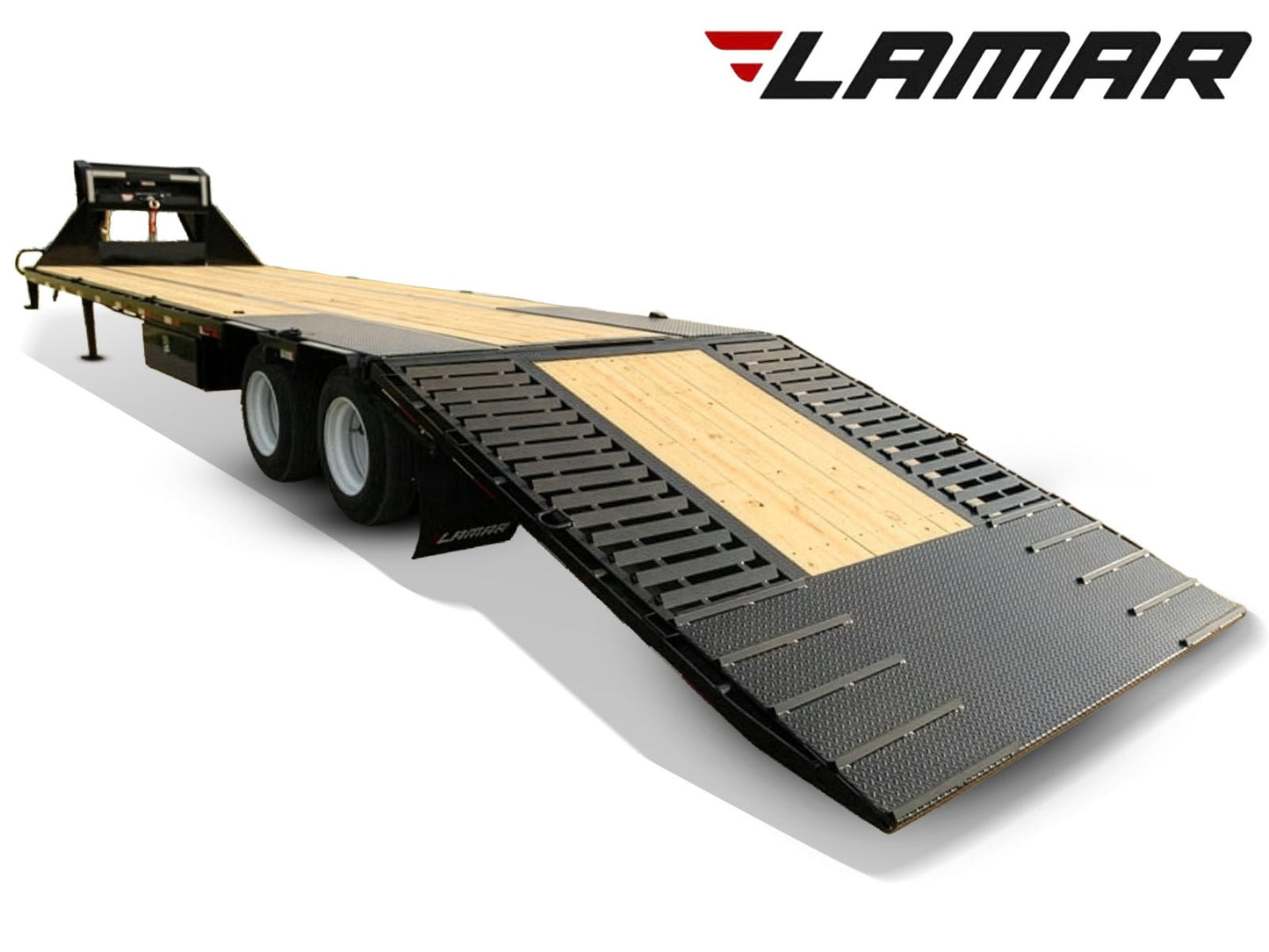

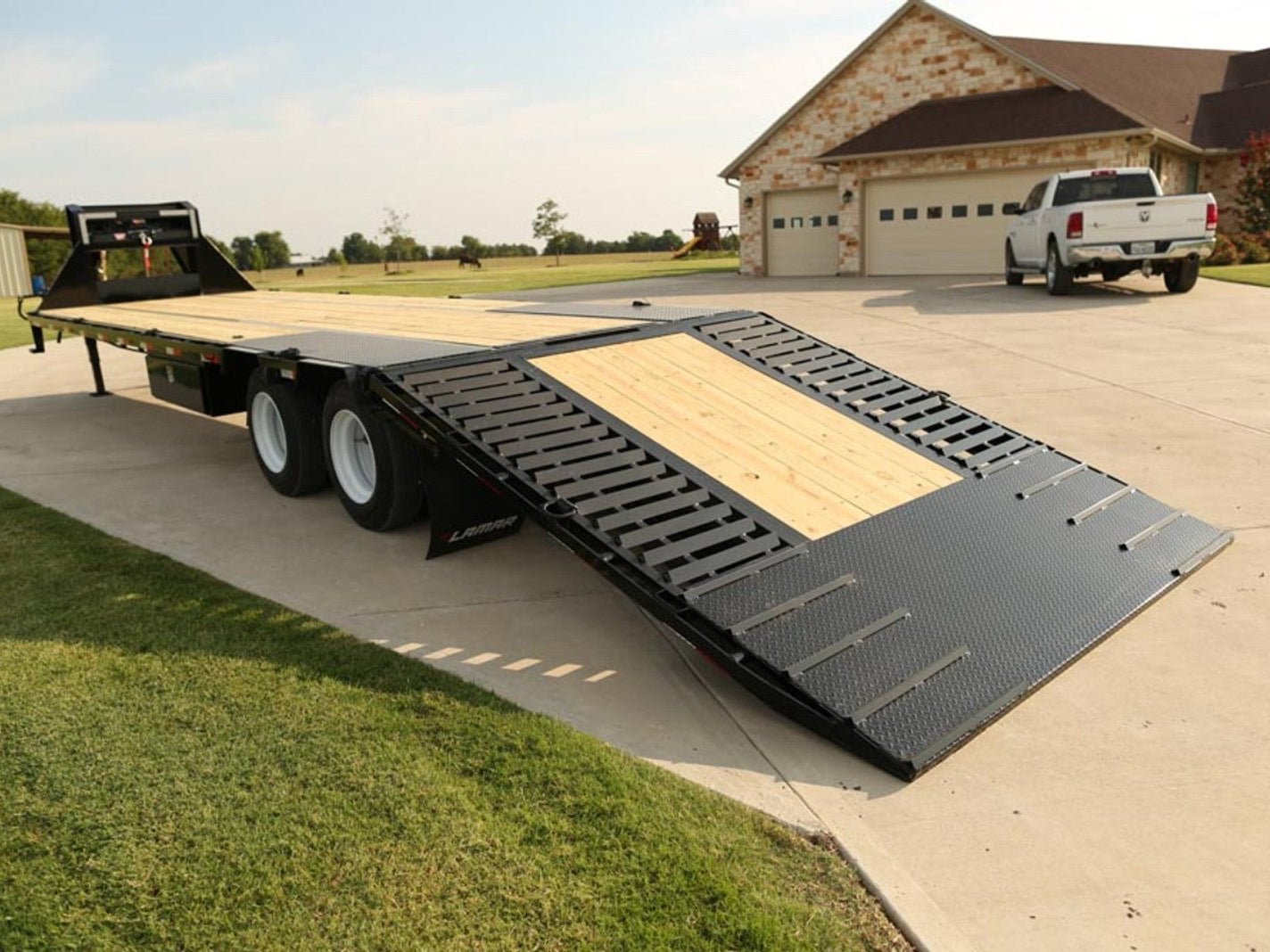

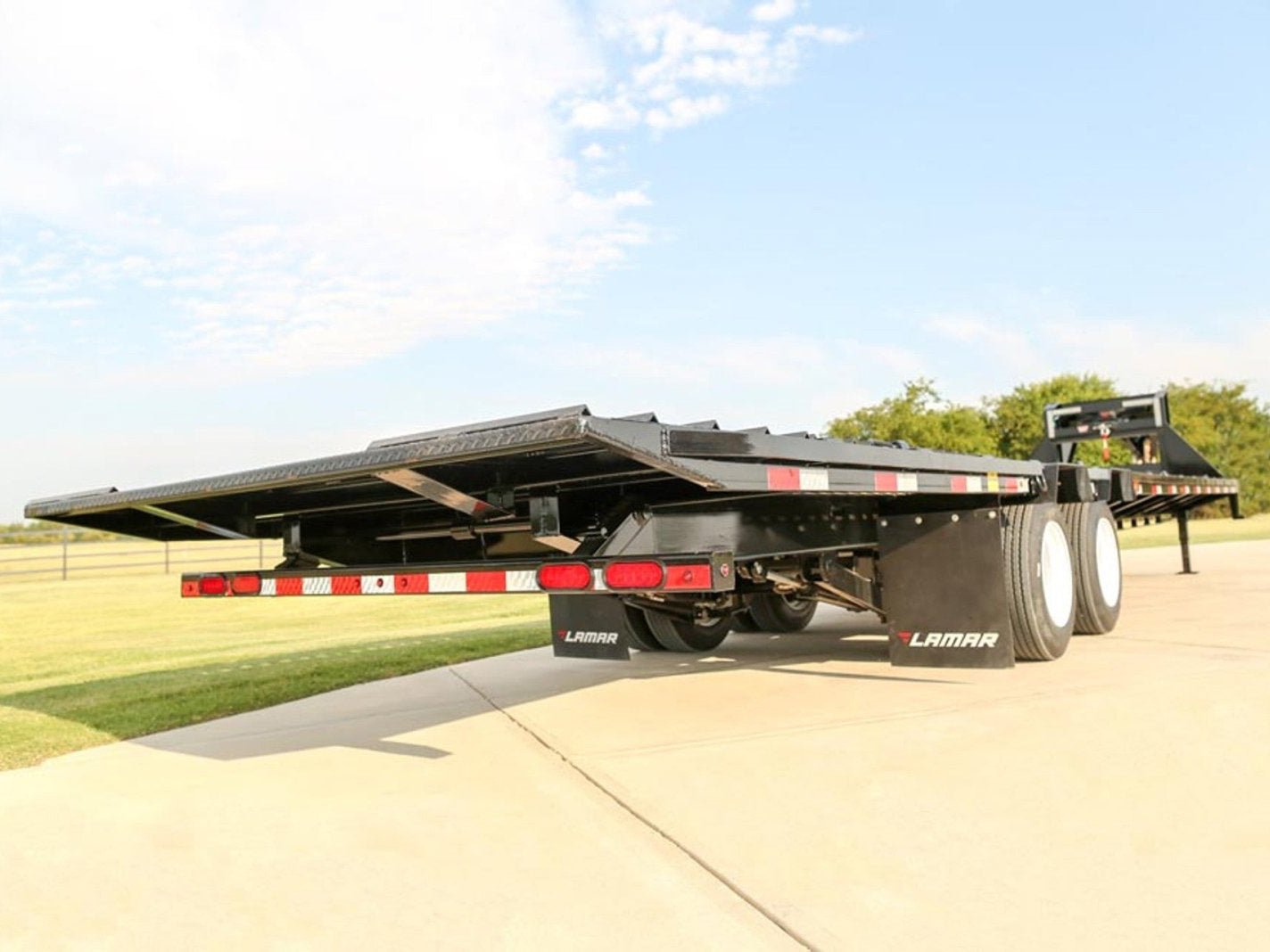

- Lamar FG Deckover Gooseneck Trailer - Hydraulic Dovetail
- 30K TANDEM SIZES:
- 102” x 25’, 102” x 32’, 102” x 36’, 102” x 40’
- 30K TANDEM WEIGHT:
- 8,890 lbs (25’), 9,735 lbs (32’), 10,300 lbs (36’), 10,840 lbs (40’)
- 30K TANDEM PAYLOAD:
- 21,110 lbs (25’), 20,265 lbs (32’), 19,700 lbs (36’), 19,160 lbs (40’)
- 30K TRIPLE AXLE SIZES:
- 102” x 32’, 102” x 36’, 102” x 40’
- 30K TRIPLE AXLE WEIGHT:
- 9,735 lbs (32’), 10,300 lbs (36’), 11,300 lbs (40’)
- 30K TRIPLE AXLE PAYLOAD:
- 20,265 lbs (32’), 19,700 lbs (36’), 18,700 lbs (40’)
- AXLES:
- 10K electric brake spring axles (varies by GVWR)
FRAME & CONSTRUCTION
FRAME:
- FRAME:
- 12” 22 lb I-beam frame
- CROSSMEMBERS:
- 16” spaced crossmembers
- FLOOR:
- Treated yellow pine floor
- TORQUE TUBE:
- Standard on 36’+
- UNDER-FRAME BRIDGE:
- Standard on 30’+
- DECK:

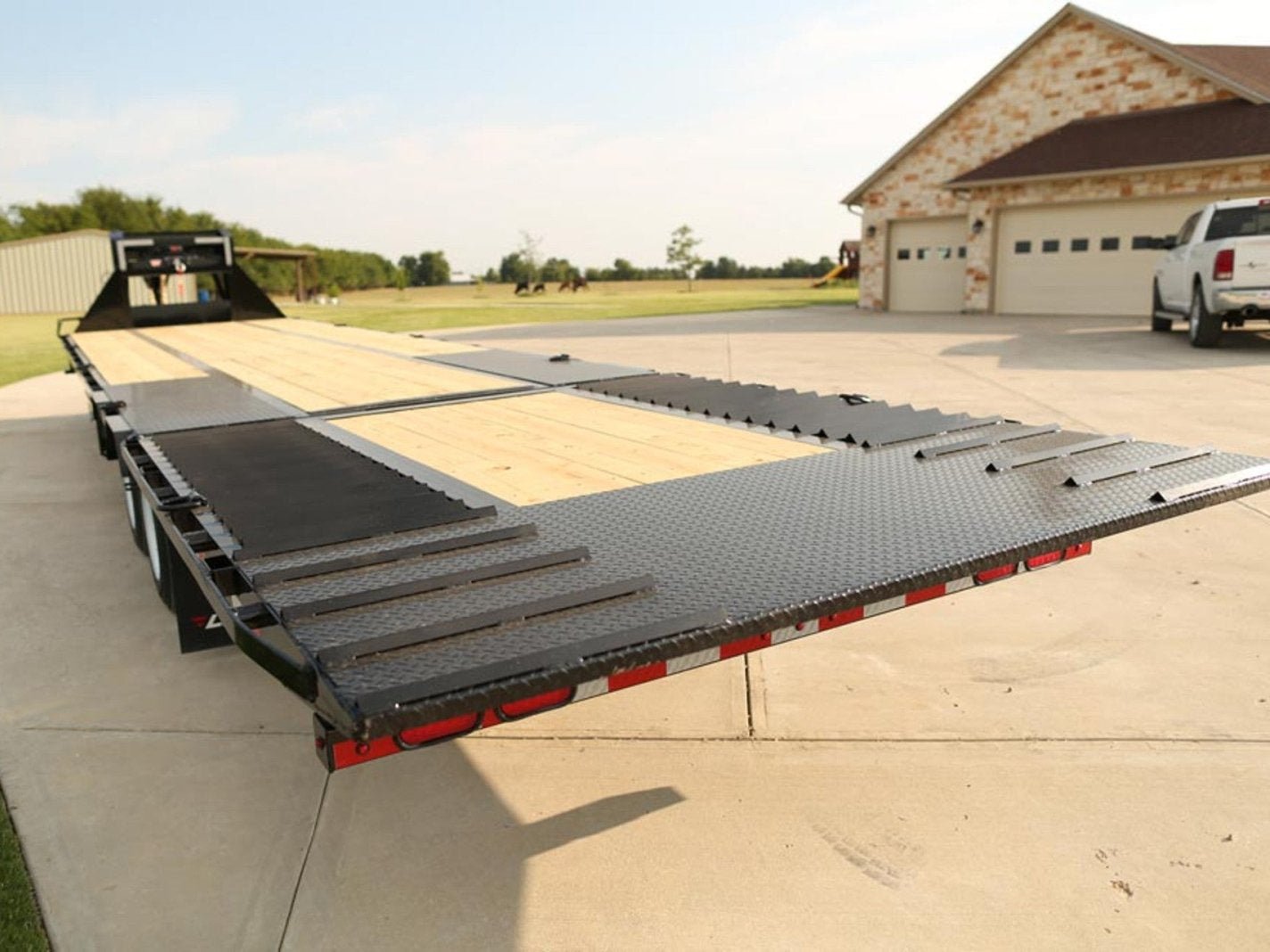

- 9' Hydraulic Dovetail
- HYDRAULIC SYSTEM:
- 12V DC hydraulic pump with remote control
- COLOR:
- Lamar charcoal gray powder coat
RUNNING GEAR & SAFETY
RUNNING GEAR:
- COUPLER:
- 2-5/16” 30K gooseneck coupler
- COUPLER HEIGHT:
- Ground to coupler height 25” - 33”
- JACKS:
- Dual 10K drop-leg jacks
- TIRES:
- 215/75 R17.5 (H) 16 ply tire black dual wheel (varies by GVWR)
- SPARE:
- Spare mount
SAFETY:
- LIGHTING:
- LED lights
- SIDE TURN FLASHERS:
- Pair of side turn flashers (standard on 30’+)
- WIRING:
- Weather resistant harness (-65°F)
- SAFETY CHAINS:
- Included with hydraulic dovetail
- SAFETY LATCH:
- Automatic safety latch system
CARGO MANAGEMENT
CARGO:
- TOOLBOX:

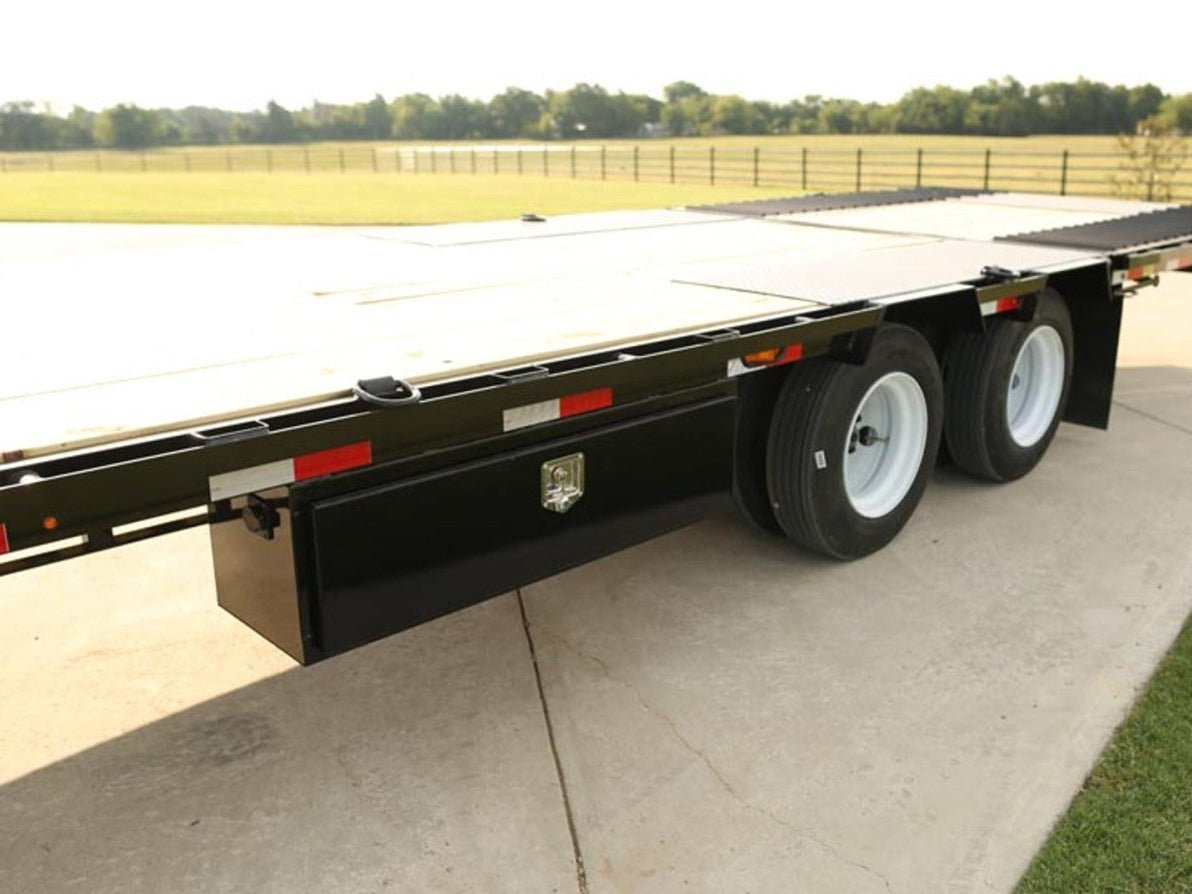

- Front toolbox
- RUB RAIL:
- Included
- STAKE POCKETS:
- Standard stake pockets
LOADING:
- LOADING ANGLE:
- 9' hydraulic dovetail - 20°
- HYDRAULIC OPERATION:
- Remote-controlled hydraulic operation
- MAX LIFT CAPACITY:
- 10,000 lbs
- CYCLE TIME:
- Approximately 45 seconds full cycle
- BATTERY REQUIREMENT:
- 12V vehicle battery or onboard battery system
STANDARD FEATURES:
- D-RINGS:
- Flush mount D-rings (6 minimum)
- RAMP STORAGE:
- Integrated ramp storage
- SAFETY CHAINS:
- Included with hydraulic system
