At a Glance
Product Features

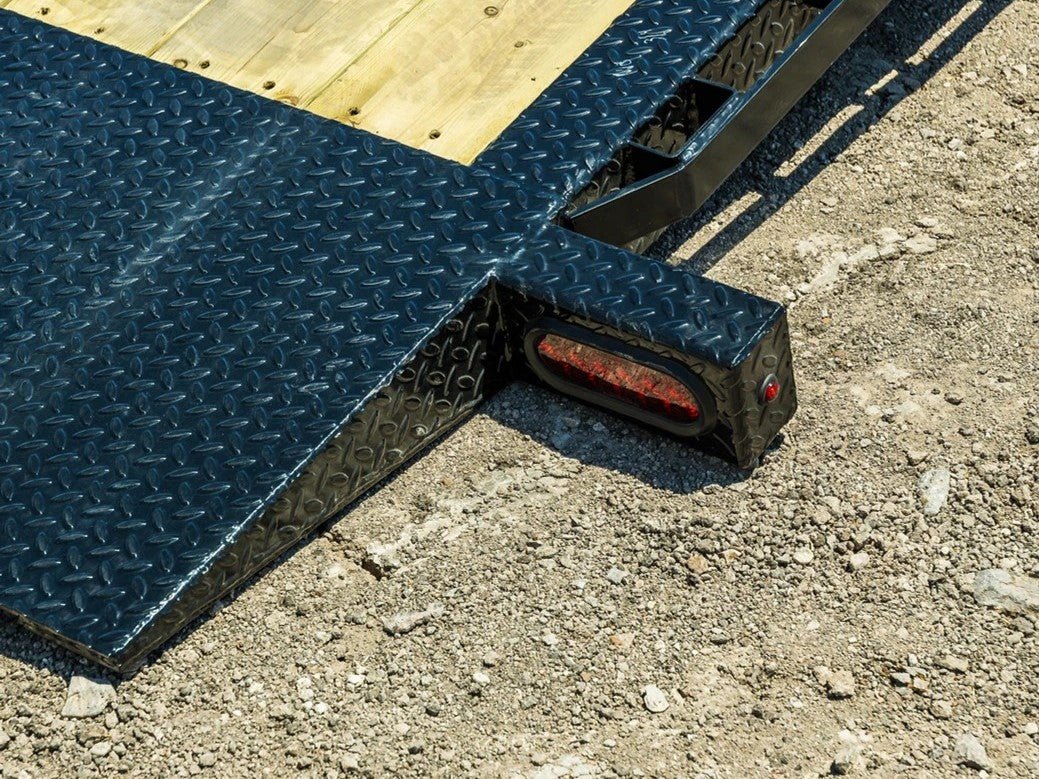

83" or 102" Deck Width Options
Available in a standard 83-inch deck width or an optional 102-inch wide deck. The wider deck provides maximum load space and stability for large equipment, with an optional drive-over fender package for a flush load surface.

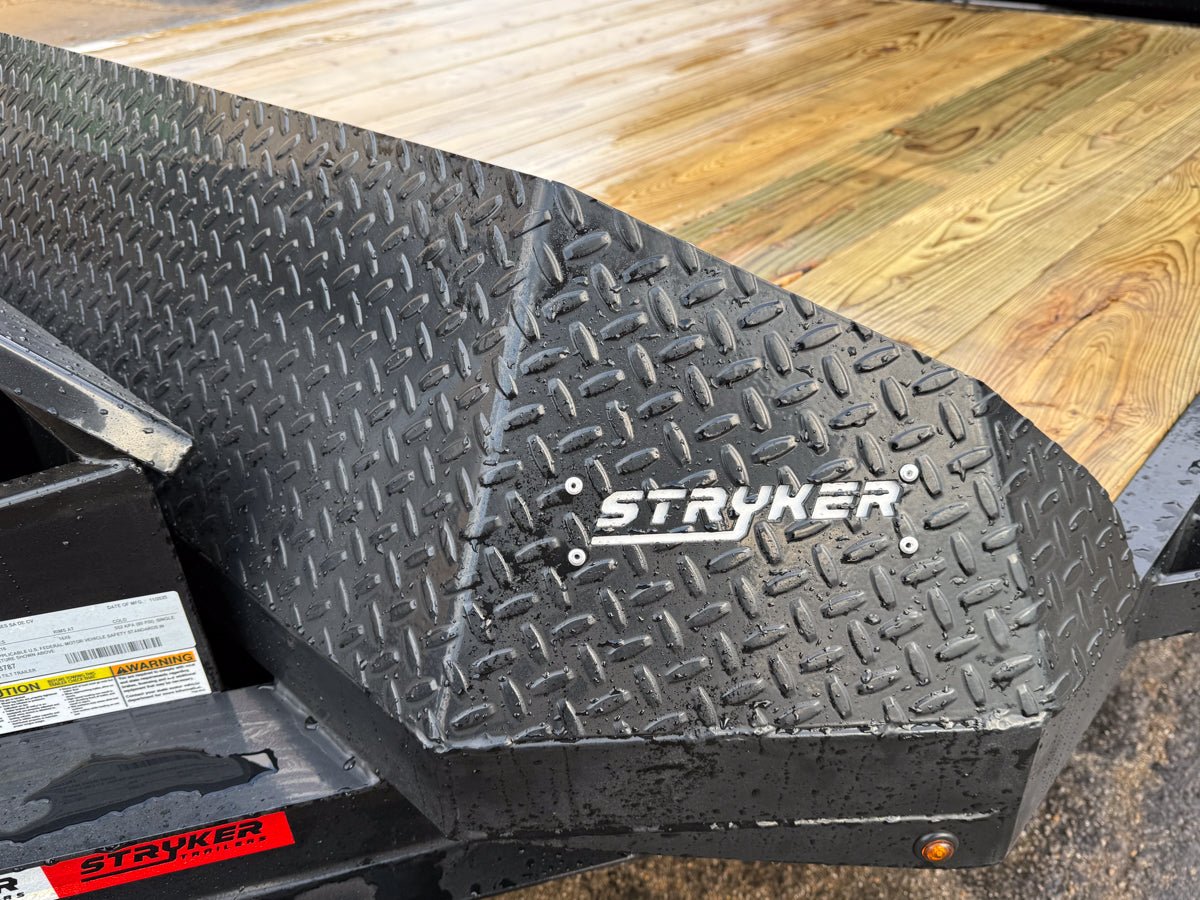

Protective Diamond Plate Front Shield
Features a durable diamond plate steel shield across the front of the trailer. This protective barrier safeguards the hydraulic components, wiring, and battery box from road debris, rocks, and impacts during transport.
6" Channel Main Frame
Built on a 6-inch structural channel main frame. This provides a solid foundation for the trailer's 14,000 to 16,000 lb GVWR capacities and the stresses of tilt operation.
7k or 8k Dexter Spring Axles
Configurable with either 7k or 8k Dexter spring axles with electric brakes. Both axle options are backed by a 5-year Dexter warranty for reliable hauling performance.

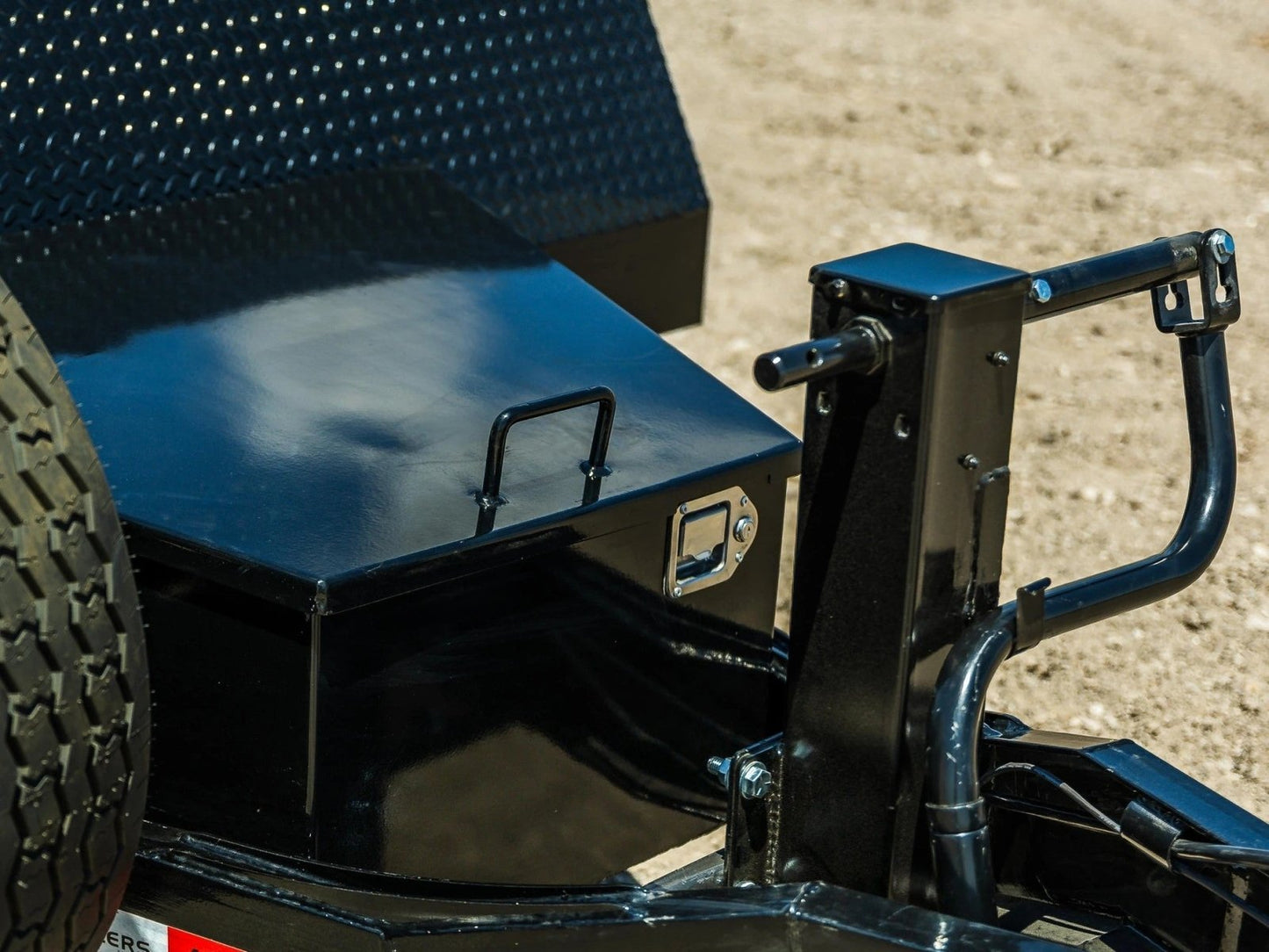

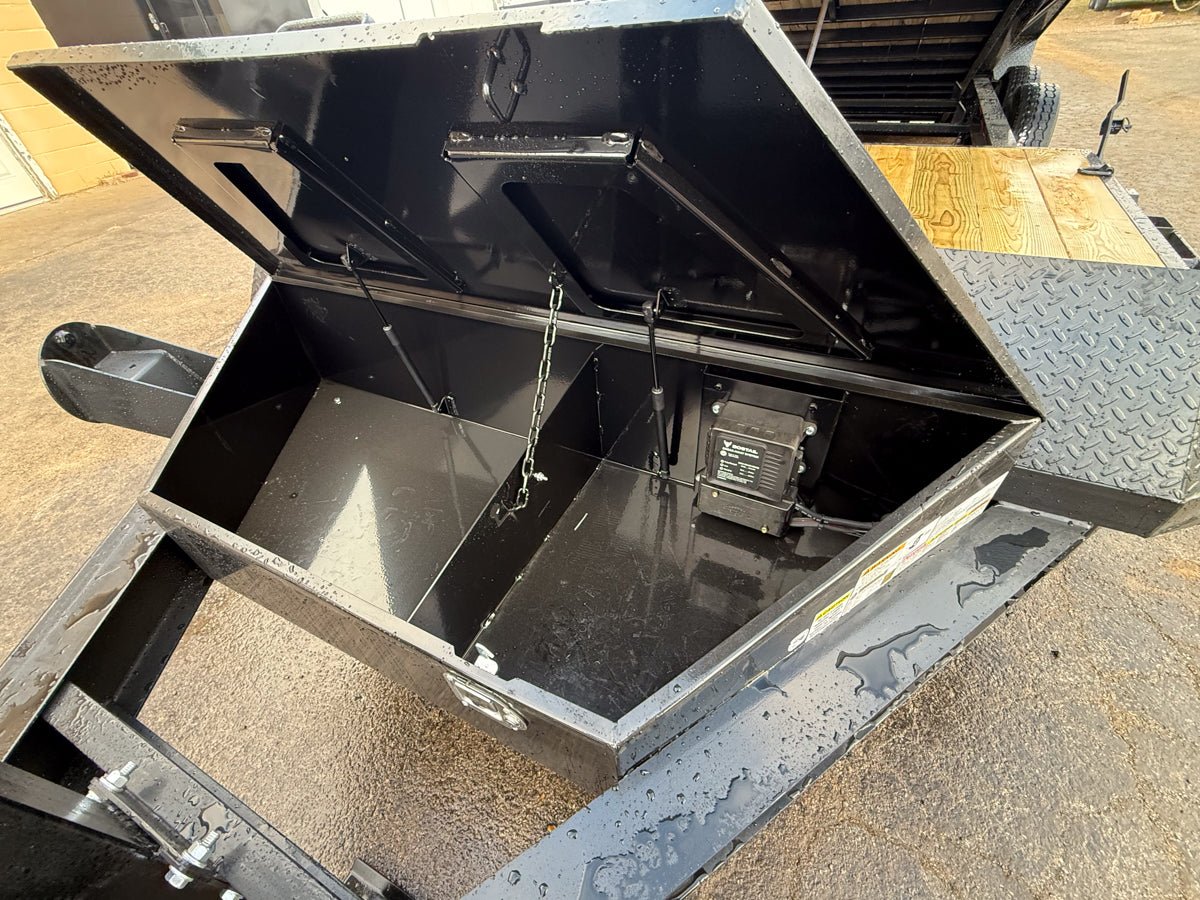

Front Mega Toolbox
Equipped with a large front-mounted mega toolbox. This provides significant secure storage space for tools, chains, and equipment, keeping them organized and protected.

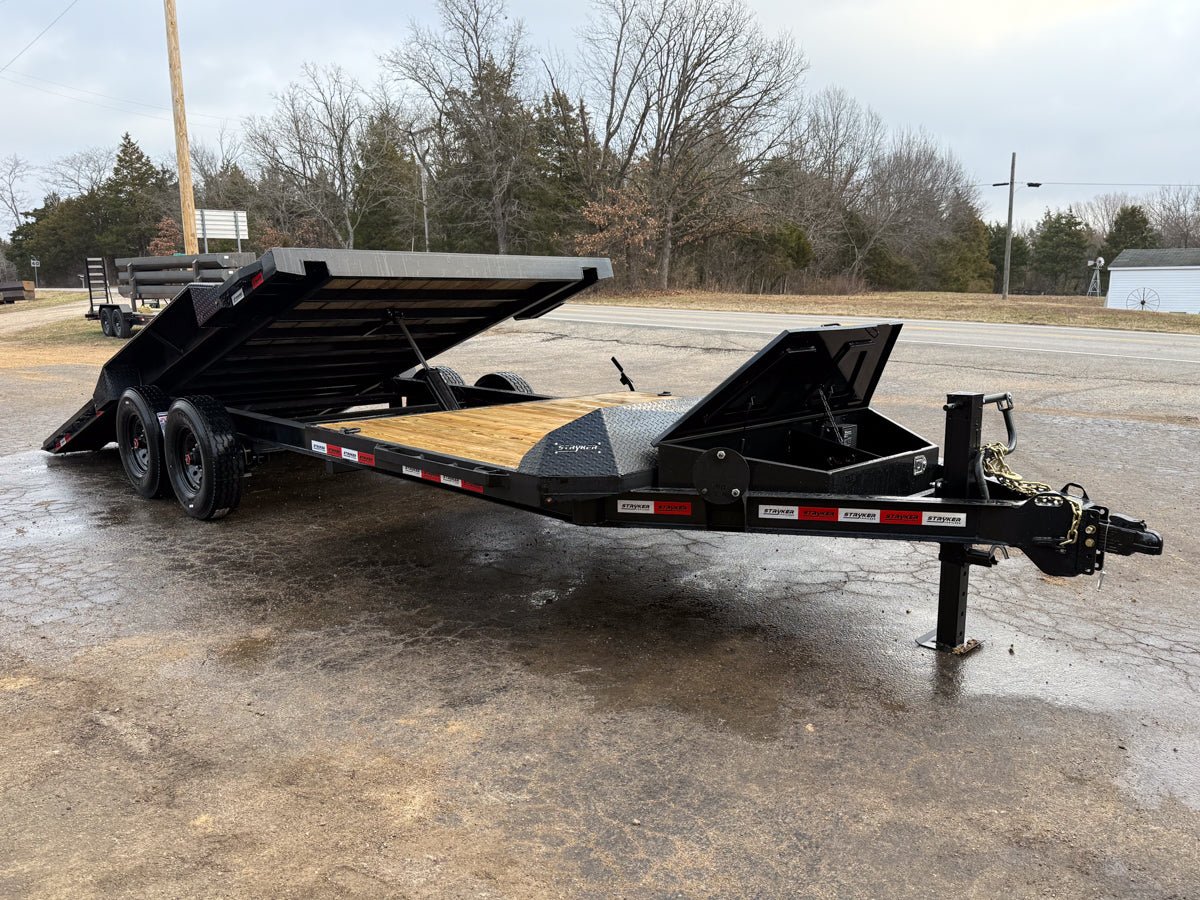

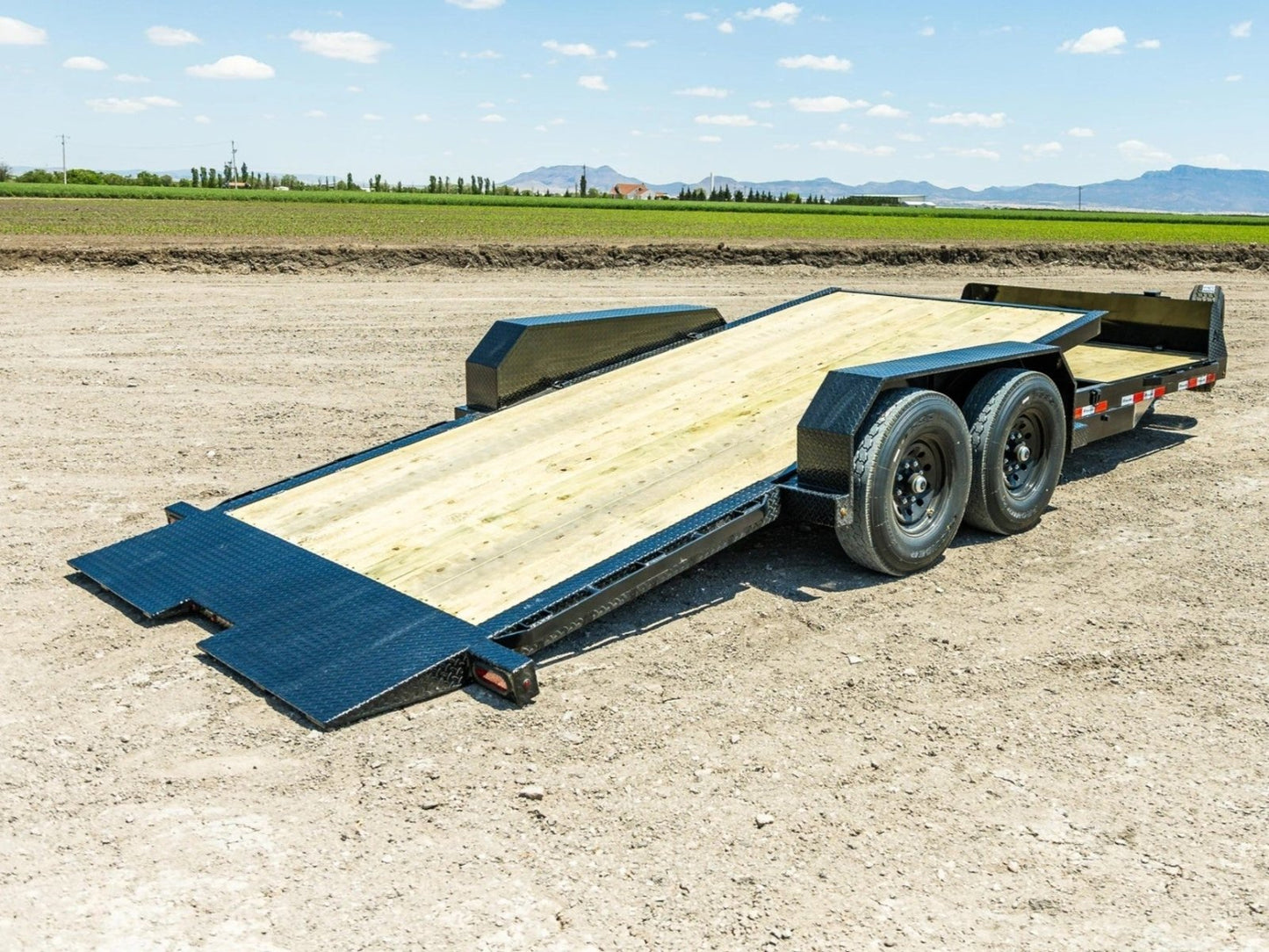

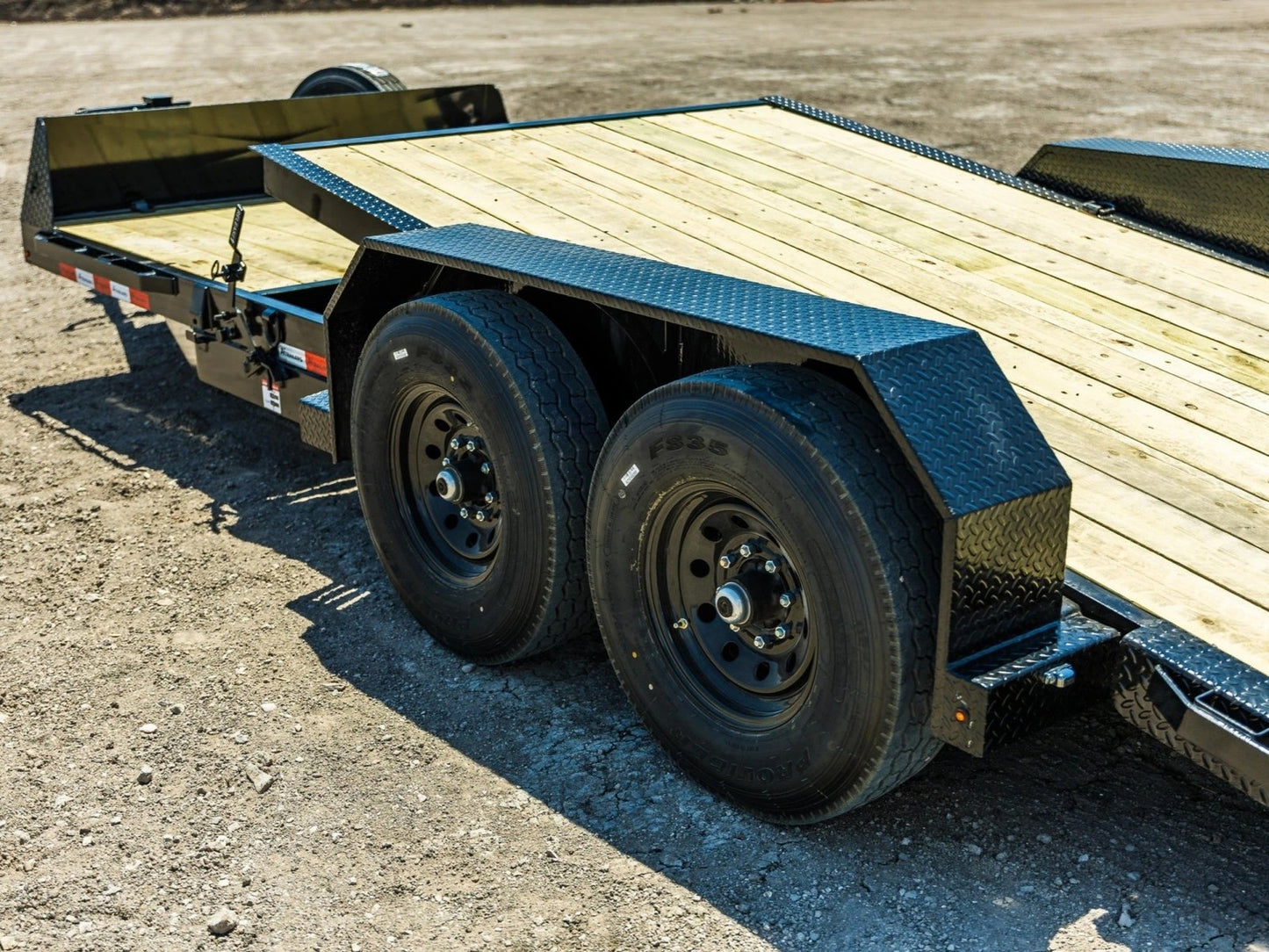

Gravity Tilt System with Split Deck

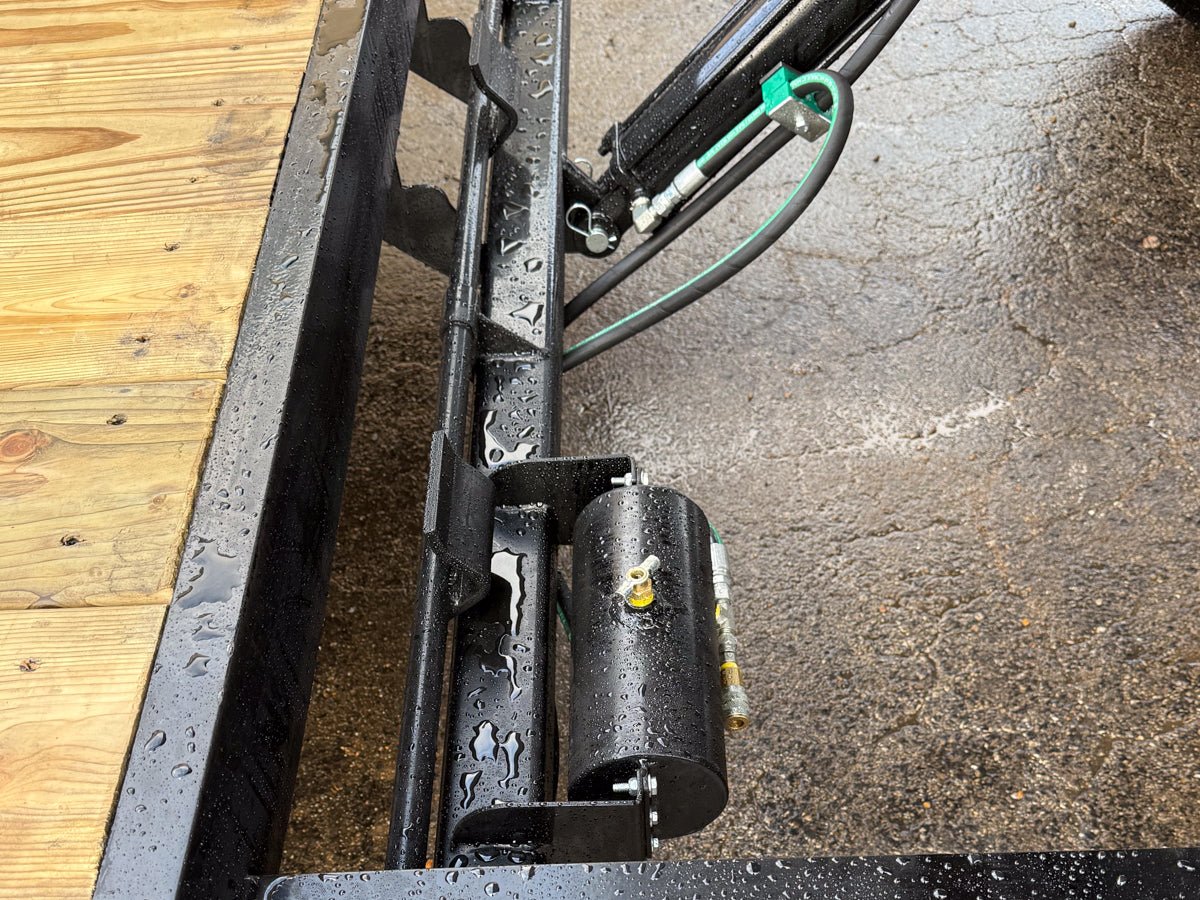

Features a gravity-operated tilt system with a split deck. The rear section lowers to create a drive-on ramp for easy equipment loading, powered by a simple, reliable hydraulic cylinder.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 24'
- WIDTH:
- 83" or 102"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 14k, 16k
RUNNING GEAR
- TIRES:
- ST235/80R16
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter Axles
2 - 8k Dexter Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Spring
- SPARE TIRE:
- Spare Tire
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- JACK:
- Single 10k Jack
- COUPLER:
- Adjustable 2 5/16" (10,000 lbs) Coupler
- TOOLBOX:
- Front Mega Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 6" Channel Frame
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- Diamond Plate Fenders
Drive Over Fenders
TILT FUNCTIONS
- TILT METHOD:
- Gravity Tilt System
- TILT DECK:
- Split Deck (6' - 8' Stationary Section)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- Weather Resistant Wiring Harness
CARGO & SAFETY
- D-RINGS:
- Standard w/ 10 D-Rings
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Black (#000000), Gray (#808080), White (#FFFFFF), Light Grey (#D3D3D3), Red (#E20000), Blue (#1D1DBB), Lime Green (#32CD32), Green (#008000), Orange (#FF5414)
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
