At a Glance
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

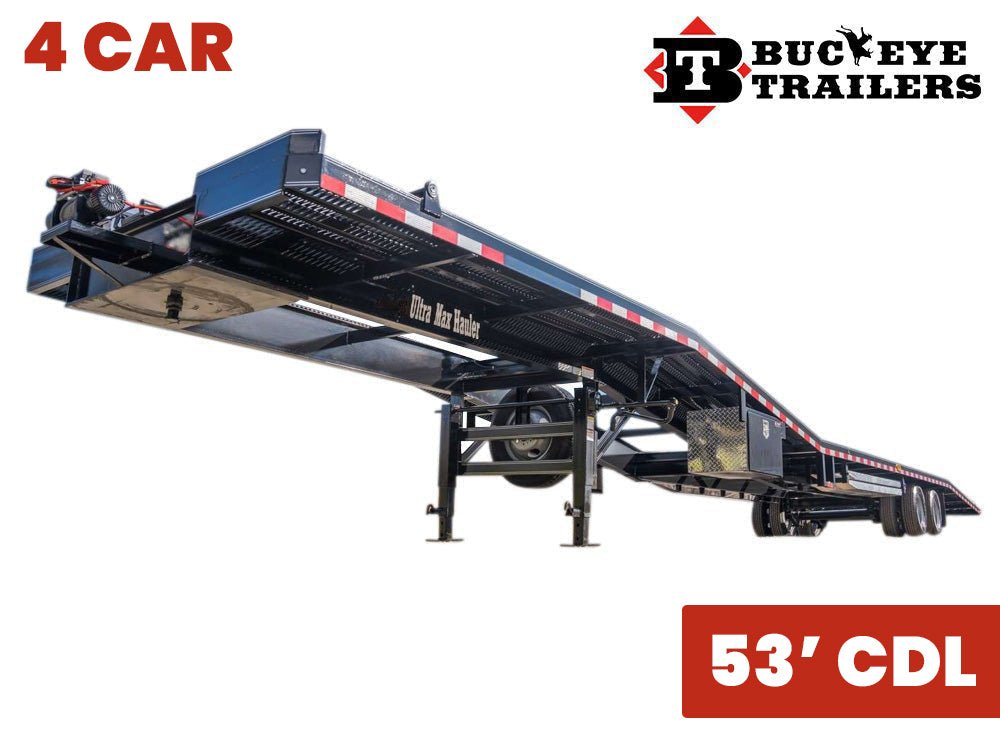

- Buckeye Ultra Max 53'
- GVWR:
- 24,000-30,000 lbs
- PAYLOAD:
- 15,750-21,750 lbs
- EMPTY WEIGHT:
- 8,250 lbs
- DECK LENGTH:
- 53' (11' Dovetail, 23' Lower Deck, 10' Upper Deck)
- DECK WIDTH:
- 102"
- DECK HEIGHT:
- 36" Lower Deck, 18" Rise to Upper Deck
- BUMPER HEIGHT:
- 22"-24"
FRAME & SUSPENSION
STRUCTURE:

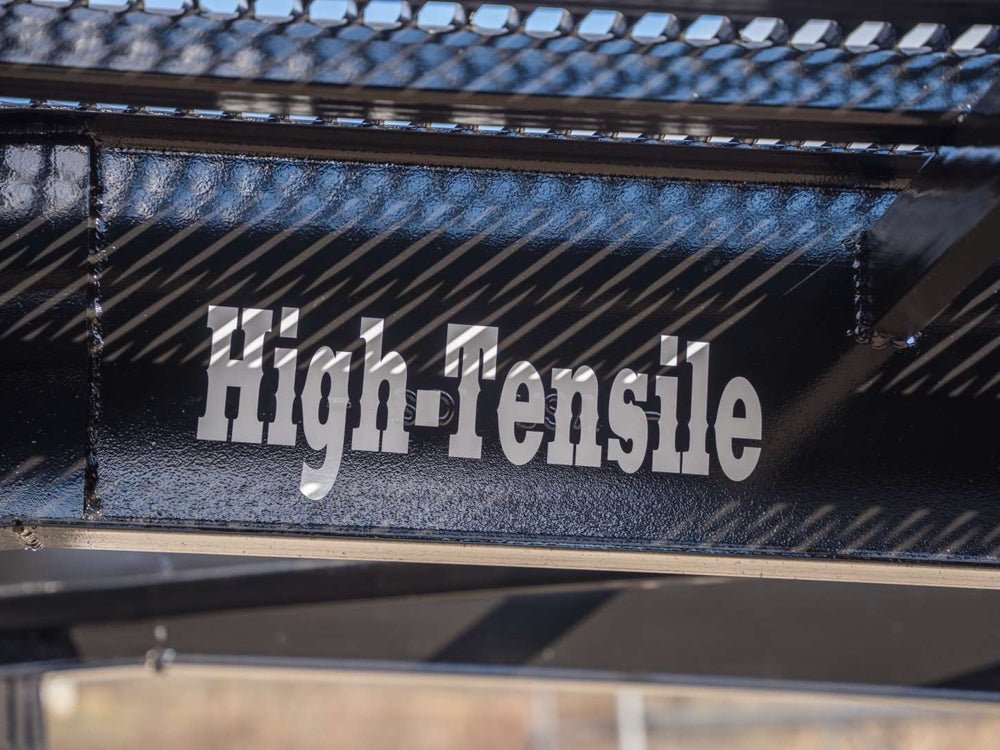

- FRAME:
- Heavy-Duty Fabricated I-Beam
- SUSPENSION:
- Heavy-Duty Slipper Spring

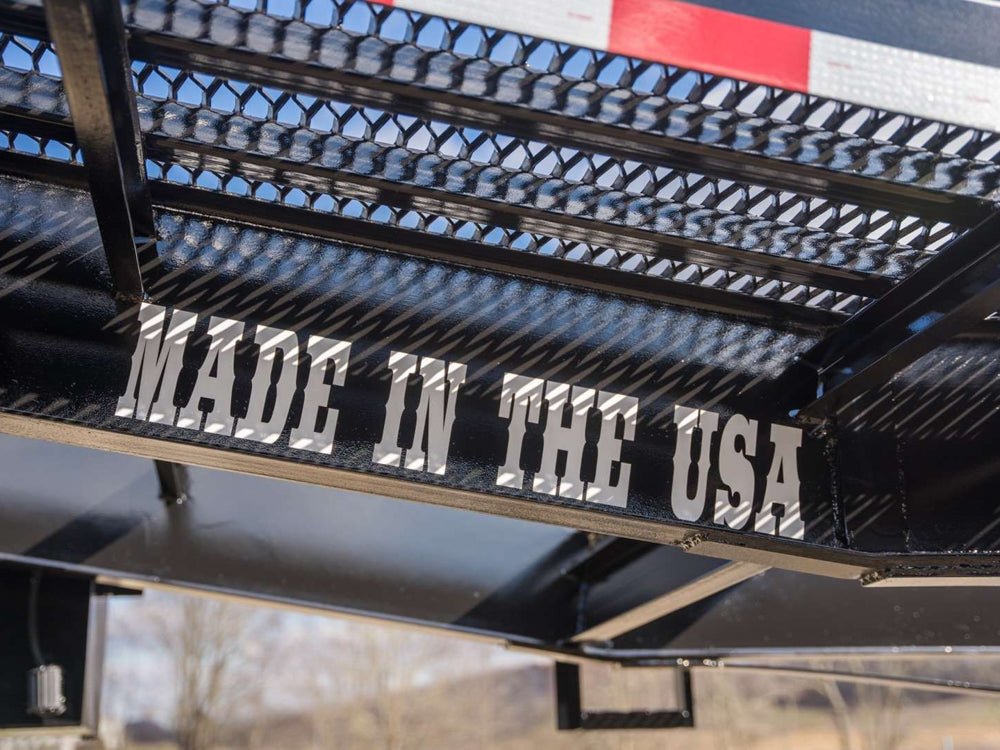

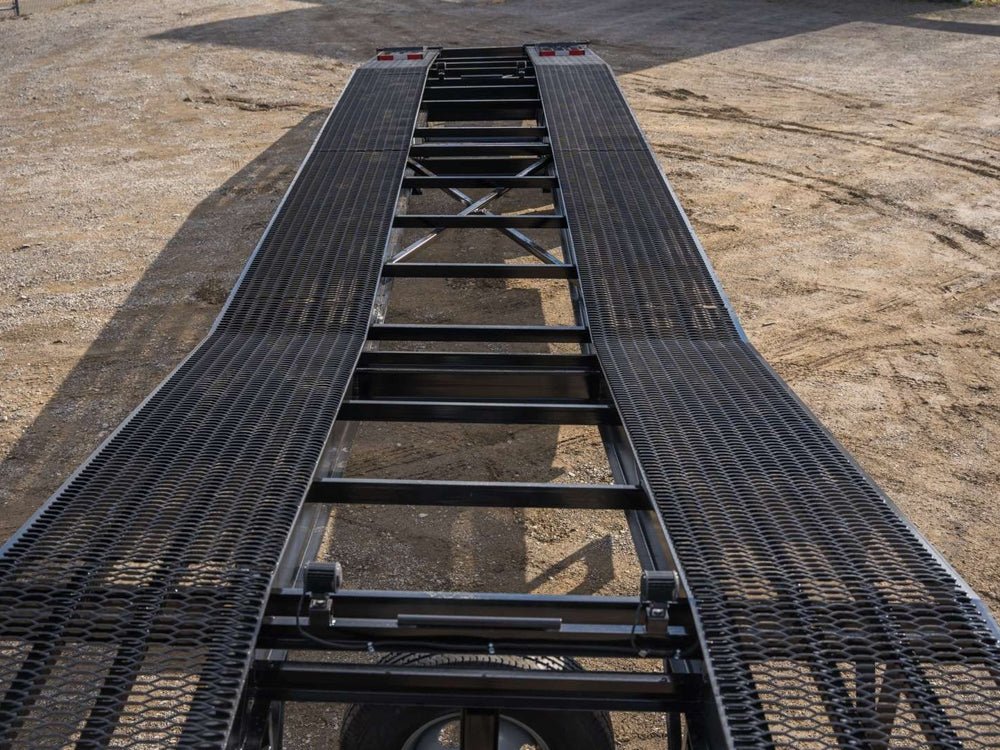

- FLOOR:
- HD Grate Engineered for 3 Point Soft Tie System
- AXLES:
- 10k HD Dexter Oil Bath Axles 5 Year Warranty
- RUNNERS:
- 30" Wide HD Engineered Grate
FRAME & SUSPENSION OPTIONS:
- SUSPENSION:
- Air Ride
- AXLES:
- 12,000 lbs Spring Axles to 20,000 lbs Air Ride With Air Brakes
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- King Pin with a Fifth Wheel (Height of 45"-48")

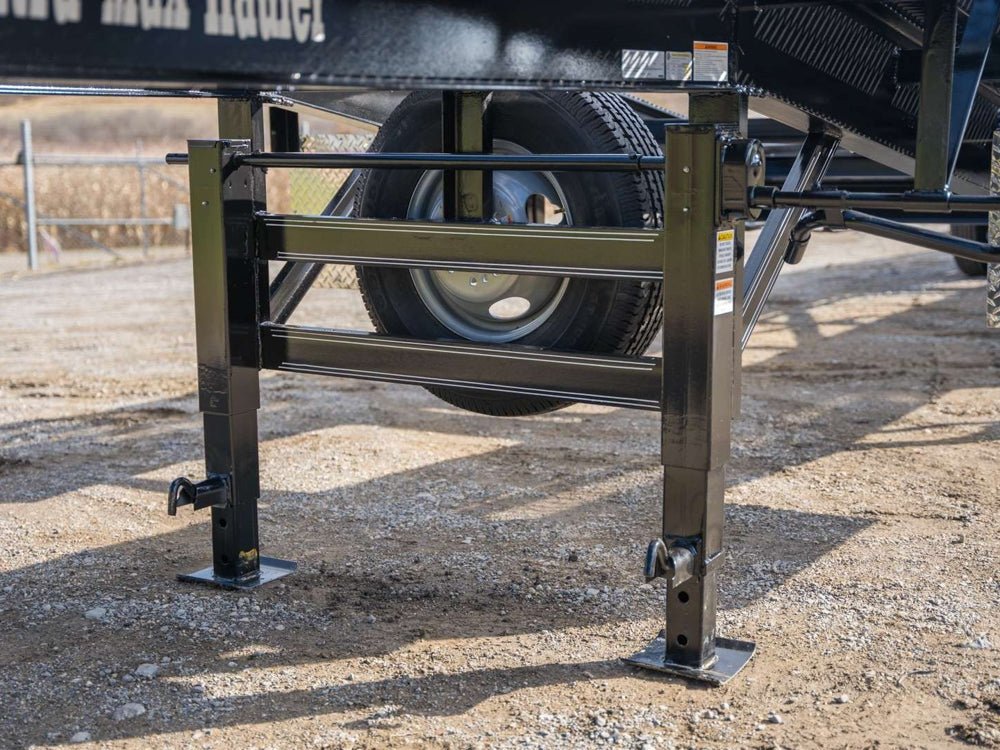

JACKS:
- TYPE:
- 2 Dual Speed 12k Spring Loaded Drop Leg Jacks
ACCESSORIES:
- STAKE POCKETS & RUBRAILS:
- Included
- TIE DOWNS:
- Included
- STORAGE:

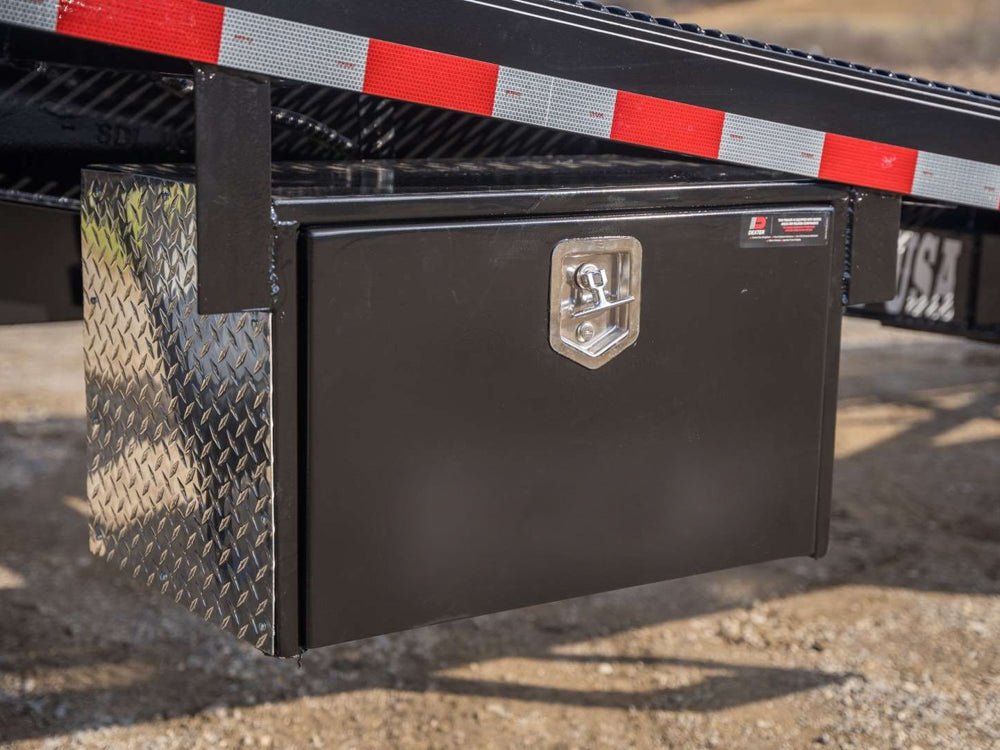

- 2 Steel Side Mount Toolboxes With Lock
- FINISH:
- Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane
- WARRANTY:
- 2 Year Structural Frame
COUPLER & ACCESSORIES OPTIONS:
- STORAGE:
- Toolbox - Weatherproof, Locking
- WINCH:
- 12,000lb Winch Kit – Wireless Remote Included
RUNNING GEAR & SAFETY

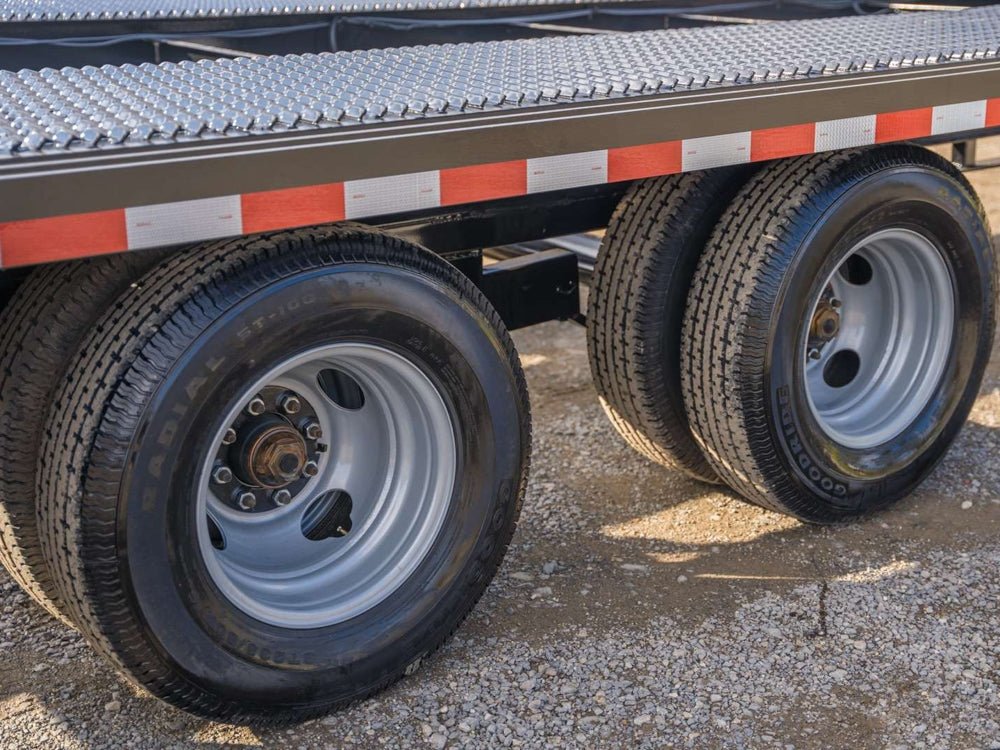

TIRES & WHEELS:
- TIRES:
- 235-80-R16 Load Range G
- WHEELS:
- HD Steel Dual 16"
- BOLT PATTERN:
- 8 on 6.5" Bolt Pattern

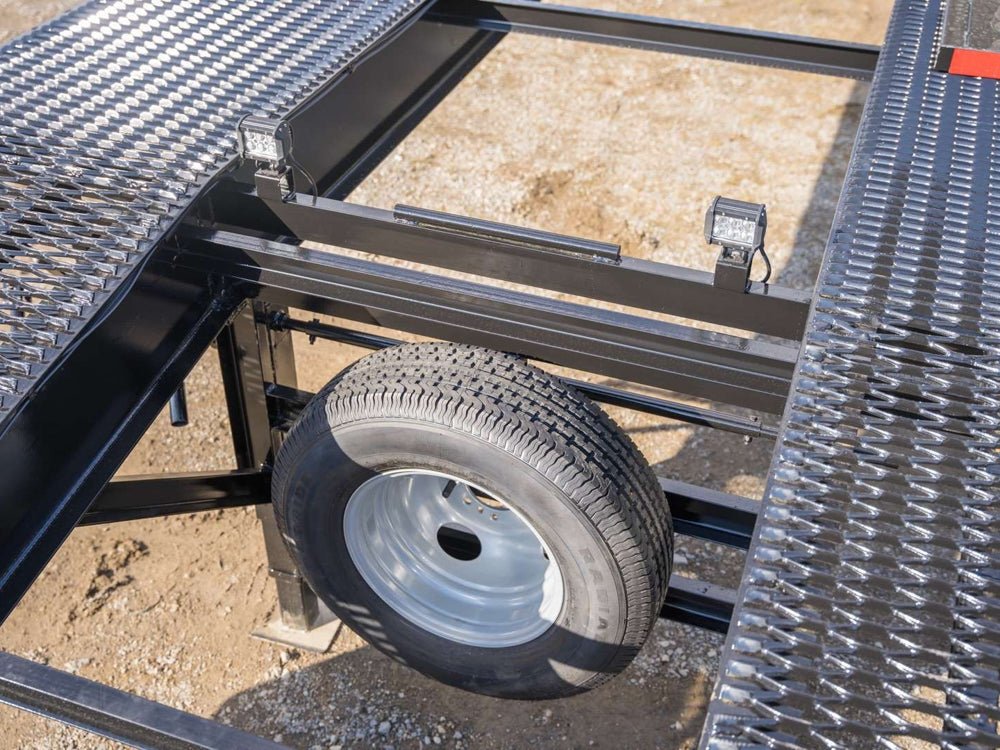

- SPARE MOUNT:
- 235-80-R16 Load Range G
RUNNING GEAR:
- BRAKES:
- Electric Brakes

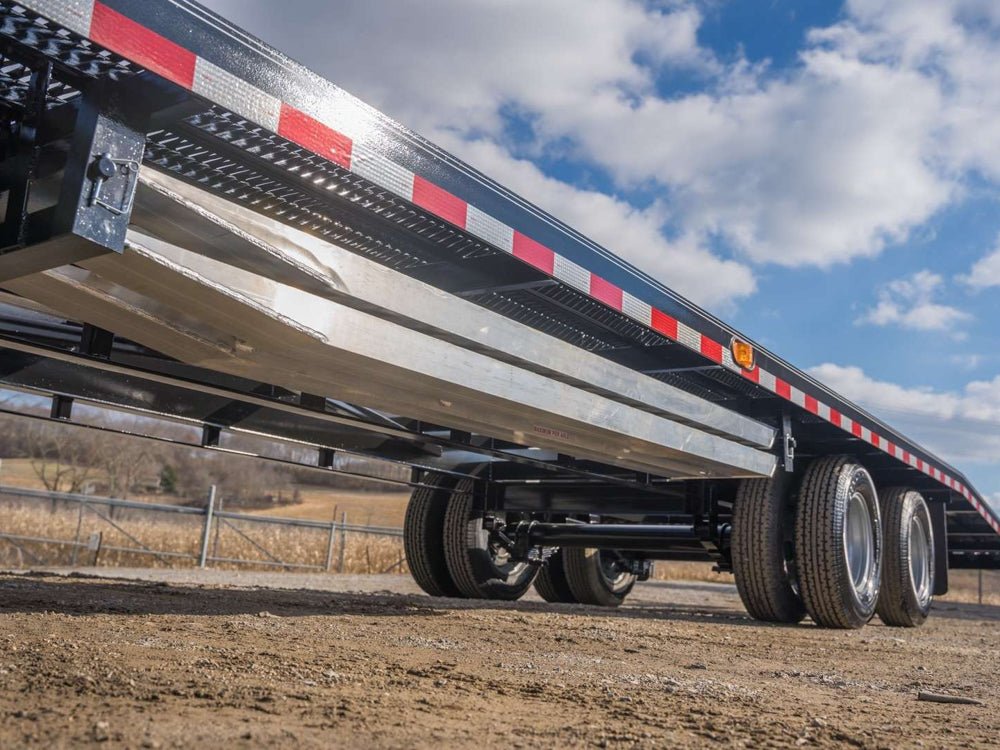

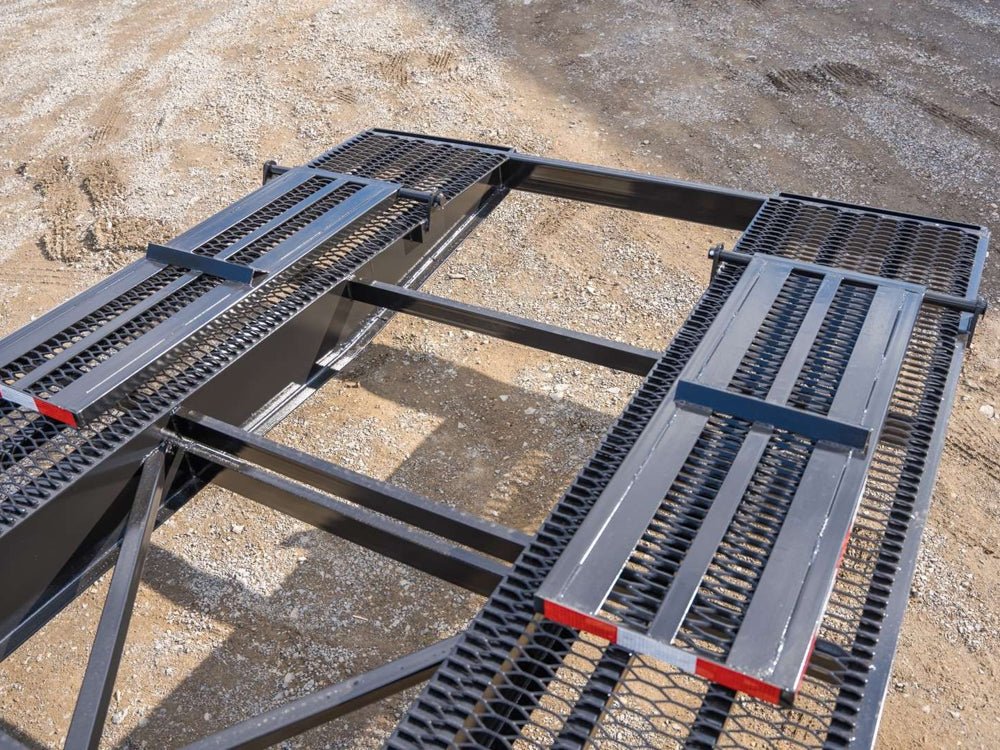

- RAMPS:
- 9' Aluminum Ramps Rated for 10,000 lbs
SAFETY:
- REFLECTIVE TAPE:
- DOT Approved Reflective Tape
- TRAILER PLUG:
- 7-Way RV
- BREAK-AWAY KIT:
- Breakaway Kit & Battery Box
- SAFETY CHAINS:
- Included
- LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR & SAFETY OPTIONS:
- TIRES:
- 215-75-R17.5 Load Range J on Aluminum Wheel
- TIRE UPGRADE:
- 14 Ply Tire Upgrade
- SPARE MOUNT:
- 215-75-R17.5 Load Range J on Aluminum Wheel
- SPARE TIRE:
- 10 Ply Spare Tire
- SPARE TIRE:
- 14 Ply Spare Tire
- RAMPS:
- 10' or 12' Aluminum Ramps Rated for 10,000 lbs

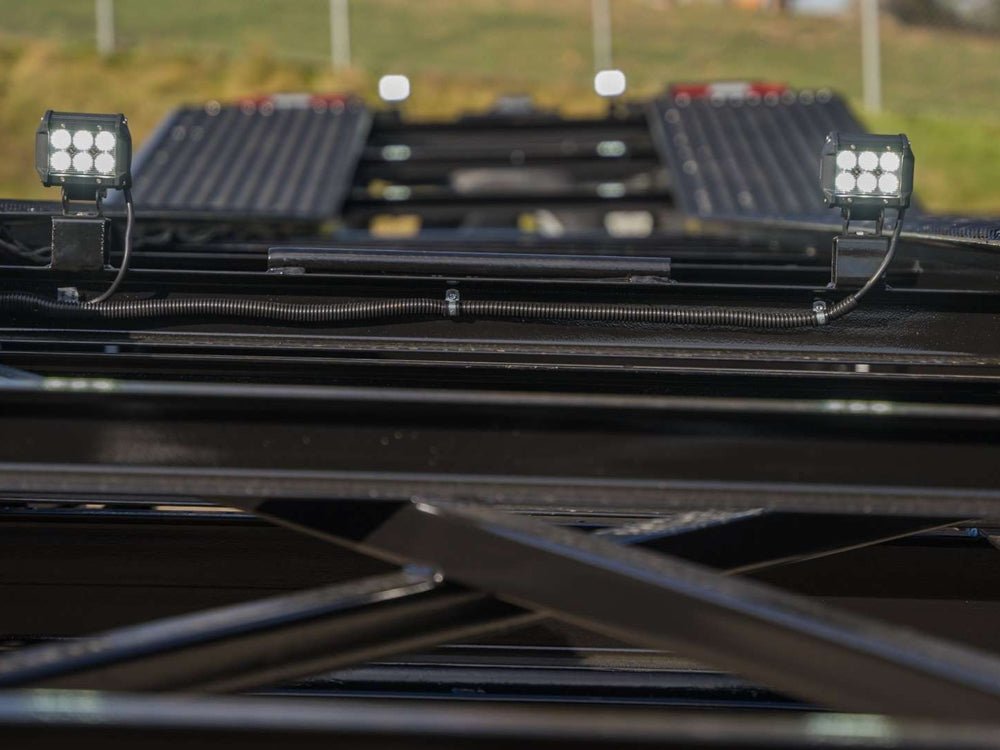

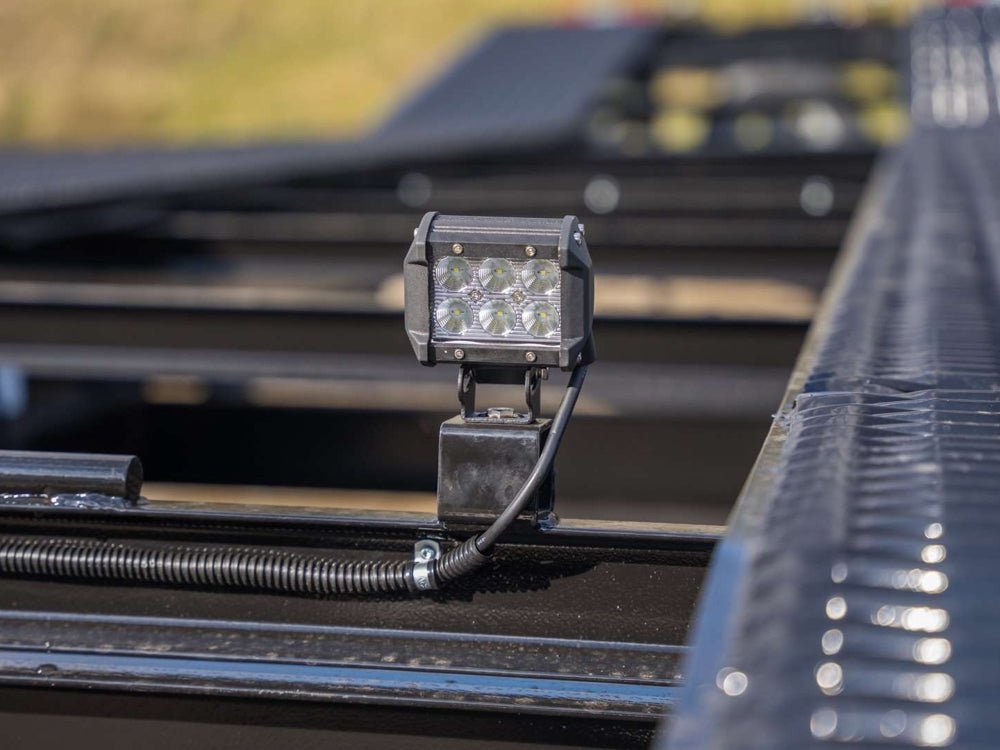

- LIGHTS:
- LED Flood Lights
- PACKAGE:
- Trailer Hauling Package (102" Wide Deck, Center Rail, 3 Ball Towers, 12,000lb Winch Kit)
